Lancom Systems

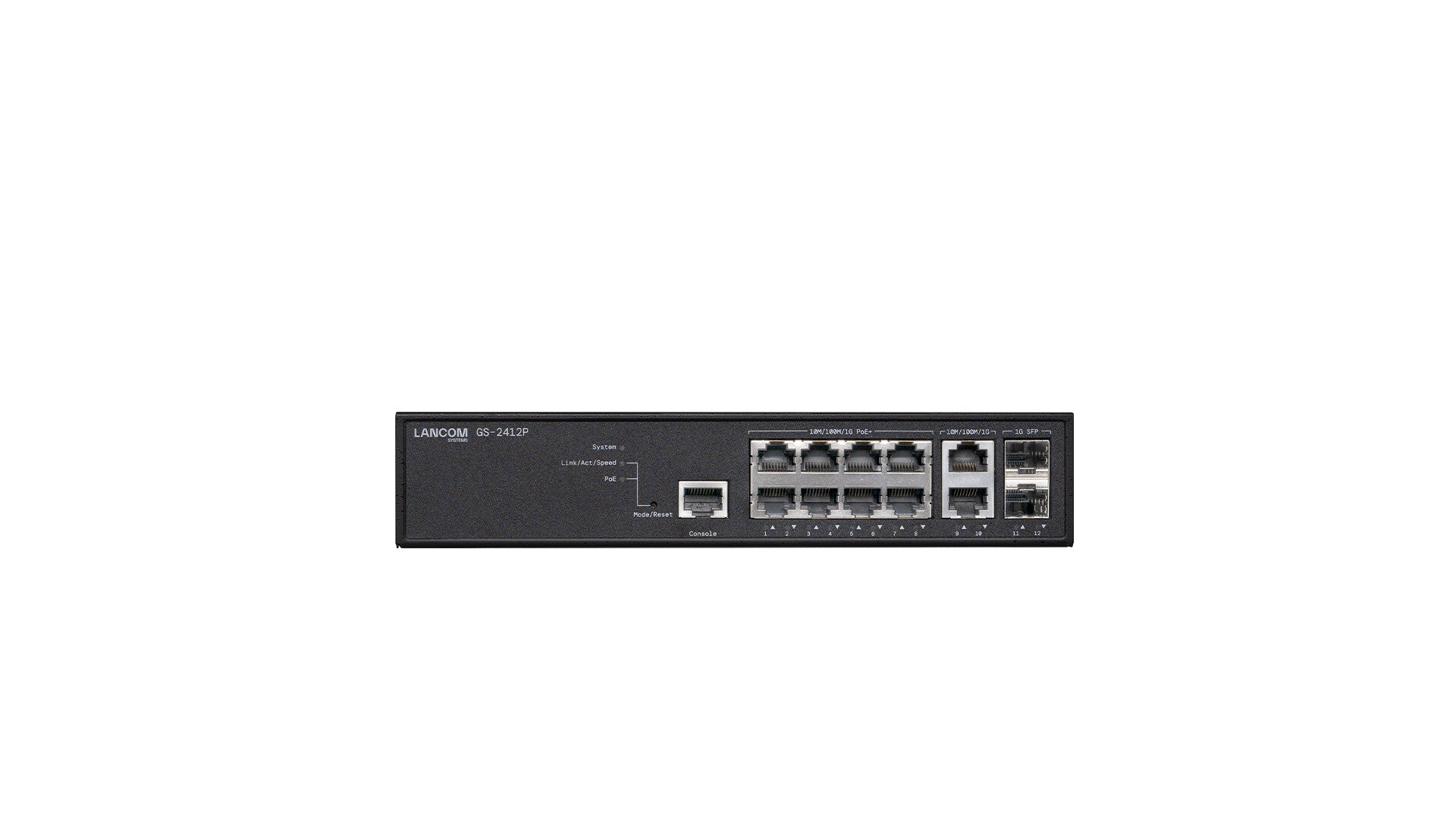

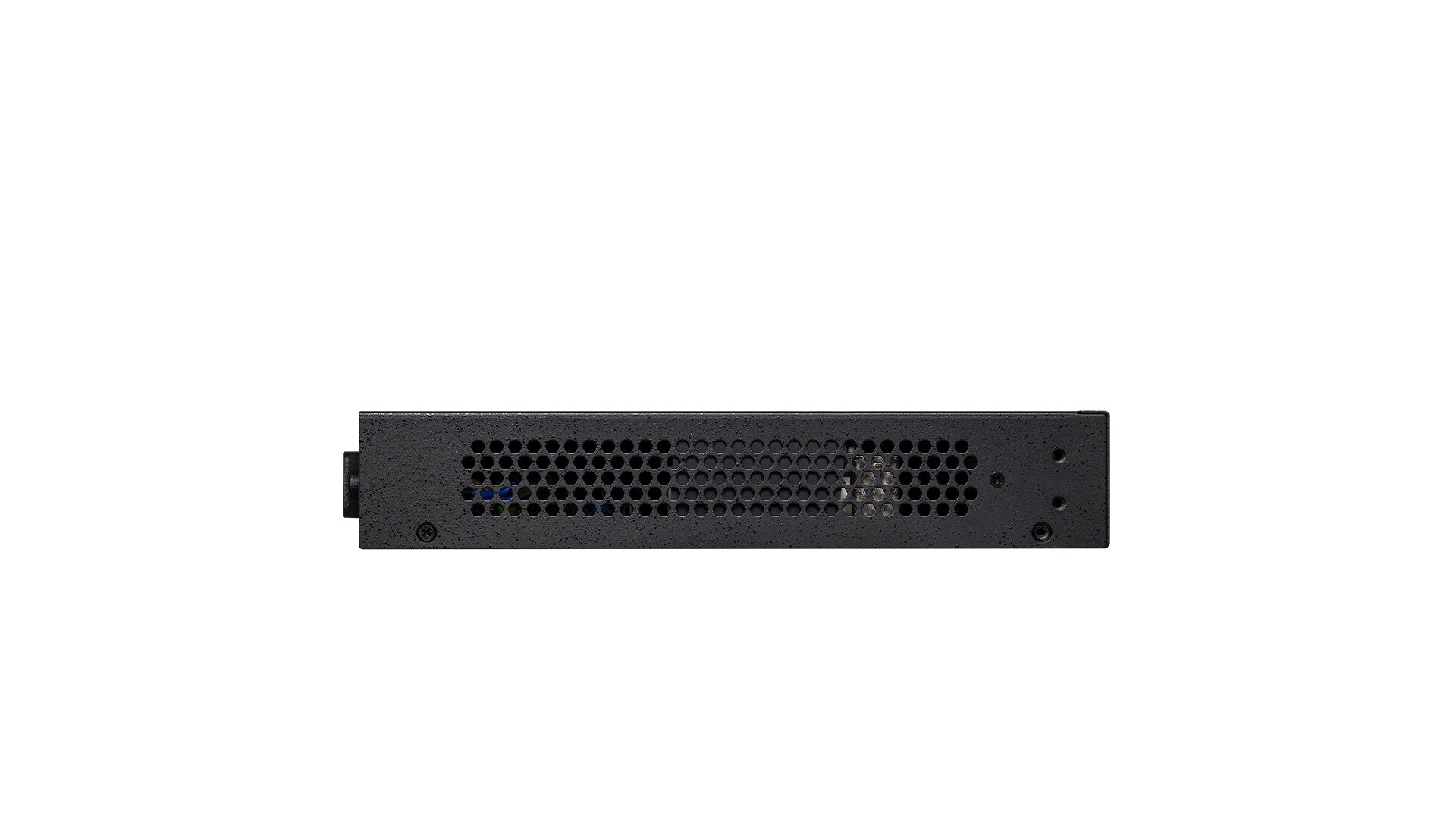

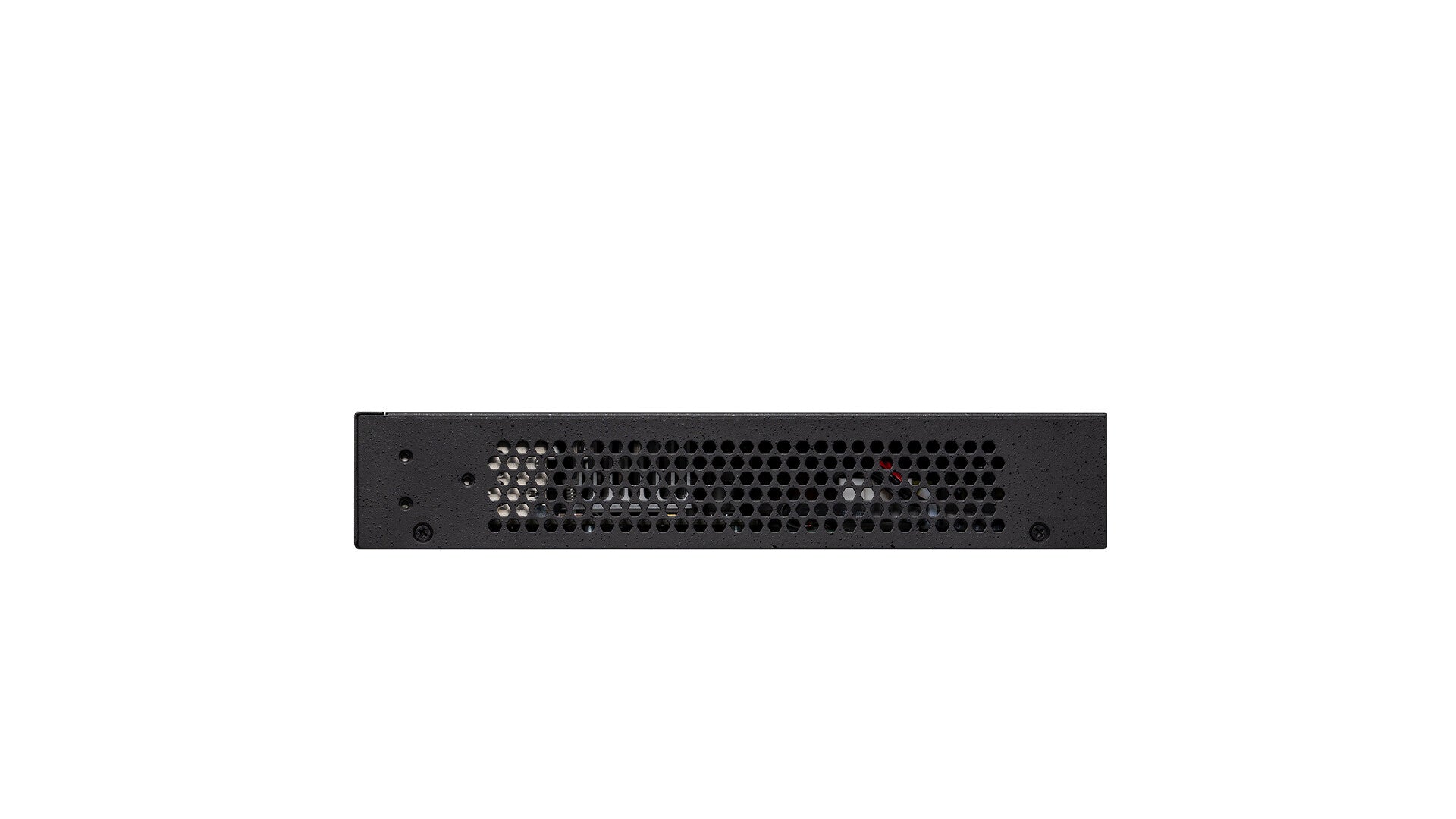

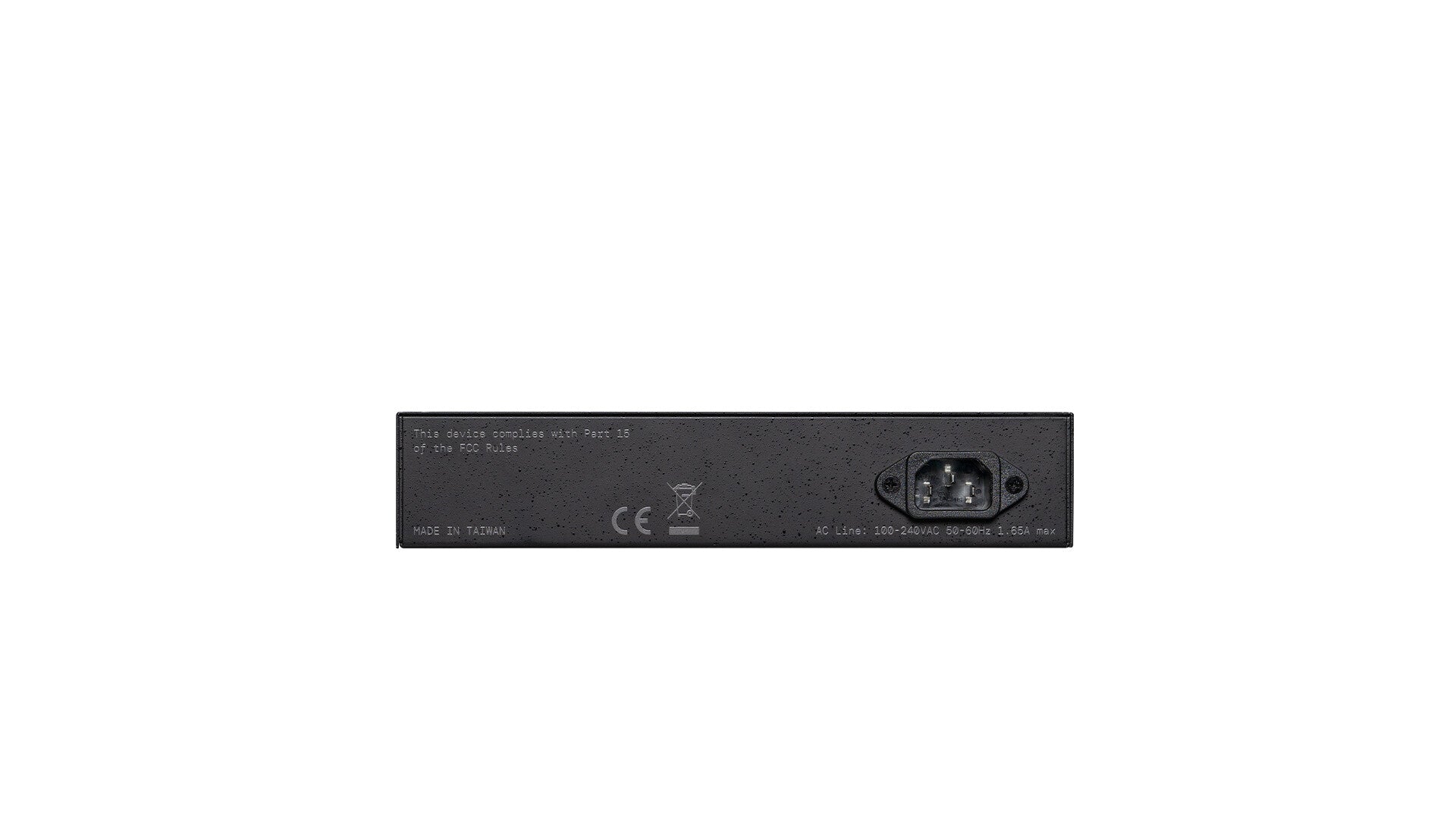

GS-2412P Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

GS-2412P Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£454.20 GBP
£454.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

61668

Low stock: 1 left

  • Managed L2+ Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • MAC address table: 8000 entries
  • Access Control List (ACL)
  • Rack mounting
  • AC Power supply included Power over Ethernet (PoE)
24 GBit/s, 10x 1G LAN (8x IEEE 802.3at PoE-Ports), 2x SFP, 220 x 45 x 242 mm, 2.35 kg

Compact, silent, efficient: Gigabit access switch with PoE+
Whether in quiet business premises, professional small offices, or growing branch networks, the LANCOM GS-2412P provides a powerful and silent solution for efficient network management. This fanless Gigabit access switch connects up to twelve end devices via ten Gigabit Ethernet ports and two additional SFP ports. With Power over Ethernet (PoE+) and a total output of 130 watts, up to eight PoE-powered devices can be reliably supplied with power via IEEE 802.3af/at, eliminating the need for additional power supply units or cabling. For Layer 2+ switch management, users can choose between a web-based GUI, a CLI, or the LANCOM Management Cloud (LMC) for centralized, automated device rollouts and configurations.

Management features
MIB support Y
Configuring Location Settings (CLI) Yes
Cloud-managed Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2+
Switch type Managed
Ports & interfaces
Power connector AC-in jack
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 10
Network
Number of VLANs 4096
VLAN support Yes
Flow control support Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Ethernet LAN data rates 10,1000,100 Mbit/s
Policy-based routing Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w
Data transmission
Packet forwarding rate (1 Gbps) 14.88 pps
Jumbo frames 9000
Jumbo frames support Yes
Throughput 24 Gbit/s
MAC address table 8000 entries
Security
Password protection Yes
SSH/SSL support Yes
Loop protection Yes
Security algorithms SNMP, SNMPv2, SNMPv3
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP relay, DHCP client
Multicast features
Multicast support Yes
Design
Country of origin Taiwan
LED indicators Yes
Product colour Black
Rack mounting Yes
Power
Power consumption (max) 160 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 130 W
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 2.35 kg
Height 45 mm
Depth 242 mm
Width 220 mm
Packaging data
Manual Yes
Logistics data
Customs product code (TARIC) 85176200
