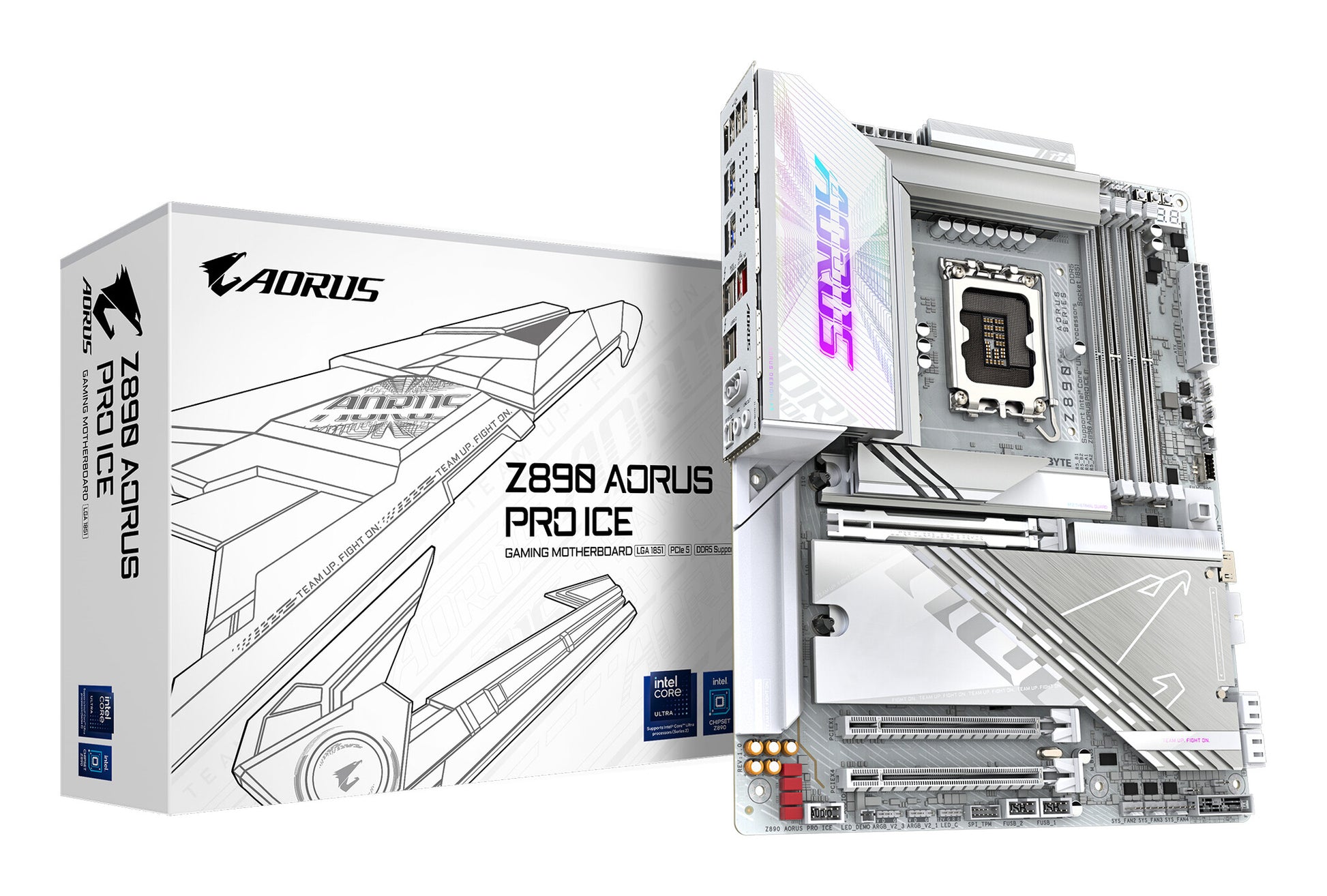

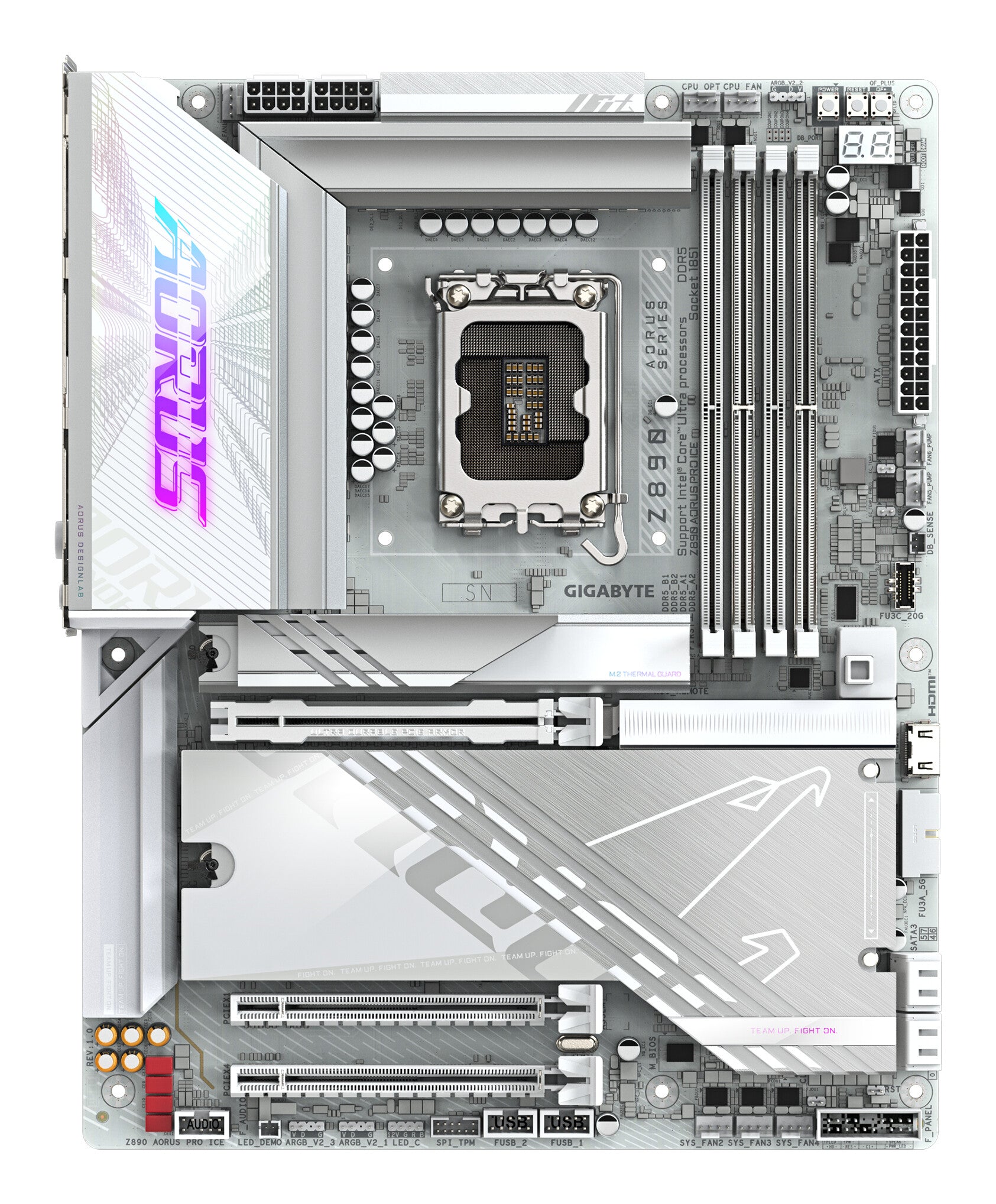

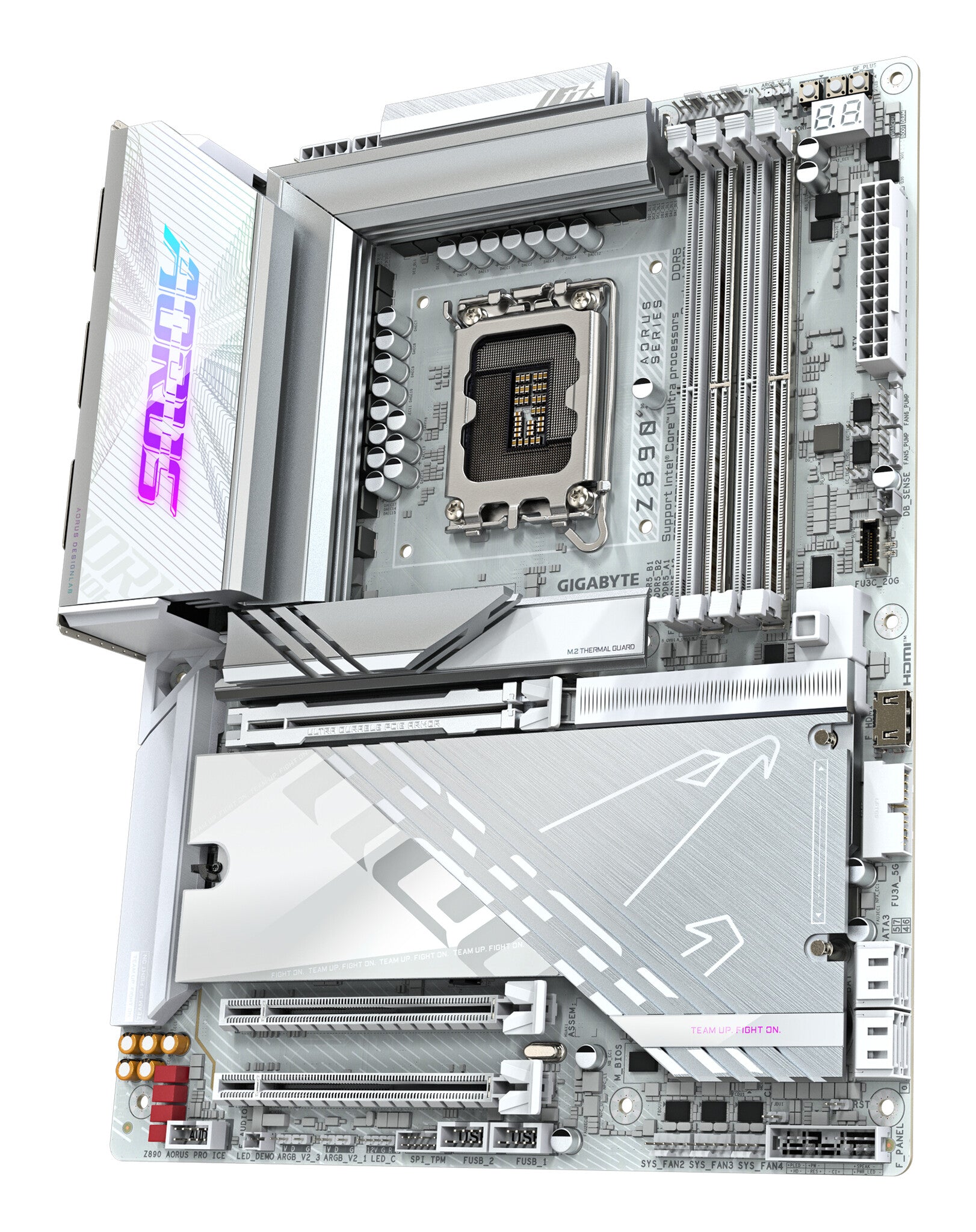

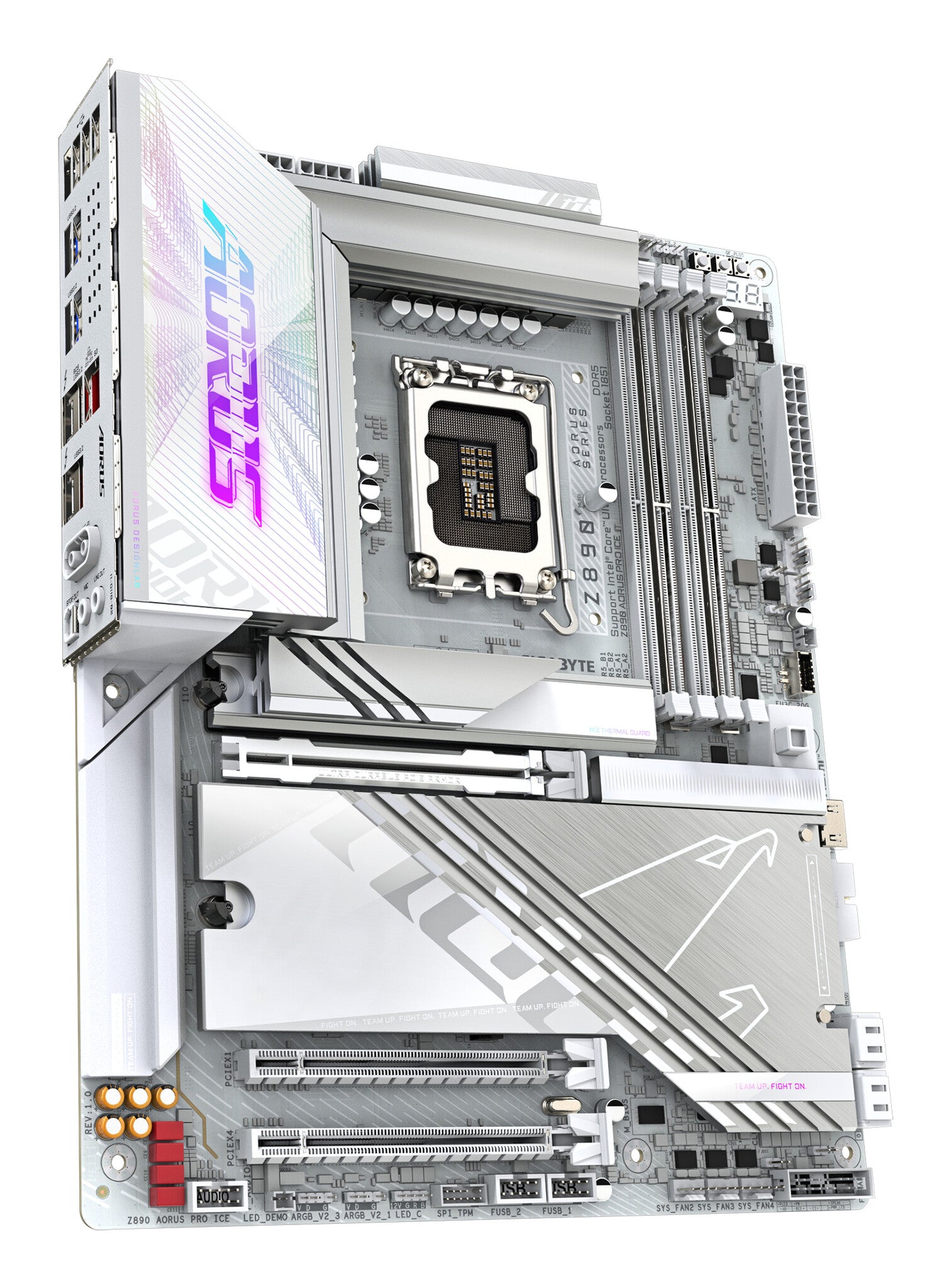

GIGABYTE Z890 AORUS PRO ICE Motherboard

GIGABYTE Z890 AORUS PRO ICE Motherboard

£350.26 GBP
£350.26 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Z890 AORUS PRO ICE

11 in stock

  • Digital 16+1+2+1 Phases 90A SPS VRM with Tantalum Polymer Capacitor
  • Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
  • PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
  • Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
  • Intel 2x2 Wi-Fi 7 BE200 with WIFI EZ-Plug Design
  • 5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
  • AORUS Exclusive DDR Cooling kit: DDR Wind Blade
Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 9500MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0, Wi-Fi 7, 5GbE LAN, Thunderbolt 4

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Maximum internal memory supported by processor 256 GB
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz
Supported memory clock speed (max) 9500 MHz
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory 256 GB
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 4
Number of HDDs supported 9
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
On-board graphics card No
DirectX version 12.0
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 4
Total number of SATA connectors 4
ATX Power connector (24-pin) Yes
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 2
TPM connector Yes
12V power connector Yes
RGB LED pin header Yes

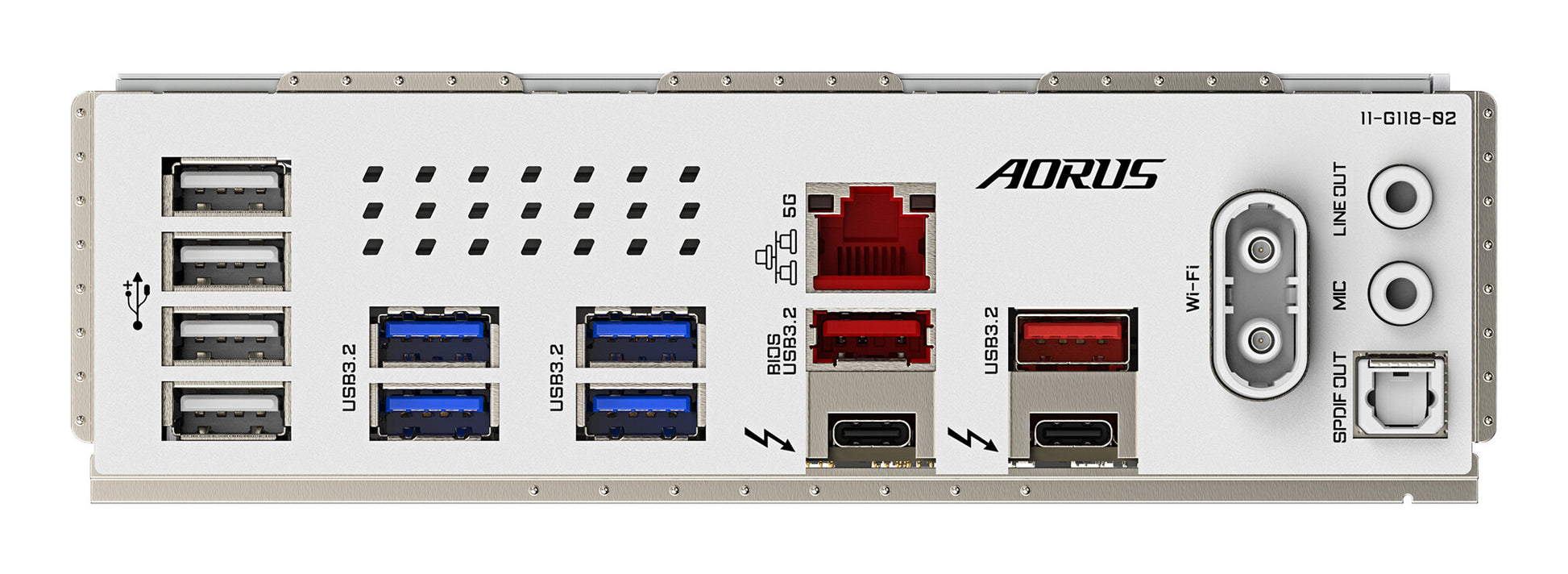

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 2
Microphone in Yes
S/PDIF out port Yes
Thunderbolt ports quantity 2
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
WLAN controller model Intel Wi-Fi 7 BE200
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Motherboard chipset Intel Z890
Audio chip Realtek ALC1220
Audio output channels 7.1 channels
Product colour White
PC health monitoring Fan, Temperature, Voltage
Windows operating systems supported Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 5
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
Clear CMOS button Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Battery
Lithium weight per battery 0.07 g
Battery weight 3 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 2.55 kg
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 35 mm
Packaging content
Batteries included Yes
Bundled software Norton® Internet Security (OEM version)
LAN bandwidth management software
Technical details
Warranty period 3 year(s)
Other features
Weight 2.27 kg
