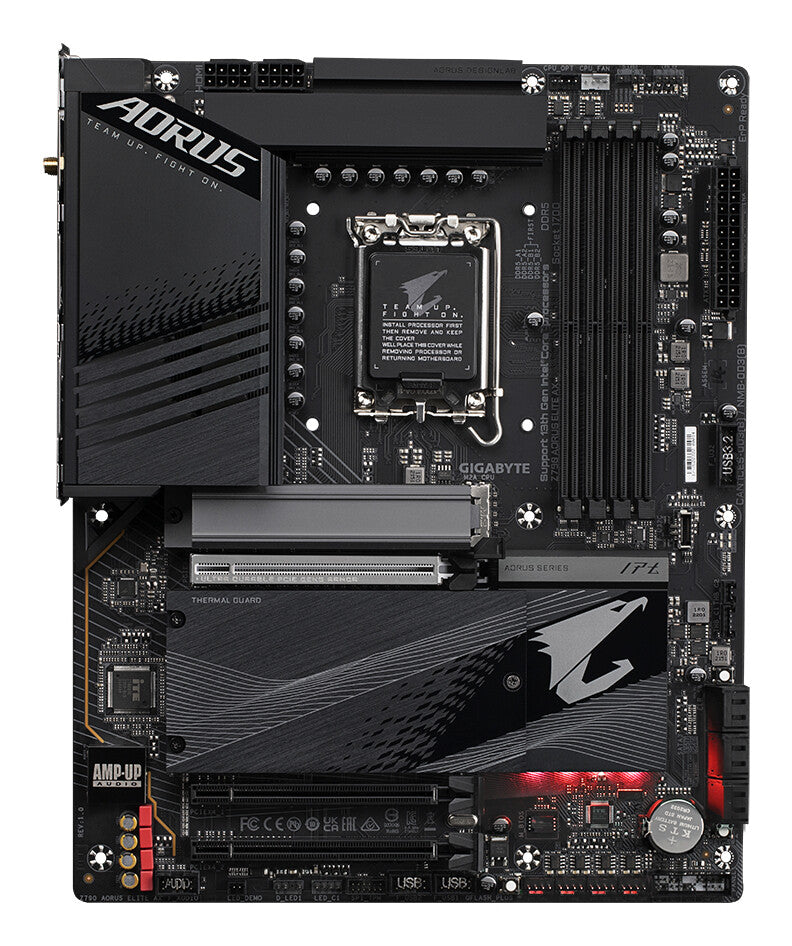

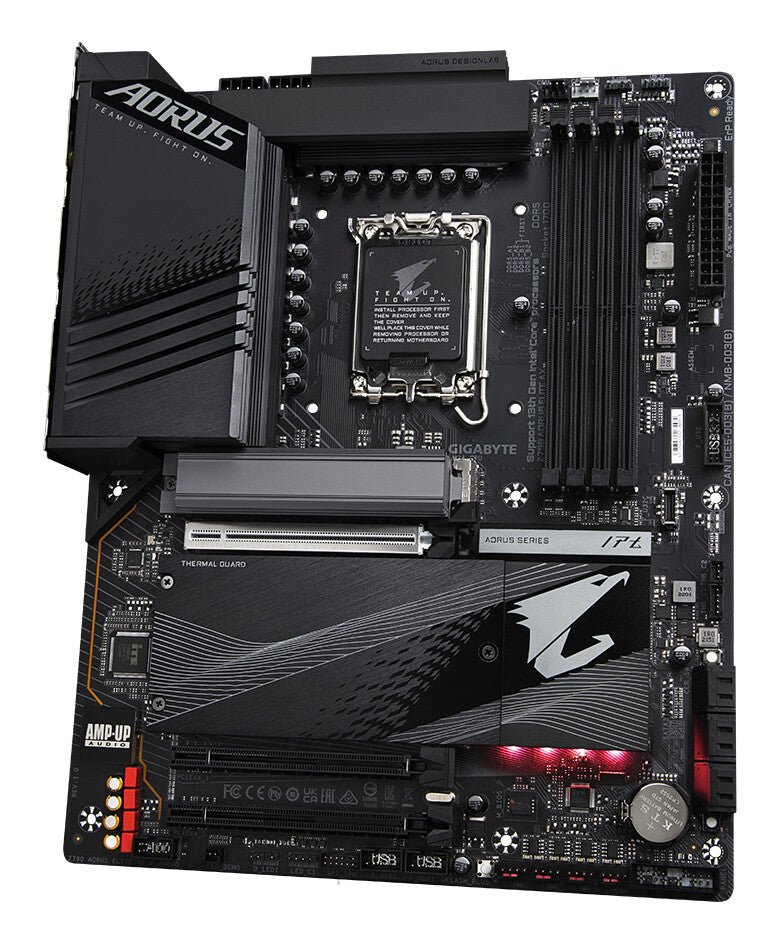

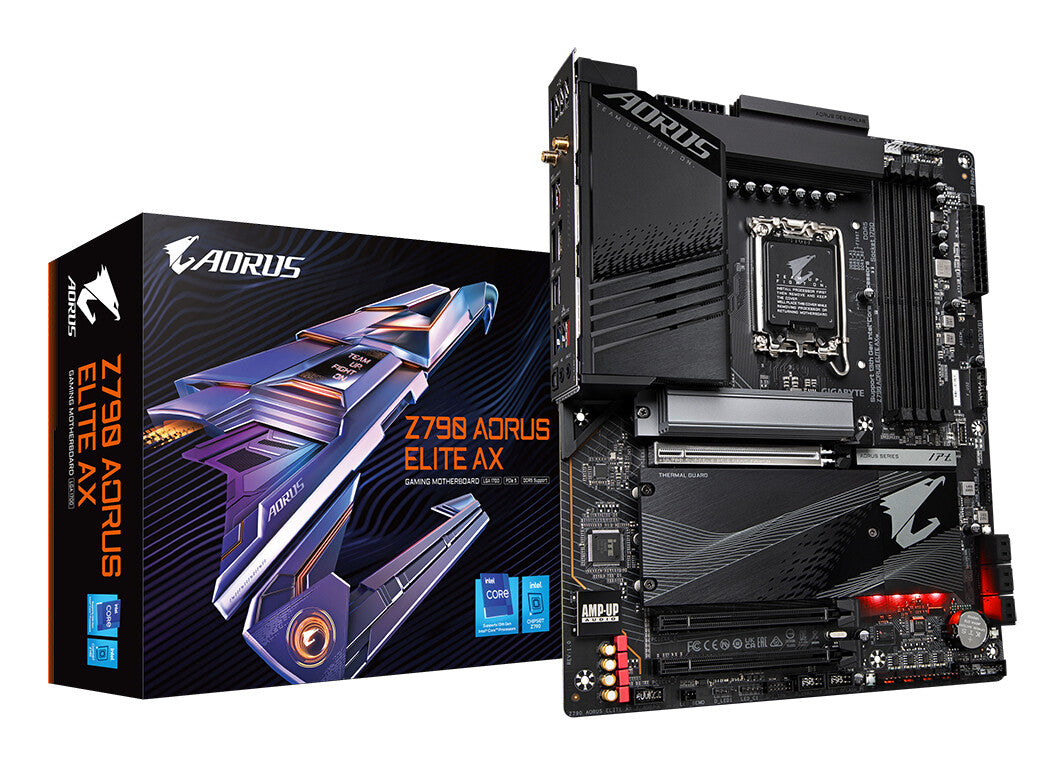

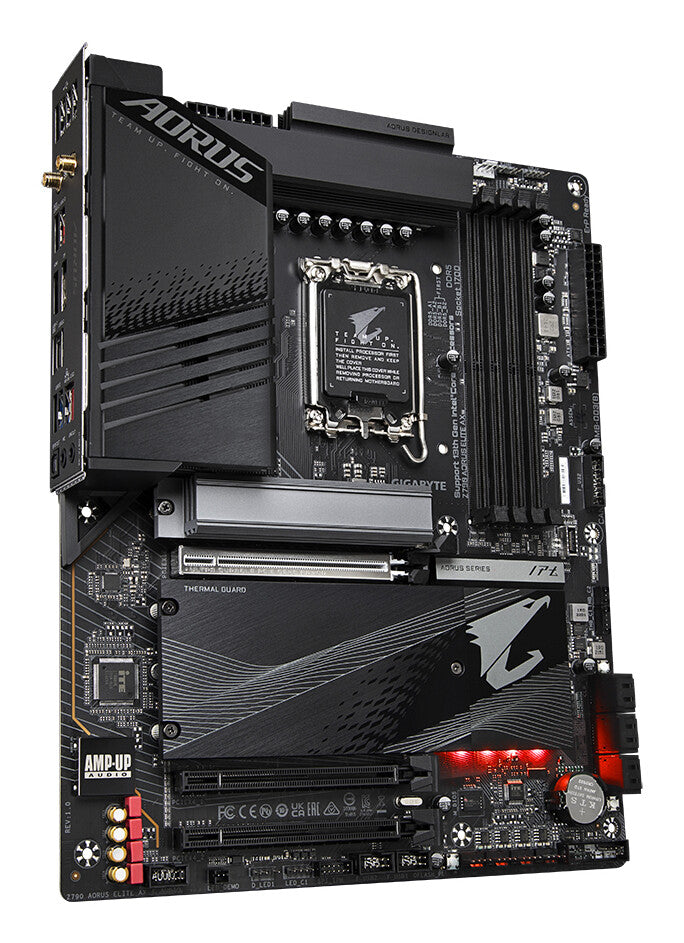

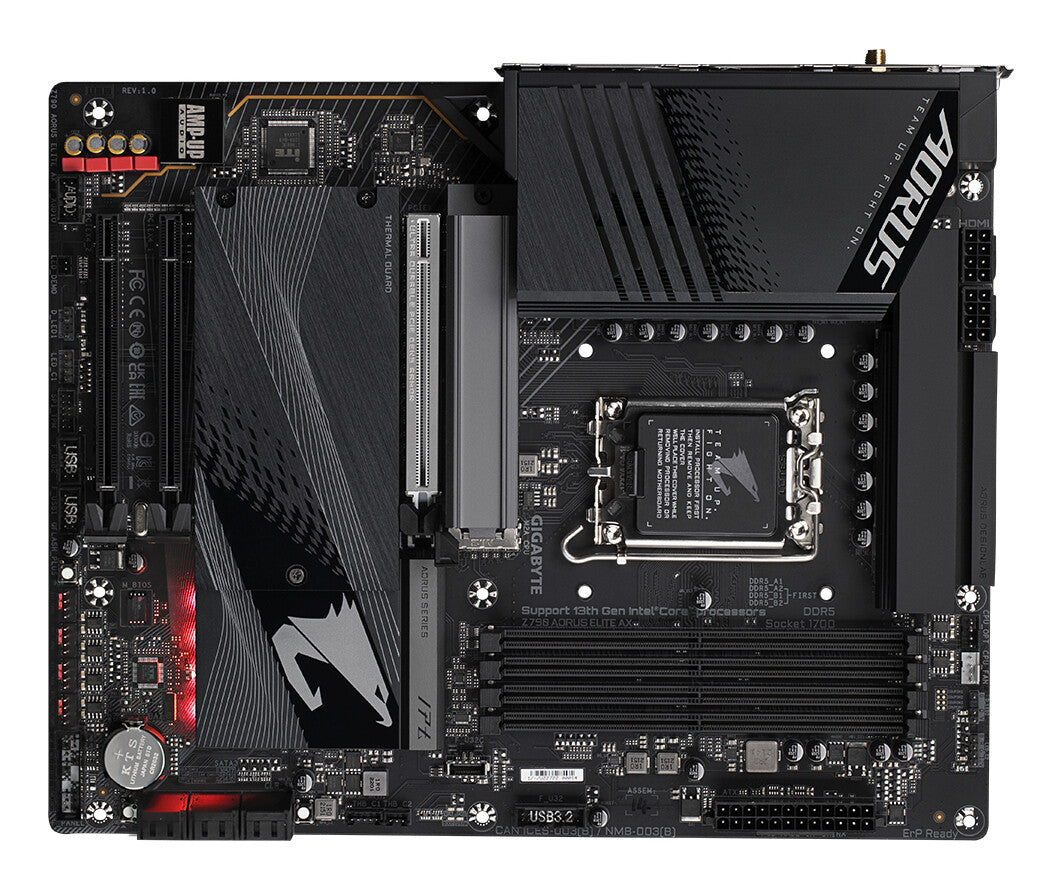

GIGABYTE Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

GIGABYTE Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

£278.94 GBP
£278.94 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Z790 AORUS ELITE AX

14 in stock

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance：Twin 16*+2+１ Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Z790 AORUS ELITE AX Motherboard - Supports Intel Core 14th CPUs, 16*+2+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor
Maximum internal memory supported by processor 192 GB
Supported processor sockets LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1700
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 192 GB
Supported memory clock speed (max) 7600 MHz
Supported memory clock speeds 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Number of HDDs supported 6
Number of storage drives supported 10
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2304 pixels
On-board graphics card No
Parallel processing technology support Crossfire
Internal I/O
RGB LED pin header Yes
12V power connector Yes
TPM connector Yes
Thunderbolt headers 2
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
Total number of SATA connectors 6
Number of SATA III connectors 6
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2

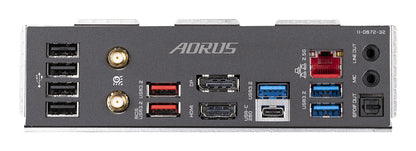

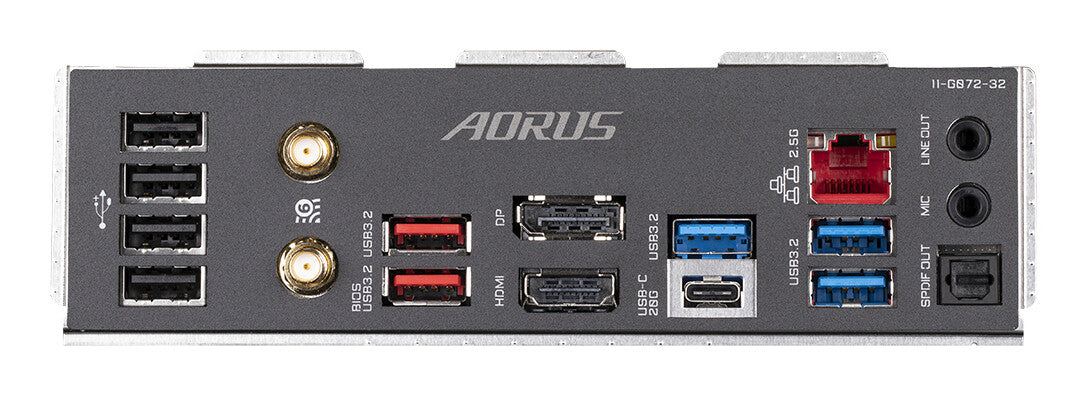

Rear panel I/O ports
USB connector type USB Type-A, USB Type-C
WiFi-AP antenna jack 2
S/PDIF out port Yes
Microphone in Yes
Headphone outputs 2
DisplayPort version 1.2
DisplayPorts quantity 1
HDMI version 2.0
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 2.0 ports quantity 4
Network
Bluetooth version 5.3
Bluetooth Yes
WLAN controller model Intel Wi-Fi 6E AX211
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
PC health monitoring Fan, Temperature, Voltage, Water cooling
Product colour Black
Audio output channels 7.1 channels
Motherboard chipset Intel Z790
Motherboard chipset family Intel
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 4
PCI Express x16 slots 3
BIOS
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Clear CMOS button Yes
Clear CMOS jumper Yes
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Packaging data
Package weight 2.32 kg
Package height 80 mm
Package depth 270 mm
Package width 335 mm
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
Weight & dimensions
Height 35 mm
Depth 244 mm
Width 305 mm
Packaging content
Bundled software Norton Internet Security
Cables included SATA
Batteries included Yes
Technical details
Warranty period 3 year(s)
