GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
Regular price
£245.06 GBP
Regular price
Sale price
£245.06 GBP
Unit price
/
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Refresh
SKU: X870 EAGLE WIFI7
100 in stock
AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
Digital twin 14+2+2 phases VRM solution
Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Maximum internal memory supported by processor
256 GB
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket
Socket AM5
Processor manufacturer
AMD
Memory
Maximum internal memory per slot
64 GB
Unbuffered memory
Yes
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory
256 GB
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
ECC сompatibility
Non-ECC
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Storage controllers
RAID levels
0, 1, 10
RAID support
Yes
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Graphics
DirectX version
12.0
On-board graphics card
No
Parallel processing technology support
Not supported
Internal I/O
Number of RGB LED pin headers
4
RGB LED pin header
Yes
12V power connector
Yes
TPM connector
Yes
Number of water pump connectors
1
Number of EPS power connectors (8-pin)
1
EPS power connector (8-pin)
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Front panel connector
Yes
Front panel audio connector
Yes
Number of SATA III connectors
4
USB 3.2 Gen 2x2 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 2.0 connectors
2

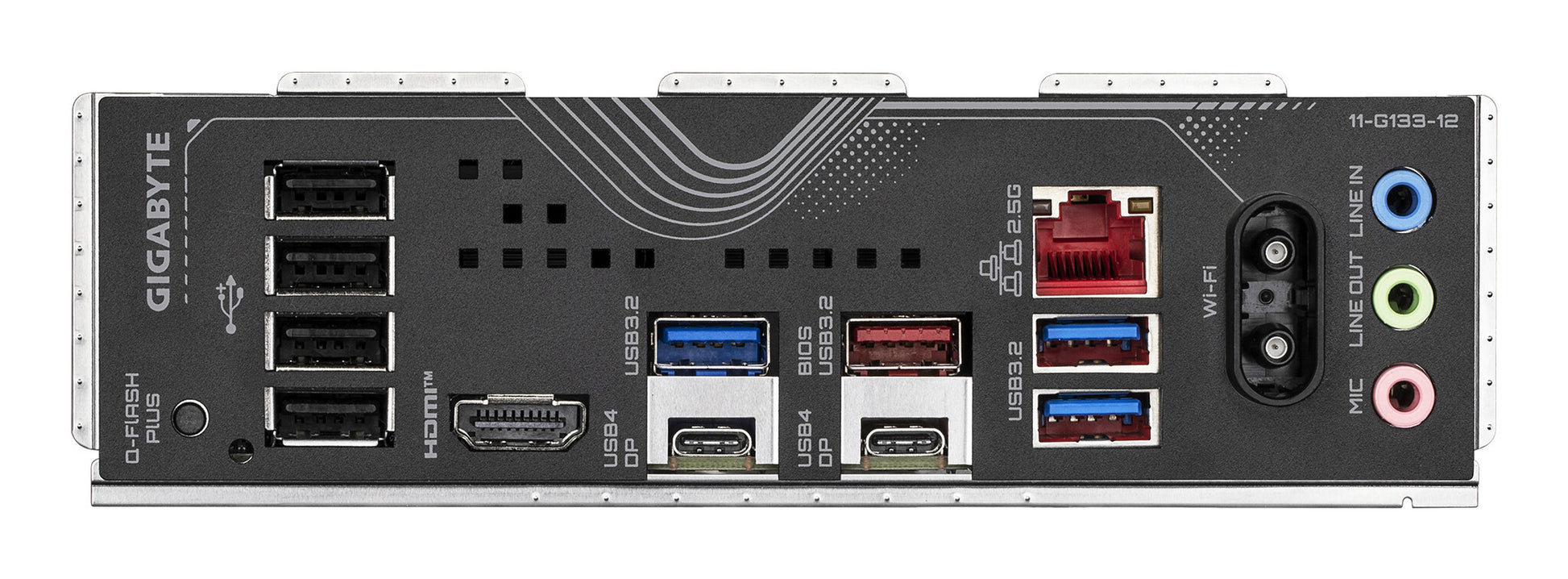

Rear panel I/O ports
WiFi-AP antenna jack
2
Headphone outputs
1
DisplayPort version
1.4
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB4 Gen 2x2 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
4
Network
Bluetooth version
5.4
Bluetooth
Yes
WLAN controller model
MediaTek MT7925
Wi-Fi standards
Wi-Fi 7 (802.11be)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi
Yes
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Features
Windows operating systems supported
Windows 11 x64
PC health monitoring
Fan, Temperature, Voltage
Product colour
Black
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
ATX
Component for
PC
Expansion slots
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
Number of M.2 (M) slots
3
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
BIOS
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Clear CMOS button
Yes
Clear CMOS jumper
Yes
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Packaging data
Package weight
1.94 kg
Package height
80 mm
Package depth
270 mm
Package width
335 mm
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Weight & dimensions
Height
35 mm
Depth
244 mm
Width
305 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version)LAN bandwidth management software
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Other features
Weight
1.74 kg
Technical details
Warranty period
3 year(s)
