Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
Fast Networking: GbE LAN
Extended Connectivity: HDMI

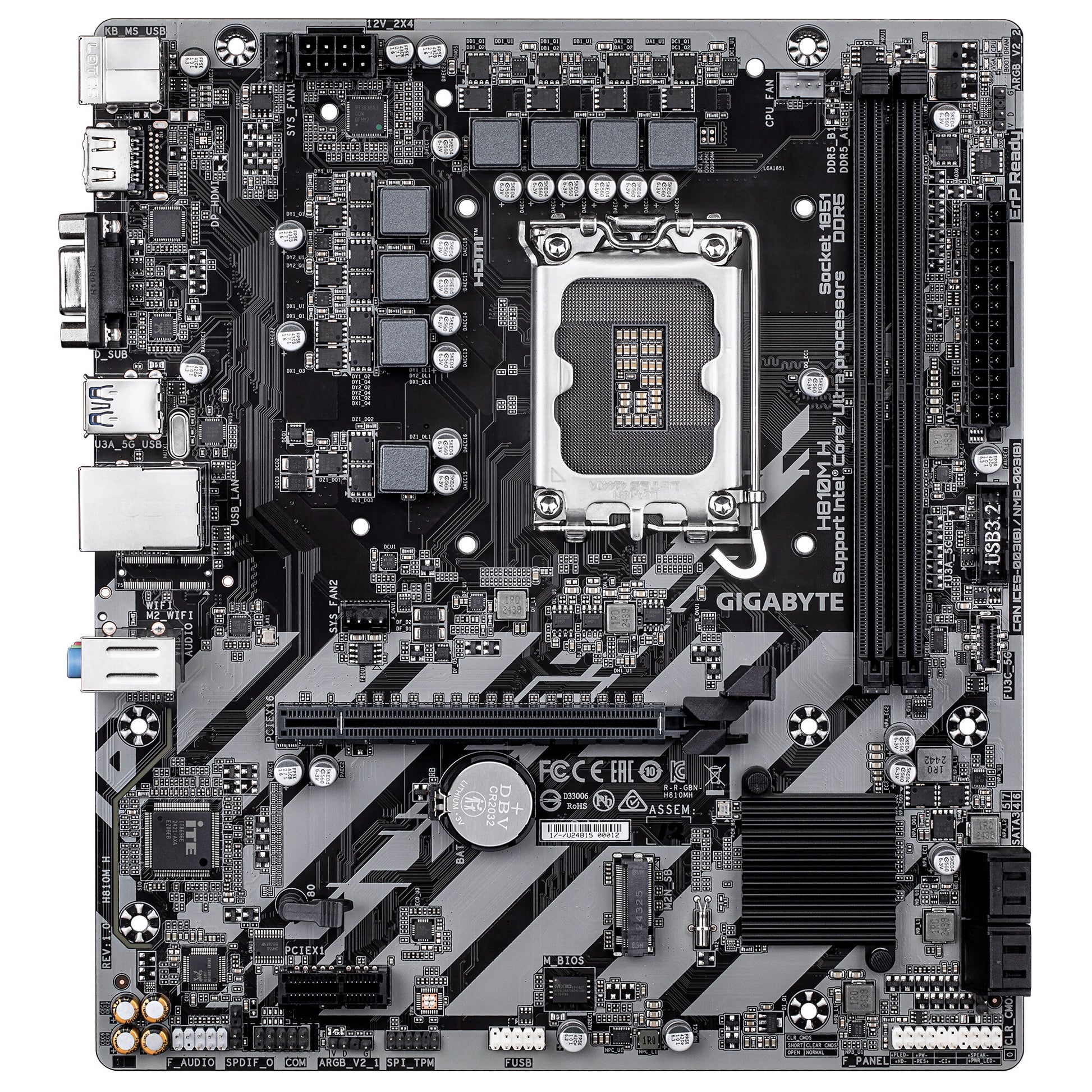

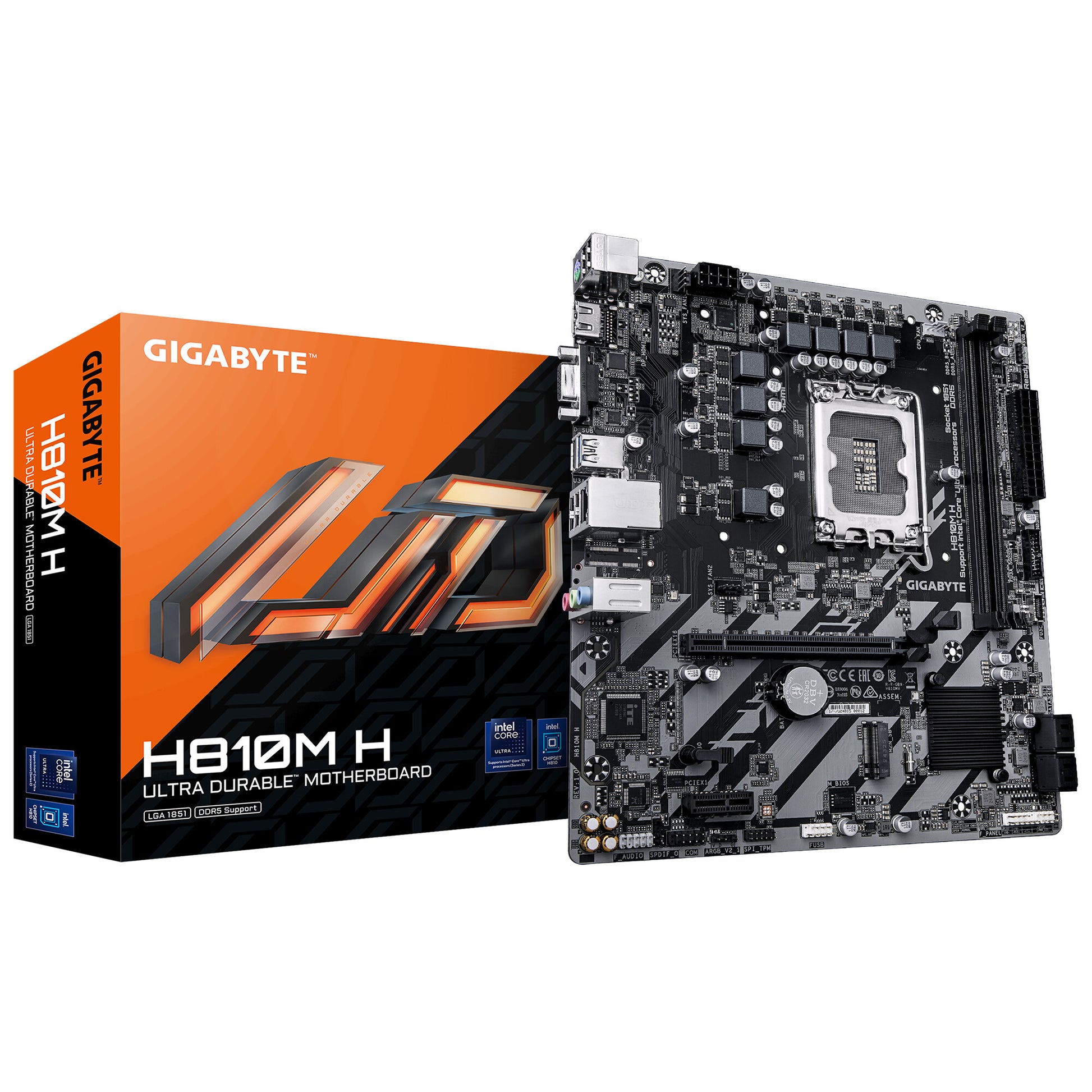

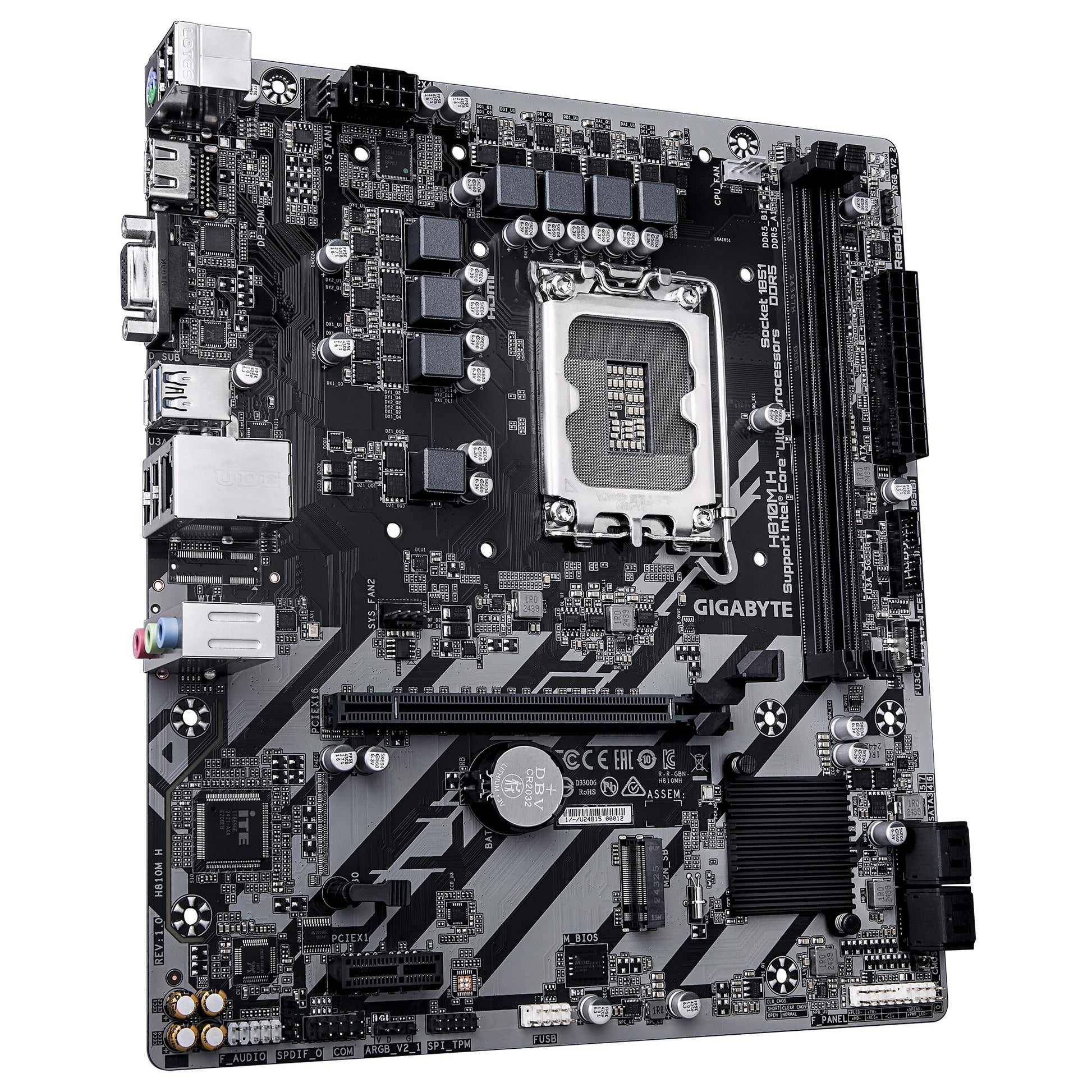

H810M H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Processor manufacturer
Intel
Memory
Maximum internal memory per slot
64 GB
Unbuffered memory
Yes
Maximum internal memory
128 GB
Supported memory clock speed (max)
6400 MHz
Supported memory clock speeds
5600,6400 MHz
ECC сompatibility
ECC & Non-ECC
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Storage controllers
RAID levels
0, 1, 5, 10
RAID support
Yes
Number of HDDs supported
4
Number of storage drives supported
5
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Supported storage drive types
HDD & SSD
Graphics
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
Internal I/O
Number of RGB LED pin headers
2
RGB LED pin header
Yes
TPM connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
EPS power connector (8-pin)
Yes
Number of chassis fan connectors
2
Number of CPU fan connectors
1
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Front panel connector
Yes
Front panel audio connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 2.0 connectors
1

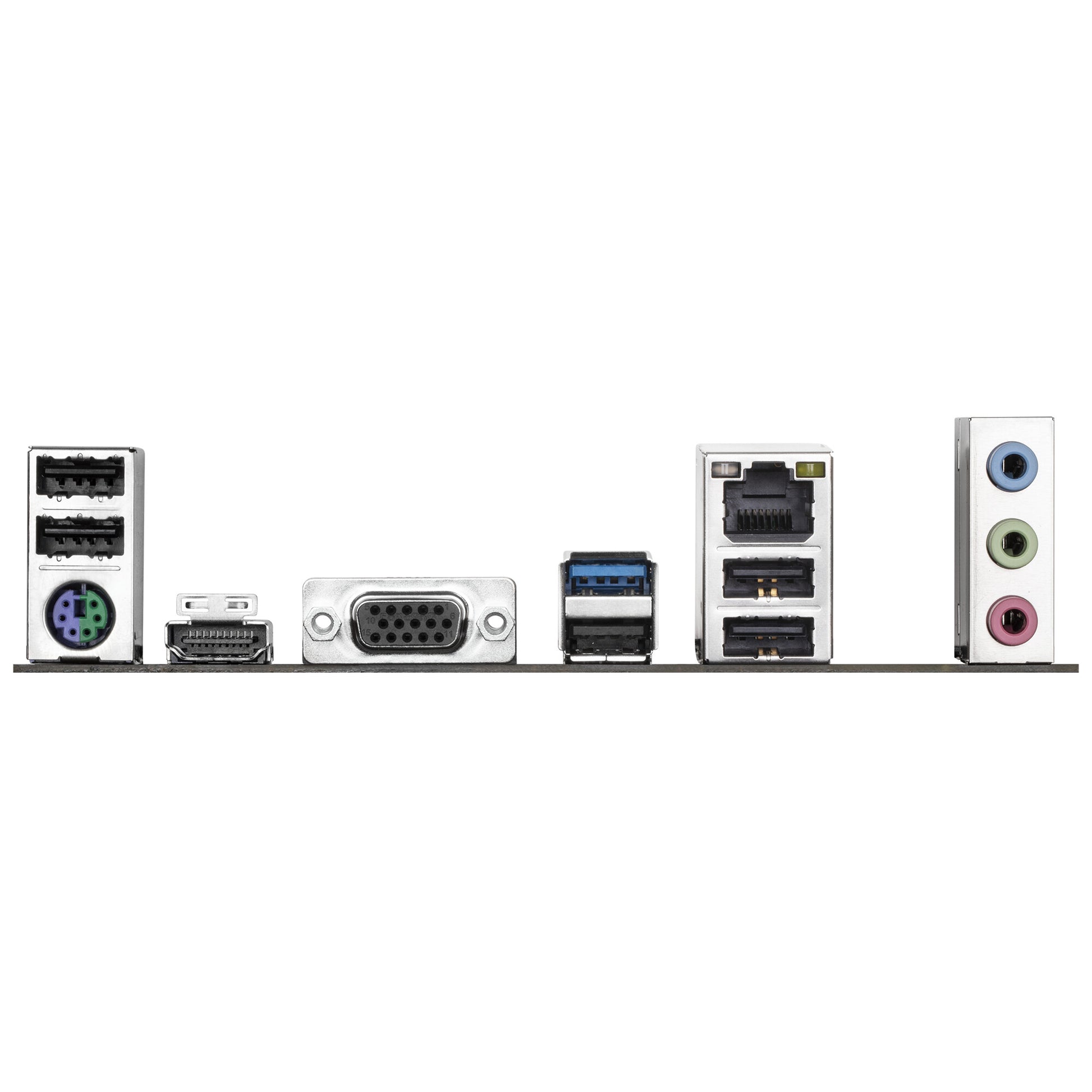

Rear panel I/O ports
Microphone in
Yes
Headphone outputs
1
Line-in
Yes
HDMI version
2.1
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
5
Network
Wi-Fi
No
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cooling type
Passive
Power source type
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Product colour
Dark brown
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
Motherboard chipset
Intel H810
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
Number of M.2 (M) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
BIOS
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Clear CMOS jumper
Yes
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Packaging data
Package weight
860 g
Package height
54 mm
Package depth
265 mm
Package width
265 mm
Logistics data
Products per shipping (inner) case
1 pc(s)
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Weight & dimensions
Height
35 mm
Depth
215 mm
Width
244 mm
Packaging content
Bundled software
Norton® Internet Security (OEM version)LAN bandwidth management software
