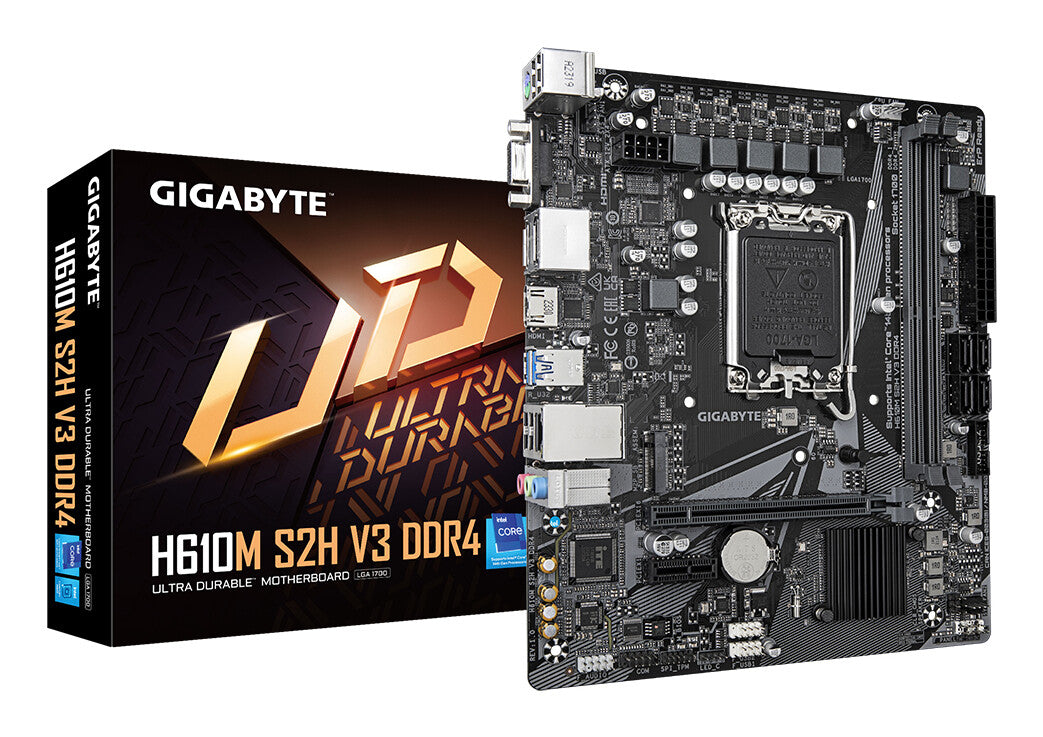

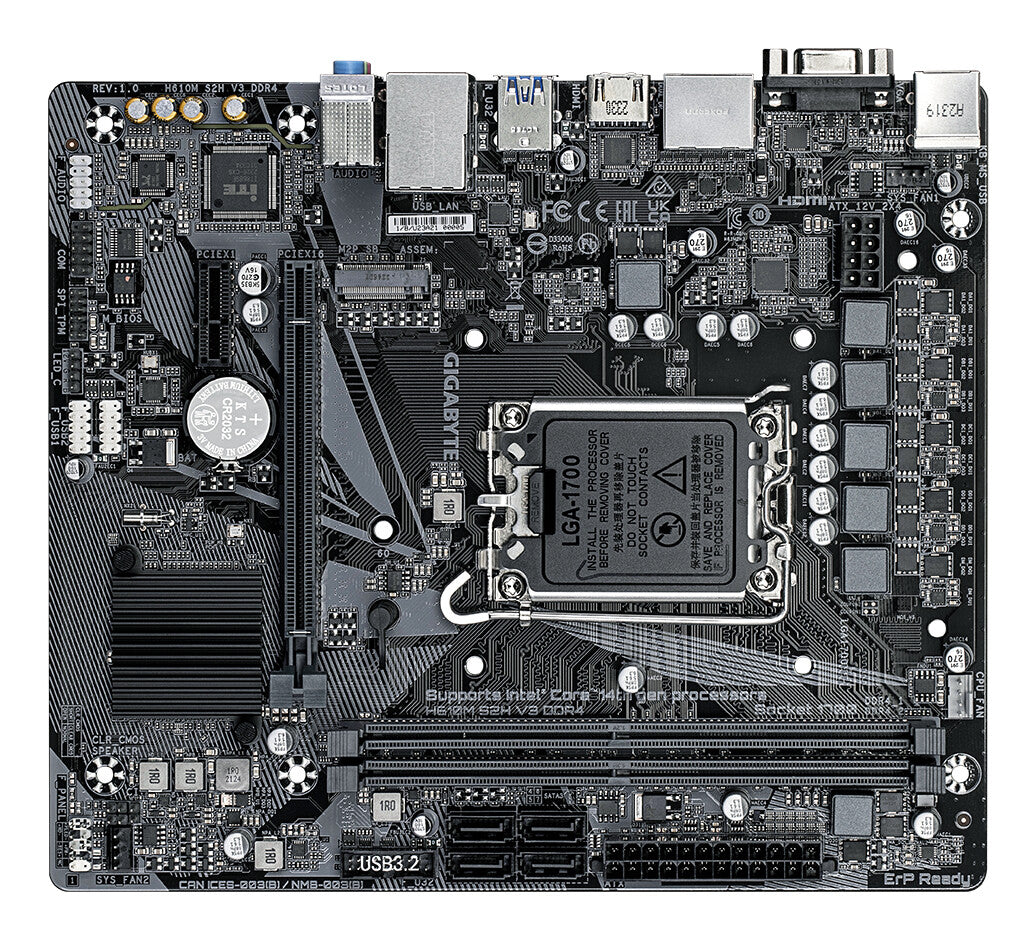

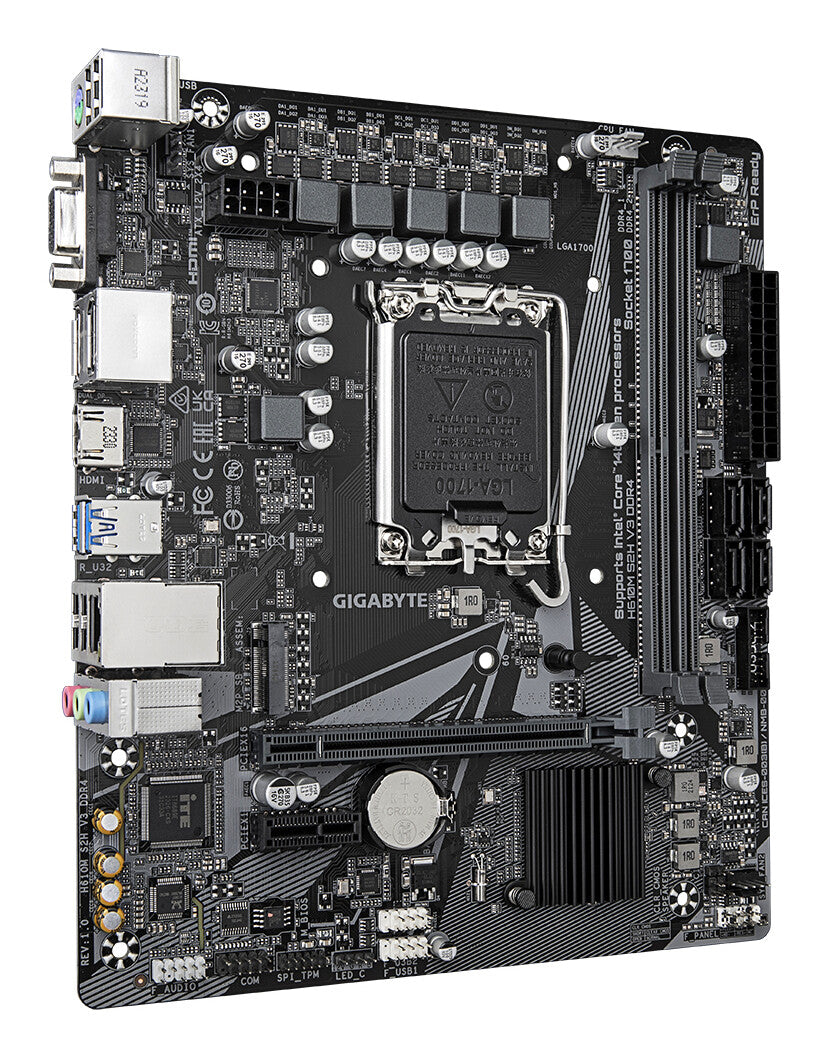

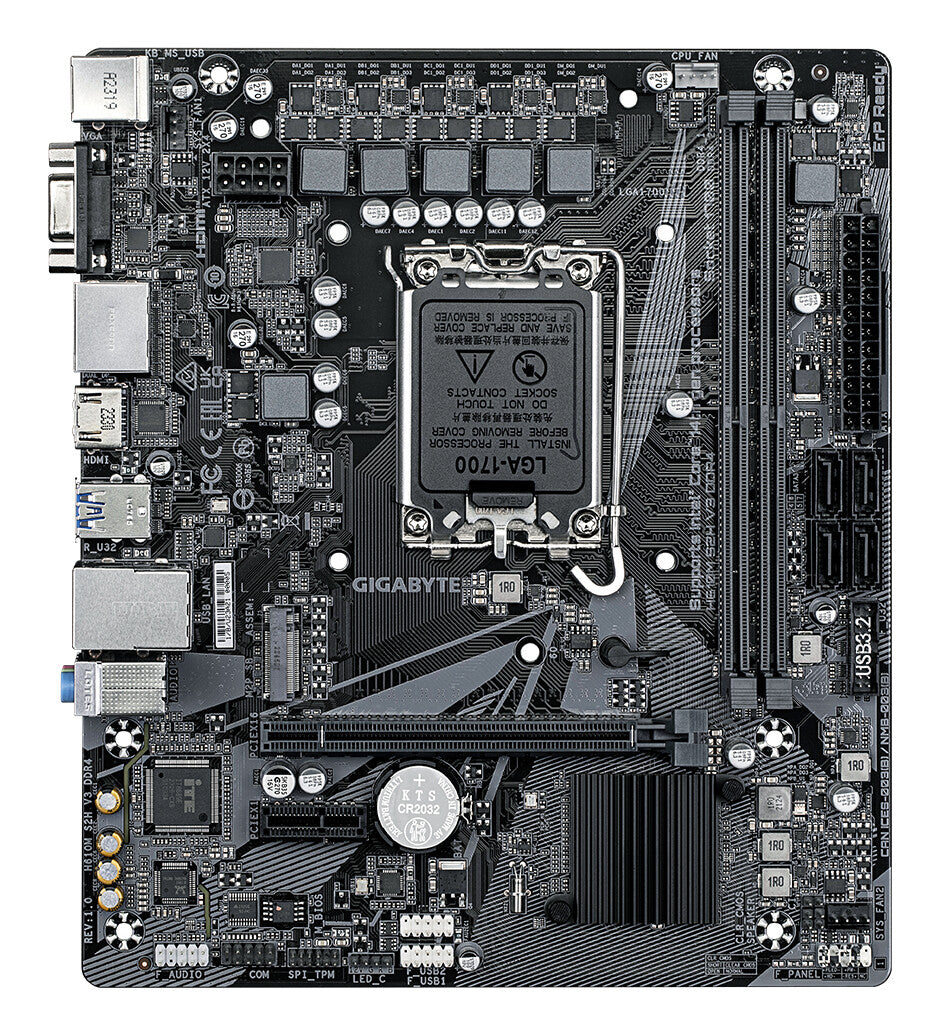

GIGABYTE H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Supported processor sockets
LGA 1700
Compatible processor series
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Processor socket
LGA 1700
Processor manufacturer
Intel
Memory
Unbuffered memory
Yes
Maximum internal memory
64 GB
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
ECC сompatibility
ECC & Non-ECC
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
2
Supported memory types
DDR4-SDRAM
Storage controllers
Number of HDDs supported
4
Number of storage drives supported
5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Graphics
HDCP
Yes
Maximum resolution
4096 x 2304 pixels
Parallel processing technology support
Not supported
Internal I/O
Number of RGB LED pin headers
1
RGB LED pin header
Yes
12V power connector
Yes
TPM connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
EPS power connector (8-pin)
Yes
Chassis intrusion connector
Yes
Number of CPU fan connectors
1
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Front panel connector
Yes
Front panel audio connector
Yes
Total number of SATA connectors
4
Number of SATA III connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 2.0 connectors
2

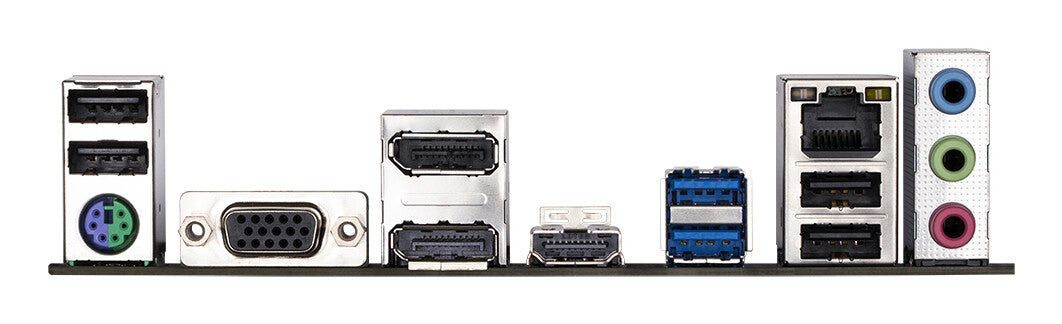

Rear panel I/O ports
USB connector type
USB Type-A
Microphone in
Yes
Line-in
Yes
DisplayPort version
1.2
DisplayPorts quantity
2
HDMI version
2.1
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
Network
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cooling type
Active
Power source type
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Product colour
Black
Audio output channels
7.1 channels
Motherboard chipset
Intel H610 Express
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
1st M.2 highest PCI Express generation
3.0
1st M.2 largest key size
2280
Number of M.2 (M) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
BIOS
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Clear CMOS jumper
Yes
ACPI version
5.0
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Packaging data
Package weight
774 g
Package height
52 mm
Package depth
235 mm
Package width
265 mm
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Weight & dimensions
Height
35 mm
Depth
193 mm
Width
223 mm
Packaging content
Bundled software
Norton Internet Security (OEM version)LAN bandwidth management software
