Gigabyte

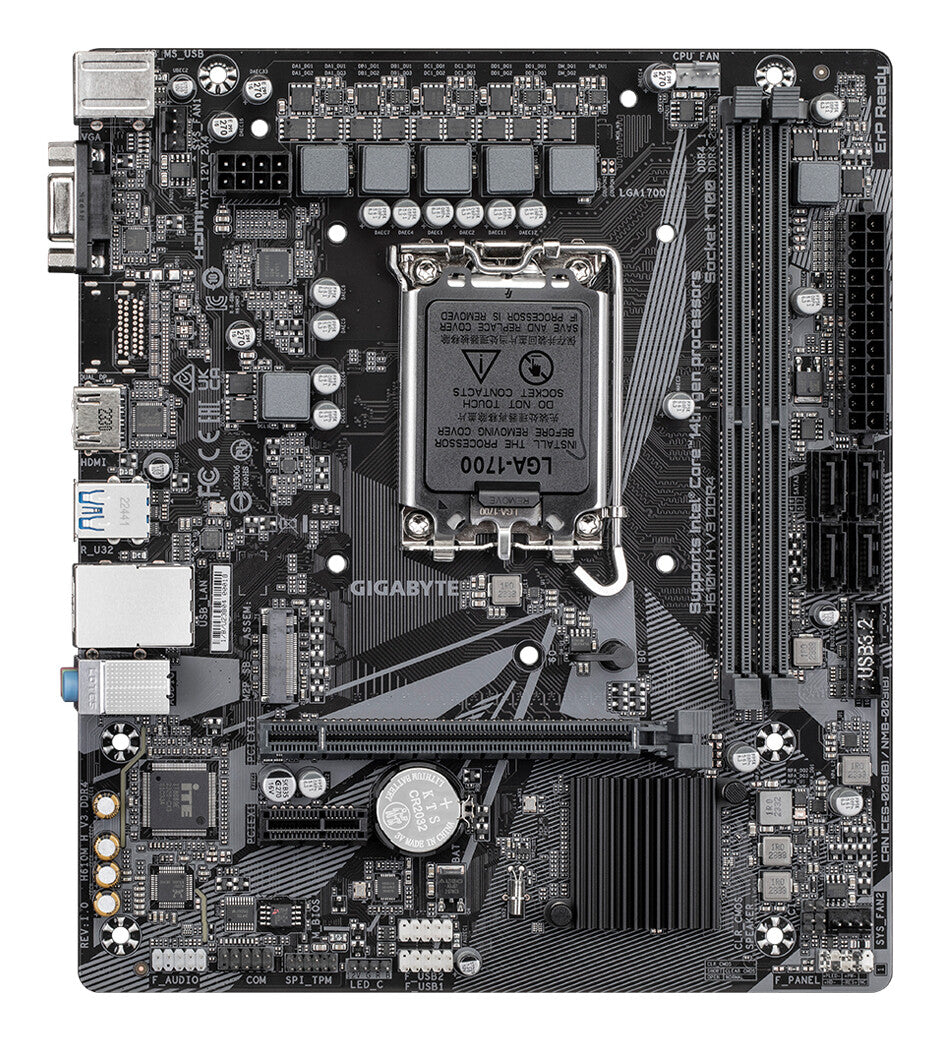

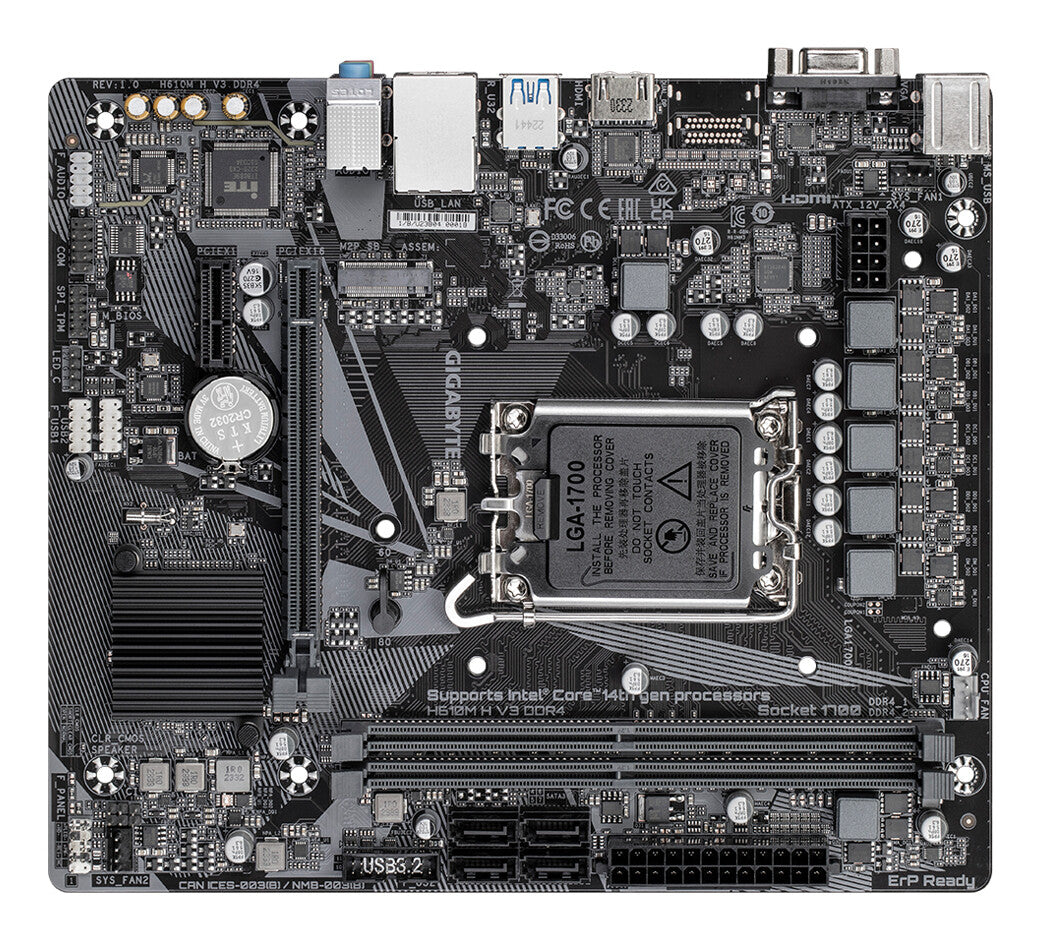

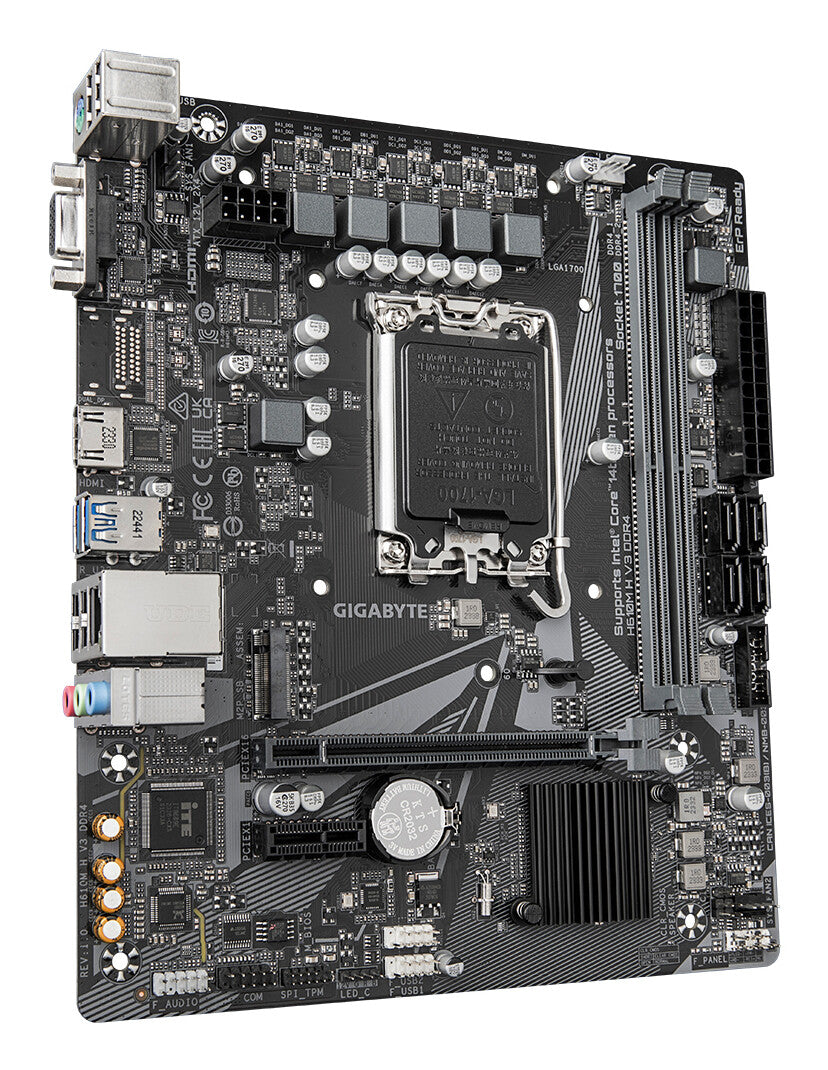

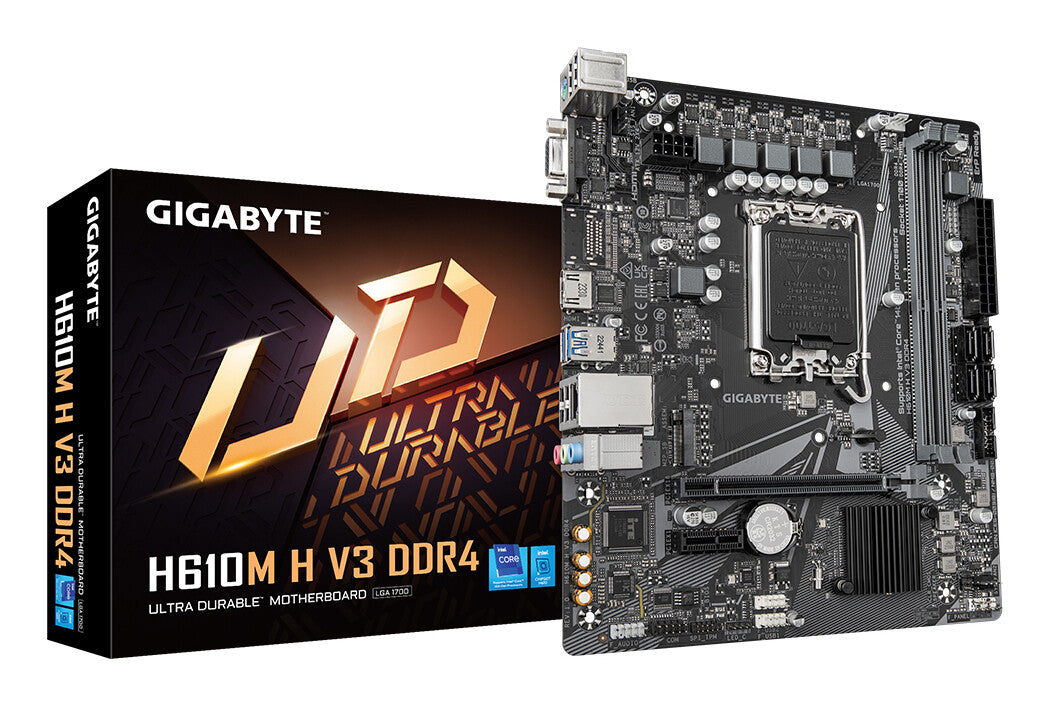

GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

£75.83 GBP
£75.83 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

H610M H V3 DDR4

22 in stock

  • Supports Intel Core 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor
Supported processor sockets LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1700
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory 64 GB
Supported memory clock speed (max) 3200 MHz
Supported memory clock speeds 3200, 3000, 2933, 2666, 2400, 2133 MHz
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory types DDR4-SDRAM
Storage controllers
Number of HDDs supported 1
Number of storage drives supported 5
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
HDCP Yes
Maximum resolution 4096 x 2304 pixels
Graphics card HD Graphics
Graphics card family Intel
Parallel processing technology support Not supported
Internal I/O
RGB LED pin header Yes
12V power connector Yes
TPM connector Yes
Serial port headers 1
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2
Rear panel I/O ports
USB connector type USB Type-A
Microphone in Yes
Headphone outputs 3
DisplayPorts quantity 2
DVI-D ports quantity 1
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 2.0 ports quantity 4
Network
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Cooling type Active
Power source type ATX
PC health monitoring Fan, Temperature, Voltage, Water cooling
Product colour Black
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset Intel H610 Express
Motherboard chipset family Intel
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x16 slots 1
PCI Express x1 slots 1
BIOS
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Clear CMOS button Yes
Clear CMOS jumper Yes
ACPI version 5.0
BIOS memory size 128 Mbit
BIOS type UEFI AMI
Battery
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Packaging data
Package weight 684 g
Package height 52 mm
Package depth 235 mm
Package width 265 mm
Weight & dimensions
Height 35 mm
Depth 215 mm
Width 230 mm
Packaging content
Bundled software Norton Internet Security (OEM version)LAN bandwidth management software
Cables included SATA
Batteries included Yes
Technical details
Warranty period 3 year(s)
