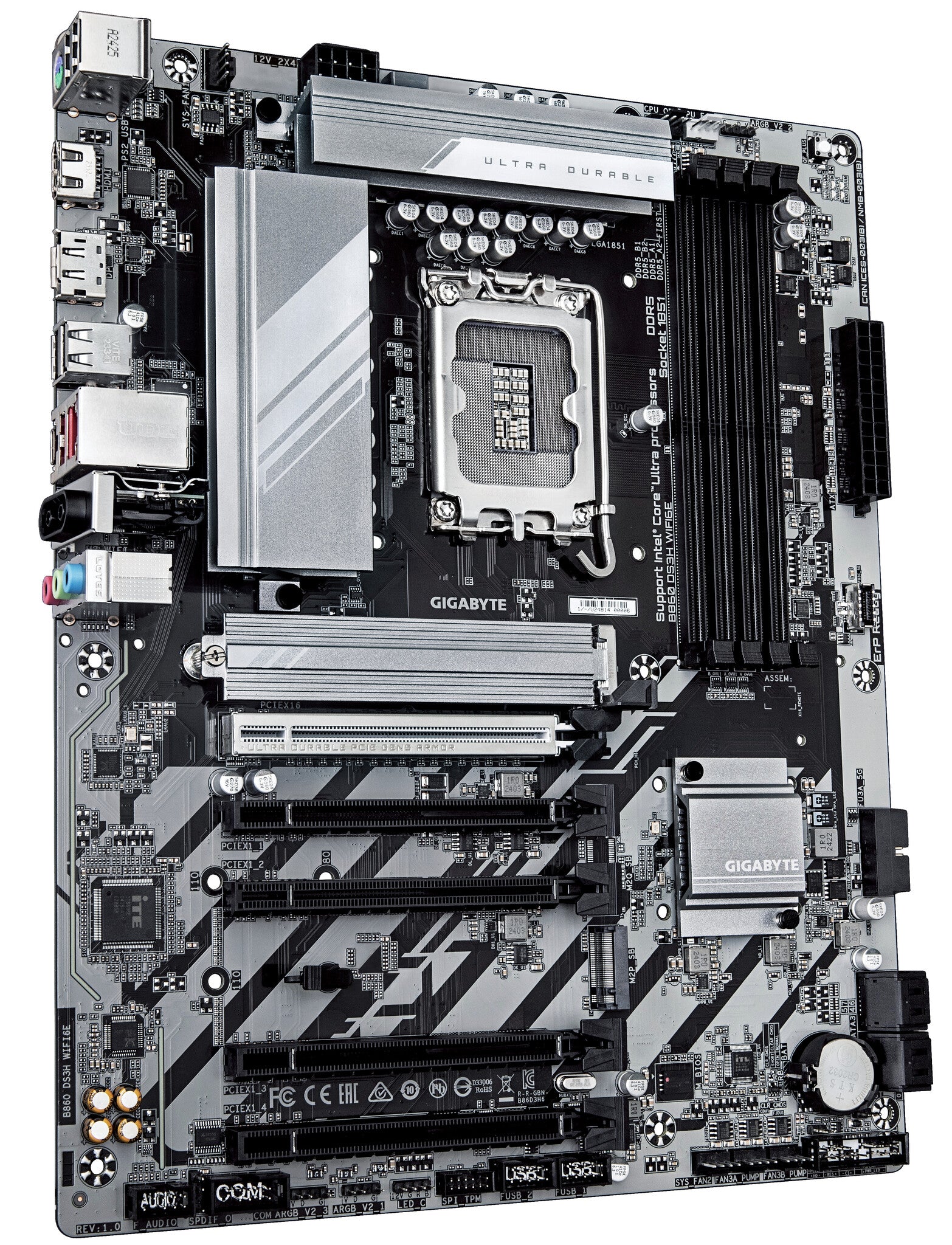

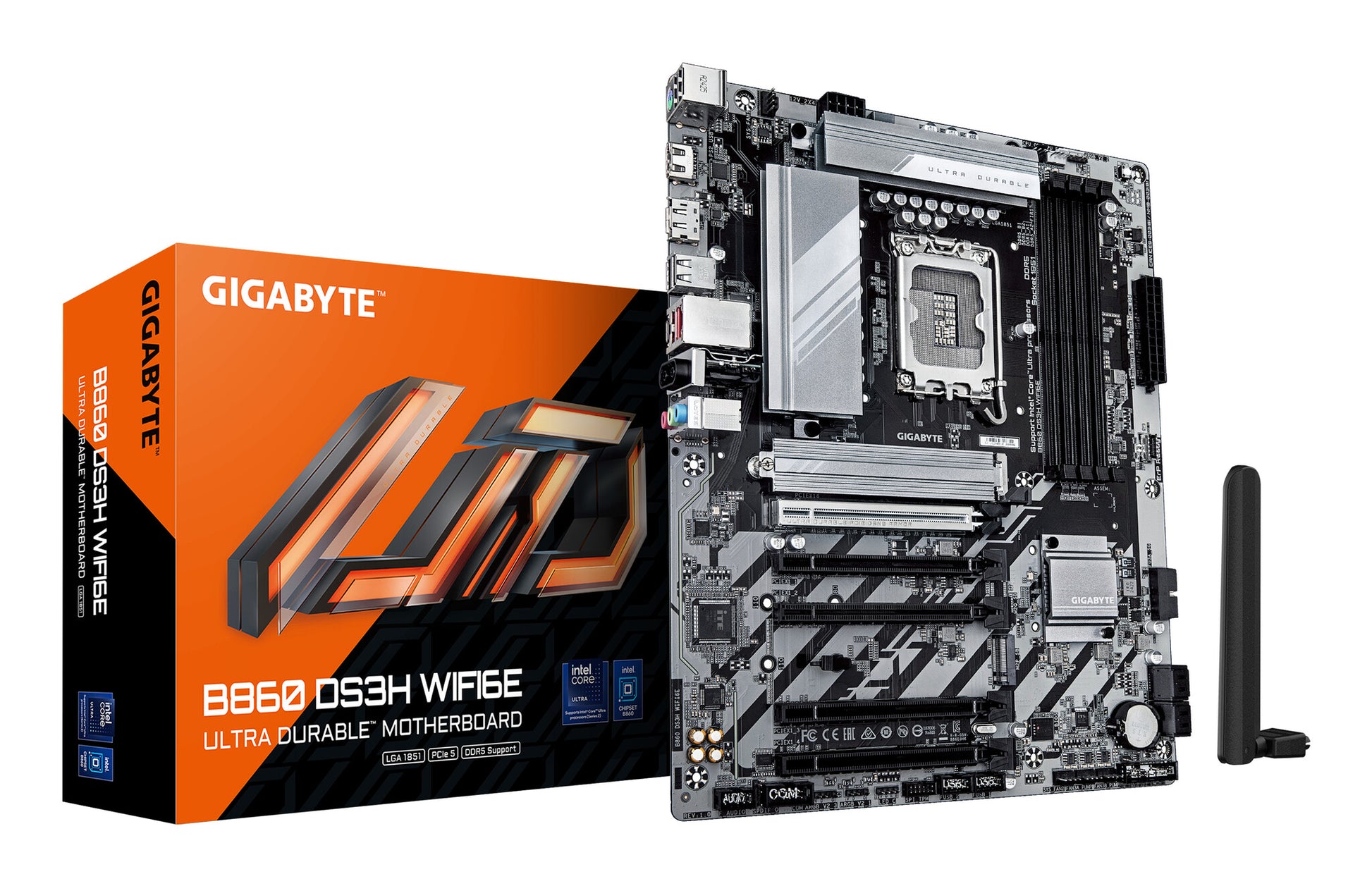

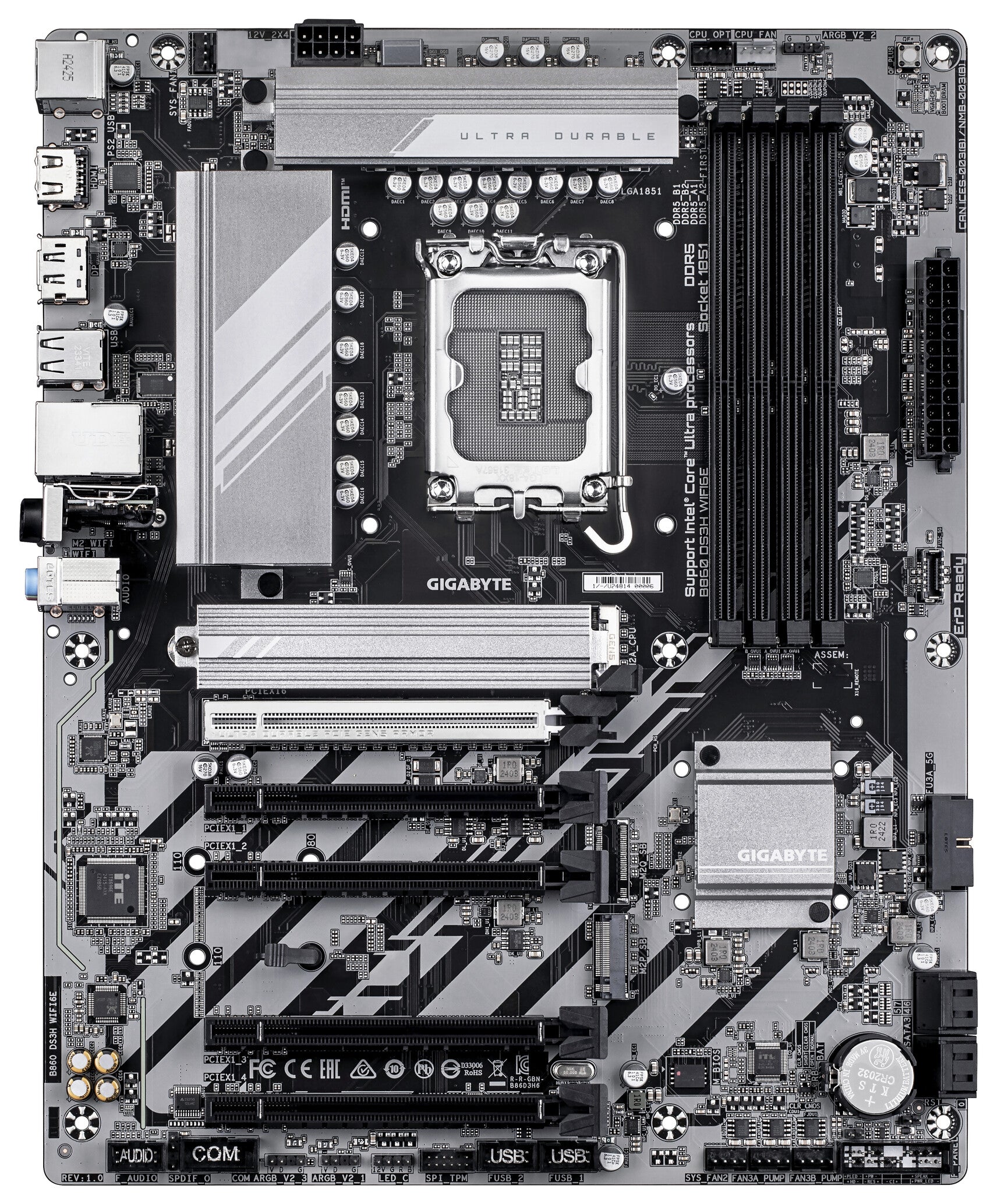

GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
Regular price
£175.52 GBP
Regular price
Sale price
£175.52 GBP
Unit price
/
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Refresh
SKU: B860 DS3H WIFI6E
Low stock: 7 left
Hybrid 8+1+2+2 Phases 50A PPAK VRM
Dual Channel DDR5：4*DIMMs
PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch
M.2 Gen5 (Up to 25110) with EZ-Latch Plus
MOSFET Heatsinks/M.2 Thermal Guard
Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
2.5GbE LAN, USB 3.2 Gen2x2 Type-C
Q-Flash Plus
B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz
Supported memory clock speed (max)
9066 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
6
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
3
Serial port headers
1
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4

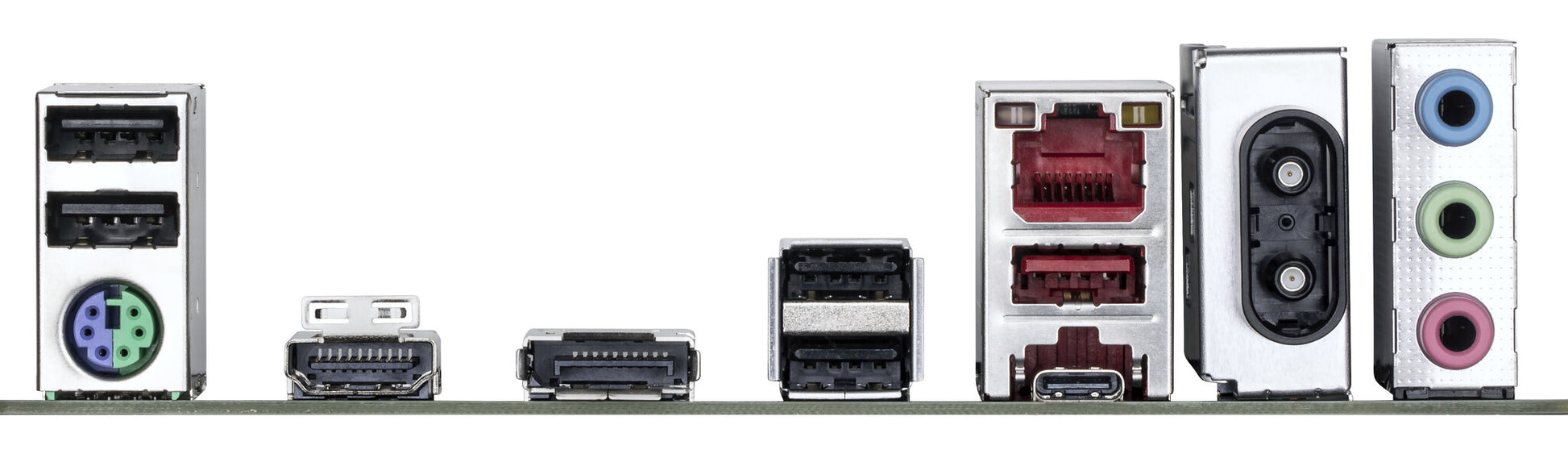

Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
2.1
Line-in
Yes
Headphone outputs
1
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Bluetooth
Yes
Bluetooth version
5.3
Features
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Cooling type
Passive
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots
4
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Battery
Lithium weight per battery
0.07 g
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Bundled software
Norton Internet Security (OEM version)LAN bandwidth management software
Technical details
Warranty period
3 year(s)
Other features
Weight
2 kg
