1 4

Gigabyte

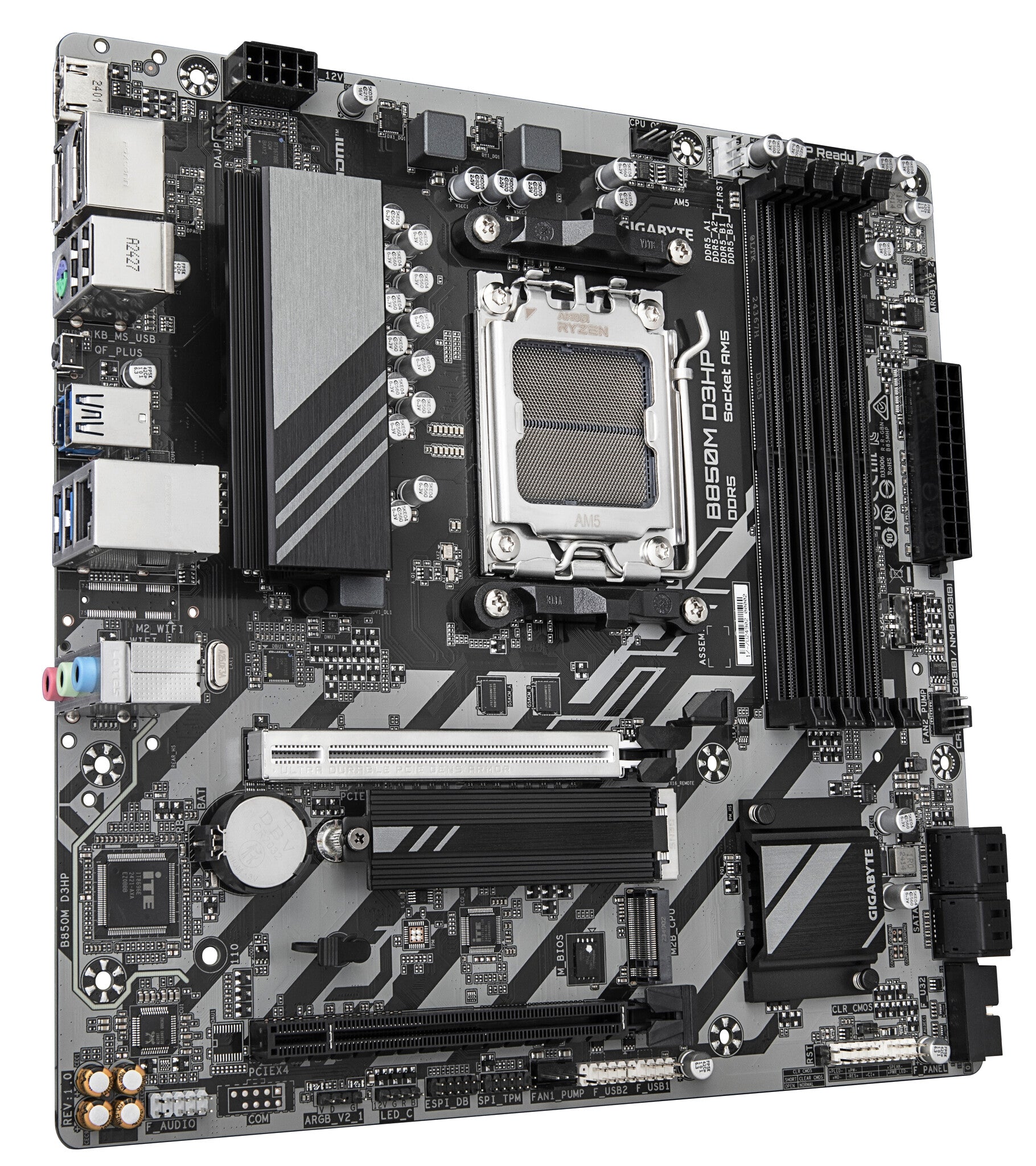

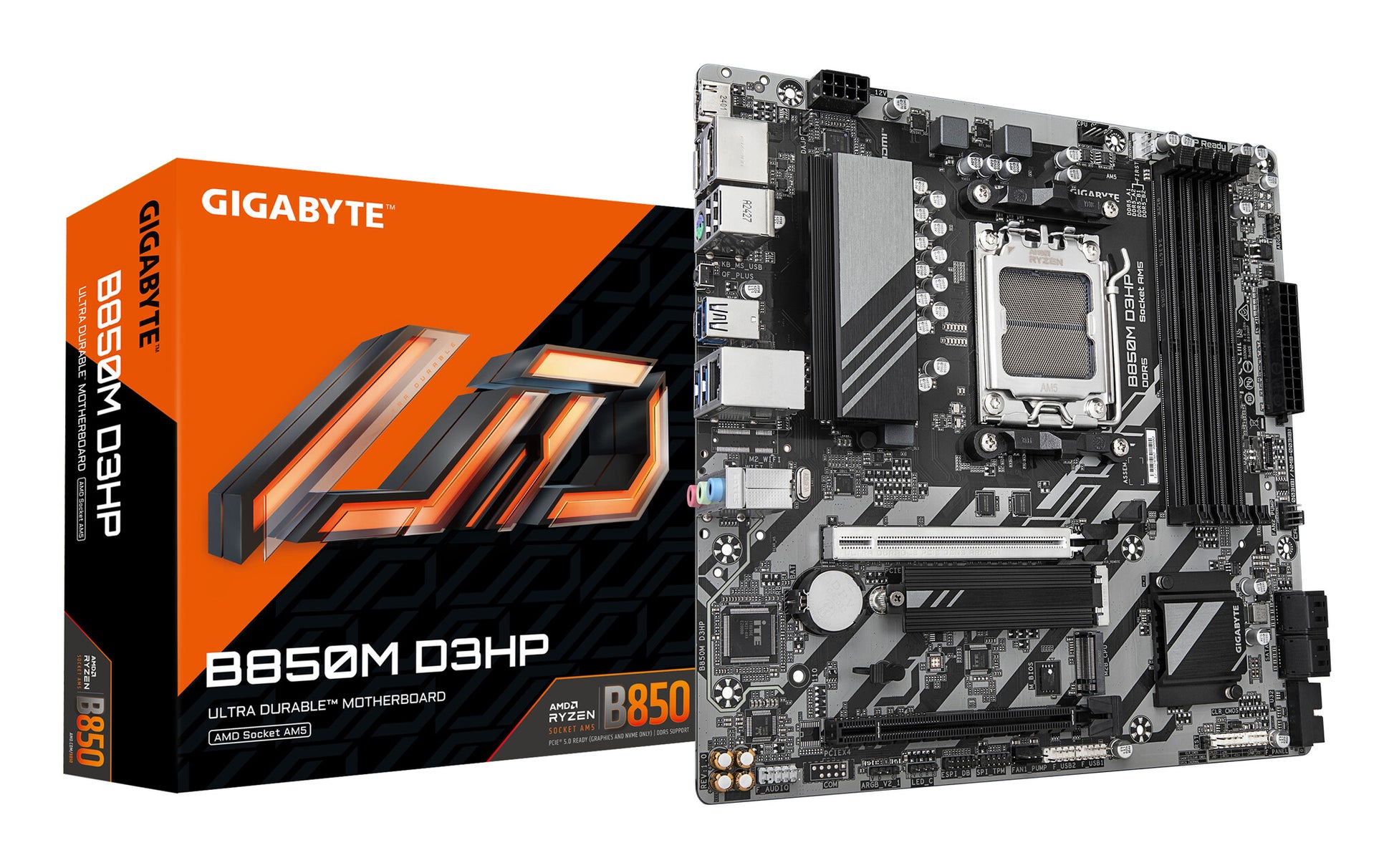

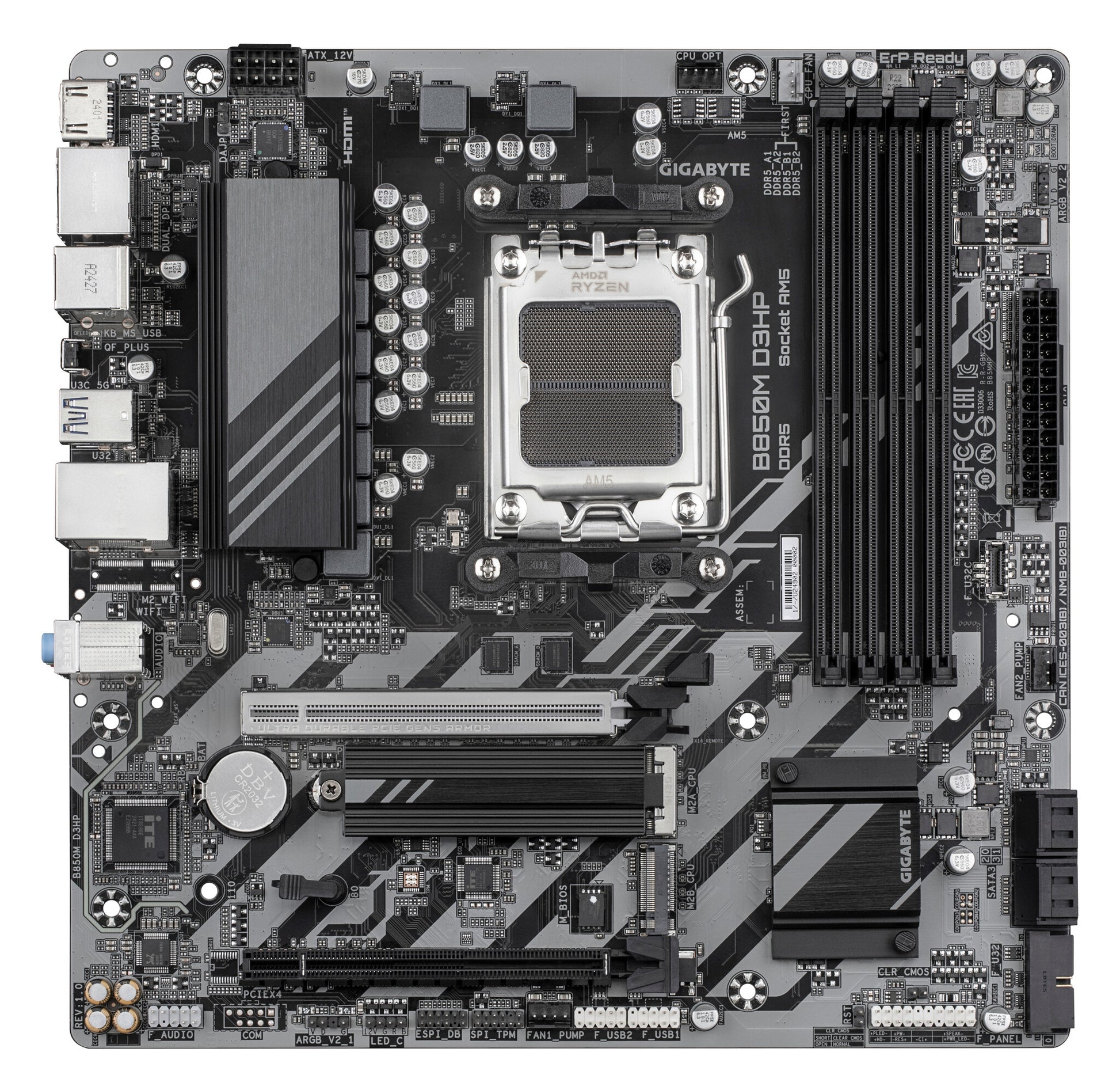

GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

£146.09 GBP
£146.09 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

B850M D3HP

Low stock: 10 left

  • 5+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5：4*DIMMs
  • PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch
  • M.2 Gen5 with M.2 Heatsink, MOSFET Heatsink
B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Processor
Supported processor sockets Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket Socket AM5
Processor manufacturer AMD
Memory
Maximum internal memory per slot 64 GB
Unbuffered memory Yes
Maximum internal memory 256 GB
Supported memory clock speed (max) 8200 MHz
Supported memory clock speeds 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 10
RAID support Yes
Number of HDDs supported 4
Number of storage drives supported 6
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
Internal I/O
Number of RGB LED pin headers 4
RGB LED pin header Yes
12V power connector Yes
TPM connector Yes
Serial port headers 1
Number of EPS power connectors (8-pin) 1
EPS power connector (8-pin) Yes
Peripheral (Molex) power connectors (4-pin) 1
Number of chassis fan connectors 3
Number of CPU fan connectors 2
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 2
Rear panel I/O ports
WiFi-AP antenna jack 2
Microphone in Yes
Headphone outputs 1
DisplayPort version 2.1
DisplayPorts quantity 1
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 2.0 ports quantity 2
Network
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Power source type ATX
PC health monitoring Fan, Temperature, Voltage, Water cooling
Product colour Brown
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset AMD B850
Motherboard chipset family AMD
Motherboard form factor micro ATX
Component for PC
Expansion slots
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 22110
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2580
Number of M.2 (M) slots 2
PCI Express x16 (Gen 5.x) slots 1
BIOS
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Clear CMOS button Yes
Clear CMOS jumper Yes
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
Weight & dimensions
Height 35 mm
Depth 244 mm
Width 244 mm
Packaging content
Bundled software Norton Internet Security (OEM version)LAN bandwidth management software
Screws included Yes
Antenna included Yes
Batteries included Yes
Other features
Weight 1.3 kg
Technical details
Warranty period 3 year(s)
