Gigabyte
Regular price
£200.00 GBP
Regular price
Sale price
£200.00 GBP
Unit price
/
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Refresh
SKU: B850 EAGLE WIFI6E
Low stock: 6 left
8+2+2 Phases Digital VRM with DrMOS
Dual Channel DDR5：4*DIMMs
PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch Plus
M.2 Gen5 with EZ-Latch Plus, Advanced MOSFET Heatsinks
Wi-Fi 6E with WIFI EZ-Plug, Q-Flash Plus
AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
Supported memory clock speed (max)
8200 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
7
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Total number of SATA connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
3
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
2
Serial port headers
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4

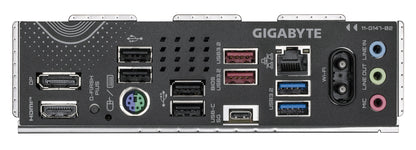

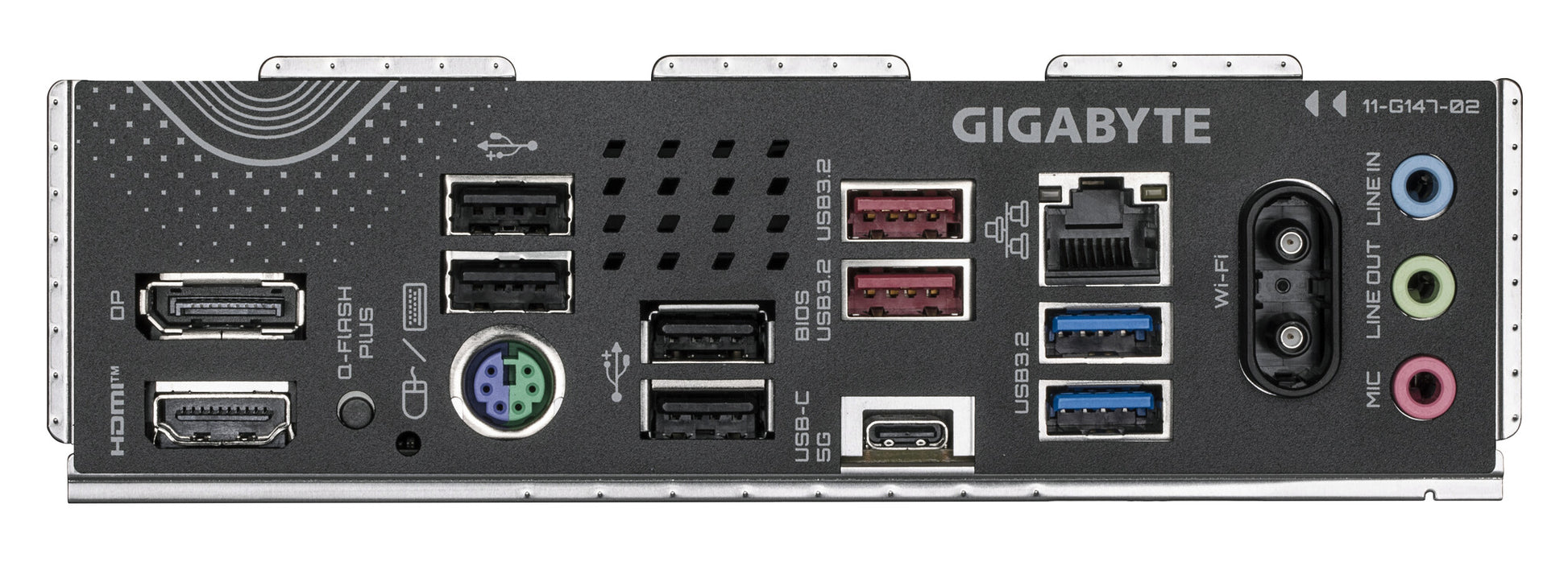

Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
2.1
Headphone outputs
1
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model
Realtek RTL8111H
Bluetooth
Yes
Bluetooth version
5.3
Features
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
Audio output channels
7.1 channels
Product colour
Brown
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots
3
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
3
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Battery
Lithium weight per battery
0.07 g
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
1.93 kg
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Bundled software
Norton Internet Security (OEM version)
Technical details
Warranty period
3 year(s)
Other features
Weight
1.68 kg
View full details
