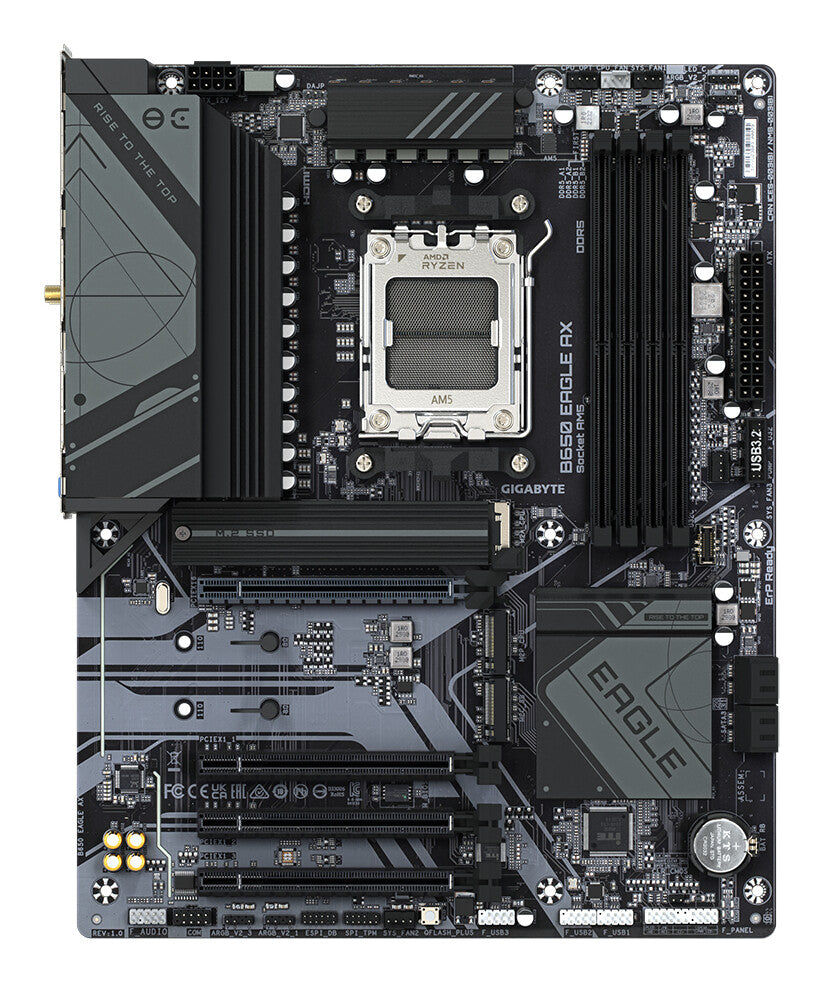

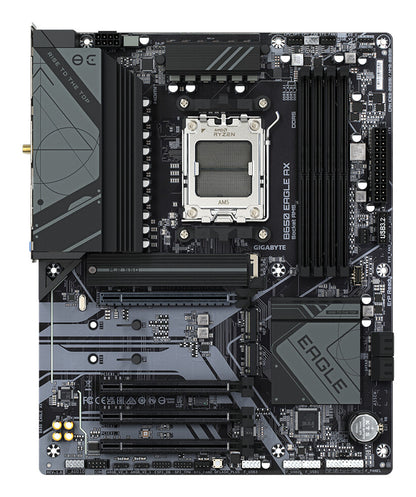

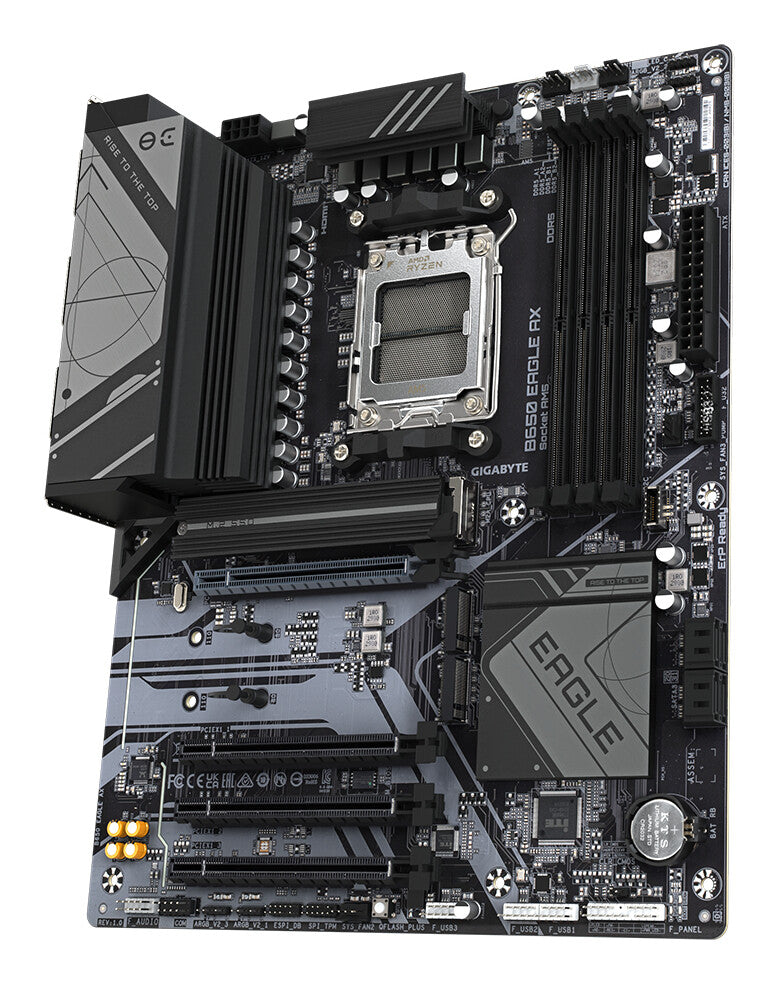

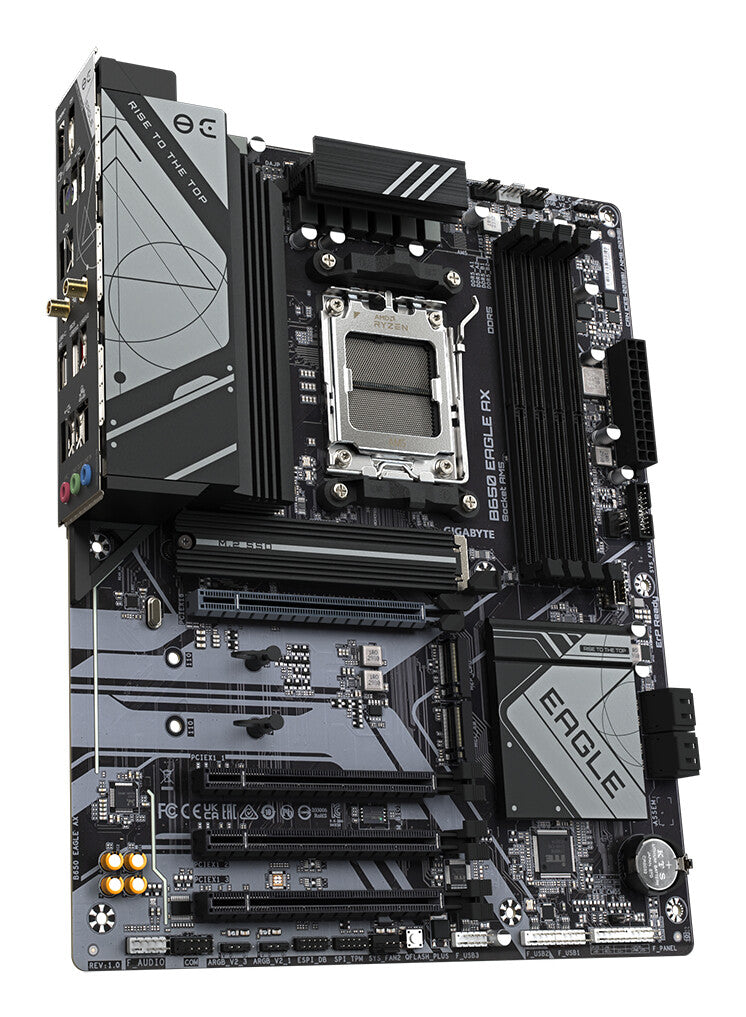

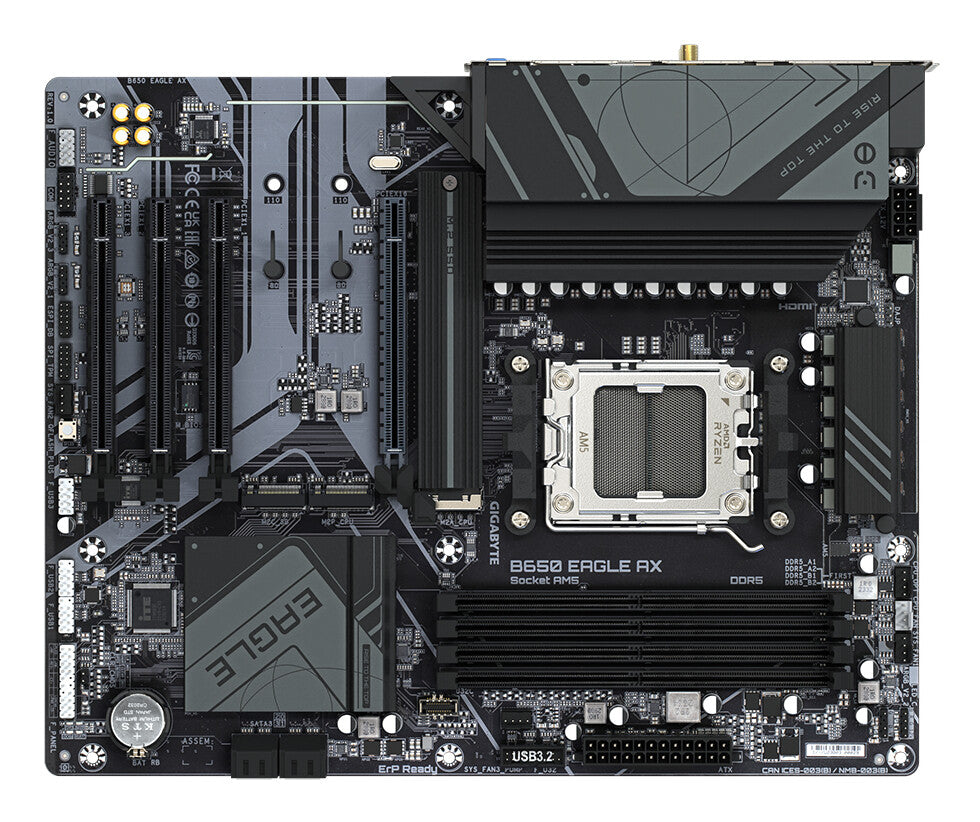

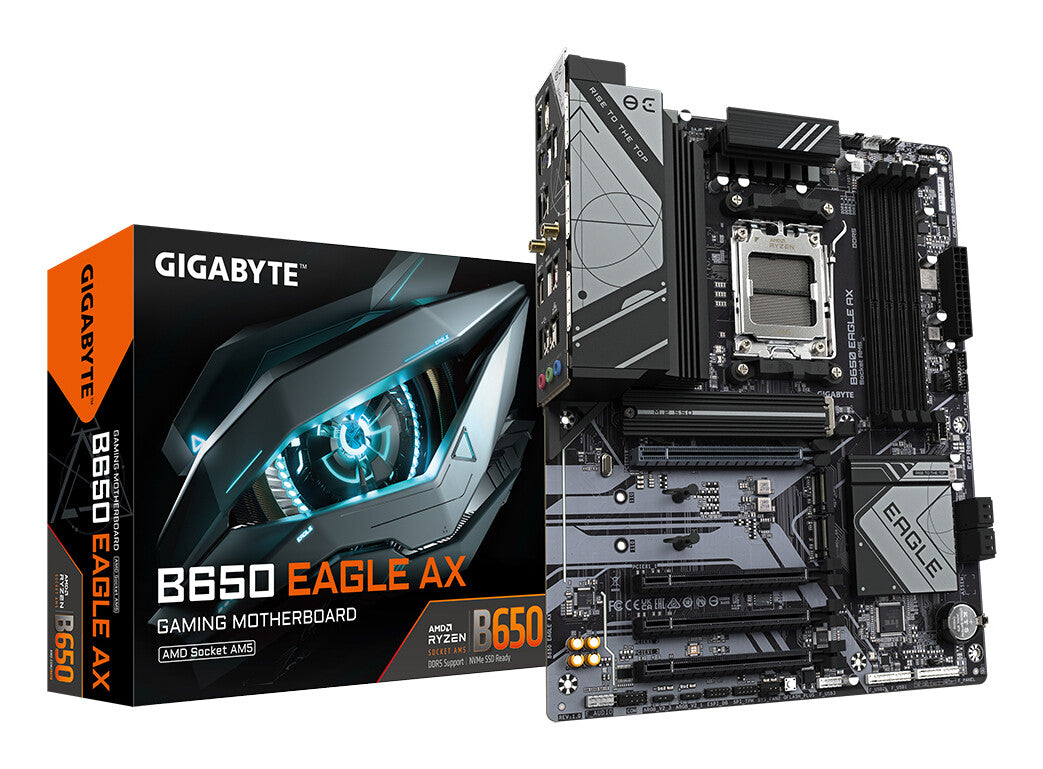

Gigabyte
GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2
GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2
Regular price
£155.18 GBP
Regular price
Sale price
£155.18 GBP
Unit price
/
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Refresh
SKU: B650 EAGLE AX
105 in stock
AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
Unparalleled Performance：12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
Extended Connectivity：DP, HDMI, Rear USB 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket
Socket AM5
Processor manufacturer
AMD
Memory
Maximum internal memory per slot
64 GB
Unbuffered memory
Yes
Maximum internal memory
256 GB
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
ECC сompatibility
Non-ECC
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Storage controllers
RAID levels
0, 1, 10
RAID support
Yes
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Graphics
Discrete graphics support
Yes
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
Internal I/O
Number of RGB LED pin headers
4
RGB LED pin header
Yes
12V power connector
Yes
TPM connector
Yes
Serial port headers
1
Number of water pump connectors
2
EPS power connector (8-pin)
Yes
Number of chassis fan connectors
3
Number of CPU fan connectors
2
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Front panel connector
Yes
Front panel audio connector
Yes
Number of SATA III connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 2.0 connectors
3

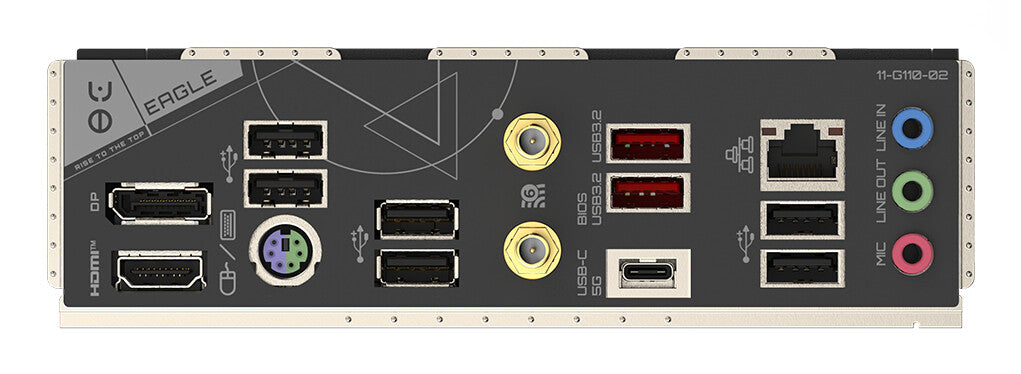

Rear panel I/O ports
WiFi-AP antenna jack
2
Microphone in
Yes
Headphone outputs
1
Line-in
Yes
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI version
2.1
HDMI ports quantity
1
PS/2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 2.0 ports quantity
6
Network
Bluetooth version
5.3
Bluetooth
Yes
WLAN controller model
Realtek RTL8852CE
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Power source type
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Product colour
Brown
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
Motherboard form factor
ATX
Component for
PC
Expansion slots
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
Number of M.2 (M) slots
3
PCI Express x16 (Gen 3.x) slots
3
PCI Express x16 (Gen 4.x) slots
1
BIOS
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Clear CMOS jumper
Yes
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Packaging data
Package weight
1.94 kg
Package height
80 mm
Package depth
270 mm
Package width
335 mm
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery type
CR2032
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Weight & dimensions
Height
35 mm
Depth
244 mm
Width
305 mm
Packaging content
Bundled software
Norton Internet Security (OEM version)LAN bandwidth management software
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Technical details
Warranty period
3 year(s)
