Gigabyte

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1

£71.63 GBP
£71.63 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

A520M DS3H V2

100 in stock

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable™ PCIe 3.0 x16 Slot
  • NVMe PCIe 3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Processor
Maximum internal memory supported by processor 128 GB
Supported processor sockets Socket AM4
Maximum number of SMP processors 1
Compatible processor series AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Processor socket Socket AM4
Processor manufacturer AMD
Memory
Unbuffered memory Yes
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Maximum internal memory 128 GB
Supported memory clock speeds 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 10
RAID support Yes
Number of HDDs supported 4
Number of storage drives supported 5
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
Number of displays supported 3
Discrete graphics support Yes
HDCP Yes
Maximum resolution 5120 x 2880 pixels
Internal I/O
12V power connector Yes
TPM connector Yes
Serial port headers 1
CPU fan connector Yes
Power fan connector Yes
Number of EATX power connectors 1
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
Total number of SATA connectors 4
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 1

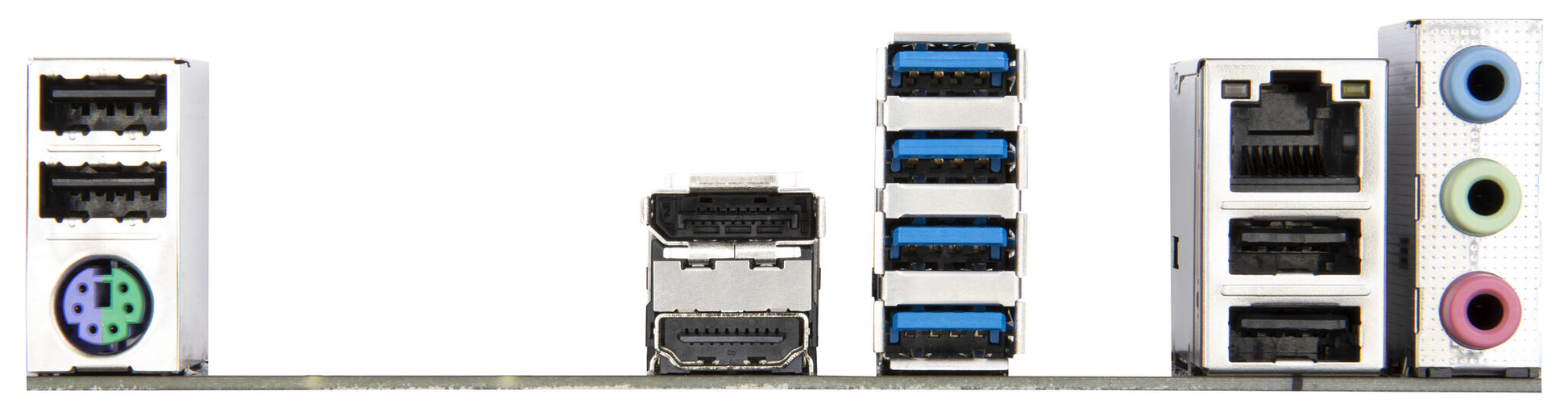

Rear panel I/O ports
USB connector type USB Type-A
Digital audio optical out 1
Microphone in Yes
Headphone outputs 1
DisplayPort version 2.0
DisplayPorts quantity 1
DVI-D ports quantity 1
HDMI version 2.1
HDMI ports quantity 1
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 2
Network
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64
Cooling type Active
Power source type ATX
PC health monitoring CPU, LED, Power supply, Temperature, Voltage
Product colour Black
Audio output channels 7.1 channels
Audio chip Realtek ALC887
Motherboard chipset family AMD
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x1 (Gen 3.x) slots 2
BIOS
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Clear CMOS button Yes
Clear CMOS jumper Yes
ACPI version 5.0
BIOS memory size 128 Mbit
BIOS type UEFI AMI
Packaging data
Package weight 810 g
Package height 54 mm
Package depth 265 mm
Package width 265 mm
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
Weight & dimensions
Height 35 mm
Depth 244 mm
Width 244 mm
Packaging content
Bundled software Norton Internet Security (OEM version)Realtek 8118 Gaming LAN Bandwidth Control Utility
Drivers included Yes
Cables included SATA
Batteries included Yes
Technical details
Warranty period 3 year(s)
