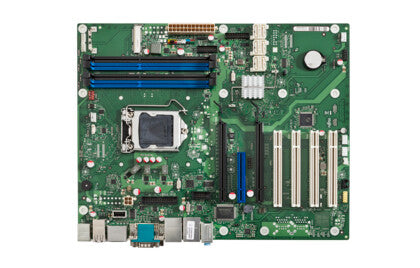

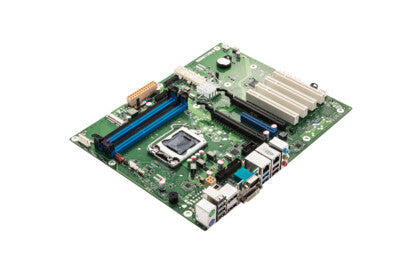

Fujitsu D3236-S GS3 motherboard Intel® Q87 LGA 1150 (Socket H3) ATX

Fujitsu D3236-S GS3 motherboard Intel® Q87 LGA 1150 (Socket H3) ATX

D3236-S GS3

£282.48 GBP£235.40 GBP
£0.00 GBP £282.48 GBP£235.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

21 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Intel LGA 1150 (Socket H3) Intel® Celeron®, Intel® Pentium®
  • ATX Intel® Q87 Realtek ALC671 5.1 channels
  • DDR3-SDRAM 4 DIMM Maximum internal memory: 32 GB
  • Micro SATA, PCI Express 3.0, SATA III
  • HD Graphics
  • BIOS type: UEFI AMI
  • Gigabit Ethernet
ATX 243.8 x 304.8 mm, Intel Q87, 4x DIMM Sockets, Intel Core i7/i5/i3/Pentium/Celeron

The FUJITSU Industrial Mainboard D3236-S is the best choice for industrial requirements. Produced in the German Fujitsu Mainboard Factory in Augsburg, the D3236-S fulfills the highest quality needs. Featured by the Intel® Q87 Express Chipset, the 4th Generation of Intel® Core™ processors are supported. To fulfill the requirement about reliable and managable network connections, the Fujitsu D3236-S is equipped with two Intel® GbE LAN Controller which supports the latest Intel® Active Management Technology (iAMT9.0). The Fujitsu D3236-S is designed & approved for 24/7 continiuous operation also in enhanced temperature ranges up to 60°C. Finally an improved Thermal Management & System Monitoring Microcontroller enables the user to get the whole overview about the system status.

Processor
Intel Core i3/i5/i7/i9 series i3-4xxx, i5-4xxx, i7-4xxx
Compatible processor series Intel® Celeron®, Intel® Pentium®
Processor socket LGA 1150 (Socket H3)
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 32 GB
Supported memory clock speeds 1333,1600 MHz
Memory voltage 1.5 V
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR3-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
Supported storage drive interfaces Micro SATA, PCI Express 3.0, SATA III
Graphics
DirectX version 11.1
Graphics card HD Graphics
Internal I/O
12V power connector Yes
Parallel connector Yes
CPU fan connector Yes
Front panel audio connector Yes
S/PDIF out connector No
Number of SATA III connectors 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 3
Rear panel I/O ports
Serial ports quantity 1
S/PDIF out port No
Microphone in Yes
Headphone outputs 1
DisplayPorts quantity 2
DVI-I ports quantity 1
PS/2 ports quantity 2
Ethernet LAN (RJ-45) ports 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 2.0 ports quantity 6
Network
Wake-on-LAN ready Yes
LAN controller Intel® I210-AT, Intel I217LM
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Yes
Power source type ATX
Audio output channels 5.1 channels
Audio chip Realtek ALC671
Motherboard chipset Intel® Q87
Motherboard chipset family Intel
Motherboard form factor ATX
Expansion slots
PCI slots 4
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 2.x) slots 1
BIOS
BIOS type UEFI AMI
Operational conditions
Storage temperature (T-T) 0 - 60 °C
Weight & dimensions
Depth 304.8 mm
Width 243.8 mm
Other features
S/PDIF in port No
PCI Express x8 (Gen 2.x) slots 1
S/PDIF in connector Yes
mSATA ports quantity 1
