Fluke

Fluke LIQ-KIT-IE network cable tester Fiber cable tester Blue, Orange

Fluke LIQ-KIT-IE network cable tester Fiber cable tester Blue, Orange

£3,432.89 GBP
£3,432.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LIQ-KIT-IE

Low stock: 4 left

  • Validate Cable Performance up to 10GBASE-T via frequency-based measurements
  • Get connected switch data rate, switch name, port number, and VLAN
  • Detect the PoE class (1-8) and power, and perform a load test
  • Perform cable diagnostics including length
  • Manage results and print reports from LinkWare™ PC
Lithium-ion, 3.6 V, 6400 mAh, 100 to 240 VAC, LLDP/CDP/FLP, IEEE 802.3af/at/bt

The LinkIQ™ Cable+Network Tester is the trusted solution to verify cable performance up to 10G and solve network connectivity problems.

LinkIQ™ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T), which ensure that tested links meet performance requirements.

LinkIQ™ also provides nearest switch diagnostics including advertised data rate, switch name and port number and VLAN information, plus PoE testing and load test up to Class 8 (90 W).

Additional features include: Cable Toning, Port Blink, 802.1x authentication, Remote Office Locators, and the ability to manage results via LinkWare PC.

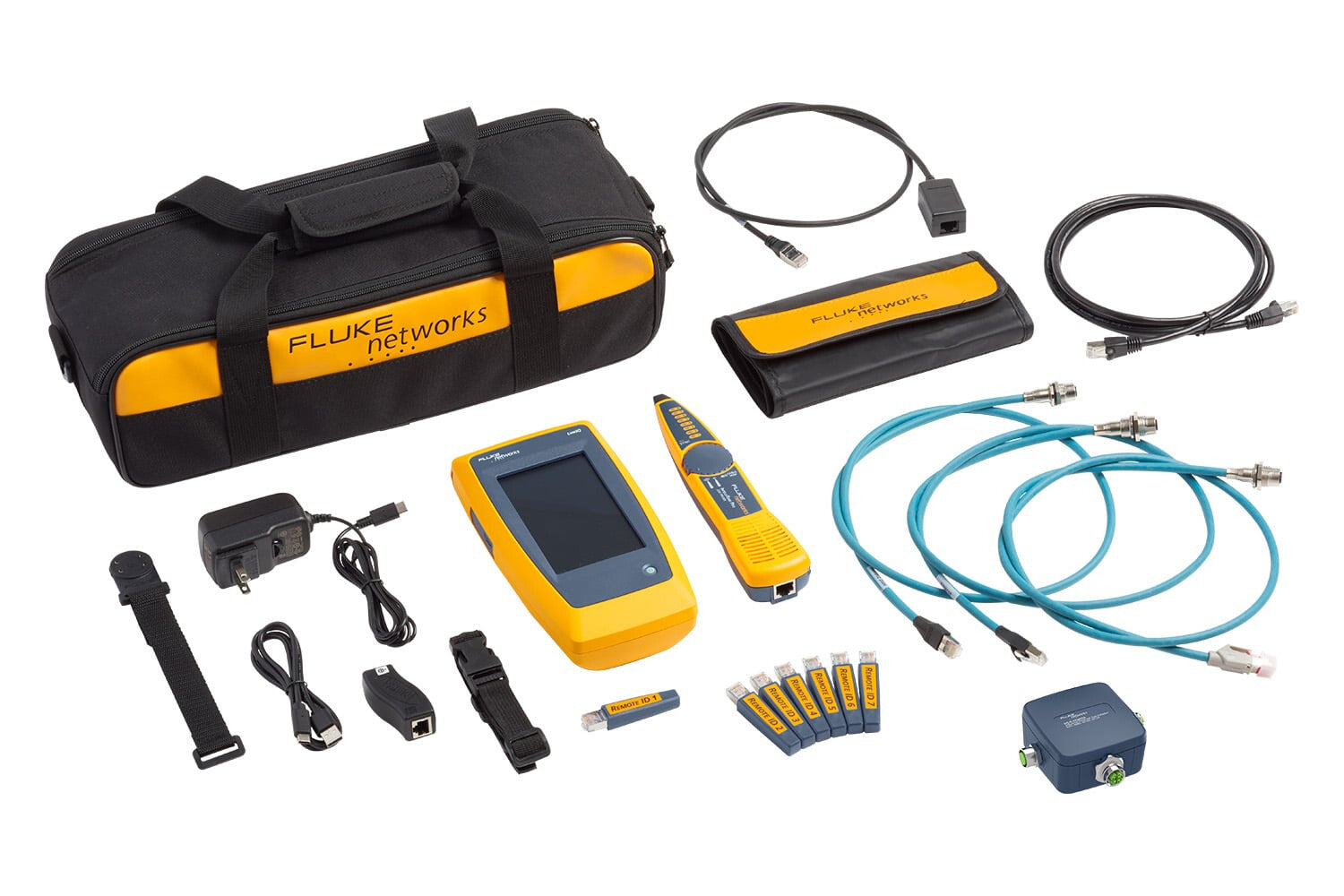

Includes LinkIQ™ Main Unit, Remote ID #1, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, and carrying case.

Operational conditions
Operating relative humidity (H-H) 0 - 90%
Operating temperature (T-T) 0 - 45 °C
Power
Battery type Built-in battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 6400 mAh
Battery voltage 3.6 V
Charging time 270 min
Weight & dimensions
Weight 624 g
Technical details
Product type Fiber cable tester
Test type PoE testing
Maximum cable length 305 m
Supported connectors RJ-45
Built-in display Yes
Product colour Blue, Orange
USB port Yes
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
