- Plug and play, no configuration and installation required
- LED status indicators for power supply and PoE
- Terminal block for DC input, +12 V to +48 VDC
- Rugged, compact metal housing, IP40

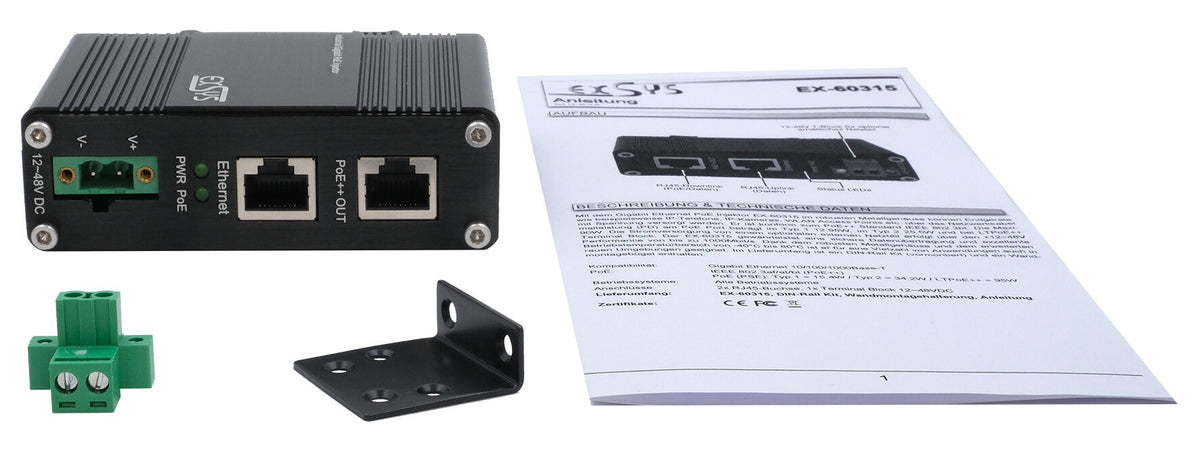

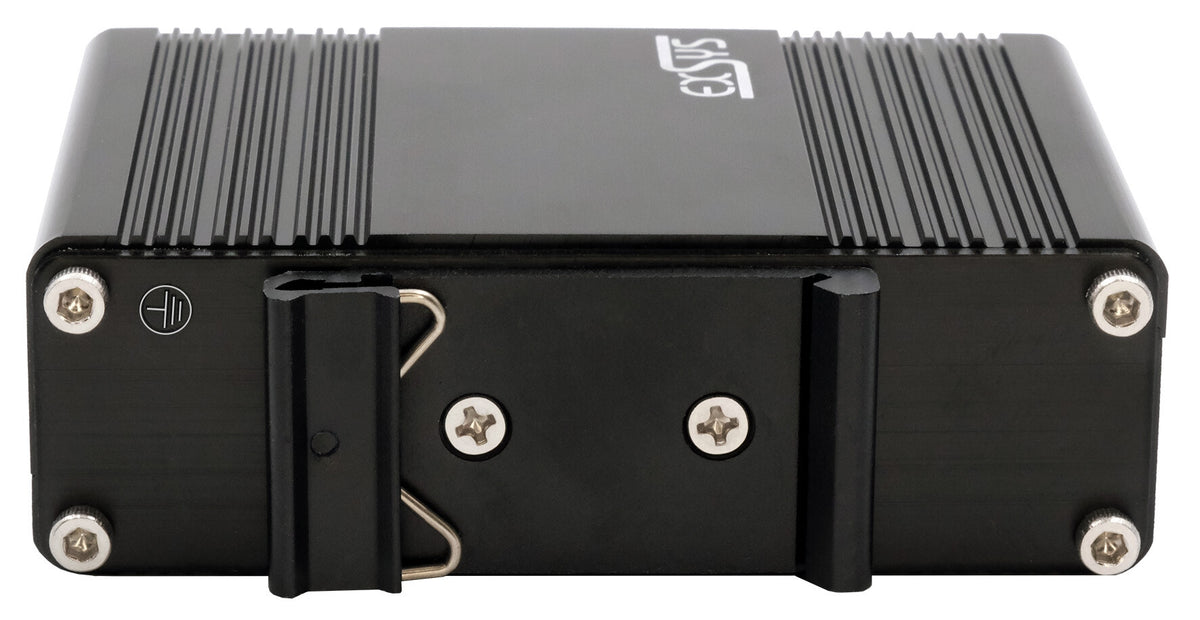

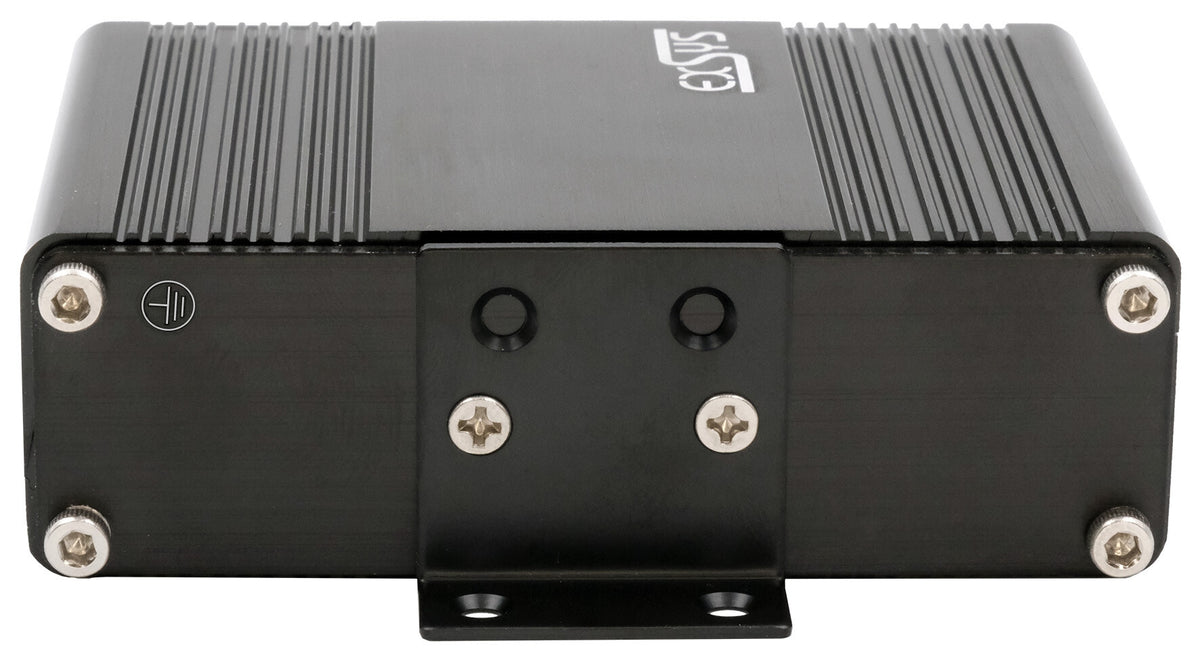

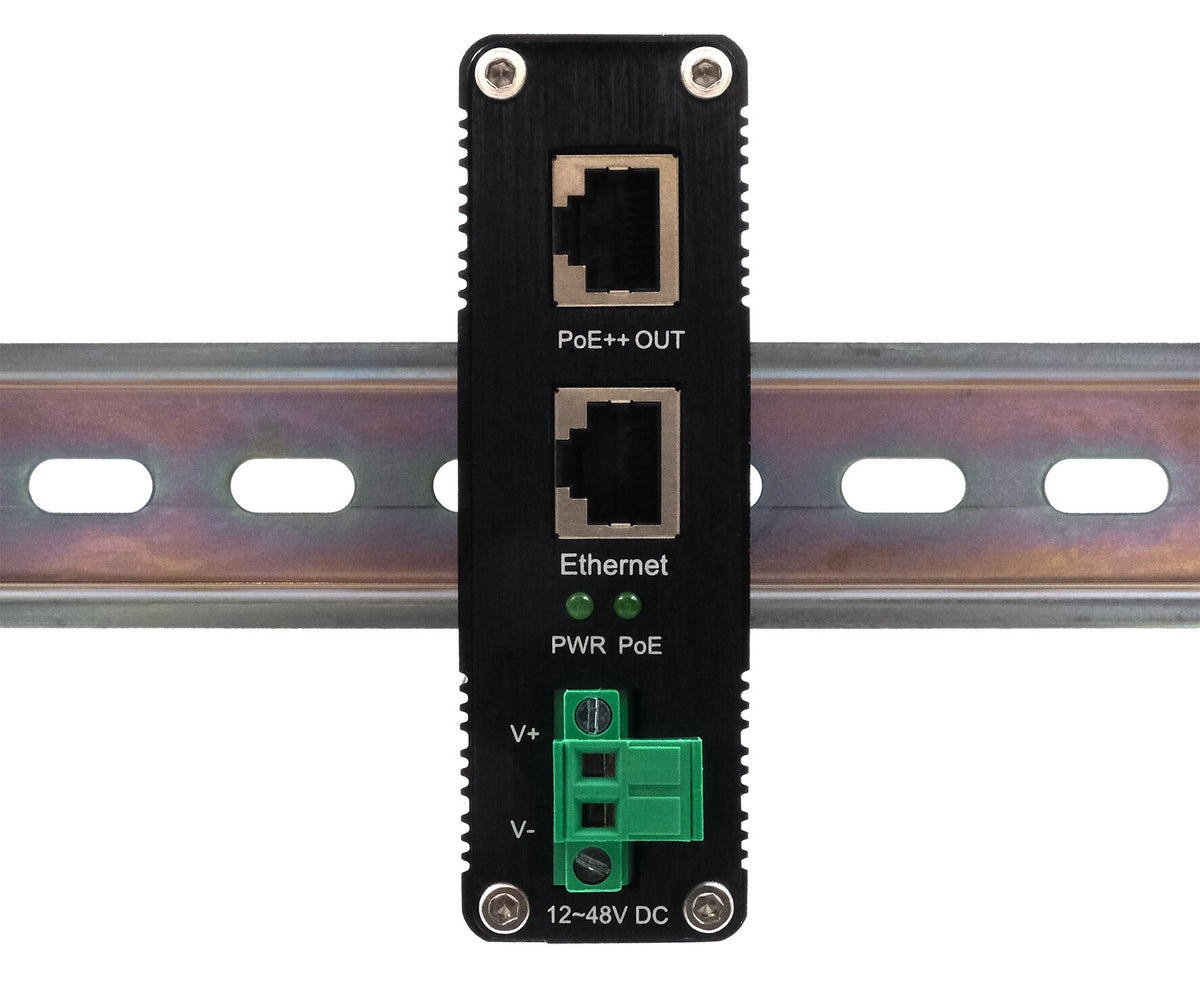

- Includes DIN-Rail Kit and wall mounting bracket
- Extended operating temperature range from -40°C to +80°C

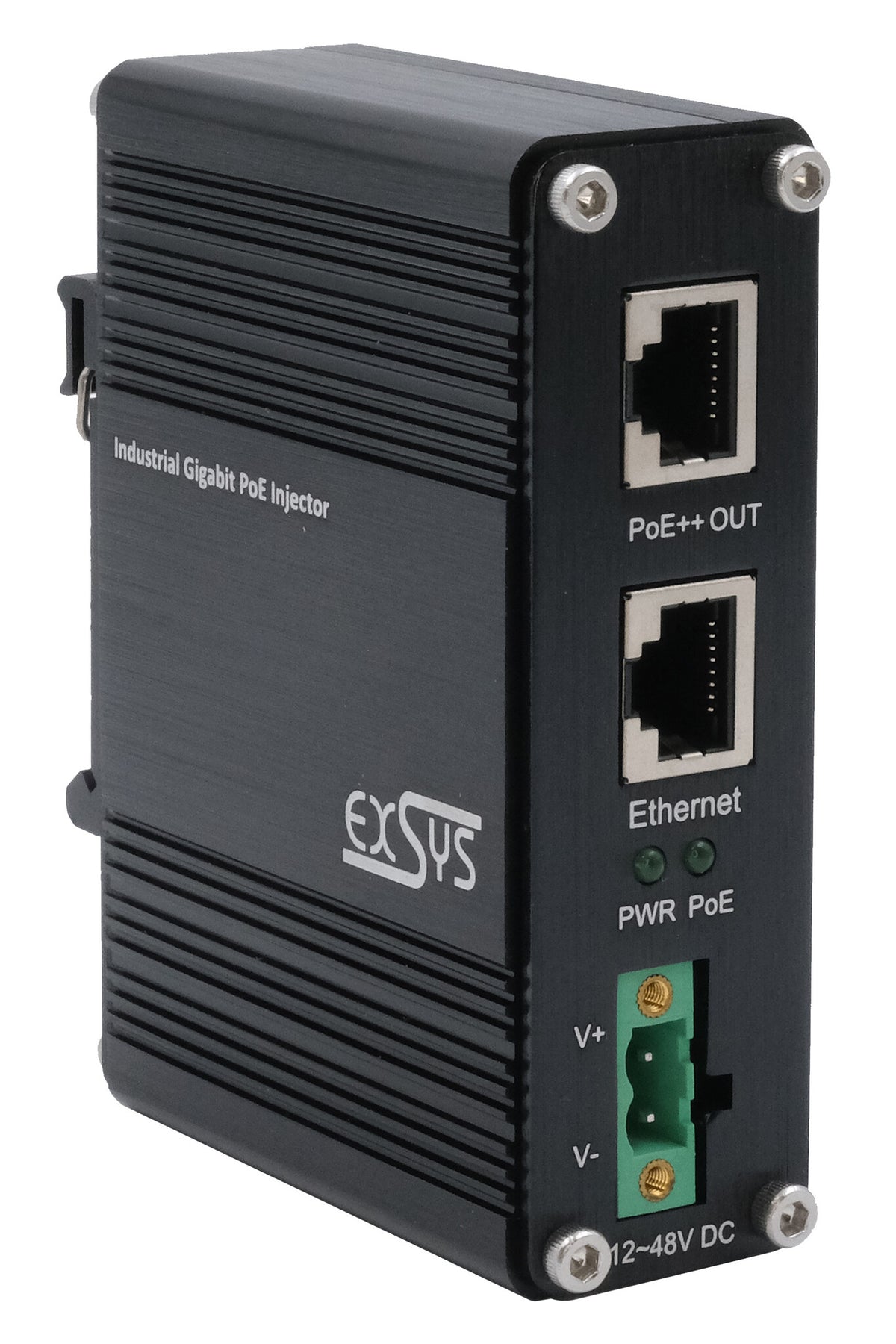

The Gigabit Ethernet PoE Injector EX-60315 in a robust metal housing allows end devices such as IP telephones, IP cameras, WLAN access points, etc. to be powered via the network cable. It supports the PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) and enables a maximum power output of up to 90W at the PoE port. Power is supplied via the +12~48V terminal block using an optional external power supply. The EX-60315 guarantees secure data transmission and excellent performance of up to 1000Mbps. The rugged metal housing and extended operating temperature range of -40°C to 80°C make it suitable for a wide range of applications, even in harsh environments. Supplied with a pre-assembled DIN rack kit and wall mounting bracket.
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at |
| Features | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Wall mountable | Yes |
| Plug and Play | Yes |
| LED indicators | PoE, Status |
| International Protection (IP) code | IP40 |
| Country of origin | China |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
|---|---|
| Input voltage | 12 - 48 V |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power over Ethernet (PoE) power per port | 90 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 176 °F |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 95 mm |
| Depth | 67.5 mm |
| Height | 28 mm |
| Weight | 370 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Wall mounting kit | Yes |
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Sustainability compliance | Yes |
