EXSYS

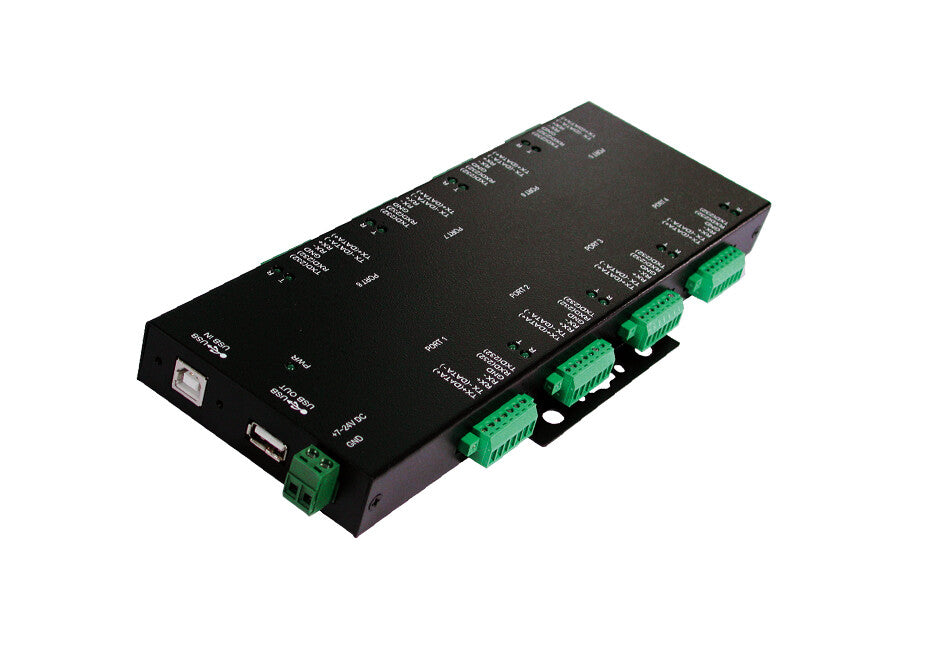

EXSYS EX-1339HMVS interface cards/adapter Serial

EXSYS EX-1339HMVS interface cards/adapter Serial

EX-1339HMVS

£3.12 GBP£2.60 GBP
£0.00 GBP £3.12 GBP£2.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Host interface: USB
  • Output interface: Serial
  • Black
EX- 1339HMVS - USB 2.0 to 8S RS-232/422/485, Surge Prot

- Interface: RS-232 V.24, RS-422 and RS-485
- ESD 15KV Surge Protection und 2.5KV Optical Isolation
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Signal RS-422: 4-wire (TXD+/-, RXD+/-) Fullduplex
- Signal RS-485: 2-wire RS-485 (Data+/-, Data +/-) Halfduplex
- Power from the USB Bus (Bus Power)
- Supports TX and RX Activity LED Indicators.

Ports & interfaces
Host interface USB
Output interface Serial
Serial ports quantity 8
Serial interface type RS-232/422/485
Design
Internal No
Product colour Black
Certification CE, FCC
Features
Chipset FTDI
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -30 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Weight & dimensions
Width 246 mm
Depth 85 mm
Height 23 mm
Weight 700 g
Packaging data
User guide Yes
Other features
Connectivity technology Wired
View full details
