Compliant with USB 3.0 and Intel xHCI specification
Supports all USB Compliant Data Transfer Type such as Control/Bulk/Interrupt/Isochronous
Support up to 123 device
Fully PCI Express Gen2 Specification Compliant
Support “Hot Swapping” and “Plug-and-Play”
Chip-Set: Renesas uPD720202

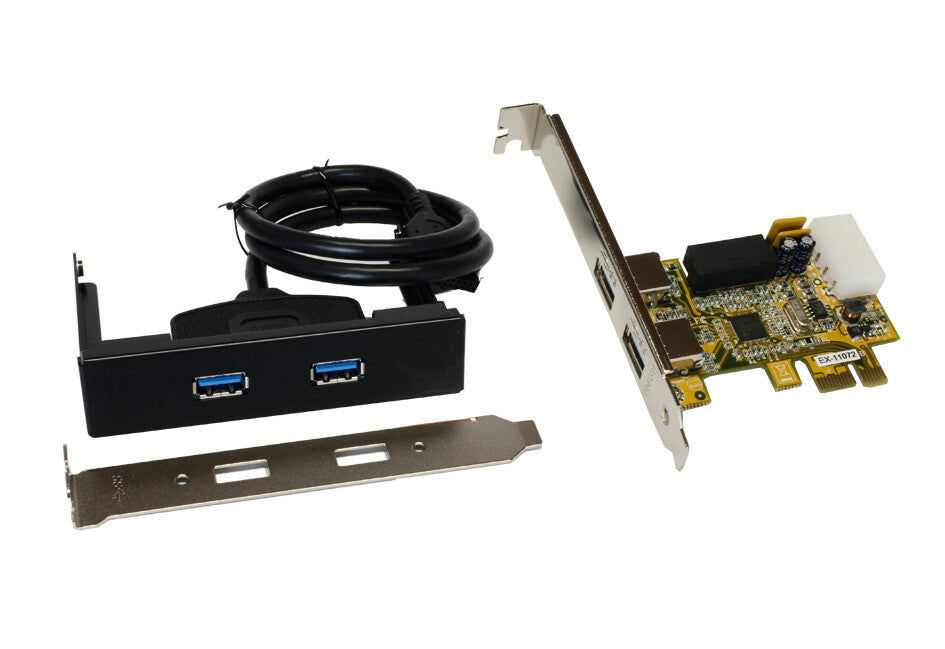

USB 3.0 PCI-Express board with 2 external + 2 internal Ports
The EX-11072 USB 3.0 PCI-Express board offer you each two internal and external Super-Speed USB 3.0 port. The EX-11072 it’s design for connect four more USB 1.1, 2.0 or 3.0 pe-ripheral device to your Workstation, Desktop or Server. He support USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.0 Super-Speed (5Gbps). It is an ideal technology for external storage devices, digital cameras, webcams, scanners and much more. For support the power of 900mA to the external or internal USB 3.0 port, need the power from the computer case power supply. The internal 20 pin header USB 3.0 connector it’s Mother-Board compatible. The EX-11070 adapter kit with 2 x USB 3.0 connector and LowProfile bracket are included.
Ports & interfaces
Host interface
PCIe
Output interface
USB 3.2 Gen 1 (3.1 Gen 1)
Design
Internal
Yes
Hot-swap
Yes
Features
Plug and Play
Yes
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Technical details
Compliance certificates
RoHS
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64
