Ernitec SR-2U7F4-HW server 1 TB Rack 16 GB DDR5-SDRAM 550 W Windows 11 Pro
Ernitec SR-2U7F4-HW server 1 TB Rack 16 GB DDR5-SDRAM 550 W Windows 11 Pro
SKU:SR-2U7F4-HW
Low stock: 9 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Intel Core Ultra 7 265 - 20C/20T 2.4-5.3GHz
- 16GB DDR5 - 4800MT
- 1TB PCIe 4.0 NVMe OS drive
- Broadcom 9361-8i hardware RAID controller
- Support for up to 4x 3.5" HDDs internally
- Windows 11 Pro preinstalled
- Single 550W GOLD+ PSU - Redundant PSU supported via optional add-on
- Optional Railkits: E-23INCH-RAILKIT or E-28INCH-RAILKIT-R200
- To reduce waste only Euro CEE 7 to C13 power cables are included.
This versatile 2U server delivers a strong balance of performance, expandability, and reliability for modern workloads. Powered by the Ultra 7 265 processor and paired with 16GB of memory, it provides smooth multitasking and efficient processing for business applications, virtualization, or edge deployments. The included 1TB NVMe SSD ensures rapid boot times and high‐speed data access.
Networking is flexible and robust with both 1×2.5GbE and 1×1GbE ports, making it suitable for diverse infrastructure environments. Hardware‐level security is enhanced through an integrated TPM module, while Windows 11 Pro offers a familiar and secure operating system foundation.
The 2U chassis supports up to four internal 3.5" HDDs connected to the Broadcom 9361 hardware RAID controller, giving you ample room for future storage expansion. A 550W power supply comes standard, and the system can be upgraded with an additional 550W PSU to enable full redundant power for mission‐critical uptime.
This server is an excellent choice for organizations seeking a dependable, scalable platform that can grow with their needs.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Efficient-core base frequency | 1.8 GHz |
| Performance-core base frequency | 2.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Processor cores | 20 |
| Processor cache | 30 MB |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | Smart Cache |
| Processor threads | 20 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| ECC | No |
| Memory data transfer rate | 4800 MT/s |
| Maximum internal memory | 256 GB |
| Storage | |
|---|---|
| Total storage capacity | 1 TB |
| HDD capacity | 1 TB |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD size | M.2 |
| Number of SSDs supported | 3 |
| RAID support | Yes |
| Number of 5.25" bays | 2 |
| Internal drive bays | 4 |
| Supported storage drive interfaces | M.2 |
| RAID controller cache | 1 GB |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| On-board graphics card 4K support | Yes |
| Number of displays supported (on-board graphics) | 2 |
| Network | |
|---|---|
| Number of LAN controllers | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |

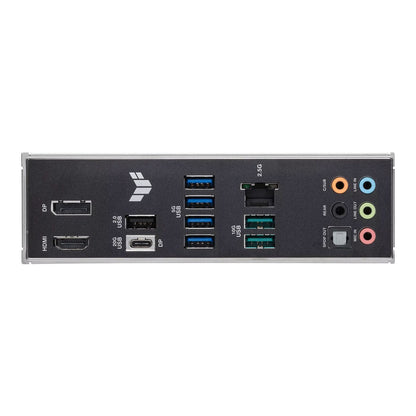

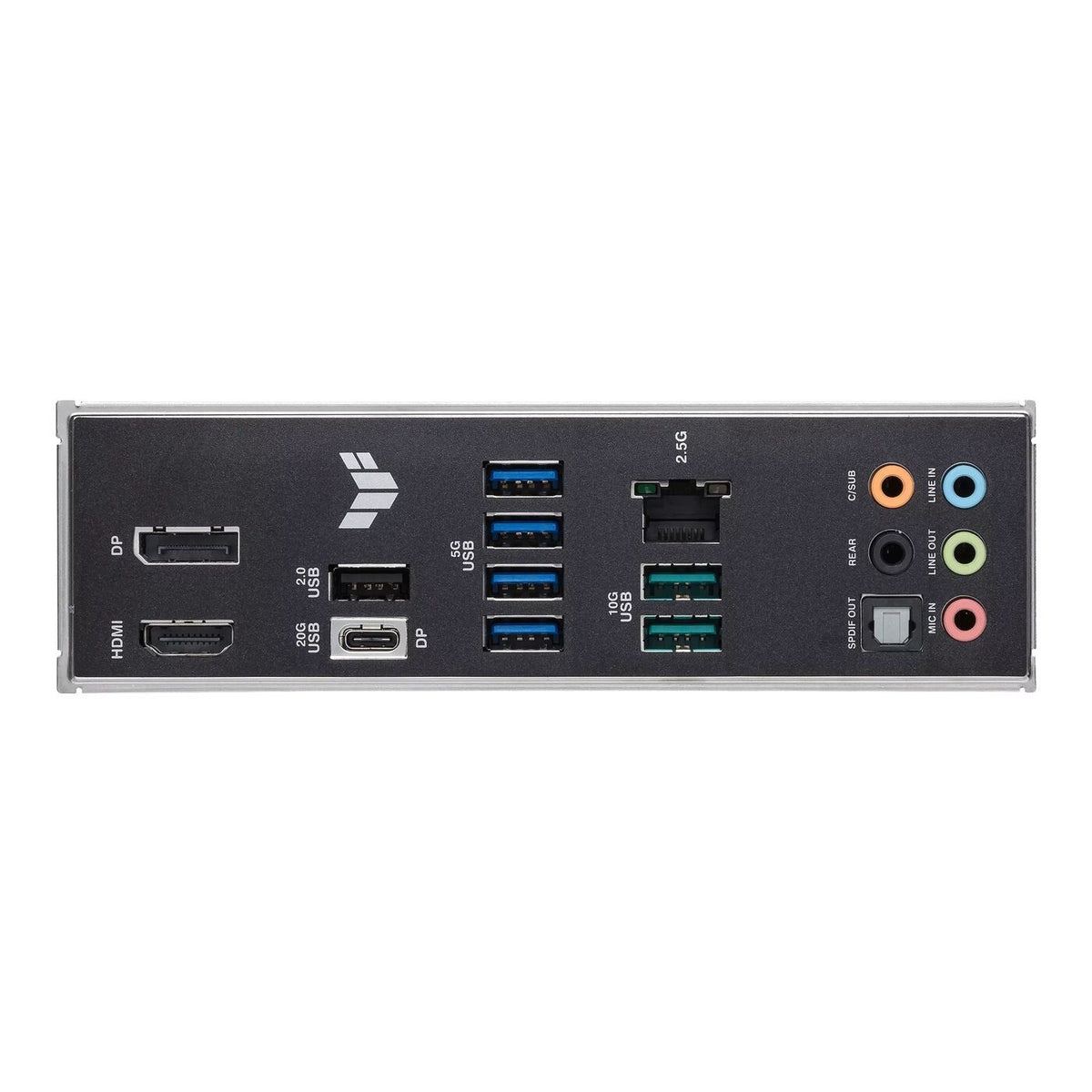

| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Number of SATA III connectors | 4 |
| DisplayPorts quantity | 1 |
| Expansion slots | |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Design | |
|---|---|
| Chassis type | Rack |
| Cooling type | Active |
| Product colour | Black |
| Motherboard form factor | micro ATX |
| Rack rails | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 11 |
| Operating system language | Multilingual |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 550 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 1 |
| Weight & dimensions | |
|---|---|
| Width | 570 mm |
| Height | 210 mm |
| Depth | 690 mm |
| Weight | 10 kg |
| Package width | 570 mm |
| Package depth | 690 mm |
| Package height | 210 mm |
| Package weight | 12 kg |
| Packaging content | |
|---|---|
| Cables included | Power |
| Technical details | |
|---|---|
| Chassis dimensions | 503.9 x 432.3 x 87.9 mm (19.8 x 17 x 3.46") |
| 3.5" HDD support | 4 |
| Other features | |
|---|---|
| Number of SATA connectors | 4 |
| Warranty period | 3 year(s) |
| Integrated BMC with IPMI | No |
| Hot-swap HDD bays | No |
| Dimensions (WxDxH) | 504 x 432.4 x 88 mm |
| RAID controller type | Hardware (Storage drives) |
