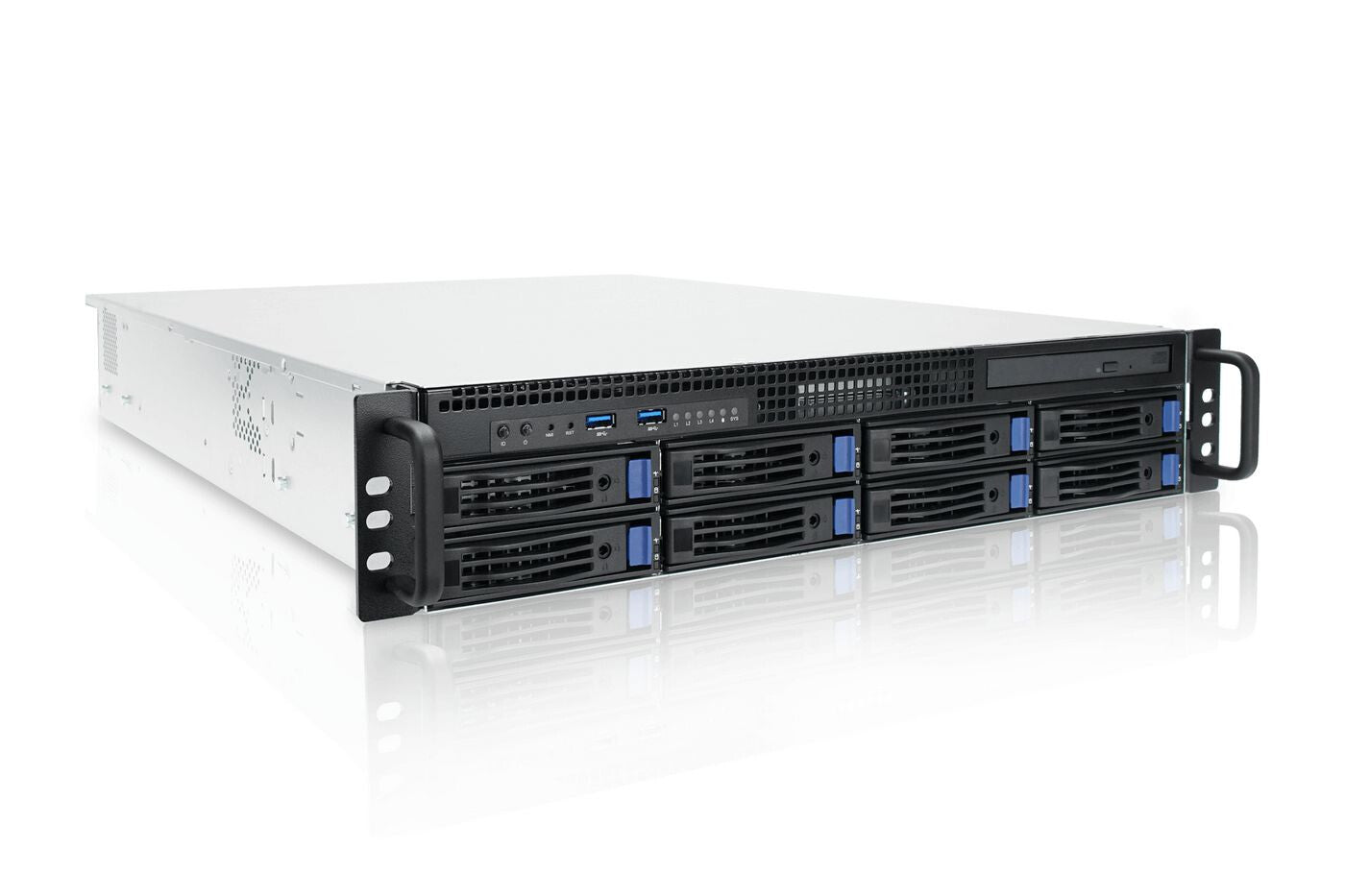

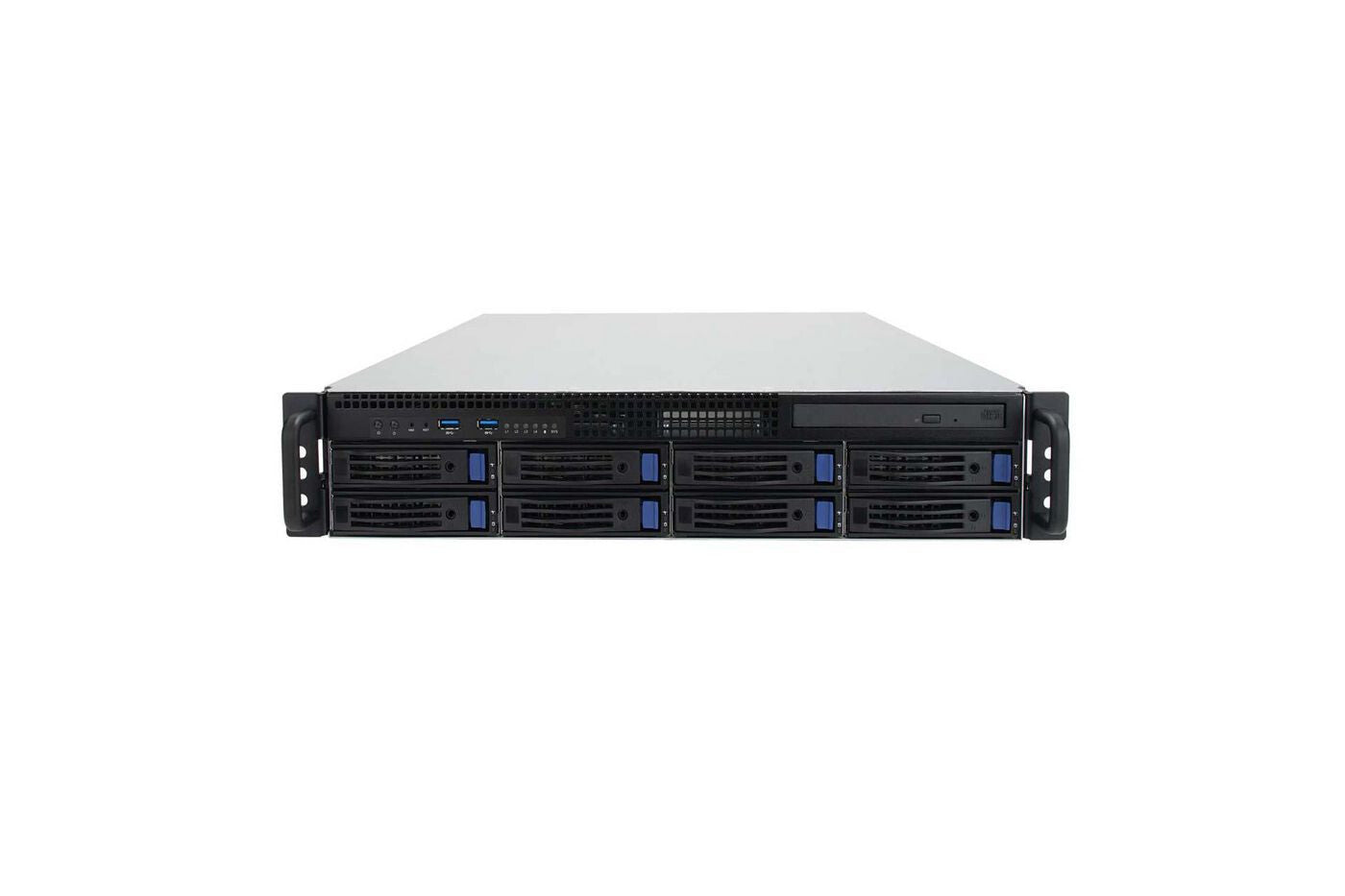

Ernitec SR-2U78R-HW server 1 TB Rack 32 GB DDR5-SDRAM Windows 11 Pro

Ernitec SR-2U78R-HW server 1 TB Rack 32 GB DDR5-SDRAM Windows 11 Pro

SR-2U78R-HW

£13,836.24 GBP£11,530.20 GBP
£0.00 GBP £13,836.24 GBP£11,530.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

21 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Short depth: 58CM
  • Ultra 7 265 CPU - 2.4-5.3GHz - 20C/20T
  • 1x 2.5GbE + 1x 10GbE NICs + dedicated IPMI NIC
  • 2x 1TB Samsung PCIe 4.0 NVMe RAID1 OS drive
  • Support for up to 8x 3.5" HDDs with HW RAID
  • Windows 11 Pro preinstalled
  • Suitable for up to 100 4MP cameras @25 FPS
2U 8 Bay Server: Ultra 7 265, 32GB RAM, 2x1TB NVMe, 9560 RAID, 1x2.5GbE, 1x10GbE, IPMI, TPM, dual 800W PSU, Win11 Pro – powerful and scalable.

2U 8 Bay Server
This high-performance 2U server features an Ultra 7 265 processor, 32GB RAM, dual 1TB NVMe OS drives. 9560 RAID for speed and redundancy on the 8 front drive bays, and both 2.5GbE and 10GbE network ports for flexible connectivity. With IPMI for remote management, TPM for security, redundant 2x800W power supplies, and Windows 11 Pro pre-installed, it’s ideal for demanding, scalable enterprise workloads.

Processor
Processor manufacturer Intel
Efficient-core base frequency 1.8 GHz
Performance-core base frequency 2.4 GHz
Performance-core Max Turbo Frequency 5.3 GHz
Performance cores 8
Efficient cores 12
Processor cores 20
Processor threads 20
Processor socket LGA 1851 (Socket V1)
Cache internal 36 MB
Memory
Internal memory 32 GB
Internal memory type DDR5-SDRAM
Memory layout (slots x size) 2 x 16 GB
ECC No
Memory data transfer rate 4800 MT/s
Maximum internal memory 256 GB
Storage
Total storage capacity 1 TB
HDD capacity 1 TB
Number of HDDs supported 8
Supported HDD sizes 2.5"
Number of SSDs installed 2
SSD capacity 1 TB
NVMe Yes
SSD size M.2
Number of SSDs supported 4
Supported storage drive interfaces M.2
RAID controller cache 4 GB
Graphics
On-board graphics card Yes
On-board graphics card family Intel Arc Graphics
On-board graphics card model Intel Arc Graphics
On-board graphics card 4K support Yes
Number of displays supported (on-board graphics) 3
Network
Number of LAN controllers 2
LAN controller Intel I225-V
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes

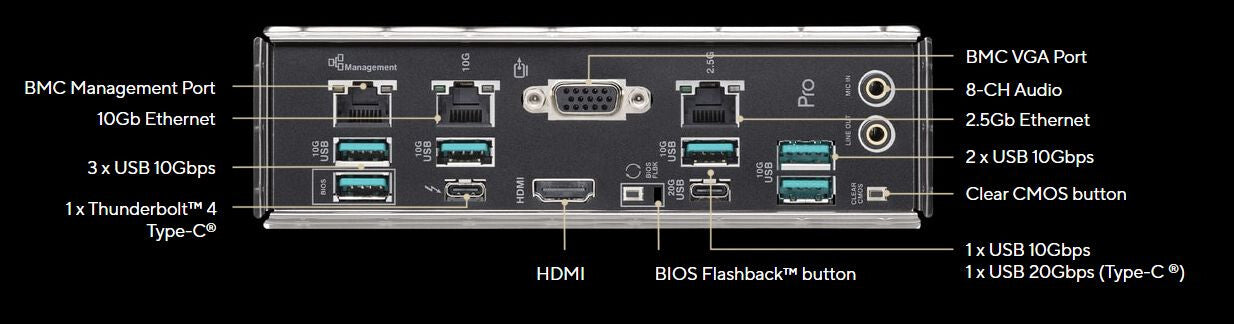

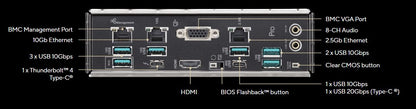

Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB 2.0 ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
VGA (D-Sub) ports quantity 1
Expansion slots
PCI Express x4 slots 1
PCI Express x16 (Gen 5.x) slots 2
Design
Chassis type Rack
Cooling type Active
Product colour Black
Rack rails Yes
Rack mounting Yes
Performance
Trusted Platform Module (TPM) version 2.0
Trusted Platform Module (TPM) Yes
Software
Operating system installed Windows 11 Pro
Operating system language Multilingual
Power
Number of main power supplies 2
Weight & dimensions
Width 590 mm
Height 190 mm
Depth 830 mm
Weight 13 kg
Package width 590 mm
Package depth 830 mm
Package height 190 mm
Package weight 16 kg
Other features
Warranty period 3 year(s)
Integrated LAN Yes
Integrated BMC with IPMI Yes
RAID controller type Hardware
