Ernitec SR-1X54R-A4-WS server 500 GB Rack 6357P 16 GB DDR5-SDRAM Windows Server 2025
Ernitec SR-1X54R-A4-WS server 500 GB Rack 6357P 16 GB DDR5-SDRAM Windows Server 2025
SKU:SR-1X54R-A4-WS
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Short depth: 54CM
- Xeon 6357P CPU - 3.0-5.4GHz - 8C/16T
- Dual 1GbE NICs + dedicated IPMI NIC
- 2x 500GB SSD RAID1 OS drive
- Windows Server 2025 Standard Preinstalled.
- Support for up to 4x 3.5" hot swap HDDs with SW RAID support

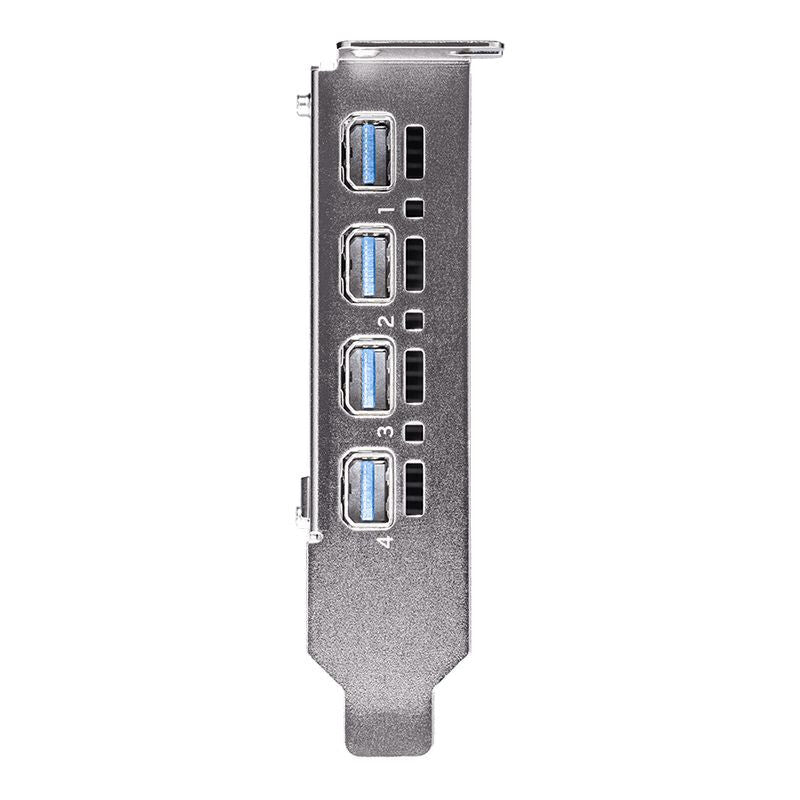

- Nvidia A400 GPU with 4x mini DisplayPort 1.4a
- Rails included
- Suitable for up to 50 4MP cameras @25 FPS depending on storage configuration
- To reduce waste only Euro CEE 7 to C13 power cables are included.

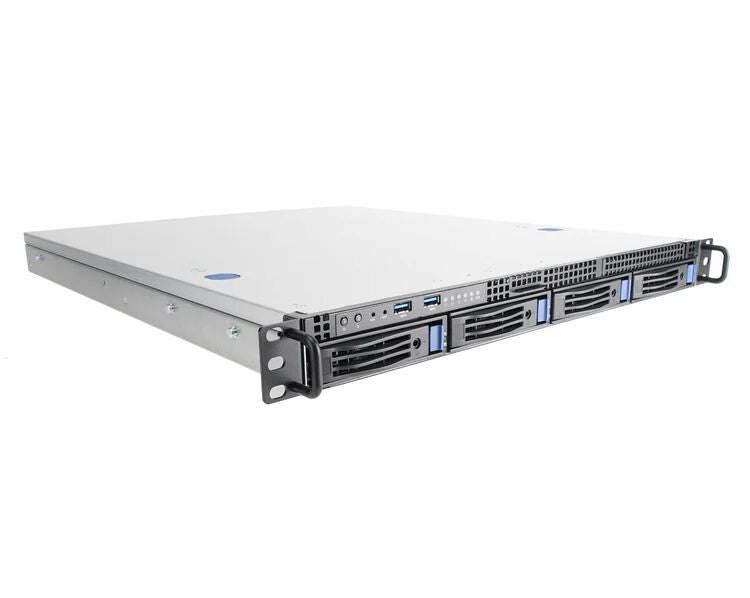

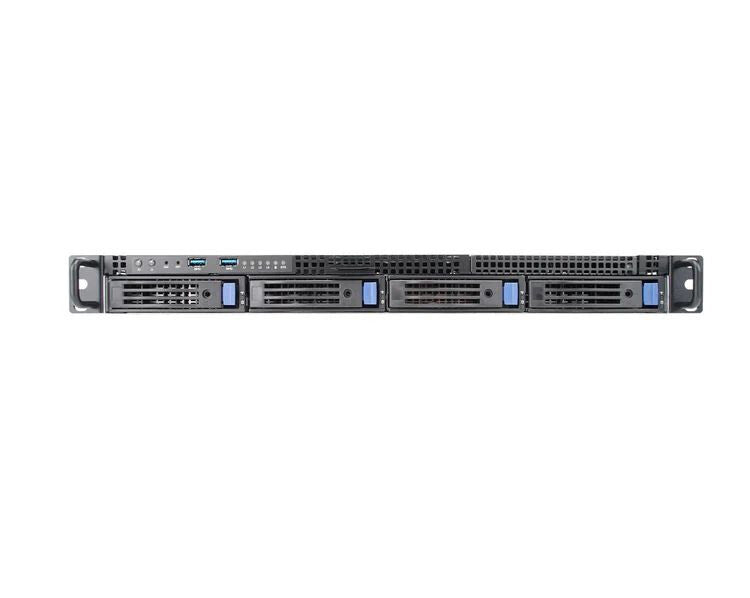

1U 4 Bay Server
Powered by an Intel Xeon 6357P CPU, this 1U server features 16GB RAM, dual 500GB drives, NVIDIA A400 GPU, and dual 1GbE ports. With IPMI for remote management, TPM for security, redundant 2x300W power supplies, and Windows Server 2025 Standard pre-installed, it’s designed for reliable, secure, and high-performance applications in a compact form factor.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor model | 6357P |
| Performance-core base frequency | 3 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor socket | LGA 1700 |
| Cache internal | 24 MB |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory data transfer rate | 4400 MT/s |
| Maximum internal memory | 128 GB |
| Storage | |
|---|---|
| Total storage capacity | 500 GB |
| HDD capacity | 500 GB |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 500 GB |
| SSD size | 2.5" |
| Hot-swap | Yes |
| Supported storage drive interfaces | M.2 |
| Graphics | |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card 4K support | Yes |
| Number of displays supported (on-board graphics) | 1 |
| Network | |
|---|---|
| Number of LAN controllers | 2 |
| LAN controller | Intel® I210-AT |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |

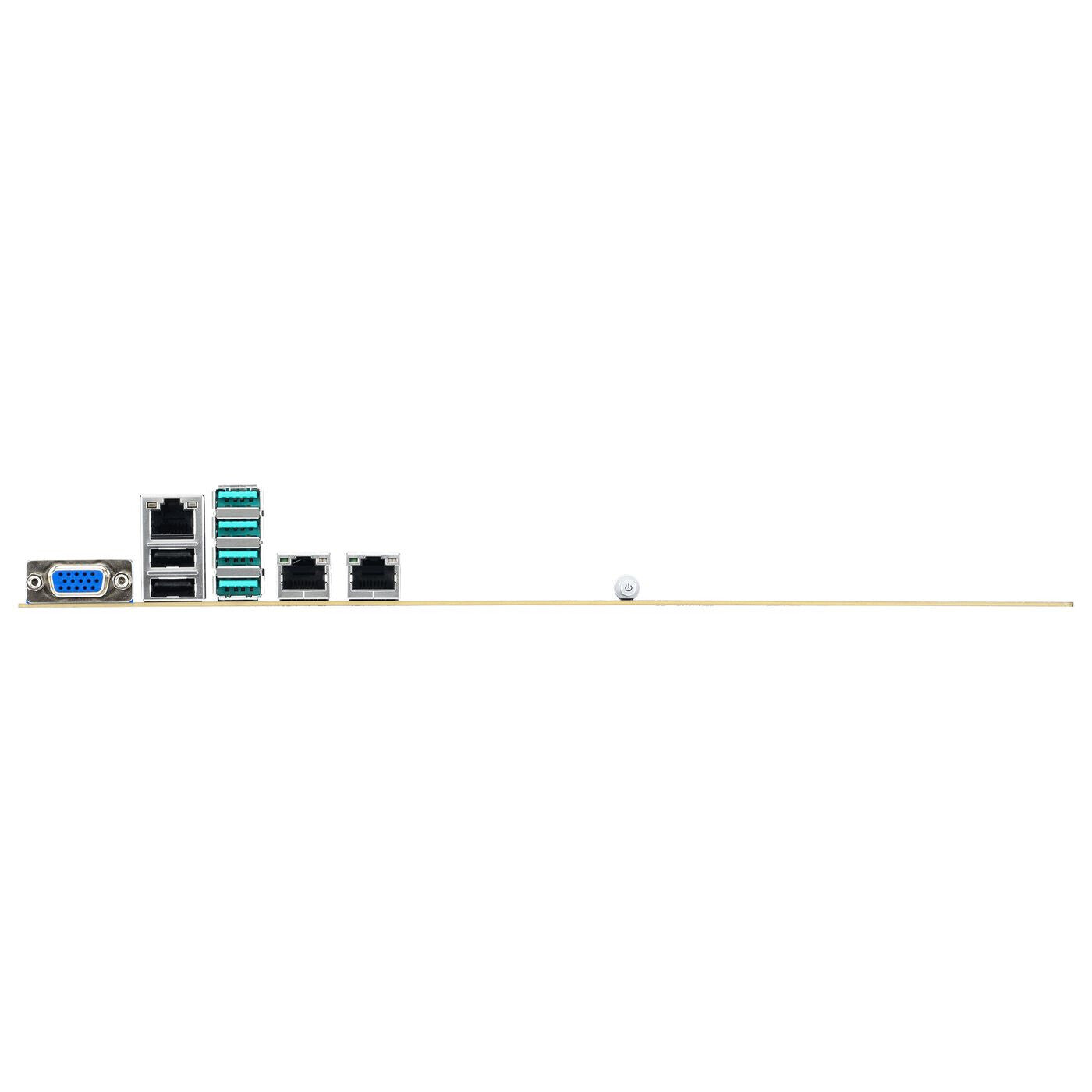

| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Mini DisplayPorts quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
|---|---|
| Chassis type | Rack |
| Cooling type | Active |
| Product colour | Black |
| Rack rails | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | Windows Server 2025 |
| Operating system language | English |
| Power | |
|---|---|
| Number of main power supplies | 2 |
| Weight & dimensions | |
|---|---|
| Width | 580 mm |
| Height | 137 mm |
| Depth | 680 mm |
| Weight | 8 kg |
| Package width | 580 mm |
| Package depth | 680 mm |
| Package height | 137 mm |
| Package weight | 9 kg |
| Technical details | |
|---|---|
| Supported RAID configuration | 0, 1, 10 |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
| Integrated LAN | Yes |
| Integrated BMC with IPMI | Yes |
| Dimensions (WxDxH) | 430 x 537.55 x 43.3 mm |
| RAID controller type | Software |
