Ernitec

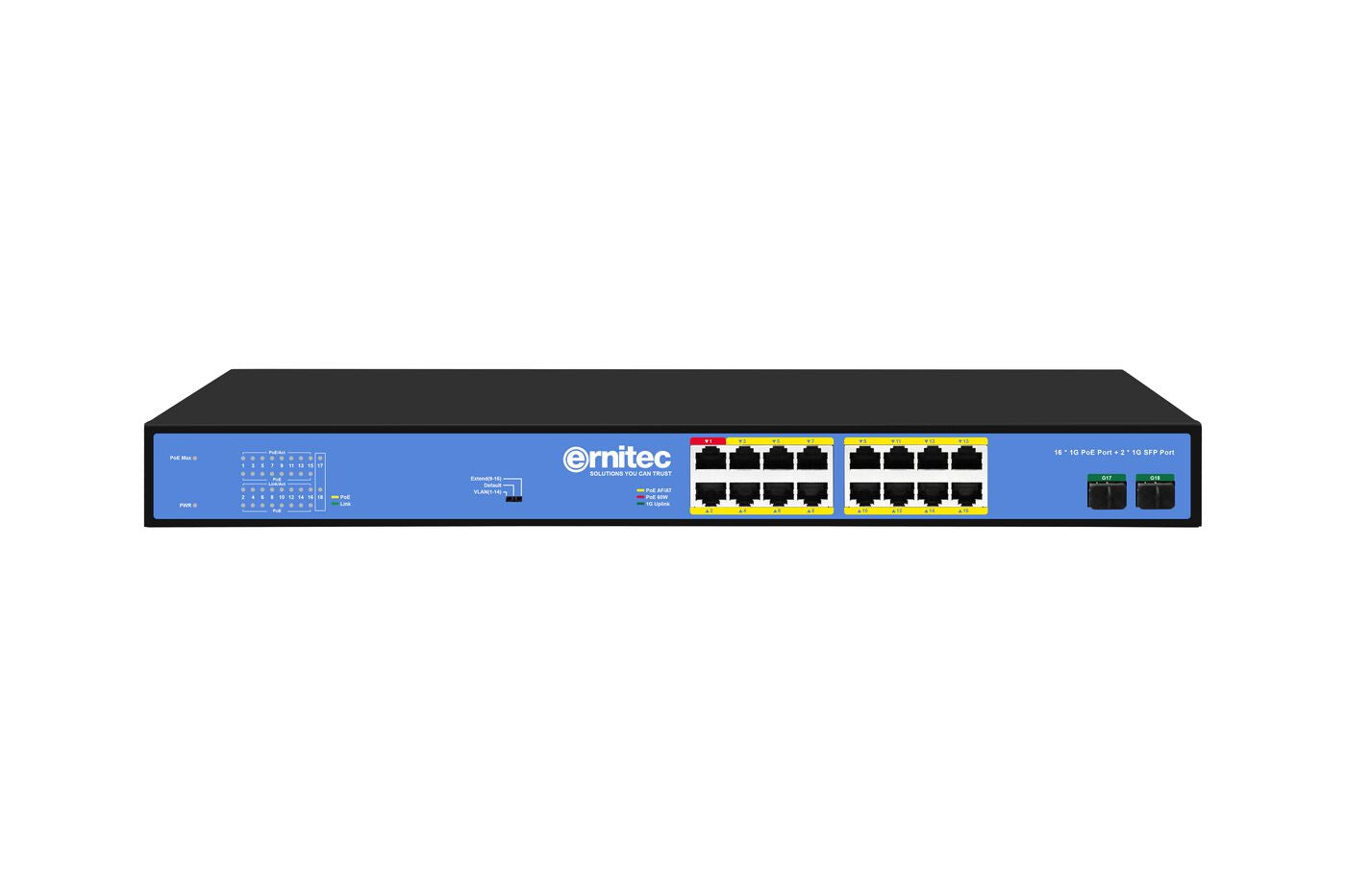

Ernitec ELECTRA-U16-1GB-285W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Ernitec ELECTRA-U16-1GB-285W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

£135.61 GBP
£135.61 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ELECTRA-U16-1GB-285W

38 in stock

  • 16*1Gbps PoE ports+2*1Gbps SFP ports
  • Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
  • Ethernet Ports support 10/100/1000Mbps self-adaptive
  • Support automatic port flipping (Auto MDI/MDIX)
  • Adopt a storage and forwarding exchange mechanism
  • The panel indicator LEDs will monitor the working status and assist in fault analysis
  • Support three modes: VLAN, Default, and Extend
  • PoE priority is enabled by default, with priority order from 1 to 14 ports
  • Port 1 supports HiPoE 60W
  • 5 Year Warranty
18-Port Gigabit Unmanaged Intelligent PoE Switch, 16 PoE Gigabit RJ45 ports, 2 Gigabit SFP ports. PoE 285W

Electra-U16-1GB-285W, a state-of-the-art Gigabit PoE switch designed for high-performance networking.
This intelligent switch features 16 Gigabit PoE ports and 2 Gigabit uplink SFP ports, compliant with IEEE 802.3af/at standards.
With a robust bandwidth of 36 Gbps and a total power output of 285W, it efficiently supports advanced networking applications.
Equipped with port isolation and a 250m transmission mode, theElectra-U16-1GB-285W is ideal for diverse installations.
Engineered to operate in a wide temperature range of -10 to 50°C, this switch also includes advanced surge protection (Common Mode 4KV, Differential Mode 2KV - Class B) and ESD protection levels (Air 8KV, Contact 6KV - Class C), ensuring reliable performance in challenging environments.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 2
Uplink ports quantity 2
Network
Networking standards IEEE 802.3u
Half duplex Yes
Full duplex Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 8000 entries
Switching capacity 36 Gbit/s
Forwarding rate 26.784 Mpps
Store-and-forward Yes
Design
Housing material Metal
LED indicators Power
Number of fans 0 fan(s)
Performance
Fanless Yes
Power
AC input frequency 50/60 Hz
Power consumption (max) 6.5 W
Surge protection Yes
Surge protection voltage 4 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Power over Ethernet (PoE) ports quantity 16
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 285 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 500 mm
Depth 290 mm
Height 85 mm
Weight 2.74 kg
Packaging data
Cables included Power
Package width 500 mm
Package depth 290 mm
Package height 85 mm
Package weight 3.3 kg
Other features
Mounting Desktop, rack mounting
