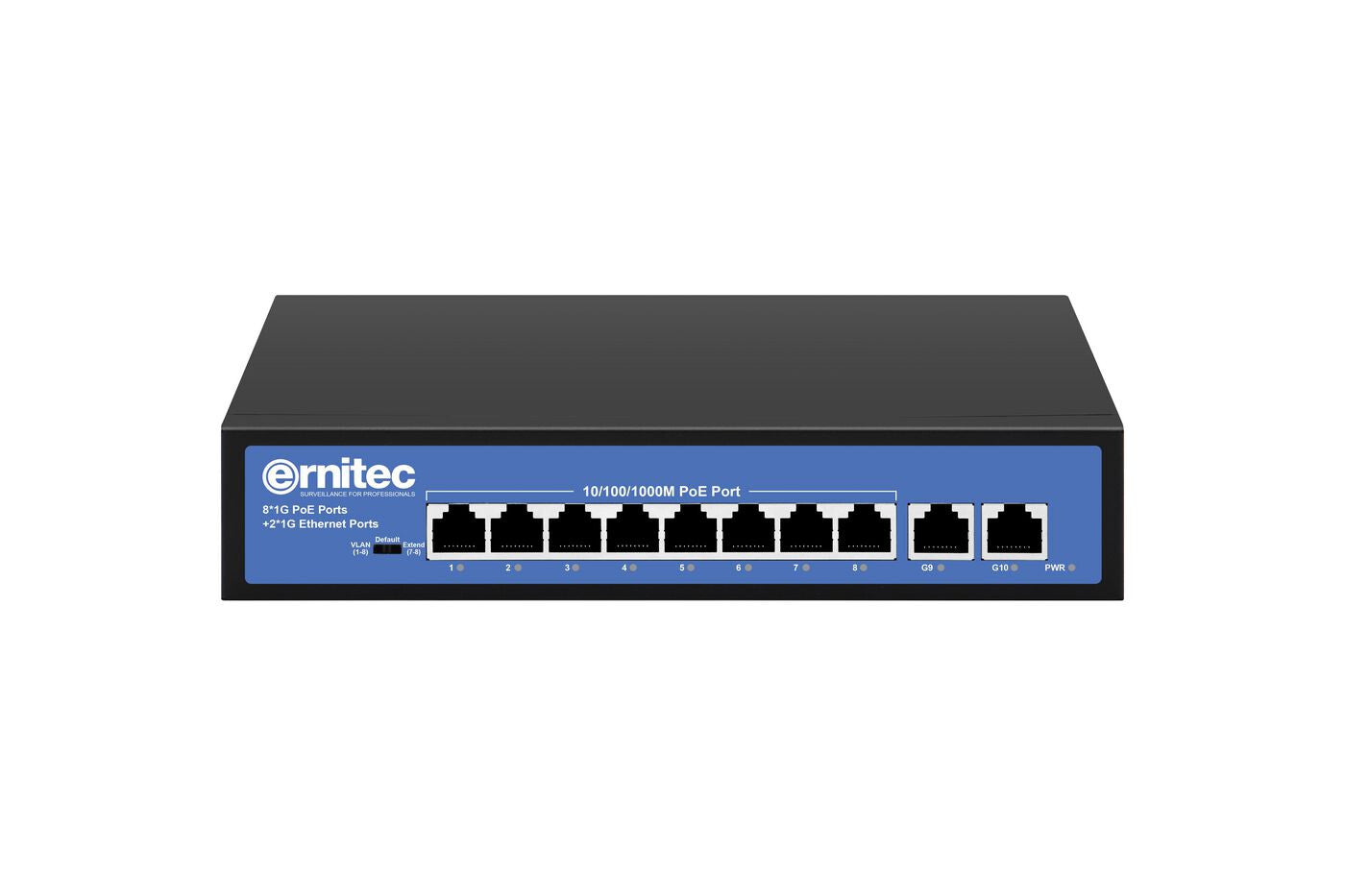

Ernitec ELECTRA-U08-1GB-110W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

• 8 *1G PoE ports+2* 1G RJ45 ports
• Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards
• Ethernet Ports support 10/100/1000M self- adaptive
• PoE port in Extend mode, 7-8 ports force 10Mbps to automatically activate PoE watchdog mode
• PoE priority is enabled by default, with priority order from 1 to 8 ports
• Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back
• pressure standard
• The panel indicator LED will monitor the working status and assist in fault analysis
• Supports VLAN, Default, and Extend modes
• Port 1 supports HiPoE 60W
• 5 Year Warranty

The device features 8 Gigabit PoE ports and 2 Gigabit RJ45 ports, complying with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards.
The RJ45 ports support 10/100/1000Mbps auto-negotiation. In Extend mode, ports 7-8 are limited to 10Mbps and automatically activate the PoE watchdog mode.
PoE priority is set by default, with a priority sequence from port 1 to 8. For flow control, full duplex mode utilizes the IEEE 802.3x standard, while half duplex relies on the back pressure standard.
Panel indicator lights assist in monitoring operational status and troubleshooting.
The switch supports VLAN, Default, and Extend modes, with one port capable of delivering 60W.
