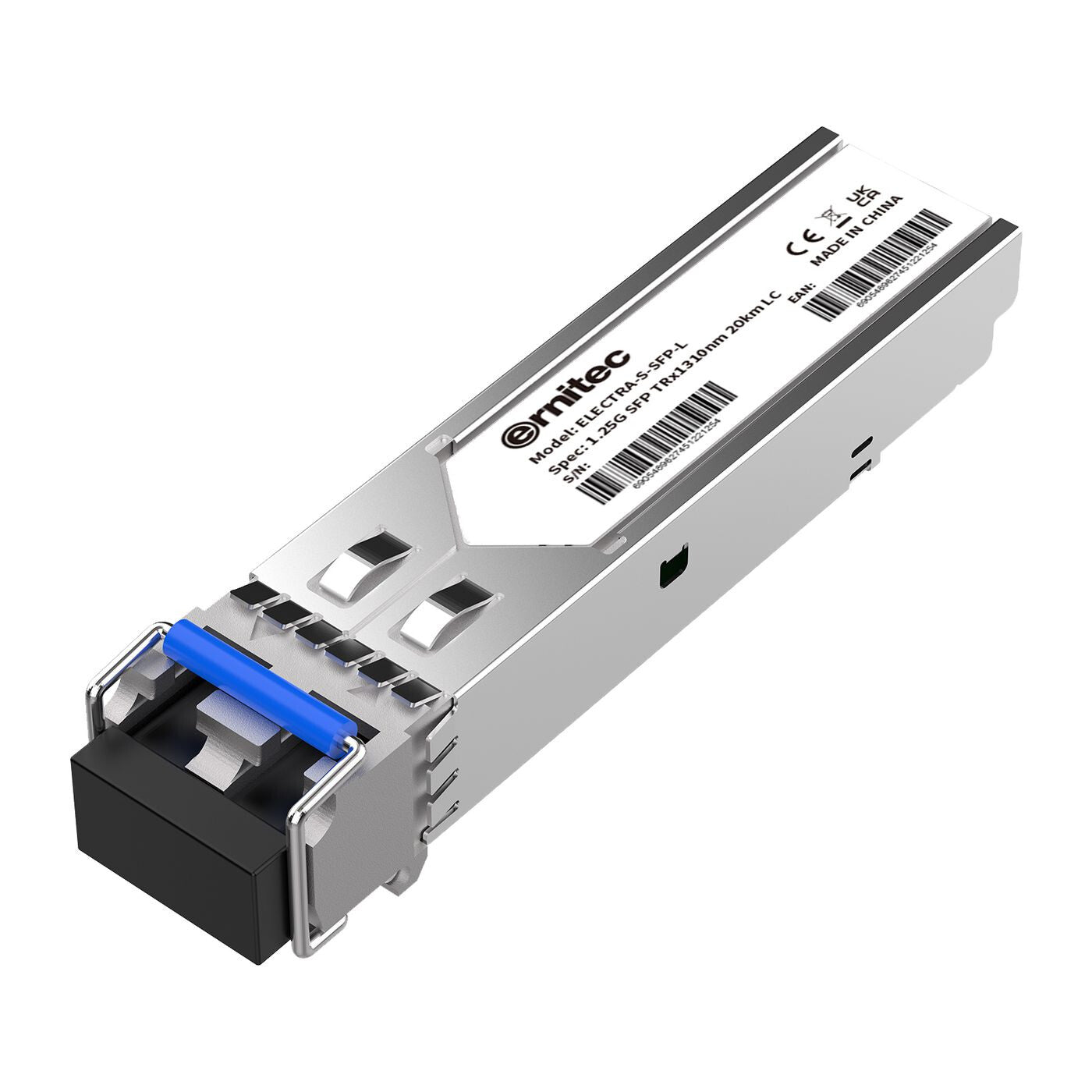

Ernitec ELECTRA-S-SFP-L network transceiver module Fiber optic 1310 nm
Ernitec ELECTRA-S-SFP-L network transceiver module Fiber optic 1310 nm
Regular price
£9.14 GBP
Regular price
Sale price
£9.14 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:ELECTRA-S-SFP-L
Low stock: 1 left
SFP, Single Mode, 10KM, 1310nm, Metallic
ELECTRA-S-SFP-LSmall Form Factor Pluggable (SFP) transceiver are compatible with the Small Form Factor Pluggable MultiSourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fiber.
| Performance | |
|---|---|
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Single-mode fiber (SMF) supported | Yes |
| Interface type | SFP |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Product colour | Metallic |
| Weight & dimensions | |
|---|---|
| Weight | 90 g |
| Height | 10 mm |
| Depth | 60 mm |
| Width | 15 mm |
| Packaging data | |
|---|---|
| Package weight | 100 g |
| Package height | 10 mm |
| Package depth | 60 mm |
| Package width | 15 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85369010 |
