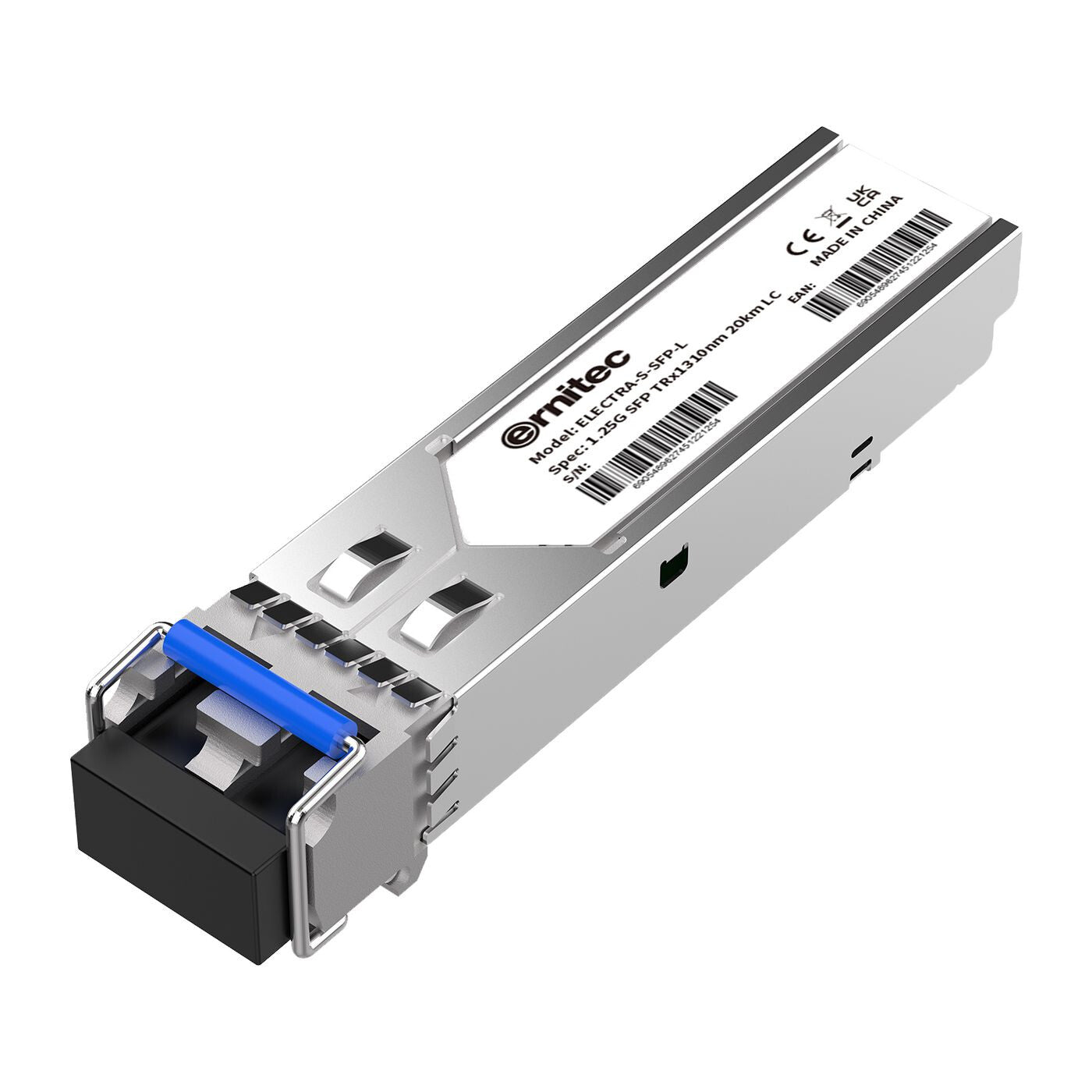

Ernitec ELECTRA-S-SFP-L network transceiver module Fiber optic 1310 nm
Ernitec ELECTRA-S-SFP-L network transceiver module Fiber optic 1310 nm
SKU:ELECTRA-S-SFP-L
266 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
ELECTRA-S-SFP-LSmall Form Factor Pluggable (SFP) transceiver are compatible with the Small Form Factor Pluggable MultiSourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fiber.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Features | |
|---|---|
| Product colour | Metallic |
| Weight & dimensions | |
|---|---|
| Width | 15 mm |
| Depth | 60 mm |
| Height | 10 mm |
| Weight | 90 g |
| Packaging data | |
|---|---|
| Package width | 15 mm |
| Package depth | 60 mm |
| Package height | 10 mm |
| Package weight | 100 g |
