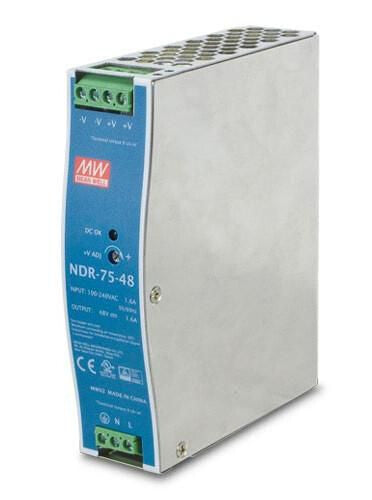

Ernitec ELECTRA-PWR-75-48 power supply unit 75 W Blue

Ernitec ELECTRA-PWR-75-48 power supply unit 75 W Blue

ELECTRA-PWR-75-48

£66.24 GBP£55.20 GBP
£0.00 GBP £66.24 GBP£55.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

22 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Universal AC input / full range
  • Protection features: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • DIN rail TS-35/7.5 or 15 installation
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
DC Single Output Industrial DIN Rail Power Supply Units

Compact Size with more Practicability and Convenience
Ernitec has released a series of DC single output industrial DIN rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.
Ernitec DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 48V DC power output with various watt values.
Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments.
Stable Performance under Difficult Environments
Ernitec DC single output industrial DIN rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment.
It uses the free air convection cooling system to prevent operating temperature from rising.
Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.

Power
Total power 75 W
AC input voltage 100 - 240 V
Input current 1.45 A
Power protection features Over voltage
Performance
Safety Ul508, TUV EN60950-1
Certification Ul508, TUV EN60950-1
Design
Product colour Blue
Cooling type Passive
Operational conditions
Operating temperature (T-T) -20 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 20 - 95%
Storage relative humidity (H-H) 10 - 95%
Weight & dimensions
Width 305 mm
Depth 395 mm
Height 290 mm
Weight 390 g
Packaging data
Package width 305 mm
Package depth 395 mm
Package height 290 mm
Package weight 460 g
