Ernitec ELECTRA-POE-10GB-90W PoE adapter 52 V

Ernitec ELECTRA-POE-10GB-90W PoE adapter 52 V

£69.04 GBP
£69.04 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ELECTRA-POE-10GB-90W

150 in stock

  • 10 Gigabit Ethernet
  • Complies with IEEE802.3af/at/bt standards, up to 90 W
  • DC 52V, 1.92A
  • Support AC 100-240 V voltage input

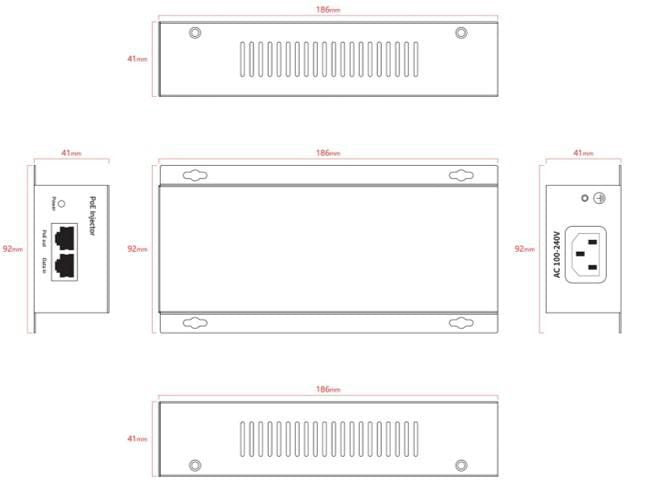

  • Dimensions (WxDxH) 187x95x40 mm
  • operating temperature -20 to 50°C
  • IP20
  • 5 year warranty
90W 10 Gigabit POE Injector


Supports one 10G PoE power supply port and one 10G RJ45 port.
Compatible with IEEE802.3af (15.4W), IEEE802.3at (30W), and IEEE802.3bt (90W).
Supports an AC 100-240V power supply. Features a metal casing with IP20 protection level and an operating temperature range of -20 to 50°C.
Ernitec's PoE injectors strictly follow IEEE 802.3 standards, ensuring reliable power delivery. PSE (Power Sourcing Equipment) provides power, while PD (Powered Devices) receive it. Voltage drop over long cables can reduce available wattage, and affect high-powered devices. For such devices, Ernitec recommends a maximum cable length of 1 meter and using pure copper CAT6 cables for optimal performance.

Network
Power over Ethernet (PoE) Yes
Networking standards IEEE 802.3af
Supported network protocols IEEE802.3 (Ethernet)
Features
Product colour Black
Housing material Metal
Plug and Play Yes
Surge protection Yes
LED indicators Power
Number of fans 0 fan(s)
International Protection (IP) code IP20
Ports & interfaces
RJ-45 input ports 1
RJ-45 output ports 1
Power
Power over Ethernet (PoE) voltage 52 V
AC adapter input voltage 100-240 V
Output current 1.92 A
Total Power over Ethernet (PoE) budget 90 W
Power over Ethernet (PoE) power per port 90 W
Weight & dimensions
Width 187 mm
Depth 95 mm
Height 40 mm
Weight 486 g
Dimensions (WxDxH) 187 x 95 x 40 mm
Packaging data
Package width 245 mm
Package depth 190 mm
Package height 60 mm
Package weight 712 g
Packaging content
Number of products included 1 pc(s)
Power cord included Yes
Quick installation guide Yes
Manual Yes
Technical details
Compliance certificates RoHS
