Ernitec ELECTRA-M10-OUTDOOR-UPS network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

• L2 Managed Industrial switch
• PoE output 170W max
• 8 x 10/100/1000Base-T PoE+ (max 2 ports supporting 90W PoE++)
• 2 x 1000Base-X SFP ports
• -20°C to 70°C
• IP66 with anti-corrosion treatment
• Pole Mount Included
• Recommended 12V 17Ah AGM lead battery.

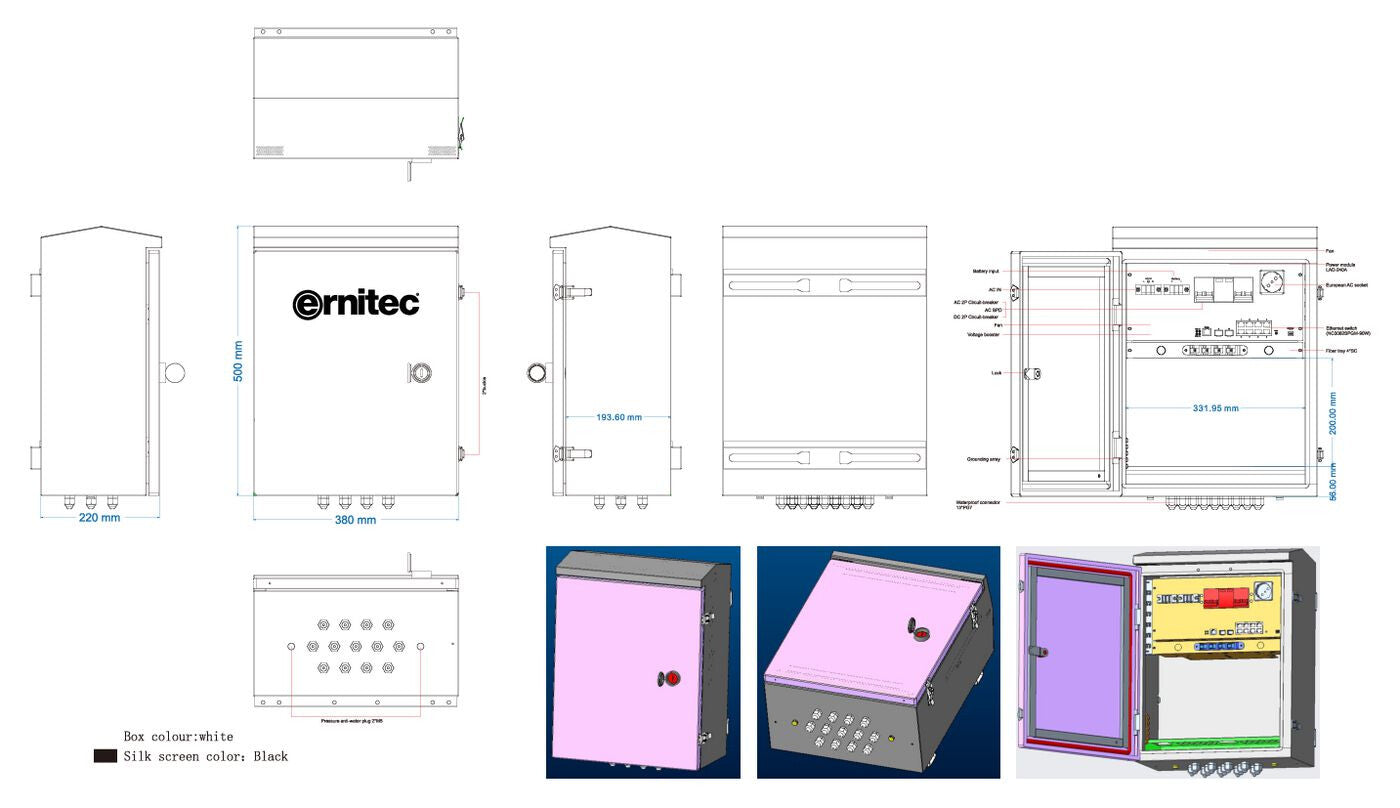

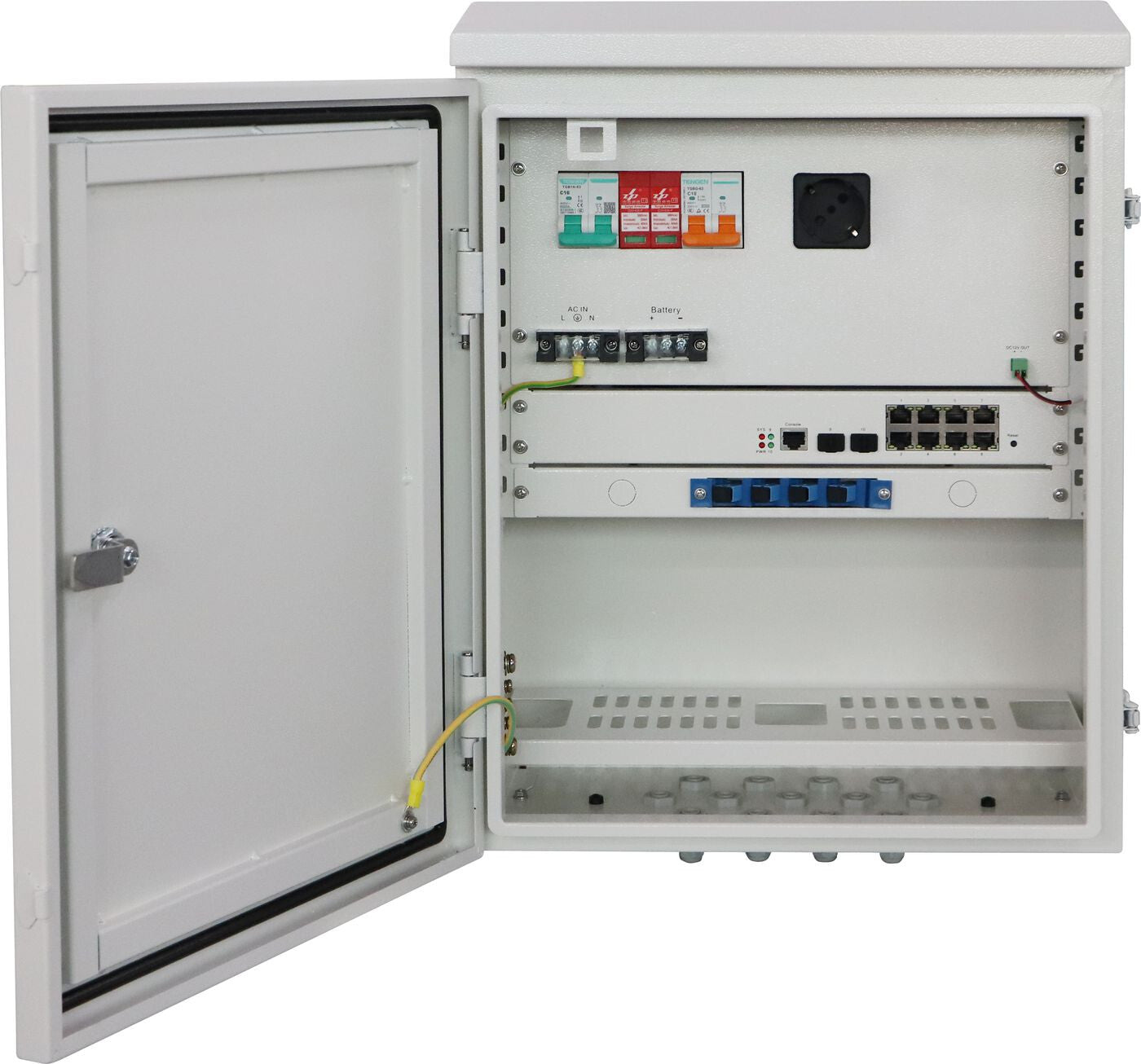

IP66 Waterproof box 500(H)*380(W)*220(D),
including one built-in 10-port L2 managed
Gigabit Ethernet PoE Switch

8x10/100/1000Mbps PoE + 2xGbE SFP ports,
PoE power budget 185W (15W self-Consumption)
supporting power
back-up function for the switch.
1pcs built-in 240W power adaptor;
1pcs booster;
1pcs circuit breaker;
1pcs surge protector;
1pcs fiber tray;
1pcs cooling fan;
1pcs switch putton;
1-port AC outlet socket;
No battery included.
We usually recommend 12VDC Lithium or Lead-Acid batteries. The power budget shall be depending on the total power consumption of all devices the customer intends to provide backup.
We recommend 12V 17Ah AGM lead battery.
