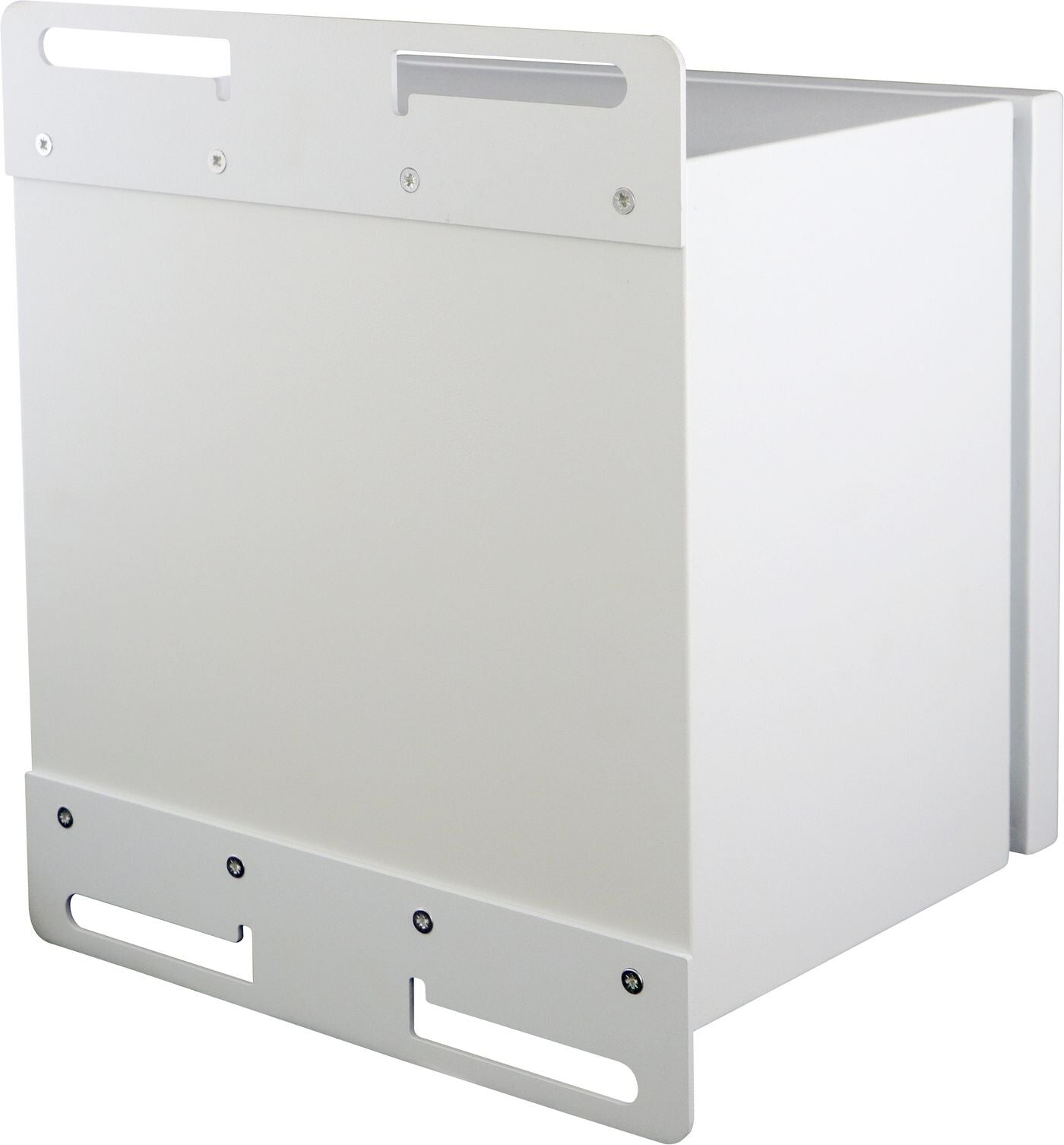

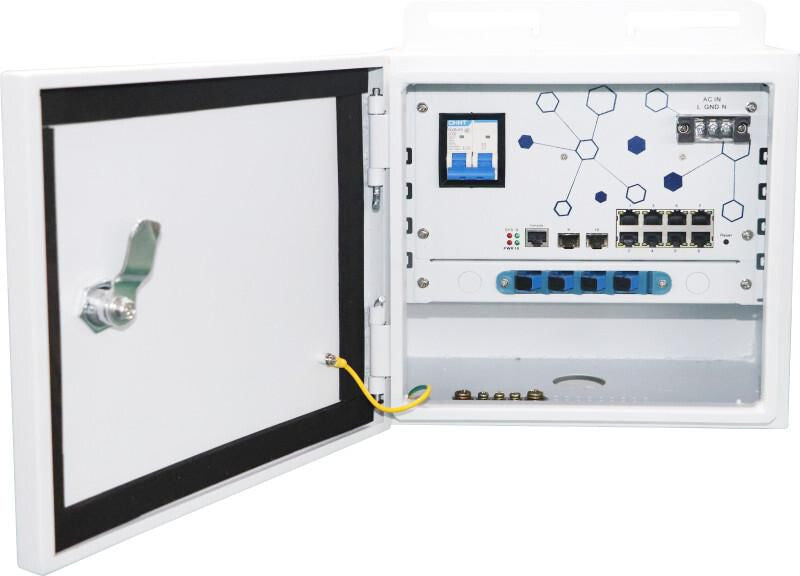

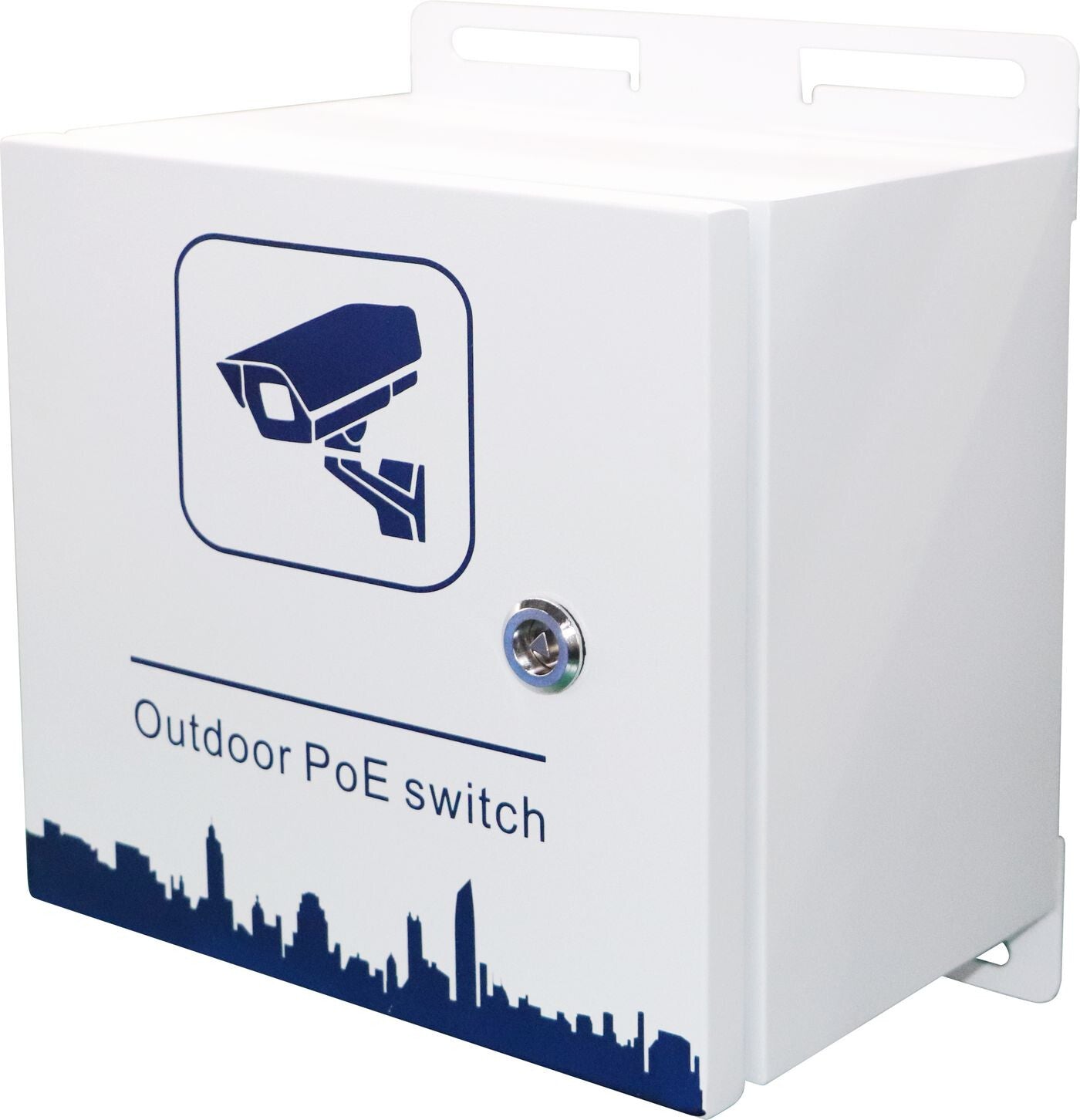

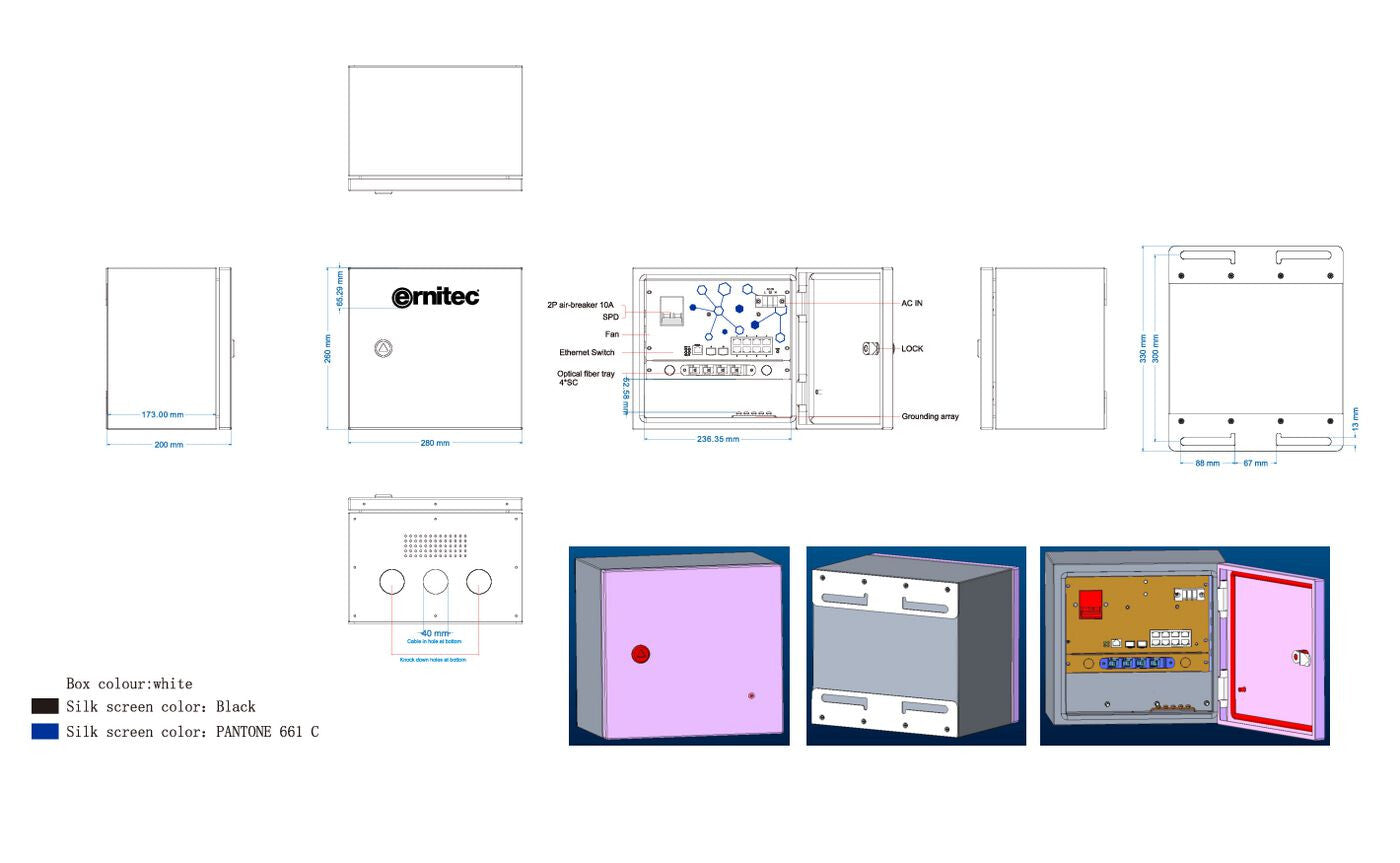

Ernitec Electra-M10-Outdoor is a Ernitec's Electra-M10-Outdoor-200 is a managed industrial PoE switch, integrated into an IP66 protection rated water-resistant housing. The box can be mounted on wall or pole and includes a 200W industrial PSU, air-breaker, surge protector, optical fiber tray and cooling fan. It delivers an ideal solution for surveillance applications such as security monitoring, road monitoring and industrial applications.
The switch has 8x10/100/1000BaseT 802.3af/at PoE ports and 2x1000Base-X SFP interfaces. PoE management features include total power consumption control, single port PoE ON/OFF and port output priority. In addition to the built-in surge and ESD protection, it also has an integrated lightning arrester. The rich L2 management functions enable integration into complex networking environment and allow remote monitoring and trouble shooting.
Support for IGMP v1/v2/v3 and MLD protocols is essential in surveillance applications where multicast networking is used. Wide range of security features such as TACACS/RADIUS authentication, DHCP filter, MAC filter, ARP association, DoS protects the network from unauthorized access.
