• Ernitec ELECTRA-M08-1GB-150 W network switch, Managed, 8-port, Power over Ethernet (PoE)
1 2

Ernitec

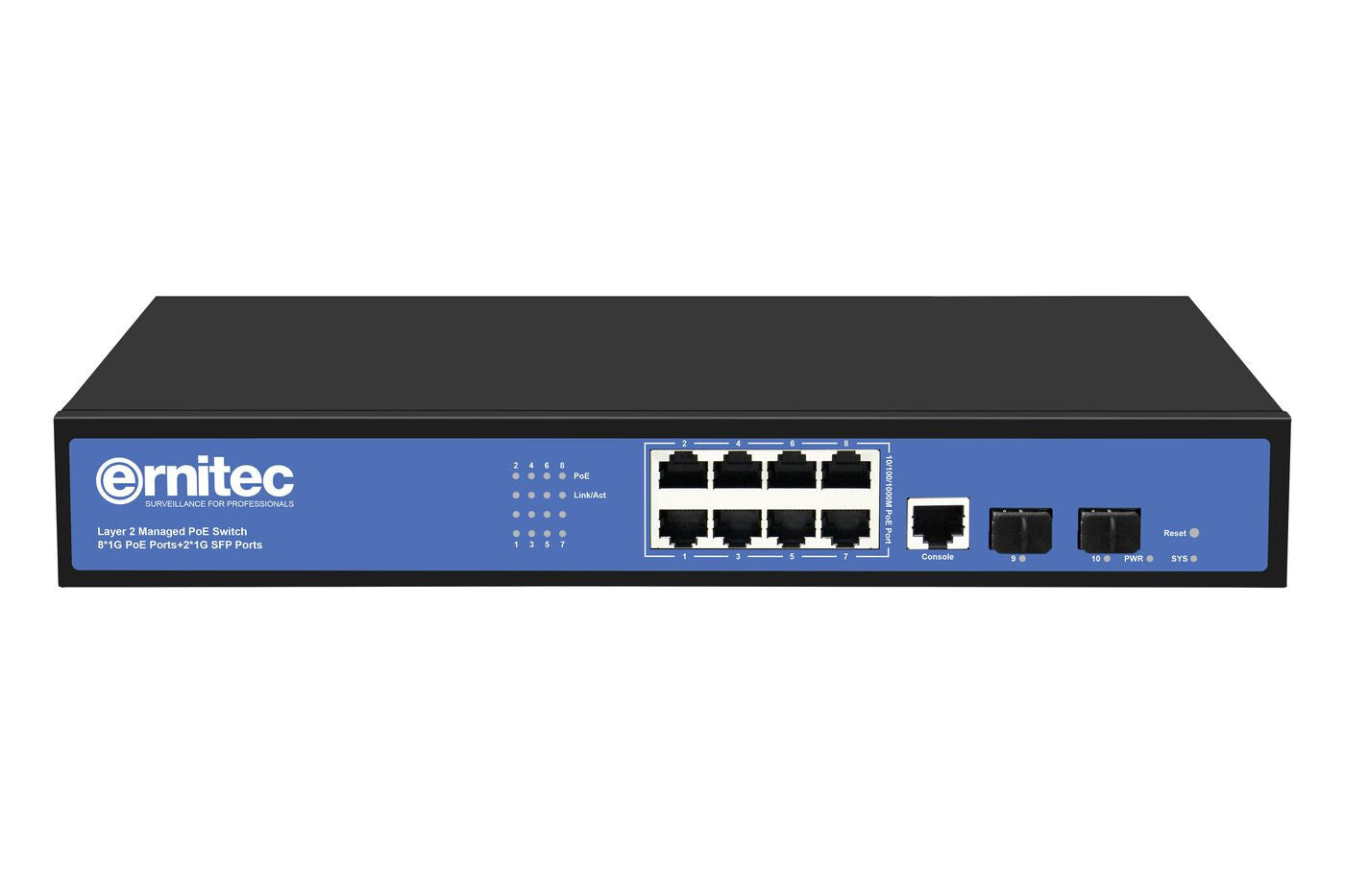

Ernitec ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Ernitec ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

ELECTRA-M08-1GB-150W

£249.48 GBP£207.90 GBP
£0.00 GBP £249.48 GBP£207.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

39 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 8*1Gbps PoE ports+2*1Gbps SFP ports+1*Console port
  • Support IEEE802.3, IEEE802.3x, IEEE802.3u, IEEE802.3ab, and IEEE802.3z network protocols
  • Comply with IEEE802.3at (30W) and IEEE802.3af (15.4W) power supply standards
  • Ethernet Ports support 10/100/1000Mbps self-adaptive
  • Support PoE management and PoE watchdog
  • The panel indicator LEDs will monitor the working status and assist in fault analysis
  • Support 802.1x port authentication, AAA authentication, TACACS+authentication
  • Support WEB, TELNET, CLI, SSH, SNMP, RMON management
  • 5 Year Warranty
10-Port Gigabit Managed Layer 2+ PoE Switch, 8 Gigabit ports, 2 Gigabit SFP ports, 1 x Console port - PoE 150W

The device features 8 X 1000Mbps Power over Ethernet (PoE) ports, 2 X 1000Mbps Small Form-factor Pluggable (SFP) ports, and 1 X console port.
It supports IEEE802.3, IEEE802.3x, IEEE802.3u, IEEE802.3ab, and IEEE802.3z network protocols. It is compatible with IEEE802.3at (30W) and IEEE802.3af (15.4W) power supply standards.
The RJ45 port supports 10/100/1000Mbps rate adaptation. It features PoE management and PoE watchdog.
Panel indicator lights monitor the working status and assist in fault analysis.
It supports 1U rack-mounted installation and 802.1x port authentication, AAA authentication, TACACS+ authentication, and WEB, TELNET, CLI, SSH, SNMP, RMON management.

Management features
Switch type Managed
Switch layer L2/L2+
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
Fiber uplink ports quantity 2
Number of management ports 10 pc(s)
Console port RJ-45
Power connector AC/DC
Network
Networking standards IEEE 802.3u
Port mirroring Yes
IP routing Yes
VLAN support Yes
Number of VLANs 256
Data transmission
MAC address table 8000 entries
Switching capacity 20 Gbit/s
Forwarding rate 14.88 Mpps
Store-and-forward Yes
Static route Yes
Jumbo frames support Yes
Design
Rack mounting Yes
Housing material Metal
Reset button Yes
LED indicators PoE
On/off switch Yes
Performance
Telnet Yes
Firmware upgradeable Yes
Fanless Yes
Technical details
Warranty period 5 year(s)
Power
Surge protection Yes
Surge protection voltage 6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 150 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 366 mm
Depth 312 mm
Height 71 mm
Weight 1.65 kg
Packaging data
Screws included Yes
Mounting brackets included Yes
Manual Yes
Rack mount kit Yes
Package width 366 mm
Package depth 312 mm
Package height 71 mm
Package weight 2.24 kg
Other features
Material Metal
