Ernitec ELECTRA-IM04-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

• Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z /ab, IEEE802.1Q, IEEE802.1p, IEEE802.1d/w
• Support PoE power management and PoE Watchdog based on data flow detection
• Support IEEE802.3af (15.4W) and IEEE802.3at (30W)
• Support SNMP v1/v2/v3 Simple Network Management Protocol
• Support IGMP Snooping, static multicast filtering, and MLD Snooping filtering
• Support 802.1x port authentication and AAA authentication to enhance network security
• n Support web, Telnet, CLI, SSH management
• IP40 protection level, high-strength shell, DIN35 rail installation
• Industrial grade 4-level design, operating temperature from -40~75°C
• 5 Year Warranty

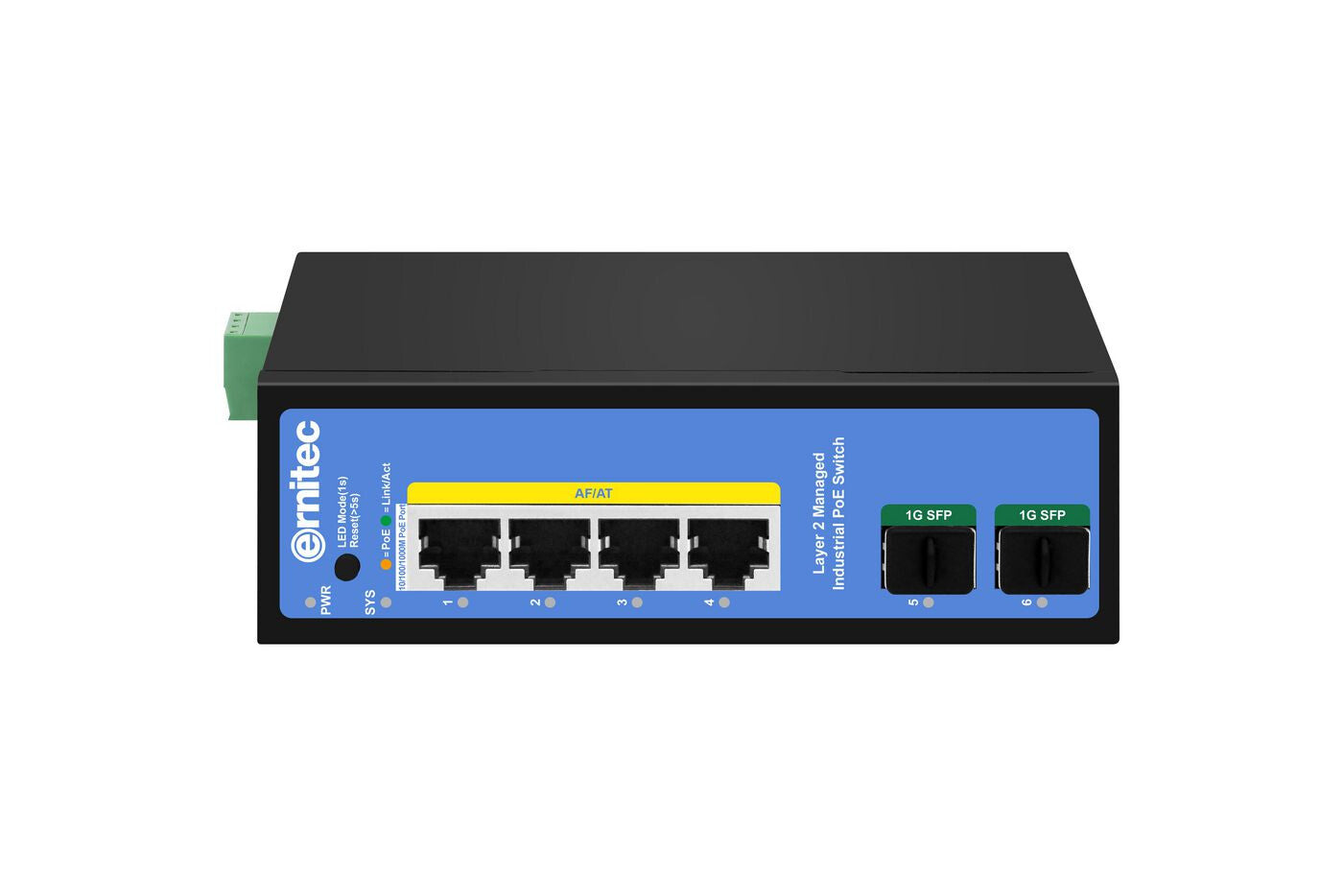

The 4-port 1000Mbps Industrial Managed PoE Switch from Ernitec is designed for robust performance in industrial environments. Here are some key features:
Gigabit Ethernet Ports:
Four 10/100/1000 Mbps PoE ports for high-speed data transmission.
Uplink Ports: Two Gigabit SFP uplink ports for flexible network expansion.
PoE Support: Power over Ethernet (PoE) capability to power devices like IP cameras and wireless access points directly through the Ethernet cables.
Industrial-Grade Design: Built to withstand harsh conditions with a wide operating temperature range and rugged housing.
Advanced Management: Supports Layer 2+ management features, including QoS, VLAN, and IGMP snooping for efficient network management.
This switch is ideal for applications requiring reliable and high-performance network connectivity in challenging environments.

• manual pdf
• manual pdf
• Datasheet
• EU Declaration of Conformity feb26
• leaflet
