Ernitec 0070-24122-WATERPROOF computer monitor 55.9 cm (22") 1920 x 1080 pixels Full HD LCD Black
Ernitec 0070-24122-WATERPROOF computer monitor 55.9 cm (22") 1920 x 1080 pixels Full HD LCD Black
SKU:0070-24122-WATERPROOF
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 24/7 display
- Security monitor
- EU + UK Power cord included
- HDMI cable included
- VESA size: 100x100
- Waterproof IP67 in front and IP22 on connectors
- Vandalproof in the front IK10
- Must be built-in to protect IP22 back side
- 5 years warranty
0070-24122-WATERPROOF is a professional-grade display designed for reliable operation in demanding environments. With Full-HD resolution, it delivers sharp and detailed image quality for commercial and industrial applications.
The front is rated IP67 and IK10, providing strong protection against water, dust, impacts, and vandalism. The rear is rated IP22 and must be installed in a protected area to avoid direct exposure to humidity, rain and wind.
Ideal for installations where the front is exposed while the rear remains sheltered, such as in enclosures or under canopies.
Key Benefits:
• Full-HD – crisp, high-resolution visuals
• IP67 front – resistant to water and dust
• IK10 front – impact and vandal-resistant
• Reliable performance – built for professional use
Important Installation Notes:
• The rear (IP22) must be protected from direct rain and water exposure
• Recommended installation in enclosures, recesses, or under cover
• Suitable for indoor use and controlled outdoor environments
Typical Applications:
• Industrial installations
• Outdoor solutions with protected mounting
• Technical rooms and infrastructure setups
• Installations requiring front-side environmental protection
| Display | |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| HD type | Full HD |
| LED backlight | Yes |
| Display brightness (typical) | 149 cd/m² |
| Response time | 5 ms |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.63 x 0.63 mm |
| Display brightness | 149 cd/m² |
| 3D | Yes |
| Performance | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Design | |
|---|---|
| Market positioning | Industrial |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP67 |
| Certification | EMC Class A |

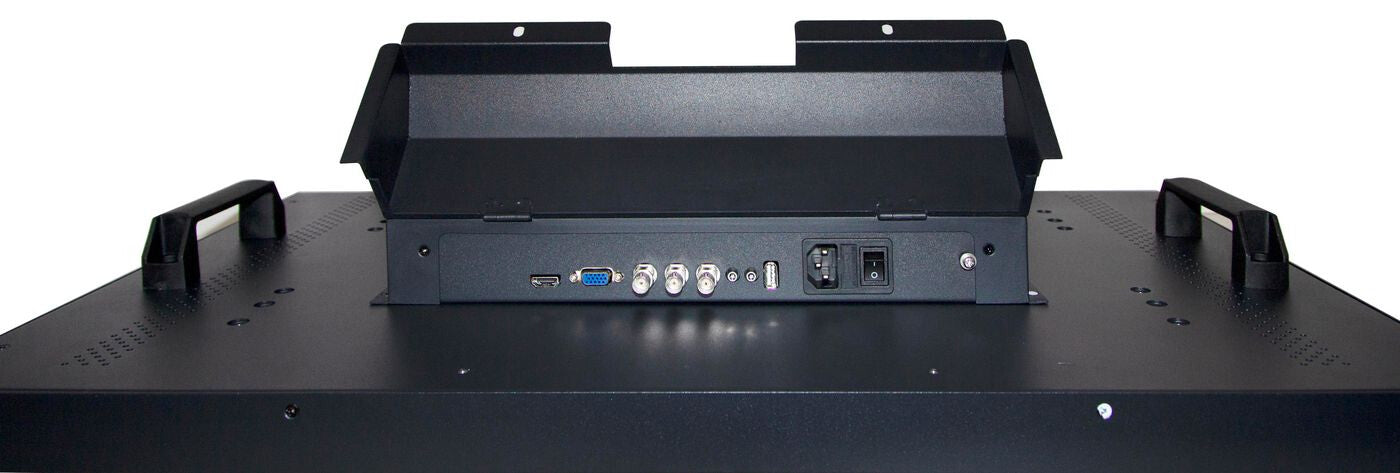

| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| AC (power) in | Yes |
| BNC input ports | 2 |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English |
| Plug and Play | Yes |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (average) | 13 W |
| Power supply type | Internal |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 85 °C |
| Packaging content | |
|---|---|
| Power adapter included | No |
| Screws included | Yes |
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package dimensions (WxDxH) | 635 x 172 x 440 mm |
| Package width | 635 mm |
| Package depth | 172 mm |
| Package height | 440 mm |
| Package weight | 7.4 kg |
| Technical details | |
|---|---|
| Native refresh rate | 60 Hz |
| Warranty period | 5 year(s) |
| Other features | |
|---|---|
| IK code | IK10 |
| Dimensions (WxDxH) | 516 x 54 x 314 mm |
| Analog signal format system | PAL |
| Audio in/out | Yes |
| Glass protection | Yes |
| Automatic brightness control | Yes |
| Brightness | 149 cd/m² |
| USB ports quantity | 1 |
| Noise filter | Yes |
| Comb filter | 3D |
| Light sensor | Yes |
| Accessories included | Industrial PSU,Screw, Cable holder, Quick start guide |
| Depth | 172 mm |
| Width | 635 mm |
| Height | 440 mm |
| Weight | 6.15 kg |
| Mean time between failures (MTBF) | 50000 h |
| Compatible wall mount | Vesa 100 x 100 |
| Picture enhancement | DNIe digital image processing |
