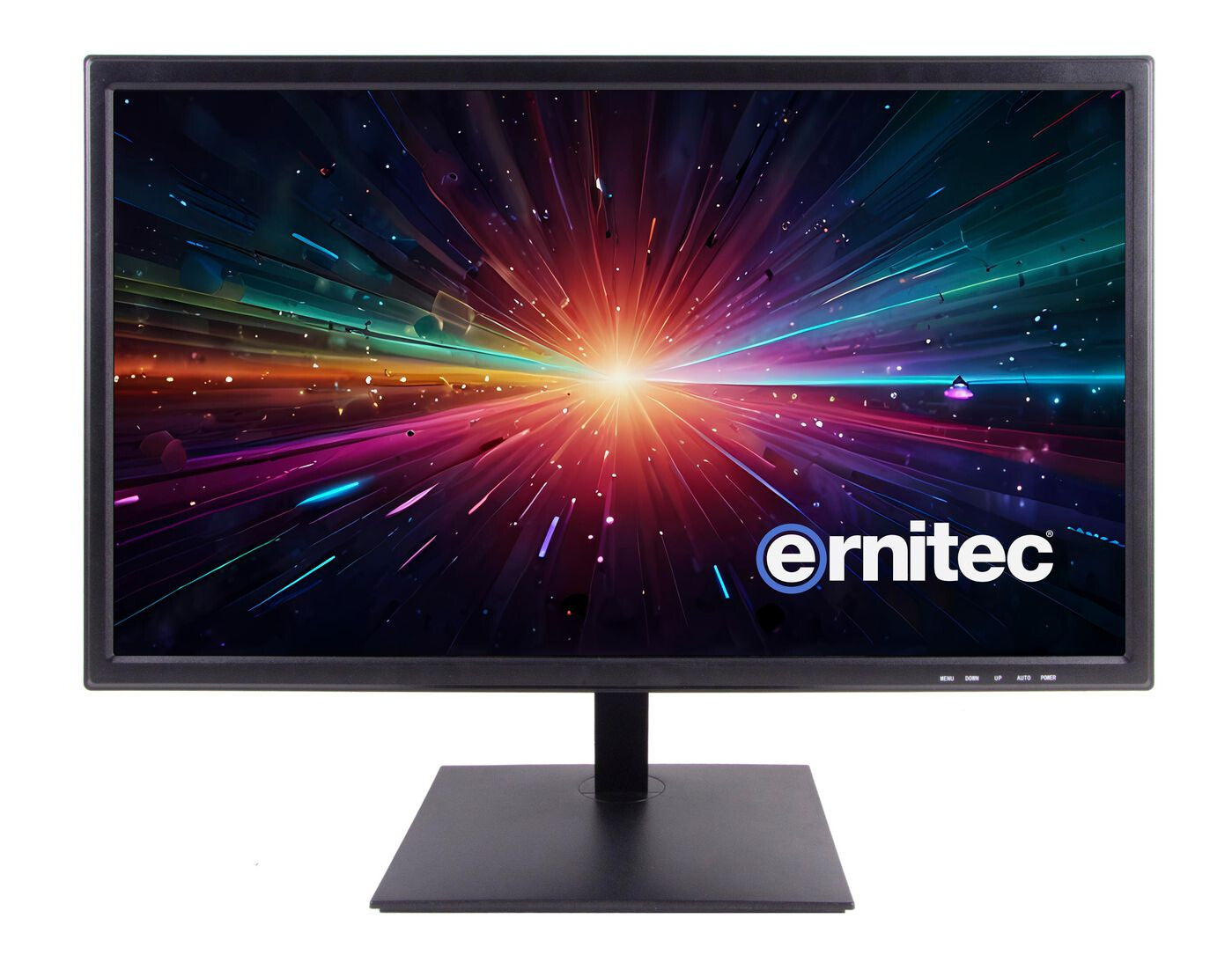

High Performance 24/7 Security Monitor When you need a display that lasts, Ernitec delivers with this state-of-the-art monitor. Featuring a BNC input, it’s easy to connect your analog camera for seamless integration. Display Characteristics •Screen Size: 22 inches •Active Display Area: 476.64mm (W) × 268.11mm (H) •Display Mode: 16:9 •LED Type: TFT-LED •Resolution: 1920 × 1080 •Display Color: 16.7 million •Pixel Pitch: 0.248mm (H) × 0.248mm (V) •Brightness: 250 nits •Contrast Ratio: 1000:1 •Viewing Angle: 178° (H) / 178° (V) •Response Time: 5ms •Backlight: LED Input & Output •HDMI 2.0: 1 •VGA: 1 •BNC Input: 2 •BNC Output: 1 •Speaker: 2x 3W (Stereo) Video •Color System: PAL/NTSC/SECAM •OSD Control: Auto adjust, Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Color, Language •3D Comb Filter: Yes •Video Noise Reduction: Yes Power & Mounting •Power Supply: DC 12V, 50/60Hz •Working Temperature: -30 to +85°C •Power Consumption: ≤25W •Menu Languages: English, French •Mounting Options: Stand mount, VESA mount •Weight: 3.5kg •MTBF: 50,000 hours •VESA Size: 100x100 •EDID Compatibility: Not compatible Included Accessories •Screws •Cable holder •Quick start guide This monitor is designed to provide reliable performance around the clock, making it an ideal choice for security applications.
Display
Display diagonal (metric)
55 cm
Viewable size, vertical
26.8 cm
Viewable size, horizontal
47.7 cm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
10000:1
Screen shape
Flat
Response time
5 ms
Display brightness (typical)
250 cd/m²
Panel type
TFT
HD type
Full HD
Touchscreen
No
Display technology
LED
Native aspect ratio
16:9
Display resolution
1920 x 1080 pixels
Display diagonal
55.9 cm (22")
Multimedia
RMS rated power
6 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Product colour
Black
Market positioning
Industrial
Ports & interfaces
BNC input ports
1
Audio output
Yes
Audio input
Yes
HDMI version
2.0
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Type-A downstream ports quantity
1
Ergonomics
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Power supply type
Internal
Power consumption (average)
25 W
Power consumption (standby)
0.3 W
Energy consumption (SDR) per 1000 hours
11 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Packaging content
Quick start guide
Yes
Screws included
Yes
Power adapter included
Yes
Cables included
Power
Stand included
Yes
Packaging data
Package weight
3.5 kg
Package height
550 mm
Package depth
110 mm
Package width
420 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
