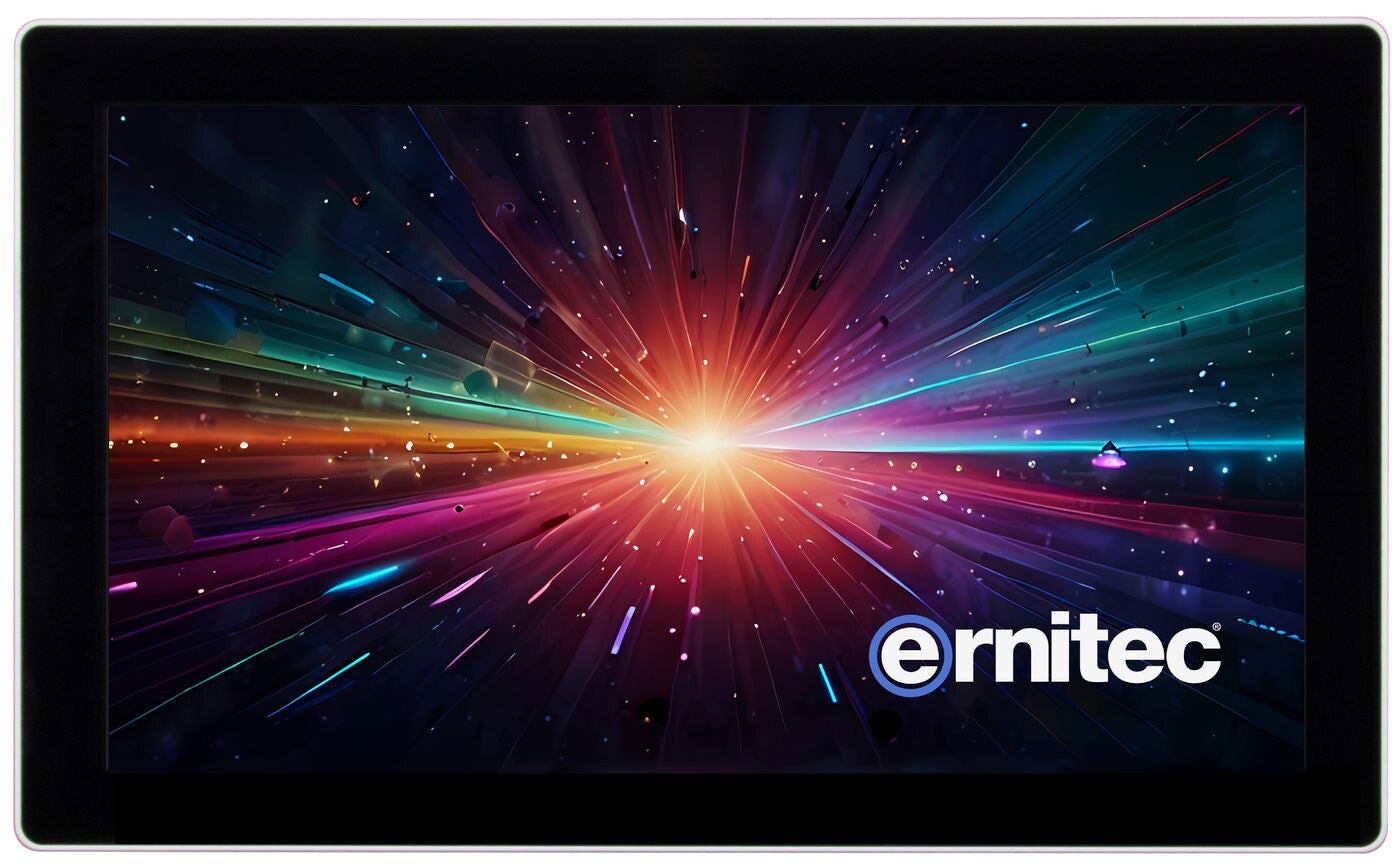

Ernitec 0070-24113-WT-OS computer monitor 33 cm (13") 1920 x 1080 pixels LCD Touchscreen
Ernitec 0070-24113-WT-OS computer monitor 33 cm (13") 1920 x 1080 pixels LCD Touchscreen
SKU:0070-24113-WT-OS
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 33 cm (13")
- Built-in speaker(s)
- Response time: 5 ms
- 1920 x 1080 pixels
- Energy efficiency class (SDR): D
Product Overview:
Ernitec introduces its latest touch screen monitors, designed specifically for harsh environments.
With operation Windows system - I5, 6G memory, ordinary hard disk, with 4G wireless network card
These monitors feature IP67 protection on the front and IP22 protection on the back, ensuring durability and reliability in wet and humid conditions.
The capacitive touch technology offers precise and responsive interaction, making them ideal for various applications.
Key Features:
IP67 Front Protection: Complete protection against dust and water, allowing the monitors to withstand immersion up to 1 meter for 30 minutes
IP22 Back Protection: Protection against dripping water when tilted up to 15 degrees, suitable for indoor environments
Capacitive Touch Technology: Provides accurate and responsive touch capabilities, enhancing user experience
Swimhall Ready: Specifically designed to perform optimally in swimhall environments, resisting humidity and water exposure
Target Audience:
Swimhalls and Aquatic Centers: Ideal for installations in swimhalls, aquatic centers, and other wet environments
Industrial Applications: Suitable for factories and industrial settings where water and humidity are prevalent.
Outdoor Venues: Perfect for outdoor installations requiring robust and weather-resistant monitors.
Benefits:
Durability: With IP67 and IP22 ratings, these monitors are built to last in challenging environments.
Enhanced User Experience: Capacitive touch technology ensures smooth and precise interaction.
Versatility: Suitable for a wide range of applications, from swimhalls to industrial settings.
Marketing Strategy:
Highlight Durability: Emphasize the IP67 and IP22 ratings in marketing materials to showcase the monitors' resilience.
Focus on User Experience: Promote the benefits of capacitive touch technology for improved interaction.
Target Specific Markets: Tailor marketing campaigns to swimhalls, industrial applications, and outdoor venues.
Conclusion: Ernitec's new touch screen monitors are the perfect solution for environments where water and humidity are a concern.
With their robust protection and advanced touch technology, they offer reliability and enhanced user experience, making them a valuable addition to any swimhall or industrial setting.
These specific monitors when installed outside needs to have a roof or being built into a wall to protect the backside of the monitor.
| Display | |
|---|---|
| Display diagonal | 33 cm (13") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| LED backlight | Yes |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 119 cd/m² |
| Response time | 5 ms |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.63 x 0.63 mm |
| Display brightness | 119 cd/m² |
| Performance | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Design | |
|---|---|
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Certification | EMC Class A |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | English |
| Power | |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (average) | 7 W |
| Power supply type | External |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 85 °C |
| Packaging data | |
|---|---|
| Package width | 380 mm |
| Package depth | 150 mm |
| Package height | 350 mm |
| Package weight | 4 kg |
| Technical details | |
|---|---|
| Native refresh rate | 60 Hz |
| Other features | |
|---|---|
| USB ports quantity | 1 |
| Noise filter | Yes |
| Active display area (W x H) | 276.48 x 276.48 mm |
| Accessories included | Industrial PSU,Screw, Cable holder, Quick start guide |
| Depth | 150 mm |
| Width | 380 mm |
| Height | 350 mm |
| Weight | 3 kg |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
