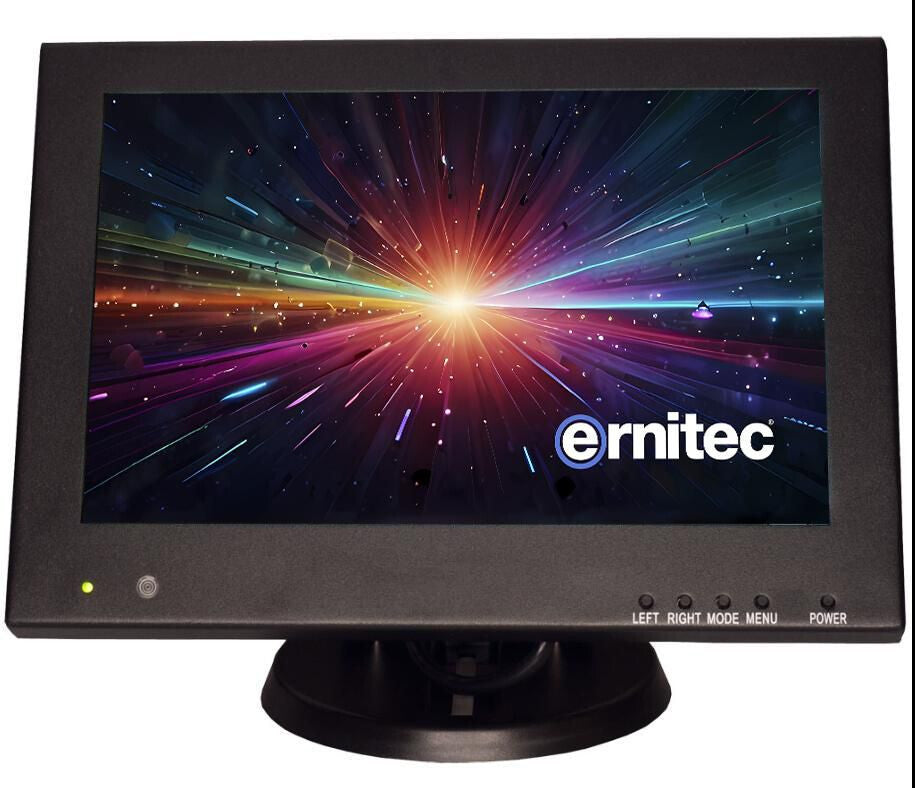

Ernitec 0070-24110-M-L computer monitor 25.6 cm (10.1") 1280 x 800 pixels WXGA LCD Black
Ernitec 0070-24110-M-L computer monitor 25.6 cm (10.1") 1280 x 800 pixels WXGA LCD Black
SKU:0070-24110-M-L
Low stock: 8 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 25.6 cm (10.1") Black
- Built-in speaker(s)
- HDMI HDMI version: 2.0
- Screen shape: Flat
- Response time: 5 ms
- 1280 x 800 pixels WXGA Panel type: TFT
- Energy efficiency class (SDR): E
Product Features:
Experience the reliability of our industrial-level DID LCD panel, designed for continuous 24/7 operation. This monitor boasts a physical resolution of 1280 x 800P and a rapid 5ms response time to eliminate image ghosting.
Equipped with the latest 3D digital filtering and noise reduction technology, it ensures fast picture response and a wide 178° viewing angle for distortion-free images. Enjoy high-fidelity digital processing for brilliant and vivid video, complemented by built-in speakers and a user-friendly menu for convenient control.
Display Characteristics
•Screen Size: 10 inches
•Active Display Area: 162mm (W) × 121.5mm (H)
•Display Mode: 16:9
•LED Type: TFT-LED
•Resolution: 1280 x 800
•Display Color: 16.7 million
•Pixel Pitch: 0.2025mm (H) × 0.2025mm (V)
•Brightness: 250 nits
•Contrast Ratio: 500:1
•Viewing Angle: 178° (H) / 178° (V)
•Response Time: 5ms
•Backlight: LED

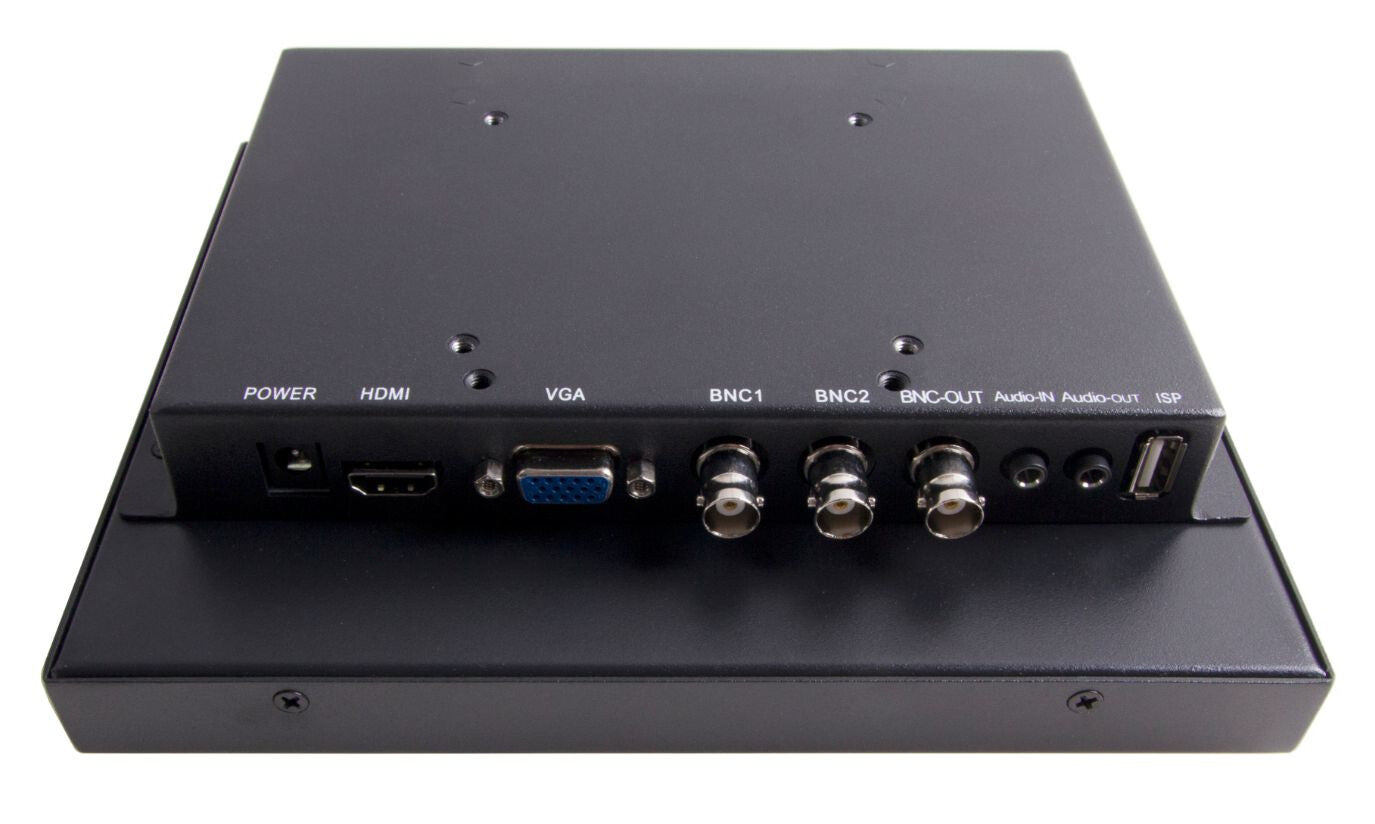

Input & Output
•HDMI 2.0: 1
•VGA: 1
•BNC Input: 2
•BNC Output: 1
•Speaker: 2x 3W (Stereo)
Video
•Color System: PAL/NTSC/SECAM - 480P, 576P, 720P
•OSD Control: Auto adjust, Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Color, Language
•3D Comb Filter: Yes
•Video Noise Reduction: Yes
Power & Mounting
•Power Supply: DC 12V, 50/60Hz
•Working Temperature: -30 to +85°C
•Power Consumption: ≤8W
•Menu Languages: English (other languages supported)
•Mounting Options: VESA mount
•Weight: 3.5kg
•VESA Size: 75x75
•MTBF: 50,000 hours
Included Accessories
•Industrial PSU
•Screws
•Cable holder
•Quick start guide
This monitor is perfect for demanding environments, ensuring high performance and durability.
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | WXGA |
| Panel type | TFT |
| LED backlight | Yes |
| Display brightness (typical) | 173 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.63 x 0.63 mm |
| Display brightness | 173 cd/m² |
| 3D | Yes |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Design | |
|---|---|
| Market positioning | Industrial |
| Product colour | Black |
| Front bezel colour | Black |
| Detachable stand | Yes |
| Certification | EMC Class A |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone out | No |
| BNC input ports | 2 |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | No |
| Height adjustment | No |
| On Screen Display (OSD) languages | English |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 0.3 W |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 85 °C |
| Packaging content | |
|---|---|
| Stand included | Yes |
| Power adapter included | Yes |
| Screws included | Yes |
| Quick start guide | Yes |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 260 mm |
| Depth (with stand) | 43 mm |
| Height (with stand) | 185 mm |
| Weight (with stand) | 2 kg |
| Packaging data | |
|---|---|
| Package dimensions (WxDxH) | 430 x 125 x 260 mm |
| Package width | 260 mm |
| Package depth | 110 mm |
| Package height | 240 mm |
| Package weight | 2.5 kg |
| Package type | Box |
| Technical details | |
|---|---|
| Native refresh rate | 60 Hz |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 260 x 43 x 185 mm |
| Analog signal format system | PAL |
| Noise filter | Yes |
| Comb filter | 3D |
| Accessories included | Industrial PSU,Screw, Cable holder, Quick start guide |
| Depth | 110 mm |
| Width | 260 mm |
| Height | 240 mm |
| Weight | 2 kg |
| Mean time between failures (MTBF) | 50000 h |
| Picture enhancement | DNIe digital image processing |
