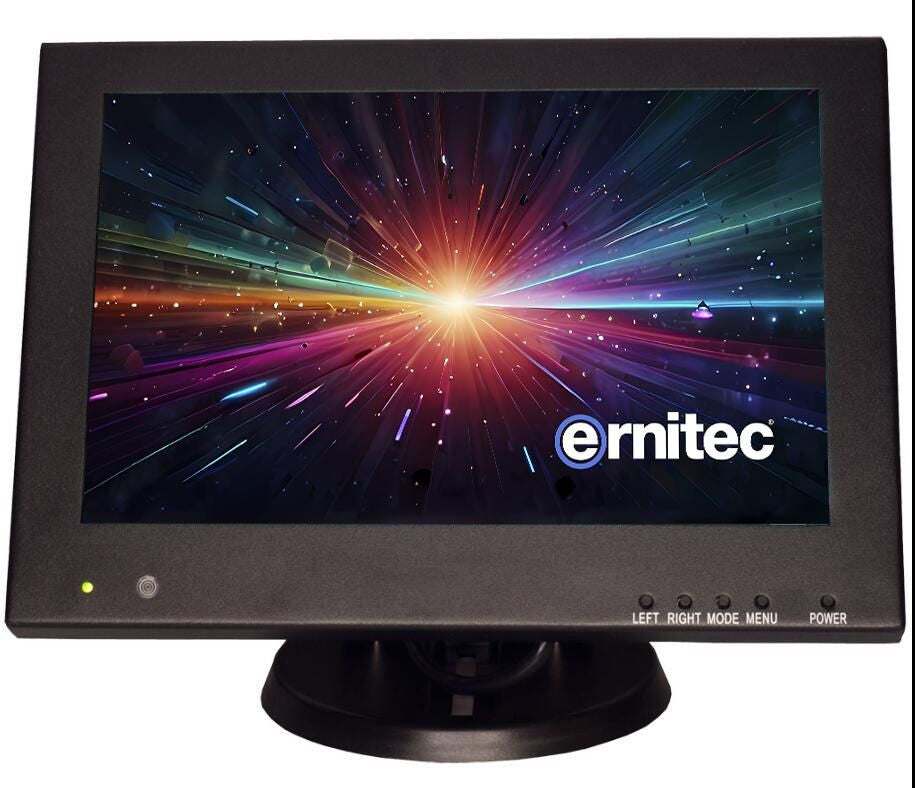

Ernitec 0070-24110-M computer monitor 25.6 cm (10.1") 1920 x 1080 pixels Full HD LCD Black

Ernitec 0070-24110-M computer monitor 25.6 cm (10.1") 1920 x 1080 pixels Full HD LCD Black

Regular price £281.50 GBP
Regular price Sale price £281.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:0070-24110-M

45 in stock

  • 1 BNC input + 1 BNC output
10" 24/7 Full-HD Surveillance monitor. 2x HDMI 2.0, 1x VGA, 1x BNC inputs. 1x BNC output, 2x Speakers, PSU.

Discover the Ernitec 10.1" Display: Your Ultimate Visual Solution
Introducing the Ernitec 10.1" Display, designed to deliver exceptional performance and versatility for various applications.
With a stunning 1920×1080 resolution and a vibrant 16.7 million colors, this display ensures crystal-clear visuals that enhance any viewing experience.
Key Specifications:
Screen Size: 10.1 inches
Display Mode: 16:9
Brightness: 350 cd/㎡
Contrast Ratio: 500:1
Response Time: 4 ms
Active Display Area: 211.2 mm (W) × 158.4 mm (H)
Pixel Pitch: 0.264 mm (H) × 0.264 mm (V)
Connectivity Options:
Inputs:
2 × BNC Inputs
1 × VGA Input
1 × HDMI Input
1 × Y, Pb, Pr/Y, Cb, Cr Input
1 × Power Input
Camera Support:
TVI Cameras: Supports 5MP/8MP up to 300 meters
AHD Cameras: Supports 5MP/8MP up to 500 meters
CVI Cameras: Supports 2MP/5MP up to 500 meters
User-Friendly Features:
OSD Control: Easily adjust settings such as brightness, contrast, horizontal and vertical position, clock, phase, and color.
Mounting Options: Compatible with stand mounts and VESA mounts (75x75 mm).
Durability:
Operating Temperature: -30 to +85 °C, ensuring reliable performance in various environments.
Automatic Support: PAL/NTSC/SECAM compatibility for versatile use.
Elevate your display capabilities with the Ernitec 10.1" Display, perfect for security monitoring, presentations, and more. Experience the difference in clarity and functionality today!

Display
Display diagonal 25.6 cm (10.1")
Display resolution 1920 x 1080 pixels
Native aspect ratio 16:9
Display technology LCD
HD type Full HD
LED backlight Yes
Display brightness (typical) 350 cd/m²
Response time 5 ms
Aspect ratio 16:10
Contrast ratio (typical) 500:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Pixel pitch 0.63 x 0.63 mm
Display brightness 350 cd/m²
3D Yes
Performance
Operating hours (hours/days) 24/7
Multimedia
Number of speakers 2
RMS rated power 6 W
Design
Market positioning Industrial
Product colour Black
Housing material Metal
Front bezel colour Black
Detachable stand Yes
Certification EMC Class A
Ports & interfaces
VGA (D-Sub) ports quantity 1
HDMI ports quantity 2
HDMI version 2.0
Component video (YPbPr/YCbCr) in 1
BNC input ports 1
Ergonomics
VESA mounting Yes
Panel mounting interface 75 x 75 mm
On Screen Display (OSD) languages English
Power
Power consumption (typical) 10 W
Operational conditions
Operating temperature (T-T) -30 - 85 °C
Packaging content
Stand included Yes
Power adapter included Yes
Screws included Yes
Quick start guide Yes
Packaging data
Package dimensions (WxDxH) 430 x 125 x 260 mm
Package width 430 mm
Package depth 125 mm
Package height 260 mm
Package weight 3 kg
Technical details
Warranty period 5 year(s)
Other features
Dimensions (WxDxH) 260 x 43 x 185 mm
Analog signal format system PAL
USB ports quantity 1
Noise filter Yes
Comb filter 3D
Depth 43 mm
Width 260 mm
Height 185 mm
Weight 2 kg
Mean time between failures (MTBF) 50000 h
Picture enhancement DNIe digital image processing
