Equip 24-Port Cat.6 Shielded Patch Panel, Light Grey

Equip 24-Port Cat.6 Shielded Patch Panel, Light Grey

326324

£69.32 GBP£57.77 GBP
£0.00 GBP £69.32 GBP£57.77 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 8 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 19", 1U
  • Gold Plated Connectors for high signal quality
  • IDC T568A/T568B Color Coded
  • Class E according to ISO/IEC 11801 and EN50173
  • Shielded

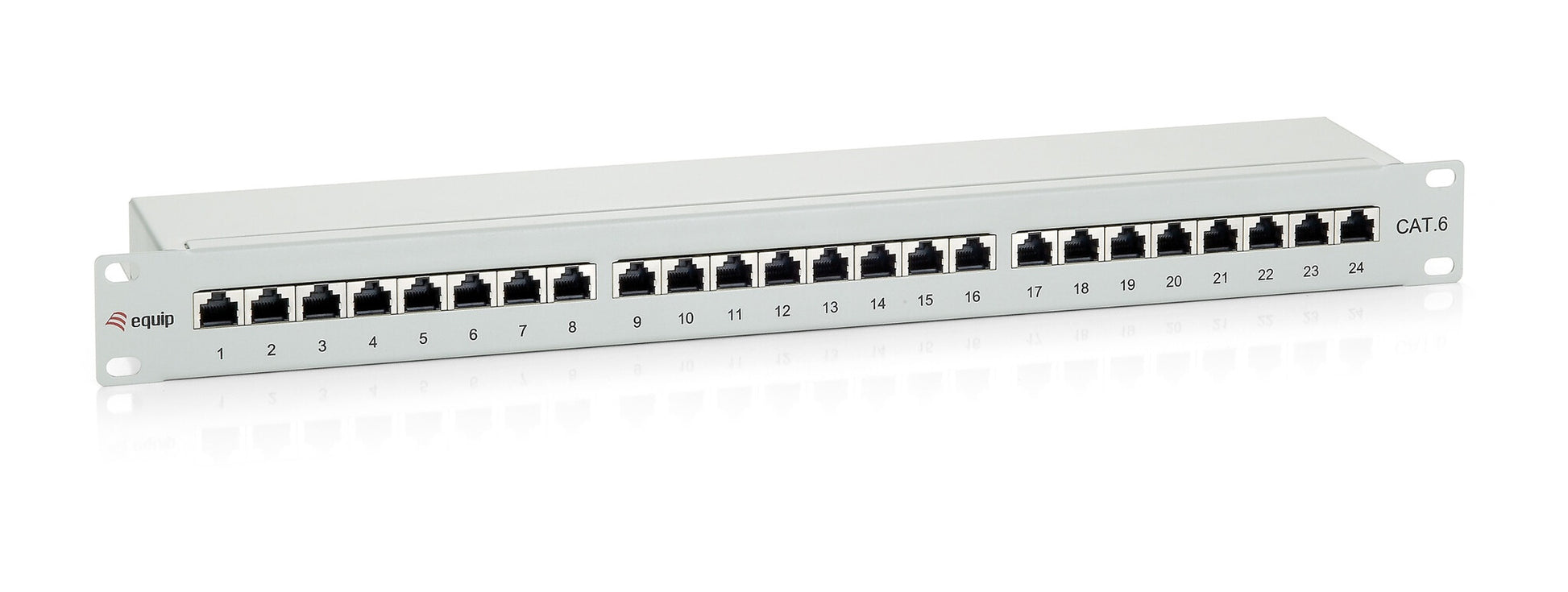

24-Port Cat.6 Shielded Patch Panel

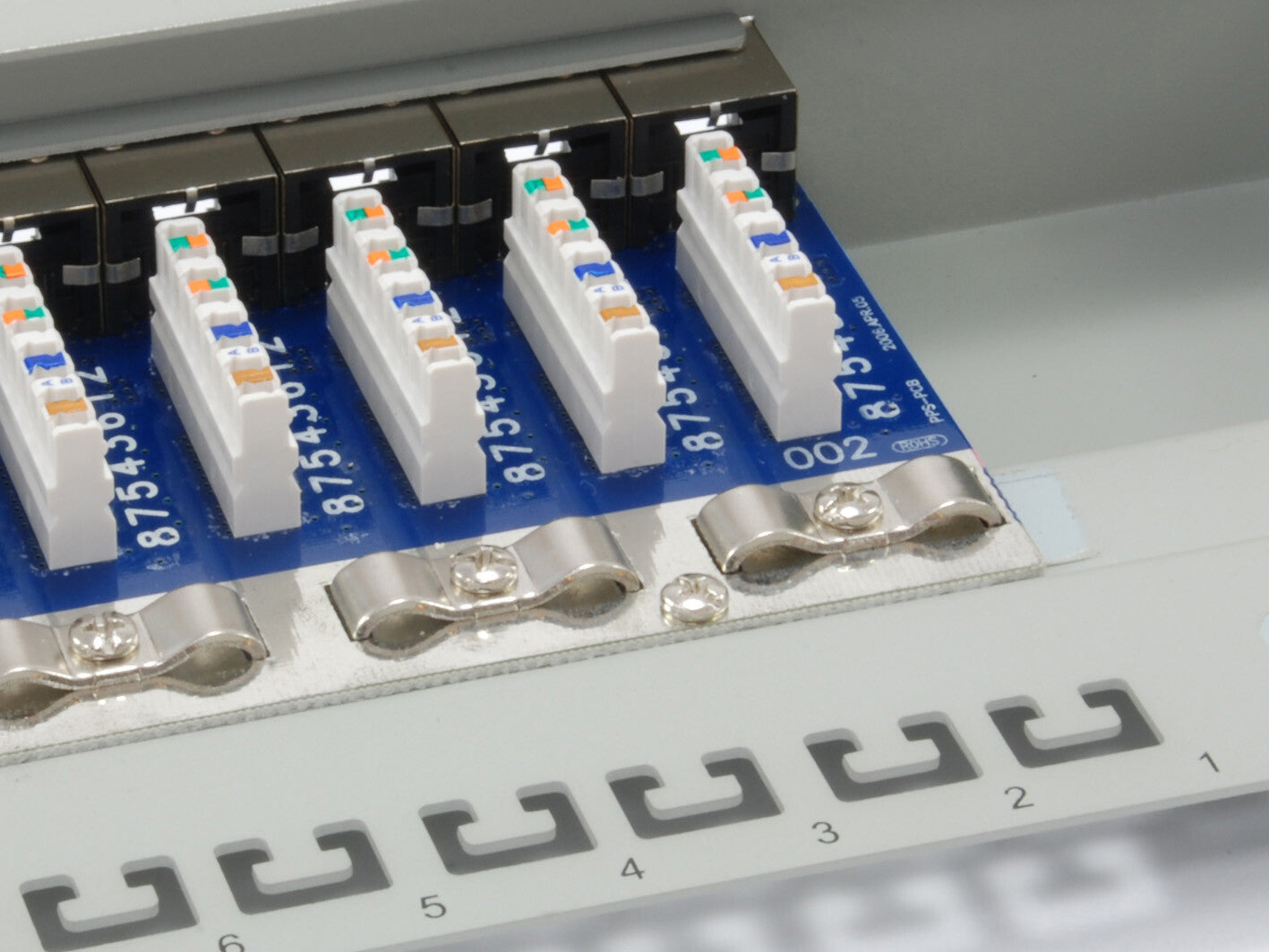

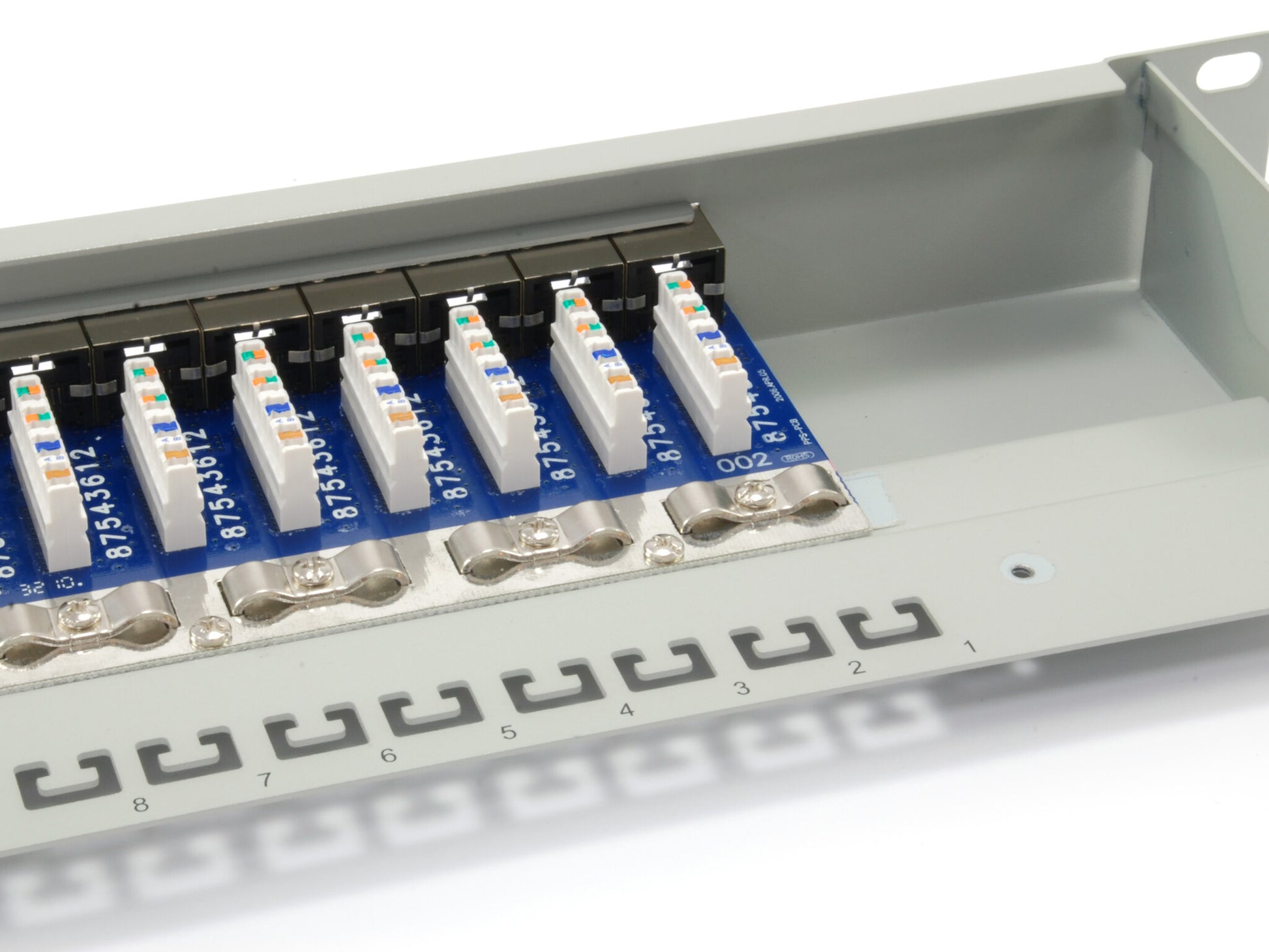

The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 24 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.

Network
Ports quantity 24
Connector(s) RJ-45
Connector contacts plating Gold
Cable types supported Cat6
Design
Product colour Grey
Mounting Rack mounting
Rack capacity 1U
Operational conditions
Operating temperature (T-T) -40 - 80 °C
Weight & dimensions
Width 44 mm
Height 483 mm
Depth 109 mm
Weight 1.7 kg
Packaging data
Package width 150 mm
Package depth 75 mm
Package height 560 mm
Package weight 1.87 kg
Logistics data
Harmonized System (HS) code 85371098
