- Standalone network scanning: Release the potential of a connected workplace
- File sharing: One touch scan to different destinations
- Reliable paper handling: Take control with ultra-sonic sensors and paper protection
- Speed with control: Use slow mode or scan documents with speeds of up to 40 ppm (80ipm)
- Built-in display: Easy to use 1.44 inch colour LCD

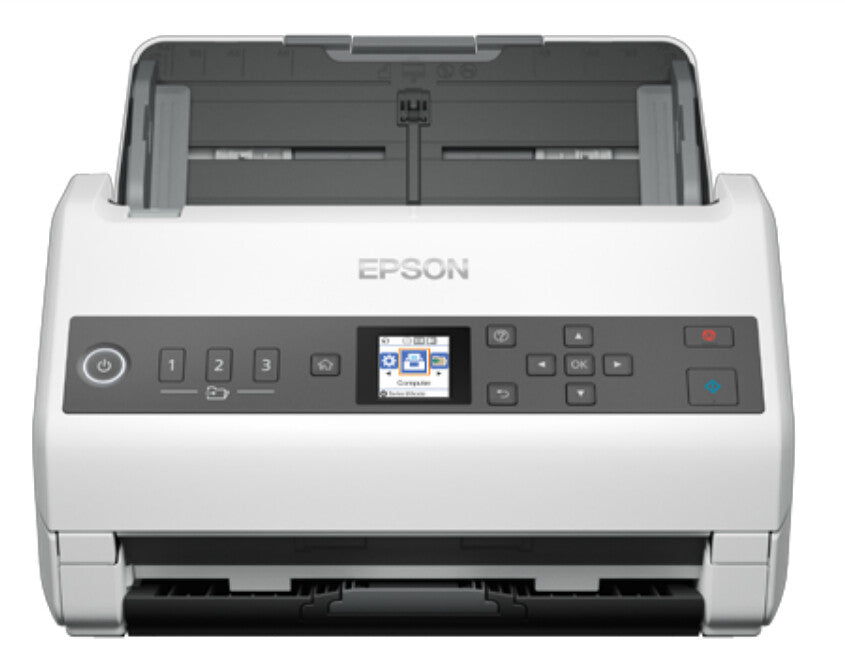

Sheetfed network scanner
Connect your business with this affordable and highly efficient standalone network scanner. It's the intelligent choice for business document management, offering the option to scan to separate locations – departments or individual accounts – at the touch of a button, allowing you to capture, convert and distribute scanned information within your organisation.
Sharing made easy
With limited office space, reducing the number of dedicated devices is crucial. With an easy to use control panel with built in 1.44’’ colour LCD display, you can choose the correct job and send documents to the correct destination without delay, making digital files available across departments and other agencies. Scan to email, folder, FTP, SFTP, cloud services or Microsoft applications at the touch of a button¹.
High performance
Thanks to a high capacity 100 sheet ADF, user intervention is reduced, allowing you to capture high volumes of documents in one go. With double-sided scan speeds of up to 40ppm/80ipm, bulk jobs can be captured quickly and easily as a single file.
Intelligent features
Take control with a range of intelligent features, including ultra-sonic sensors and a paper protection function. Slow mode allows difficult media to be captured by reducing roller speed, without increasing file sizes. Double feed detection skip means difficult documents like envelopes and post-it notes can be processed rapidly.
Protecting important documents
Paper protection, double feed and dirt detection warning allows documents to be captured carefully and precisely, from 27gsm to 413gsm. The Active Separation Roller System and on-board sensors help prevent document double-feeds and ensures every piece of paper is scanned accurately.
Quick send buttons
Thanks to WebConfig, you can create job presets and assign them to one of three quick send buttons, without the need for a PC or server. Multiple email addresses can be assigned to a single job. Scan once and send to several different contacts. Up to 300 separate contacts can be saved.
Document Capture Pro suite
Take advantage of Epson software. The Epson Document Capture suite of software gives you access to a range of easy-to-use scanning solutions for capturing, separating and routing documents around a business and beyond.
| Scanning | |
|---|---|
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 10 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
| Duplex ADF scan speed (b/w, A4) | 80 ipm |
| Black/white scanning colour modes | Monochrome |
| Design | |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 3.71 cm (1.46") |
| Colour display | Yes |
| Performance | |
|---|---|
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | DOCX, BMP, JPEG, PDF, PNG, PPTX, TIFF, XLSX |
| Daily duty cycle (max) | 6500 pages |
| Scan to | E-mail, FTP, Network folder |
| Ultrasonic sensor | Yes |
| Scan drivers | TWAIN, SANE, WIA, ICA, ISIS |
| Scanning noise level | 48 dB |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Envelopes, Plastic Card, Post Card(JPN) |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Legal | Yes |
| Letter | Yes |
| Maximum scan area (ADF) | 50.8 x 50.8 mm |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Optional connectivity | Ethernet |
| Power | |
|---|---|
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | WorkForce |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| IPv6 support | Yes |
| Features | |
|---|---|
| Country of origin | Indonesia |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 370 mm |
| Package height | 320 mm |
| Package weight | 4.93 kg |
| System requirements | |
|---|---|
| Compatible operating systems | Mac OS 10.6+, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3 |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | -25 - 60% |
| Weight & dimensions | |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 167 mm |
| Weight | 3.6 kg |
| Packaging content | |
|---|---|
| Bundled software | Epson Device Admin, Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager, Epson Scan 2, Web browser interface |
| Other features | |
|---|---|
| Ethernet LAN data rates | 100,10,1000 Mbit/s |
| Interface | USB 2.0, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Hi-Speed USB - compatible with USB 2.0 specification |
| Image formats supported | BMP, JPEG, TIFF, MTIFF, PNG |
| Linear scan speed (metric) | Monochrome:40 pages/min - Color:40 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:80 image/min - Color:80 image/min measured with Size: A4 , Resolution: 200 / 300 dpi |
| Scanner features | RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic de-skew, Automatic multi-document recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Barcode Recognition, Manual / Automatic Job Separation, Scan to Cloud Storage |
| Printer features | RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic de-skew, Automatic multi-document recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Barcode Recognition, Manual / Automatic Job Separation, Scan to Cloud Storage |
| Output resolutions | 75, 100, 150, 200, 240, 300, 600, 1200 DPI |
| Box contents | AC adapter, CD Manual, Main unit, Power cable, Setup guide, USB cable, Warranty card |
| Technical details | |
|---|---|
| Data compression | TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression, JPEG compression |
| Logistics data | |
|---|---|
| Products per pallet | 48 pc(s) |
| Products per pallet (UK) | 60 pc(s) |
| Harmonized System (HS) code | 84716070 |
