Epson

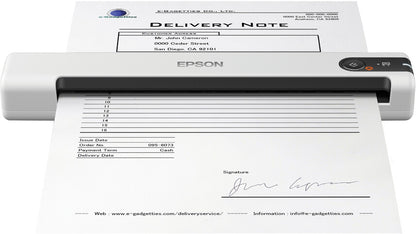

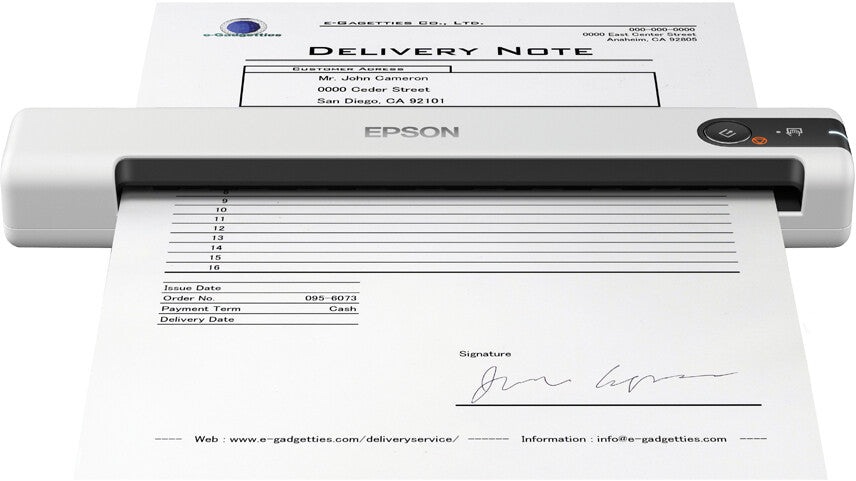

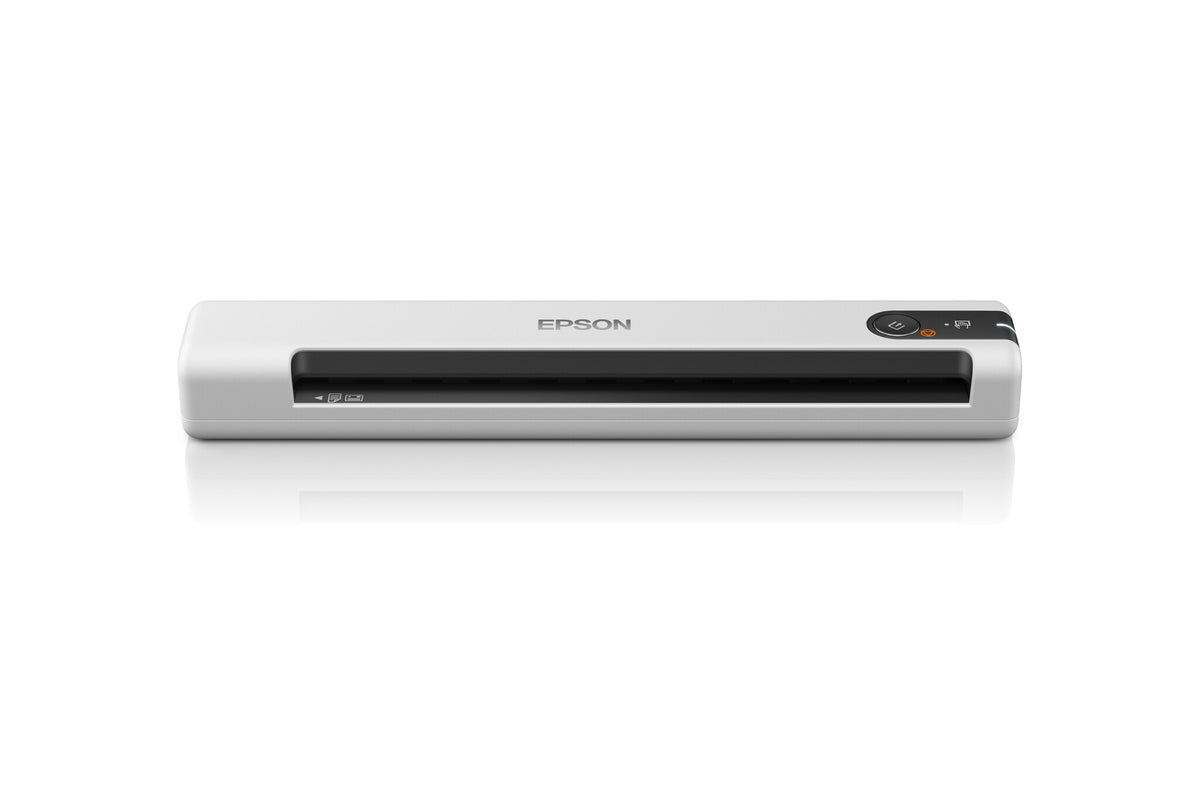

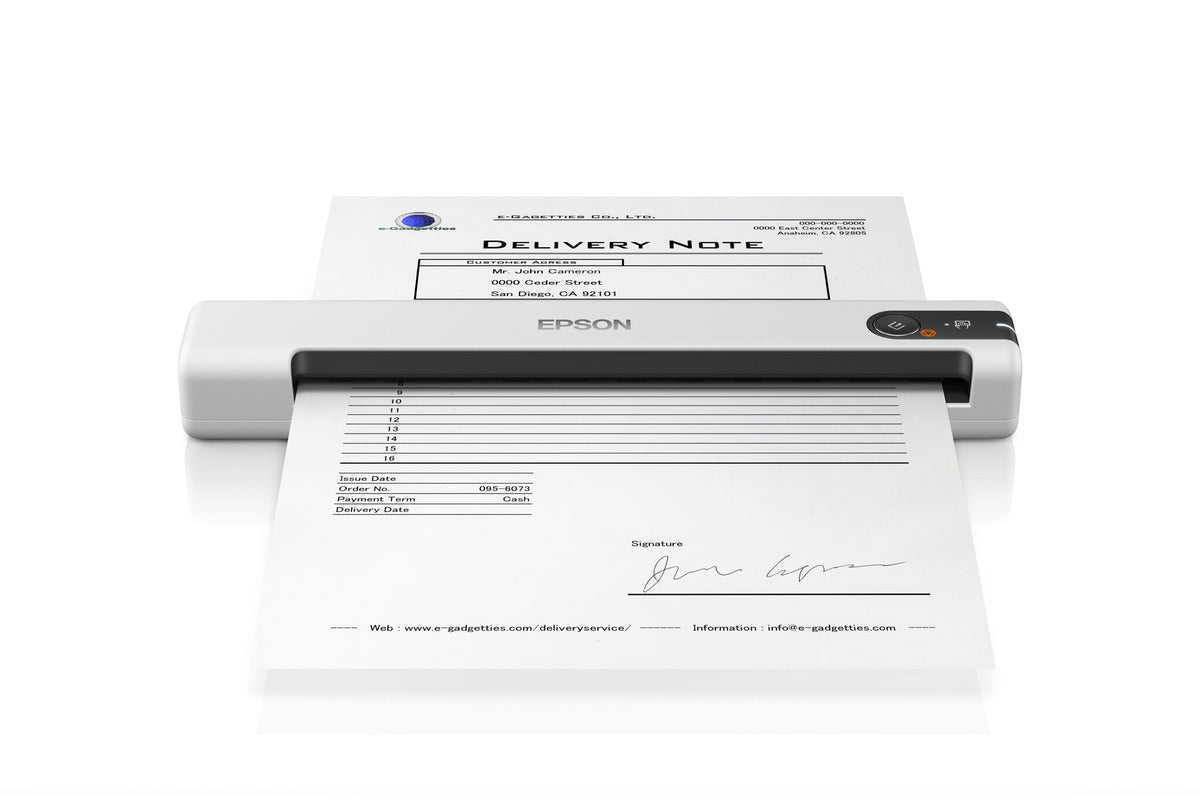

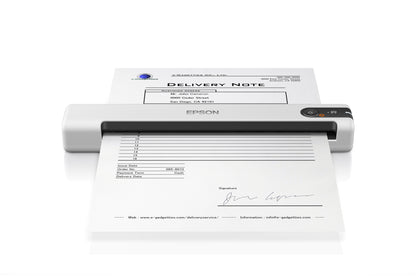

Epson WorkForce DS-70
Epson WorkForce DS-70
Couldn't load pickup availability
SKU:B11B252402
Low stock: 1 left

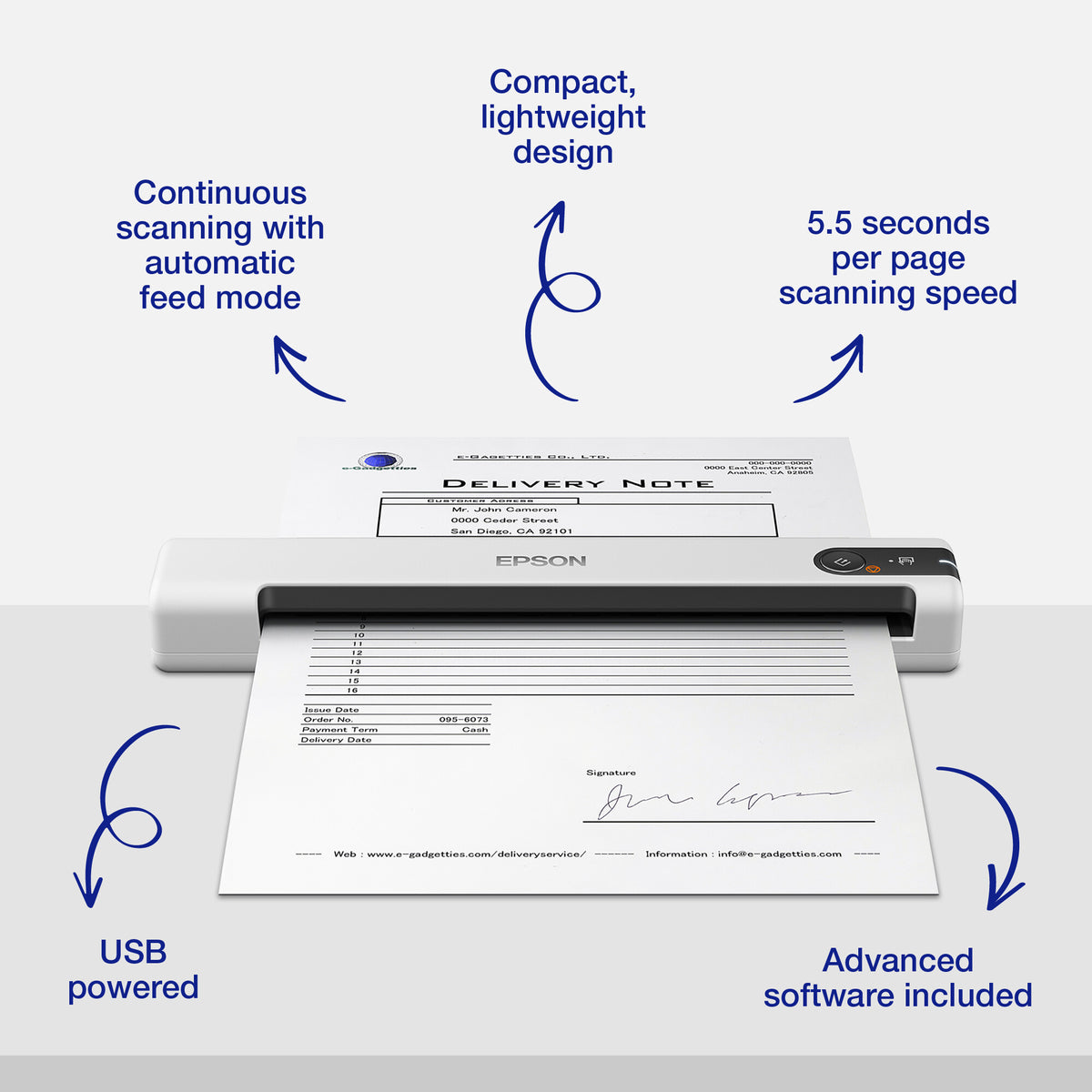

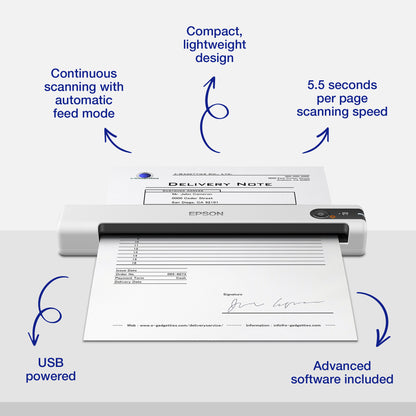

- Scan anywhere: Small, lightweight design
- USB connectivity: Powered by USB
- Fast scanning speeds: At up to 5.5 seconds per page
- Simplify your workload: Continuous scanning with automatic feed mode
- Includes a range of software: Document Capture Pro 2, Epson Scan 2.0 and TWAIN driver support
Scan anywhere

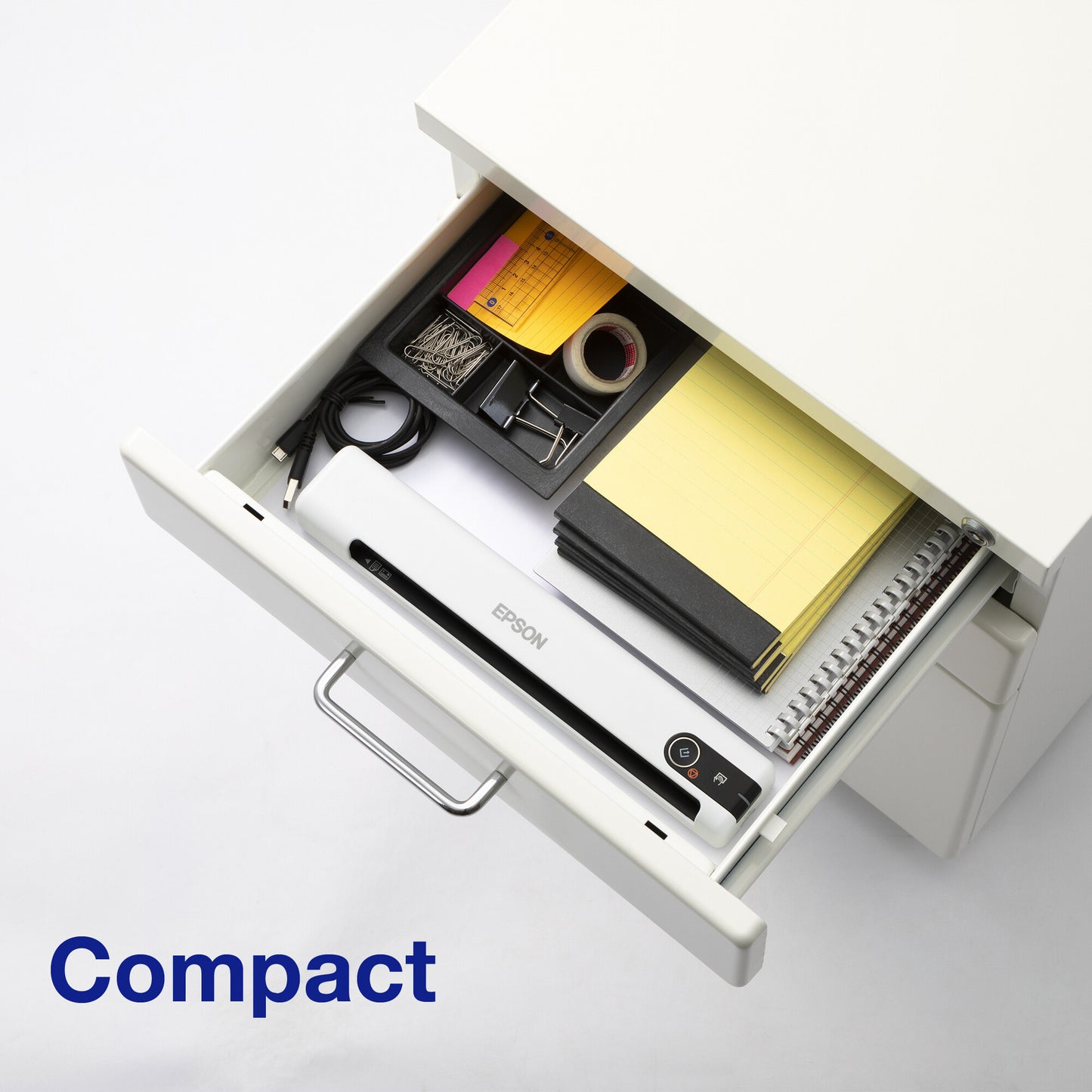

The small, compact design and USB connectivity make it easy to use the DS-70 wherever it's needed, such as in reception areas, and stores conveniently in a drawer.
Highly organised

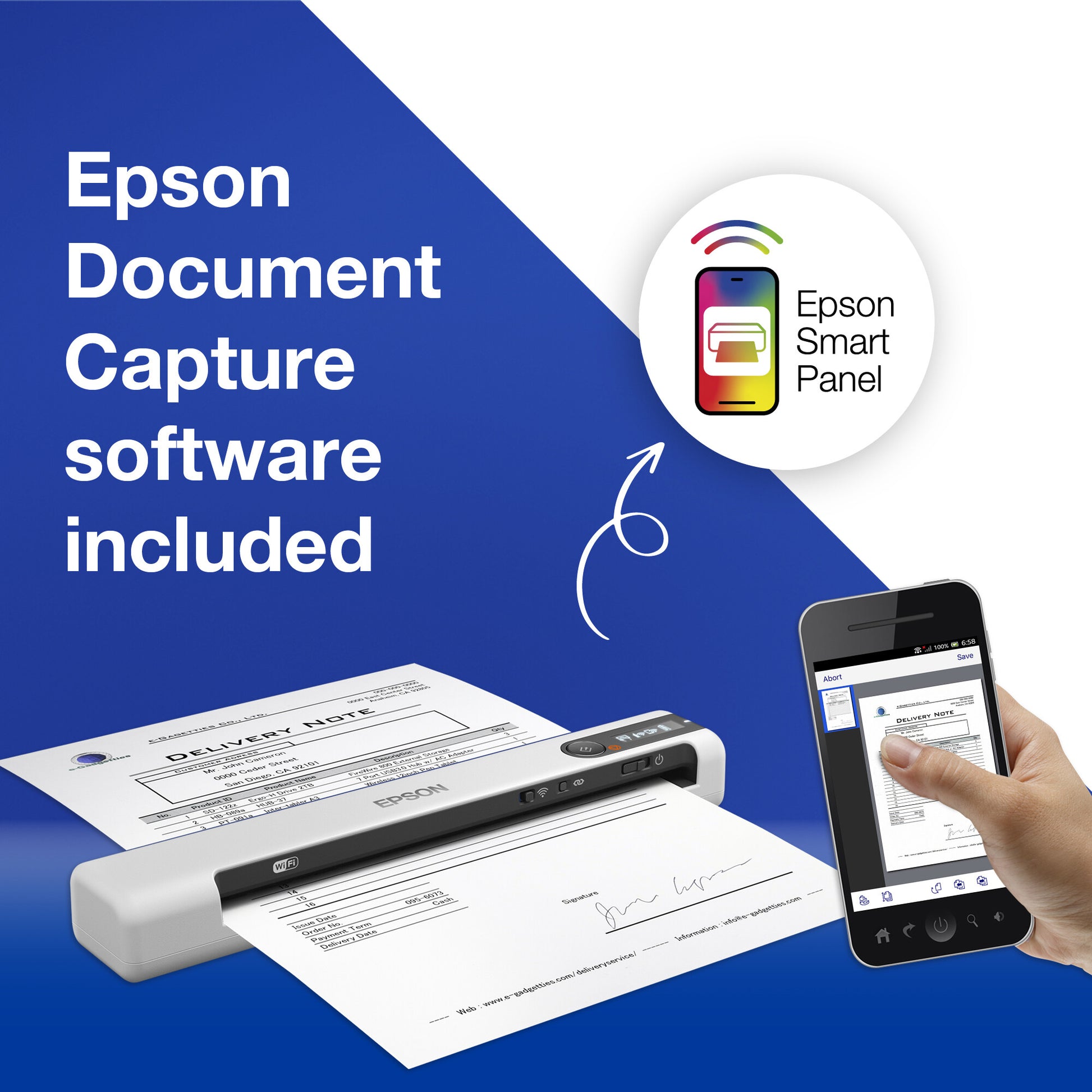

Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents make scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up the scanning process, while the CIS sensor delivers instant scanning with no warm up time.
Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.
| Scanning | |
|---|---|
| Scan speed (b/w, low res, A4) | 5.5 sec/page |
| Scan speed (colour, low res, A4) | 5.5 sec/page |
| Output monochrome depth | 8 bit |
| Output greyscale depth | 8 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 16 bit |
| Input colour depth | 48 bit |
| Duplex scanning | No |
| Colour scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan size | 216 x 356 mm |
| Design | |
|---|---|
| Product colour | White |
| Built-in display | No |
| Scanner type | Handheld scanner |
| Performance | |
|---|---|
| Scan drivers | TWAIN, WIA, SANE, ICA |
| Daily duty cycle (max) | 300 pages |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Light source | ReadyScan LED |
| Sensor type | CIS |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 1 sheets |
| Paper handling | |
|---|---|
| Auto Document Feeder (ADF) media weight | 35 - 270 g/m² |
| Paper tray media weight | 35 - 270 g/m² |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
|---|---|
| Standard interfaces | USB 2.0 |
| USB version | 2.0 |
| USB port | Yes |
| Power | |
|---|---|
| Power supply type | USB |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | WorkForce |
| Features | |
|---|---|
| Country of origin | China |
| Packaging data | |
|---|---|
| Package weight | 553 g |
| Package height | 65 mm |
| Package depth | 330 mm |
| Package width | 140 mm |
| Quantity per pack | 1 pc(s) |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Compatible operating systems | Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating temperature (T-T) | 5 - 35 °C |

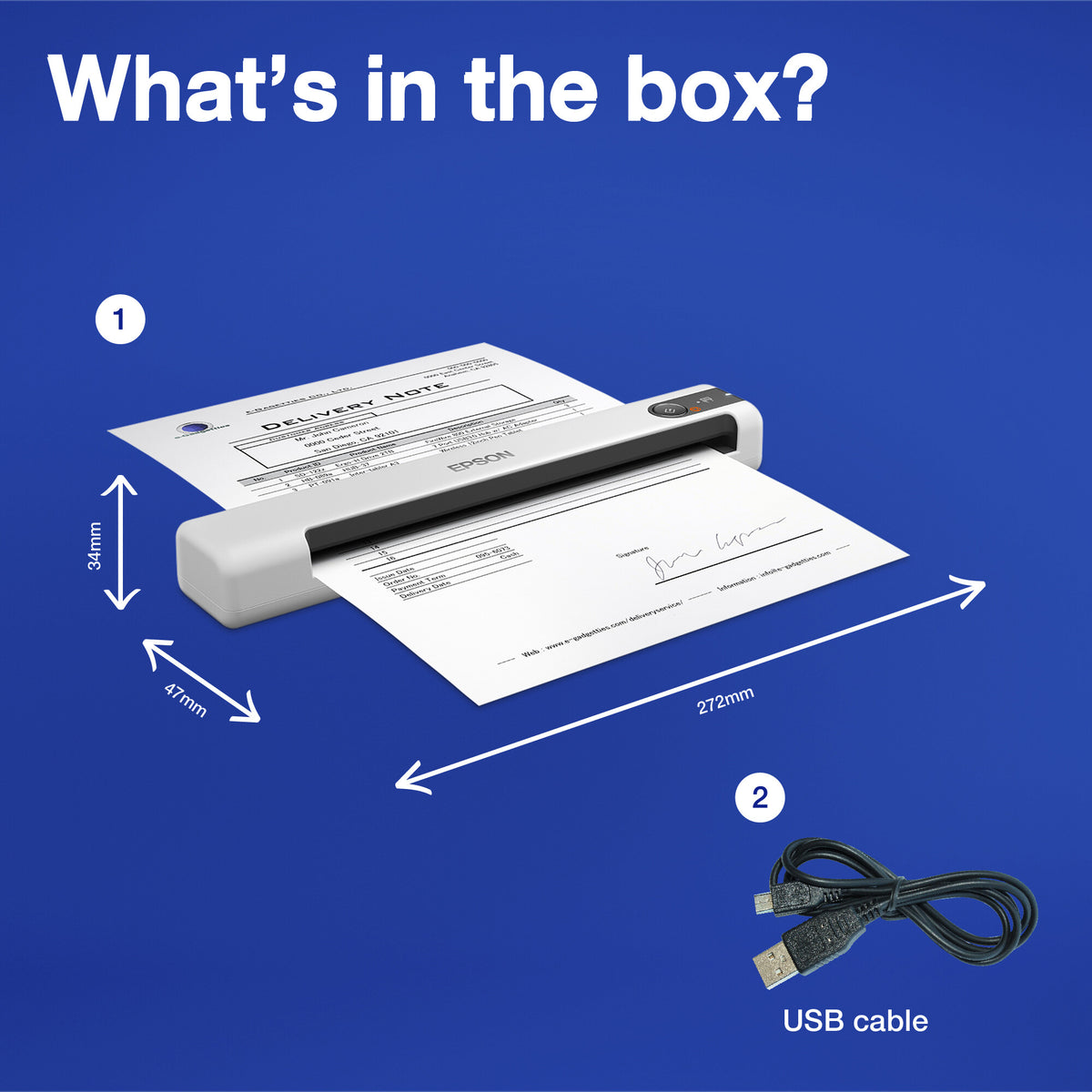

| Weight & dimensions | |
|---|---|
| Weight | 270 g |
| Height | 34 mm |
| Depth | 47 mm |
| Width | 272 mm |
| Packaging content | |
|---|---|
| Bundled software | Document Capture Pro 2.0, Epson Scan 2 |
| Cables included | USB |
| Other features | |
|---|---|
| Output resolutions | 600 dpi |
| Image formats supported | BMP, JPEG, TIFF, PNG |
| Technical details | |
|---|---|
| Master (outer) case GTIN (EAN/UPC) | 8715946662596 |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 84716070 |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 171 cm |
| Products per pallet layer | 60 pc(s) |
| Products per pallet layer (UK) | 60 pc(s) |
| Products per pallet (UK) | 360 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 171 cm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 320 mm |
| Master (outer) case width | 350 mm |
| Products per pallet | 360 pc(s) |
