Epson

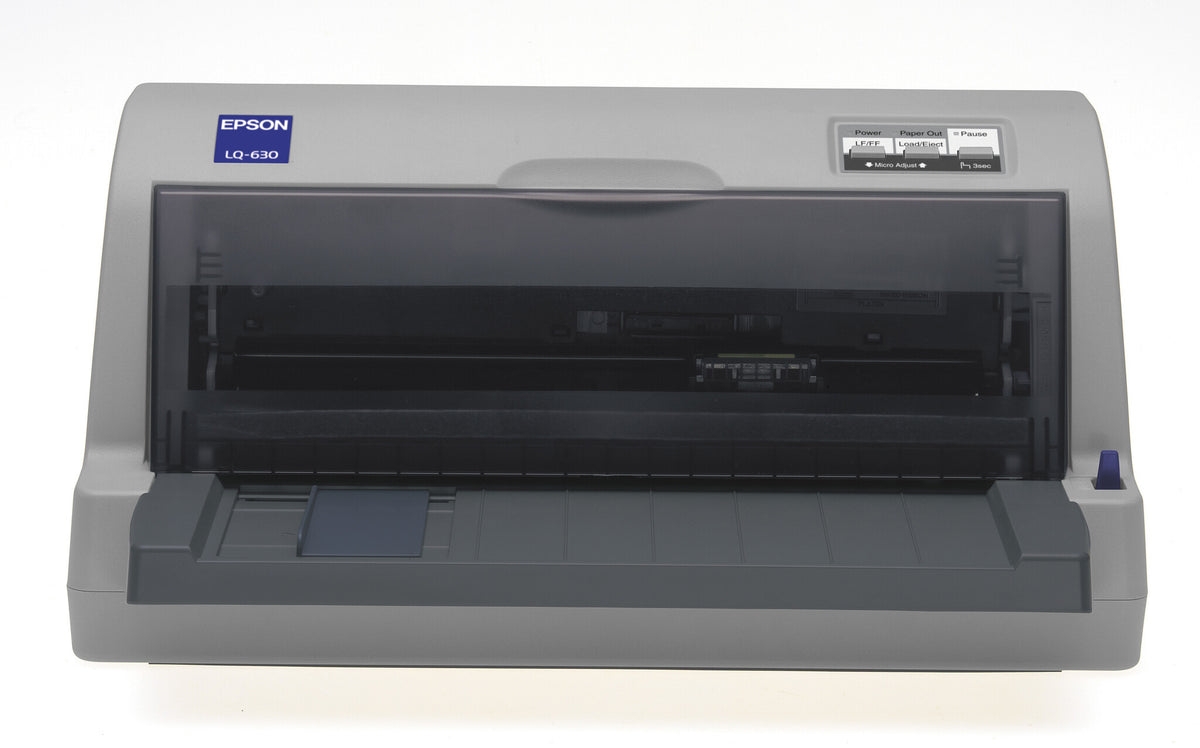

Epson LQ-630

Epson LQ-630

£422.72 GBP
£422.72 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

C11C480141A0

Low stock: 3 left

  • Fast print speed up to 360 cps
  • Compact and robust design
  • Handles up to 1 original plus 3 copies
  • Flatbed technology for ergonomic front paper feed
  • Mean Volume Between Failures: 12 mill. lines
  • Standard Centronics Parallel and USB 2.0 Interfaces
Impact dot matrix, 24 pins, 80 columns, 24 Needles, 360x180 DPI, USB 2.0, Parallel, 20W, 3.5 kg


LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer's flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors' surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.

Printing
Colour No
Maximum resolution 360 x 180 DPI
Maximum printing width (columns) 80
Maximum print speed 360 cps
Maximum number of copies 5 copies
Built-in barcodes Code 39, POSTNET, UPC-A, UPC-E
Print speed HighSpeed-Draft: 10 cpi: 300 chars/s, 12 cpi: 360 chars/s, Draft: 10 cpi: 225 chars/s, LQ: 10 cpi: 79 chars/s
Paper handling
Maximum print size 254 x 559 mm
Features
Product colour Grey
Buffer size 32 KB
Sound pressure level (printing) 57 dB
Country of origin China
Ports & interfaces
Standard interfaces Parallel, USB 2.0
Endurance
Print head 24-pin
Print head life 200 million characters
Ribbon life 2 million characters
Mean time between failures (MTBF) 6000 h
Power
AC input voltage 220 - 240 V
Power consumption (standby) 4.8 W
Power consumption (typical) 20 W
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Operating relative humidity (H-H) 10 - 80%
System requirements
Bundled software Epson Status Monitor
Weight & dimensions
Width 386 mm
Depth 306 mm
Height 185 mm
Weight 3.5 kg
Packaging data
Quantity per pack 1 pc(s)
Package width 310 mm
Package depth 455 mm
Package height 265 mm
Package weight 5.2 kg
Other features
Print technology Dot matrix
Compatible operating systems Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Box contents Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Logistics data
Pallet height (UK) 2 m
Pallet length (UK) 120 cm
Products per pallet (UK) 49 pc(s)
Products per pallet layer (UK) 7 pc(s)
Products per pallet layer 5 pc(s)
Pallet gross height 100 cm
Pallet gross width 120 cm
Products per pallet 35 pc(s)
