4K PRO-UHD* technology: Images are more lifelike and exceed Full HD resolution
Enhanced home entertainment: Built in 10W stereo speakers and connect streaming devices, games console, set-top box, Blu-ray player, tablet or other device via the two HDMI ports
Long-lasting solution: With this model's long-lasting lamp light source, you'll be able to enjoy entertainment for up to 7 years*
Superior picture quality: With a high brightness of 3,000 lumens and contrast ratio of 100,000:1, this 4K PRO-UHD*{s, HDR10 projector delivers lifelike content and defined shadow detail. Epson's 3LCD technology means its projectors have up to three times brighter colours, than comparable 1-chip DLP projectors*
Refreshingly easy to use: Plug in, turn on, link up and play!

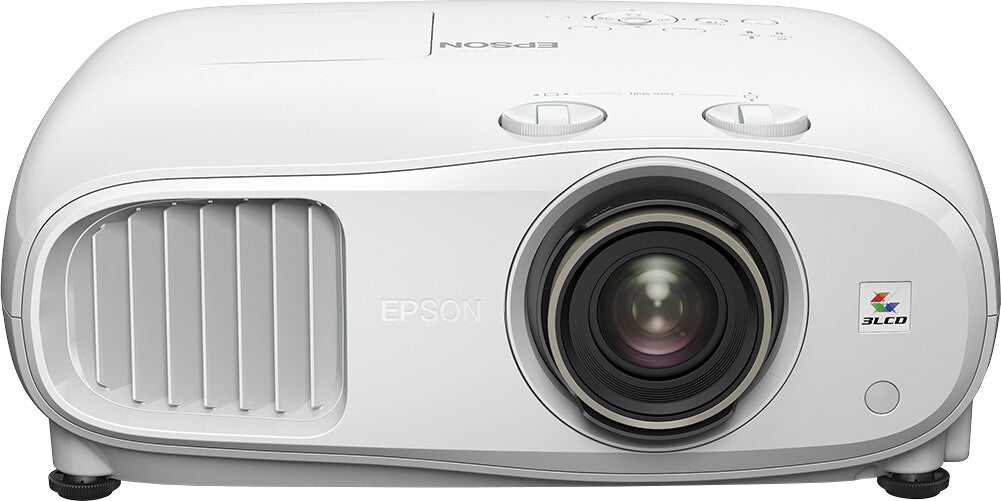

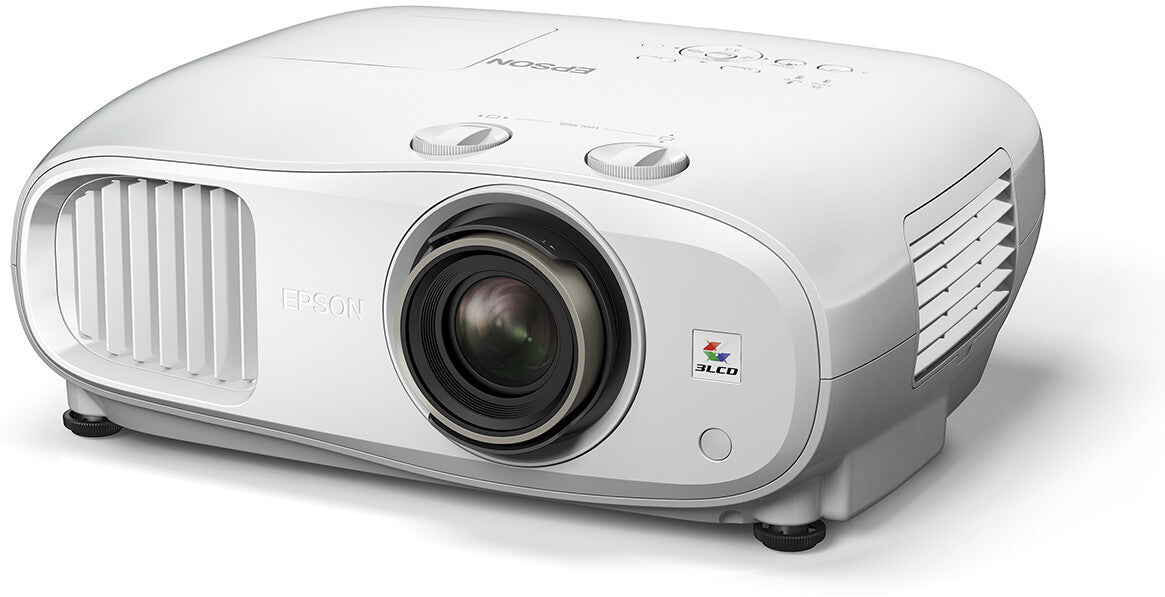

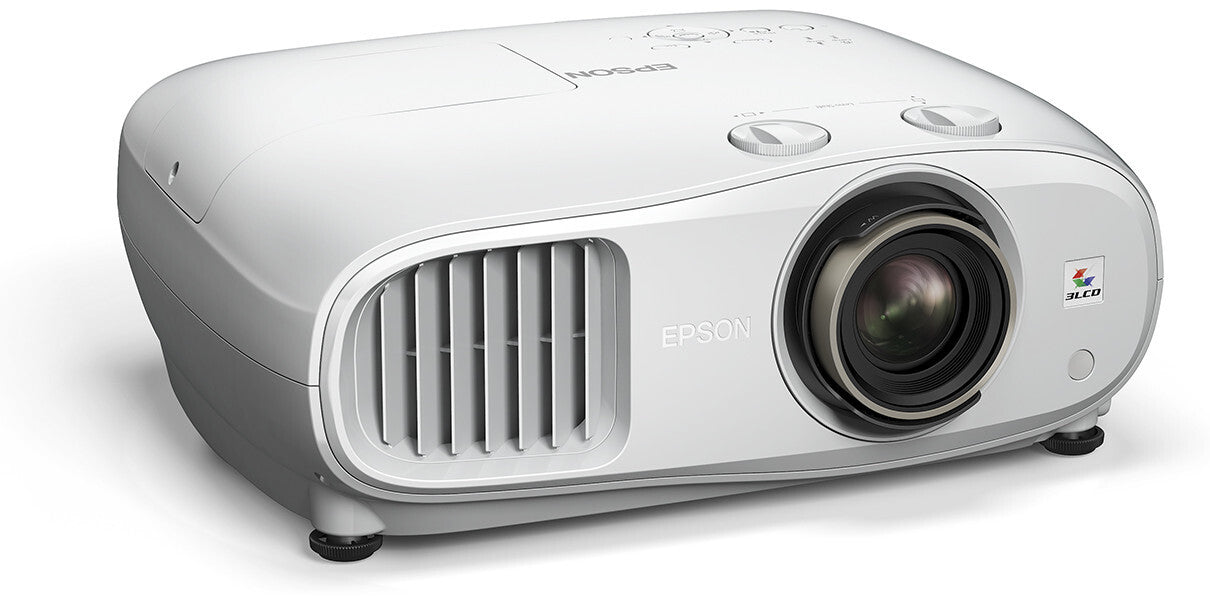

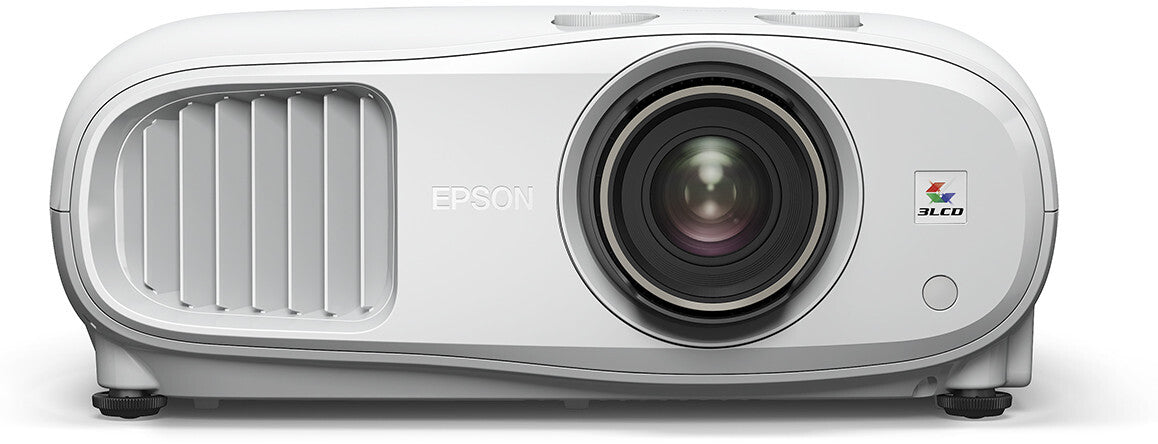

EH-TW7100, 3LCD, 3000 lum, 4K PRO-UHD, 16:9, 100000:1, USB 2.0, HDMI, Bluetooth, 410x310x157 mm

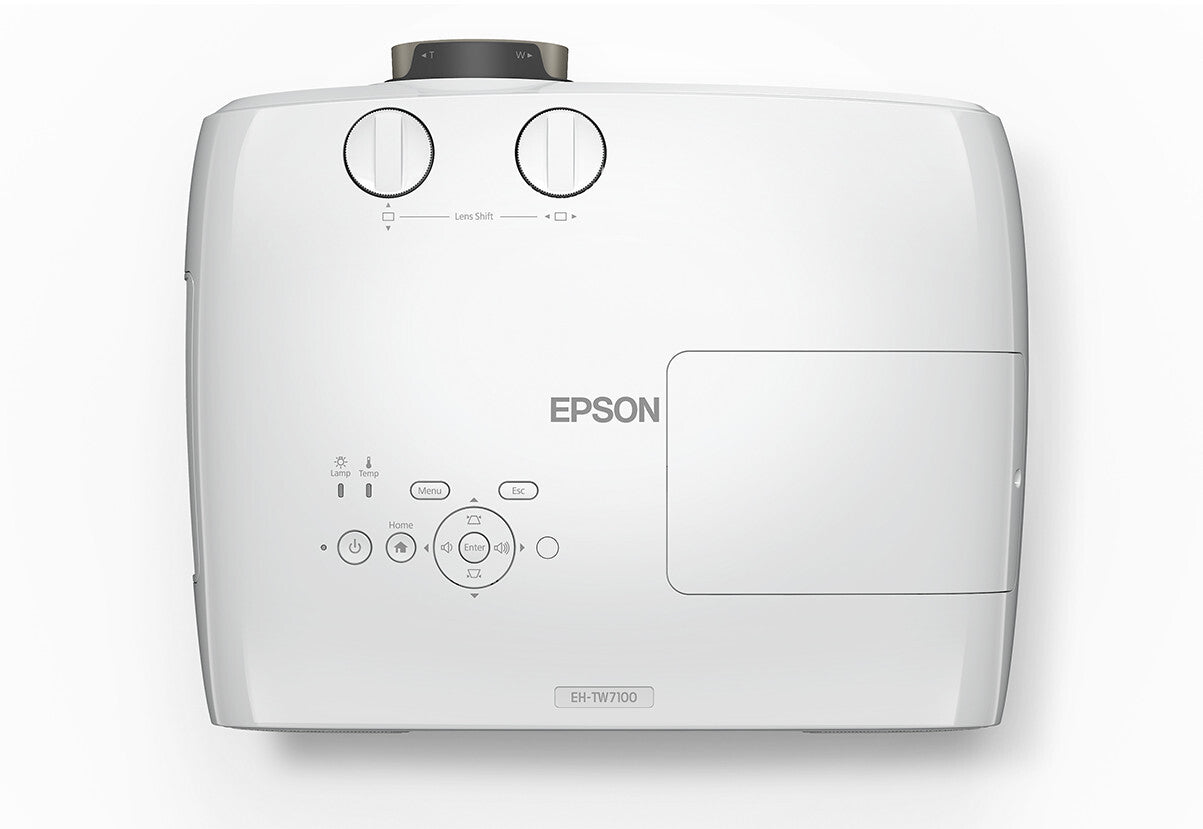

With an impressive screen size of up 500 inches diagonally, the EH-TW7100 has all the technology you need with streaming device compatibility to create the ultimate cinematic experience at home. Get advanced, high-end features at an affordable price with this 4K PRO-UHD* projector. With a display that reaches up to 500 inches, you can enjoy the latest 4K content, with superior image quality and a high contrast ratio. Lining up the picture is effortless using lens shift, optical zoom and keystone correction. It's easy to set up, stream content and get sound with built-in speakers or Bluetooth.
4K PRO-UHD* for superior image quality Experience bright, vivid colours with this affordable 4K PRO-UHD* projector. By delivering an equally high White and Colour Light Output of 3,000 lumens, it achieves both a high brightness and intense colours. The high contrast ratio of 100,000:1 delivers deep blacks and clearly defined shadows, and the frame interpolation gives sharper fast-moving images.
Big screen experience Feel immersed in your home entertainment with an engaging big screen experience. This projector can create a display size up to 500 inches, can play 2D and 3D content and boasts noise cancelling technology. Lens shift, zoom and keystone correction ensure that your picture is exactly where you want it to be.
Smart connectivity solutions Plug and play 4K content simply by inserting a streaming device in the back of the projector so it's ready to go at a moment's notice. You can also display 4K content from a games console, set top box, Blu-ray player, tablet or other device via the two HDMI ports. Sound is taken care of with two built-in 10w speakers.
Projector
Projector brightness
3000 ANSI lumens
Projection technology
3LCD
Contrast ratio (typical)
100000:1
Native aspect ratio
16:9
Screen size compatibility
1016 - 12700 mm (40 - 500")
Projection distance
2.95 - 4.77 m
Projection distance (wide)
1.2 - 14.9 m
Projection distance (tele)
1.9 - 24 m
Contrast ratio (dynamic)
100000:1
Number of colours
1.07 billion colours
Vertical scan range
192 - 240 Hz
Keystone correction, horizontal
±30°
Matrix size
1.55 cm (0.61")
Keystone correction, vertical
±30°
Light source
Light source type
Lamp
Service life of light source
3500 h
Service life of light source (economic mode)
5000 h
Lamp type
UHE
Lamp power
250 W
Lamps quantity
1 lamp(s)
Lens system
Focus
Manual
Focal length range
18.2 - 29.2 mm
Aperture range (F-F)
1.49 - 1.77
Zoom capability
Yes
Zoom type
Manual
Zoom ratio
1:1.62
Throw ratio
1.32 - 2.15:1
Horizontal lens shift range
-24 - 24%
Vertical lens shift range
-60 - 60%
Video
Full HD
Yes
3D
Yes
Supported 3D formats
Side by side, Top and bottom
Video processing
10 bit
Video colour modes
Auto, Bright cinema, Cinema, Dynamic, Natural
Ports & interfaces
HDMI ports quantity
2
HDMI connector type
Full-size
DVI port
No
USB 2.0 ports quantity
2
Mini-USB 2.0 ports quantity
1
Serial interface type
RS-232C
PC Audio out
Yes
AC (power) in
Yes
Network
Smart TV
No
Ethernet LAN
No
Wi-Fi
No
Bluetooth
Yes
Storage
Card reader integrated
No
Features
Noise level
32 dB
Noise level (economic mode)
24 dB
Country of origin
Philippines
Multimedia
Built-in speaker(s)
Yes
RMS rated power
10 W
Design
Product type
Standard throw projector
Market positioning
Home cinema
Product colour
White
Placement
Desktop, Ceiling
Cable lock slot type
Kensington
Cable lock slot
Yes
Display
Built-in display
No
Power
Power source
AC
Power consumption (typical)
387 W
Power consumption (standby)
0.5 W
Power consumption (economy mode)
297 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
5 - 30 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%

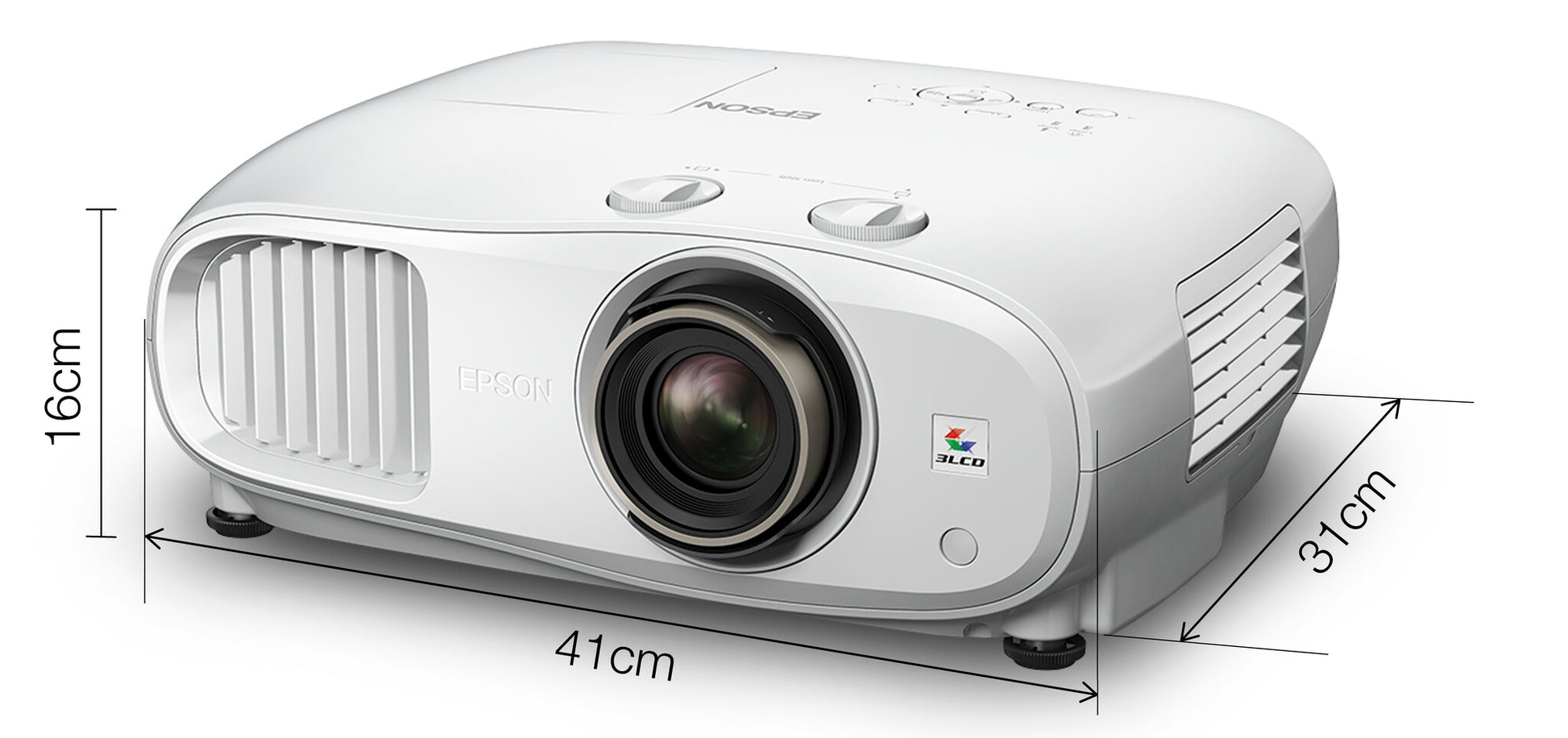

Weight & dimensions
Weight
6.9 kg
Width
410 mm
Depth
310 mm
Height
157 mm
Package width
495 mm
Package depth
500 mm
Package height
235 mm
Package weight
8.95 kg
Packaging content

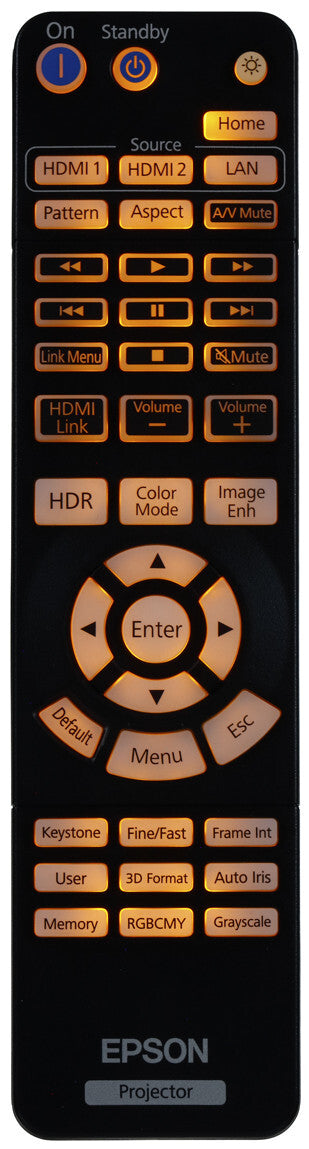

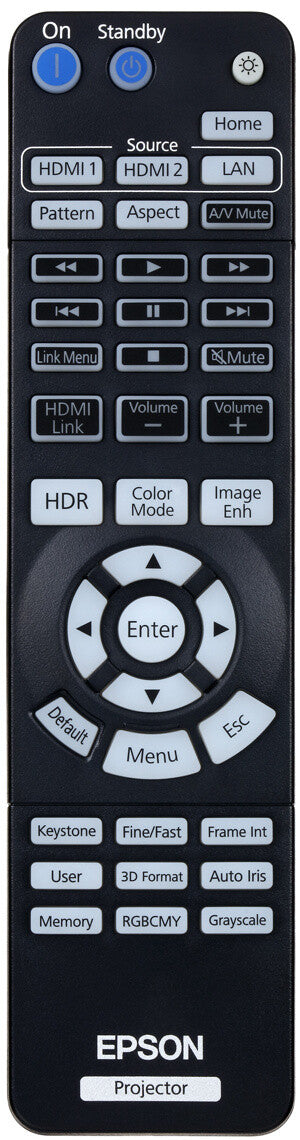

Remote control included
Yes
Manual
Yes
Cables included
AC
Technical details
Mobile app support
Yes
Other features
3D depth adjustment, 4K enhancement, Frame interpolation, Horizontal and vertical keystone correction, Quick Corner, Wireless LAN capable
Logistics data
Quantity per pack
1 pc(s)
Products per pallet (UK)
36 pc(s)
Products per pallet
18 pc(s)
Harmonized System (HS) code
85286200
Other features

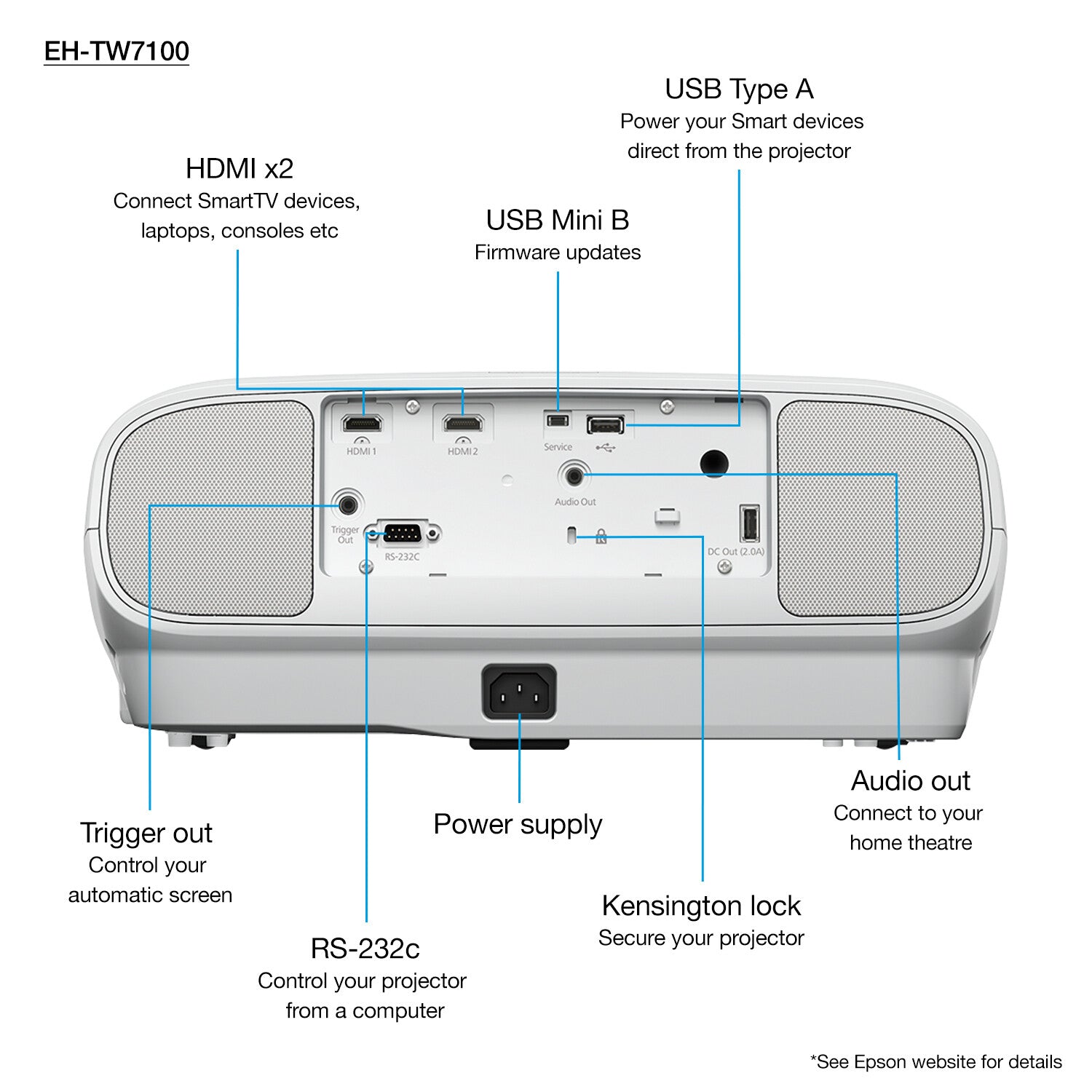

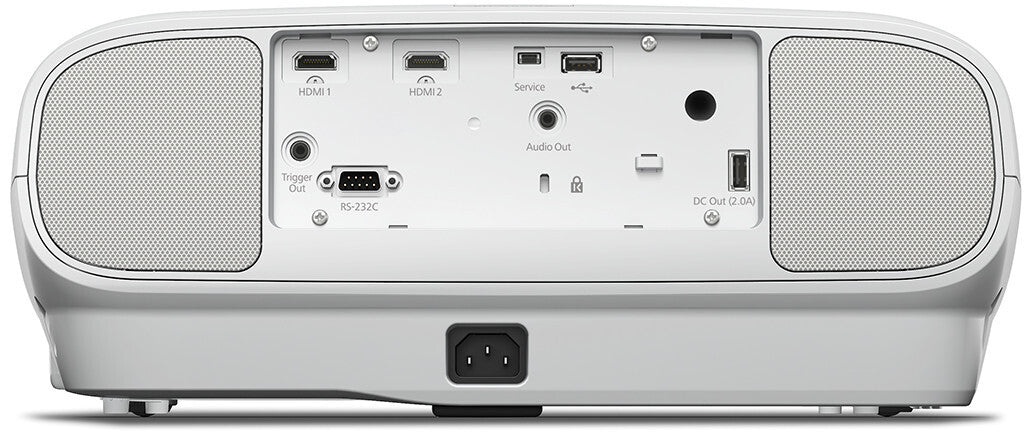

Interface
USB 2.0-A (2x), USB 2.0 Mini-B, HDMI in (2x), Jack plug out, Bluetooth
Security features
Kensington lock
Option type
Air filter ELPAF38, MB22 ceiling mount, Wireless LAN unit
Box contents
Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document
