High-quality bright images: 3LCD technology and equally high White and Colour Light Output
Portable: Small and light enough to be carried and used across several rooms
Wide connectivity options: Network-enabled and wireless capable
Low total cost of ownership: Lamp life up to 12,000 hours in Eco mode
Versatile and flexible control: Project from many sources with HDMI and optional wireless connectivity
3LCD, 3600 Lm, XGA (1024 x 768), 4:3, UHE 210 W, USB 2.0, RS-232C, LAN, VGA, HDMI, Composite, 302 x 249 x 87 mm, 2.7 Kg

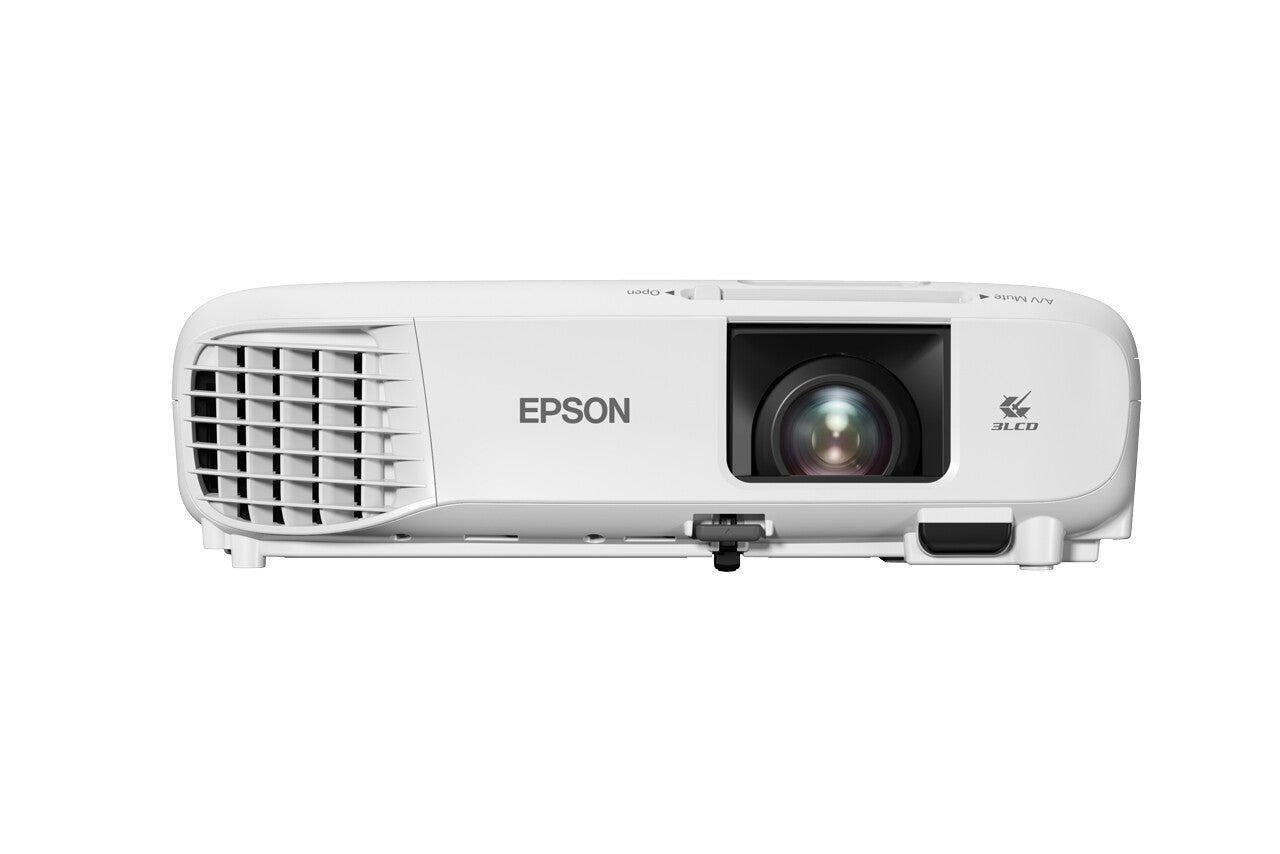

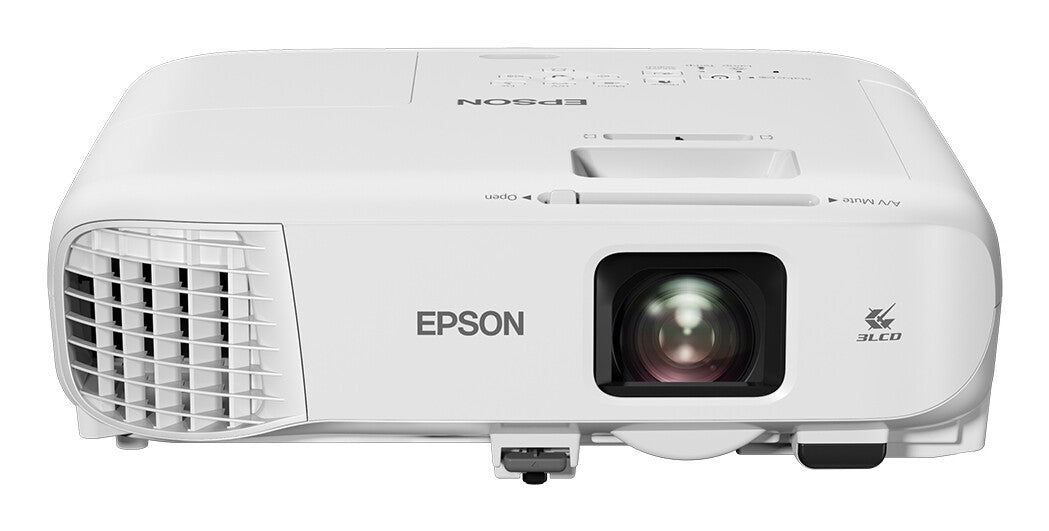

Compact display, optional wireless Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.
Bright, vivid content on a large scalable screen Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.
Years of uninterrupted meetings With a lamp life of up to 12,000 hours in Eco mode.
Installation and placement flexibility Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.
Network and wireless (optional) Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.
High-quality sound This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.
Projector
Projector brightness
3600 ANSI lumens
Projection technology
3LCD
Projector native resolution
XGA (1024x768)
Contrast ratio (typical)
16000:1
Native aspect ratio
4:3
Supported aspect ratios
4:3
Screen size compatibility
762 - 7620 mm (30 - 300")
Number of colours
1.07 billion colours
Projector brightness (economic mode)
2400 ANSI lumens
Vertical scan range
100 - 120 Hz
Keystone correction, horizontal
±30°
Matrix size
1.4 cm (0.55")
Keystone correction, vertical
±30°
Light source
Light source type
Lamp
Service life of light source
6000 h
Service life of light source (economic mode)
12000 h
Lamp type
UHE
Lamp power
210 W
Lens system
Focus
Manual
Focal length range
16.9 - 20.28 mm
Aperture range (F-F)
1.49 - 1.72
Zoom capability
Yes
Zoom type
Manual
Zoom ratio
1.2:1
Throw ratio
1.48 - 1.77:1
Video
Full HD
No
3D
No
Video processing
10 bit
Video colour modes
Blackboard, Dynamic, Presentation, sRGB, Theatre
Ports & interfaces
VGA (D-Sub) ports quantity
3
HDMI ports quantity
1
HDMI connector type
Full-size
Composite video in
1
DVI port
No
USB 2.0 Type-B ports quantity
1
Serial interface type
RS-232C
PC Audio in
Yes
PC Audio out
Yes
PC in (D-Sub)
Yes
AC (power) in
Yes
Network
Smart TV
No
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Storage
Card reader integrated
No
Features
Noise level
37 dB
Noise level (economic mode)
28 dB
Preset modes
Blackboard, Dynamic, Presentation, Theatre, sRGB
On Screen Display (OSD)
Yes
Country of origin
Philippines
Multimedia
Built-in speaker(s)
Yes
Number of built-in speakers
1
RMS rated power
5 W
Design
Market positioning
Portable
Product colour
White
Placement
Ceiling, Desktop
Cable lock slot type
Kensington
Cable lock slot
Yes
Display
Built-in display
No
Power
Power source
AC
Power consumption (typical)
327 W
Power consumption (economy mode)
225 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Software
Software support
via: AMX, Crestron (Network), Control4, Extron
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Weight
2.7 kg
Width
302 mm
Depth
249 mm
Height
87 mm
Package width
355 mm
Package depth
380 mm
Package height
160 mm
Package weight
4.12 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
WLAN adapter included
Yes
Quick start guide
Yes
Cables included
AC, HDMI
Bundled software
EasyMP Multi PC Projection, Epson Projector Management
Technical details
Mobile app support
Yes
Other features
AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection App, iProjection set-up by NFC, iProjecton set-up by scanning a code
USB display function
2 in 1: Image/ Sound
Logistics data
Quantity per pack
1 pc(s)
Pallet weight (UK)
0 g
Pallet gross weight
0 g
Products per pallet (UK)
78 pc(s)
Products per pallet
78 pc(s)
Harmonized System (HS) code
85286200
Other features
Interface
USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0-A, Wireless LAN IEEE 802.11a/b/g/n/ac (optional)
Supported network protocols
PJLink
Security features
Kensington lock, Security cable hole, Wireless LAN unit lock
Option type
Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01
Box contents
HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document
