Epson

Epson EB-PU2220B

Epson EB-PU2220B

£29,431.96 GBP
£29,431.96 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

V11HA66840

Low stock: 2 left

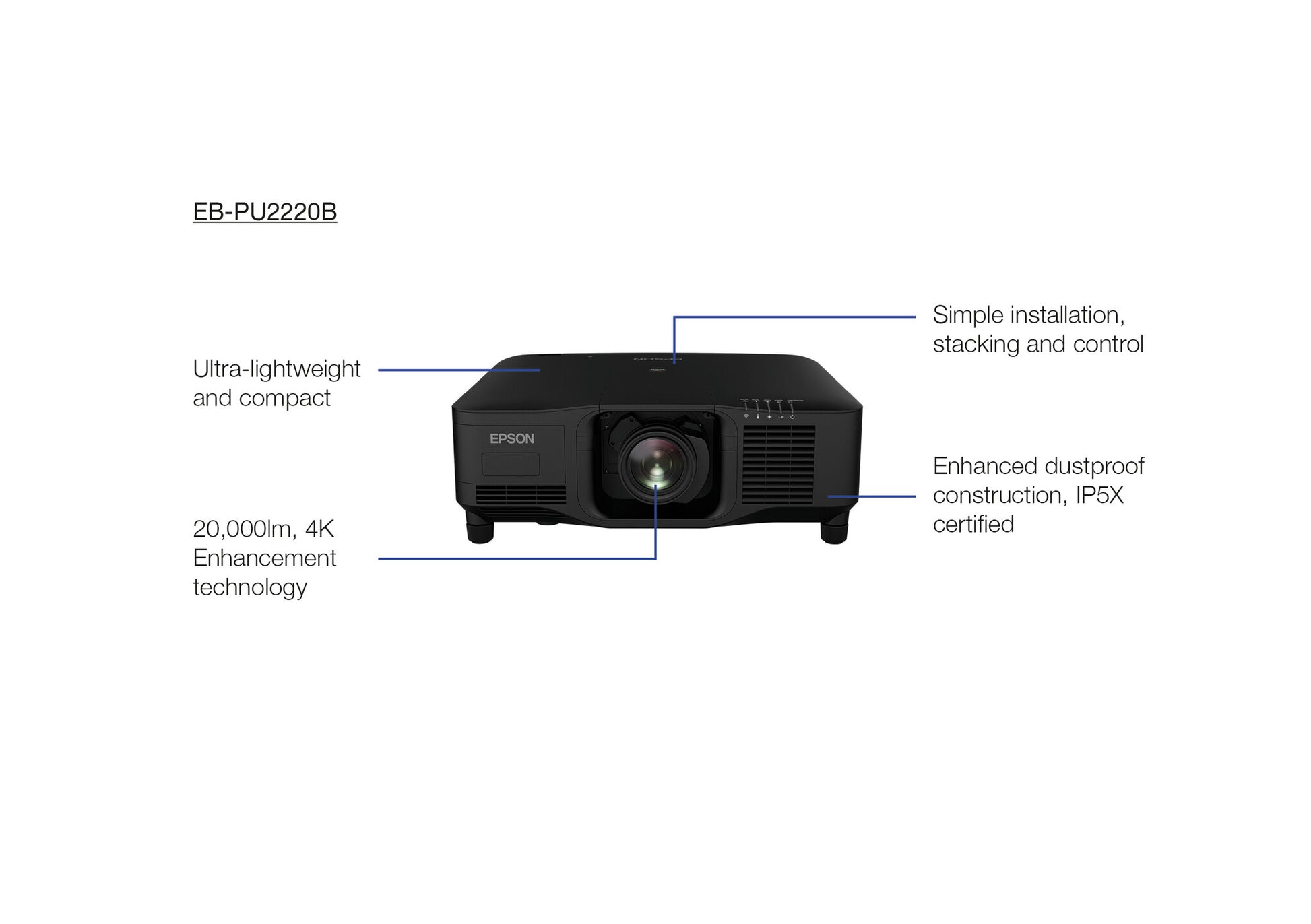

  • Ultra-lightweight and compact: The world's smallest 20,000lm projector{s1
  • Stunning image displays: 20,000lm, 4K Enhancement technology, WUXGA resolution
  • Easy to use: Simple installation, stacking, lens flexibility and control
  • Fit-and-forget reliability: Enhanced dust resistant construction - IP5X certified
  • Environmental benefits: Lower power consumption, reduced packaging, reduced weight
EB-PU2220B

20,000lm laser projector
The EB-PU2220B offers users significant advantages including much reduced size and weight, easier installation and set-up, simplified maintenance and great image quality. This ultra-lightweight, compact laser projector has been designed for use in large auditoriums, live events, concerts, conference rooms where it delivers high-impact immersive experiences.

Compact and lightweight
The EB-PU2220B is around 60% smaller and 50% lighter than its predecessor, the EB-L20000U. The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.

Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.

Flexibility
The EB-PU2220B enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.

Reliability
Includes outstanding dust resistance as the hermetically sealed optical engine, and laser light source unit, ensure stable brightness output over long periods, even in high dust environments.

Projector
Projector brightness 20000 ANSI lumens
Projection technology 3LCD
Projector native resolution WUXGA (1920x1200)
Contrast ratio (typical) 2000:1
Native aspect ratio 16:10
Screen size compatibility 1524 - 25400 mm (60 - 1000")
Contrast ratio (dynamic) 5000000:1
Number of colours 1.07 billion colours
Projector brightness (economic mode) 14000 ANSI lumens
Matrix size 2.62 cm (1.03")
Heat dissipation 4423 BTU/h
Light source
Light source type Laser
Service life of light source 20000 h
Service life of light source (economic mode) 30000 h
Lens system
Focus Motorized
Focal length range Varies by lens
Zoom type Auto
Zoom ratio 1.6:1
Throw ratio 0.35 - 7.41:1, Varies by lens
Vertical lens shift range -60 - 60%
Lens position memory 10
Interchangeable lens Yes
Video
Full HD Yes
3D No
Video processing 10 bit
Video colour modes BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation
Ports & interfaces
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
DVI port Yes
HDBaseT port Yes
USB 2.0 ports quantity 3
USB 2.0 Type-A ports quantity 2
USB 2.0 Type-B ports quantity 1
Headphone outputs 1
Serial interface type RS-232C
Network
Ethernet LAN Yes
Wi-Fi No
Storage
Card reader integrated No
Features
Noise level 45 dB
Noise level (economic mode) 37 dB
Country of origin China
Password protection Yes
Design
Product type Large venue projector
Market positioning Presentation
Product colour Black
Placement Ceiling, Desktop, Flying frame
Cable lock slot type Kensington
Cable lock slot Yes
Display
Built-in display No
Power
Power source AC
Power consumption (typical) 1301 W
Power consumption (standby) 0.4 W
Power consumption (economy mode) 899 W
AC input voltage 200 - 240 V
AC input frequency 50 - 60 Hz
Software
Software support via: AMX, Crestron (Network), Extron
Operational conditions
Storage temperature (T-T) -10 - 60 ??C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Weight 24.4 kg
Width 586 mm
Depth 492 mm
Height 218 mm
Package width 715 mm
Package depth 790 mm
Package height 335 mm
Package weight 30.8 kg
Packaging content
Remote control included Yes
Batteries included Yes
WLAN adapter included Yes
Warranty card Yes
Manual Yes
Cables included AC
Bundled software Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
Technical details
Other features 21:9 aspect ratio support, 4K enhancement, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Super resolution, Web Control, Web Remote, iProjection App
Logistics data
Quantity per pack 1 pc(s)
Pallet weight (UK) 0 g
Pallet gross weight 0 g
Products per pallet (UK) 4 pc(s)
Products per pallet 4 pc(s)
Harmonized System (HS) code 85286200
Other features
Interface USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), VGA in, DVI in, HDMI in, HDBaseT, Jack plug out, 3G-SDI Input, 3G-SDI Output, Wireless LAN IEEE 802.11a/b/g/n (optional), Near Field Communication (NFC), USB content playback, Remote
Supported network protocols HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Security features Kensington lock, Security bar, Password lock, Wireless LAN unit lock, Wireless LAN security, Password protection
Option type Camera module, Ceiling mount, Wireless LAN unit
Box contents Cable cover, Document Pack, Information sheet, Lens connector cap, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries
Control panel 1.03 inch with C2 Fine
