Epson
Epson EB-800F
Epson EB-800F
Couldn't load pickup availability
SKU:V11H923540
Low stock: 8 left
- Ultra-short-throw signage projector: Compact, unobtrusive design.
- Up to 130-inch display: Full HD resolution, 5,000 lumen brightness and 3LCD technology
- Fit and forget reliability: Low maintenance laser projector with a 5 year warranty
- Easy installation: 360 degree rotation with portrait projection support
- Flexible playback: Play content directly from a USB stick
Digital signage solution
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-800F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.
Large and scalable images
The EB-800F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install

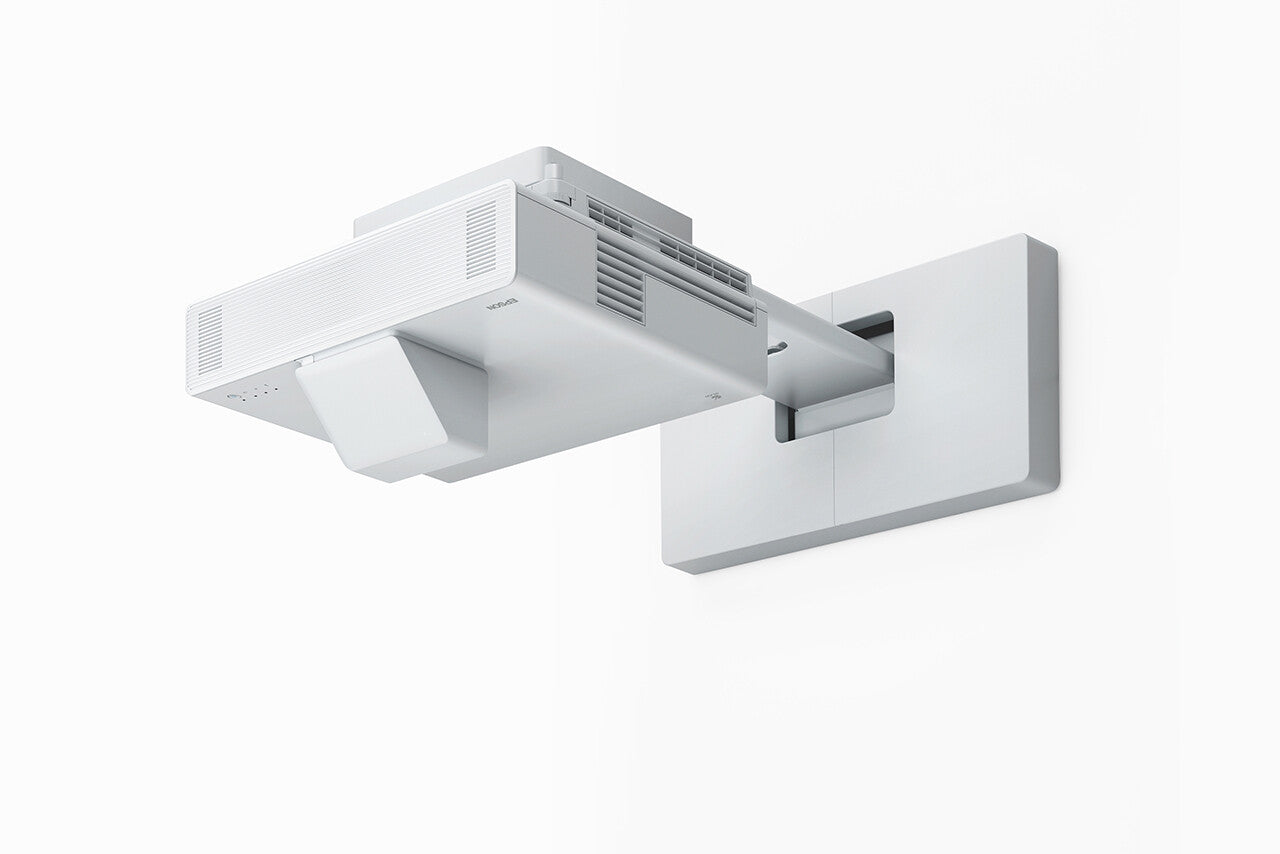

This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A black version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
| Projector | |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1651 - 3302 mm (65 - 130") |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.8 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3500 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±3° |
| Matrix size | 1.57 cm (0.62") |
| Keystone correction, vertical | ±3° |
| Heat dissipation | 1244 BTU/h |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 3.9 mm |
| Fixed focal length | 3.9 mm |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
| Video | |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 4 |
| Composite video in | 1 |
| DVI port | No |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
| Network | |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Web browser | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Noise level | 36 dB |
| Noise level (economic mode) | 27 dB |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 8 W |
| Design | |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 366 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 262 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Software | |
|---|---|
| Software support | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 9.4 kg |
| Width | 458 mm |
| Depth | 375 mm |
| Height | 210 mm |
| Package width | 530 mm |
| Package depth | 595 mm |
| Package height | 345 mm |
| Package weight | 13.2 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| WLAN adapter included | Yes |
| Warranty card | Yes |
| Cables included | AC |
| Packaging content | CD manual, cable cover, lens cap, warranty document |
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
| Technical details | |
|---|---|
| Mobile app support | Yes |
| Other features | A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network administration, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App |
| Sustainability certificates | TCO |
| USB display function | 2 in 1: Image/ Sound |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet weight (UK) | 0 g |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 12 pc(s) |
| Products per pallet | 12 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Other features | |
|---|---|
| Interface | USB 2.0-A (2x), USB 2.0, Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in (3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Jack plug out, Jack plug in (3x) |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Security features | Kensington lock, Password lock, Padlock, Security cable hole, Password protection |
| F-number (relative aperture) | 1.5 |
| Option type | Wireless LAN unit |
| Box contents | CD Manual, Cable cover, Lens cap, Power cable, Projector feet, Remote control incl. batteries, Warranty document |
| Control panel | 0.62 inch with C2 Fine |
