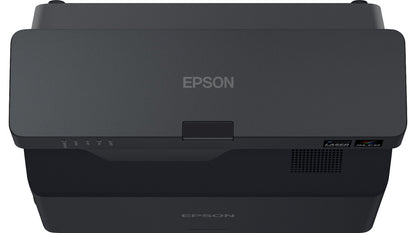

Epson EB-775F
Epson EB-775F
Couldn't load pickup availability
SKU:V11HA83180
12 in stock
- Versatile signage projector: Compact, unobtrusive, ultra-short-throw design for tight spaces
- Create engaging displays: Up to 150" Full HD displays, 4,100 lumens and 3LCD technology
- Fit and forget reliability: Low maintenance laser projector with a 5 year warranty
- Flexible playback: Play content directly from a USB stick
- Easy installation: 360 degree rotation with portrait projection support
Digital signage solution
The EB-775F is a cost effective way to create large, informative and immersive displays on multiple surfaces and in tight spaces at full HD and up to 4,100 lumens.

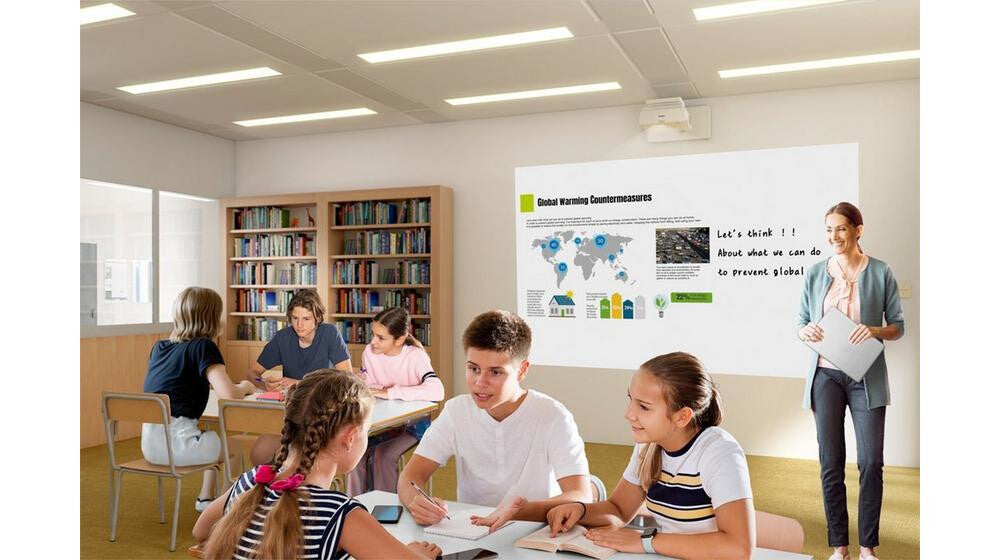

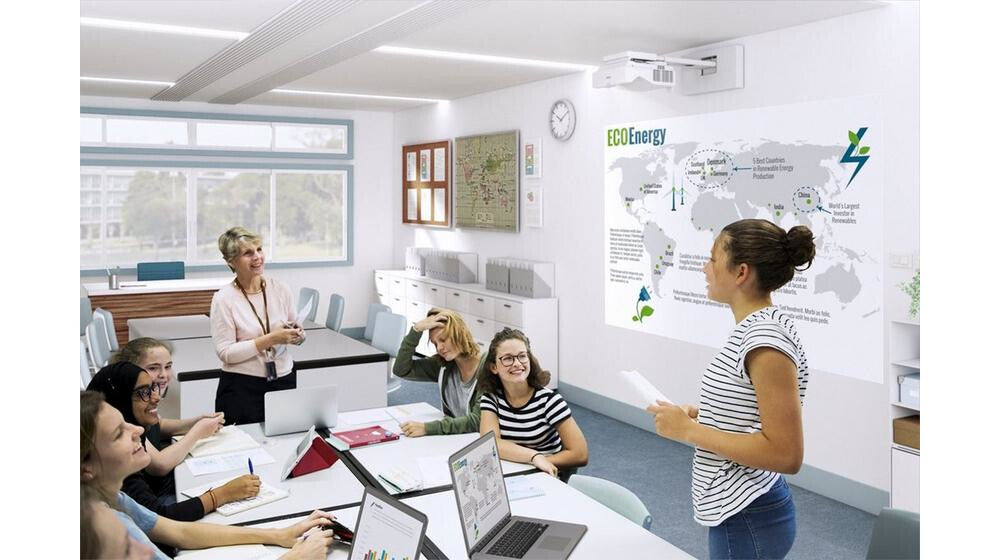

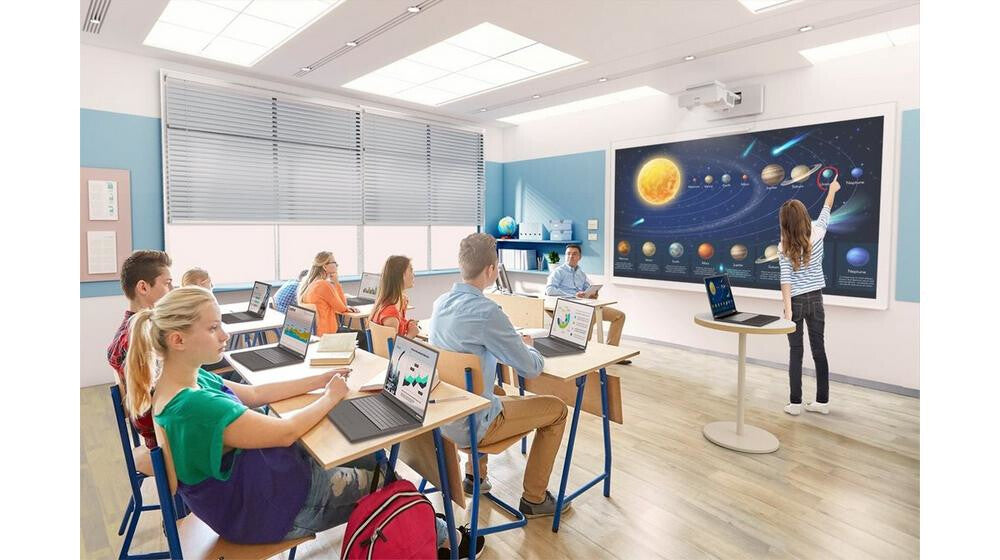

It is designed to display visitor and customer information (e.g. in hospitality, retail and offices), exhibition information - even projecting directly onto exhibits - and boardroom presentations or school lessons.
Create enaging displays
Epson's advanced laser technology makes this a flexible and easy to use digital signage solution. Create enaging displays up to 150" (larger when using 2 devices) at up to 4,100 lumens for easy visibility in bright environments.
Bring any surface to life, discretely
The EB-775F can be installed on wall or ceiling and can project onto almost any surface (even unconventional surfaces such as floor or pillars). It's UST design also makes it ideal for projecting large images in tight spaces. Choose between a black (EB-775F) or white (EB-770F) model to discretely blend it into your environment - it can even be hidden to create floating and borderless displays to surprise and delight audiences.
Robust, reliable and cost effective
Our laser technology is also robust and low maintenance. Offering up to 20,000 hours maintenance-free use and a 5 year warranty, this is a fit-and-forget display solution you can rely on at a cost-effective price.
Flexible playback options
Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) via the built-in playback feature, or users can upload and playback content wirelessly with built-in Wi-Fi and Miracast.
| Projector | |
|---|---|
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9, 21:9 |
| Screen size compatibility | 1524 - 3810 mm (60 - 150") |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.7 m |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2800 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, horizontal | ±3° |
| Keystone correction, vertical | ±3° |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 3.7 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.25 - 0.35:1 |
| Video | |
|---|---|
| Full HD | Yes |
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB |
| Supported video modes | 1080p |

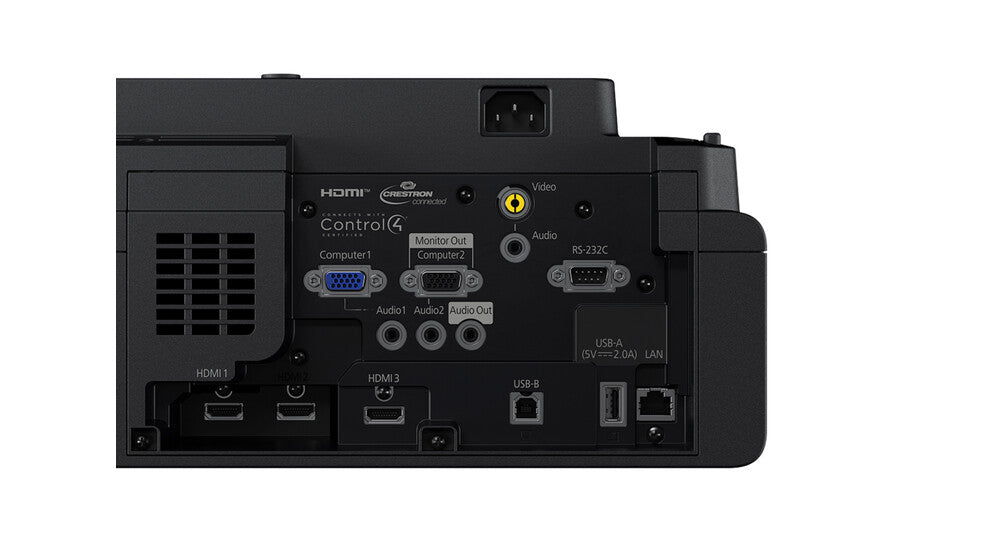

| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232C |
| AC (power) in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Miracast | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
| Design | |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Presentation |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 263 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 5.9 kg |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Package width | 450 mm |
| Package depth | 485 mm |
| Package height | 320 mm |
| Package weight | 8.67 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Bundled software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management |
| Technical details | |
|---|---|
| Mobile app support | Yes |
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Warranty period | 5 year(s) |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet height (UK) | 2.07 m |
| Pallet length (UK) | 120 cm |
| Products per pallet (UK) | 24 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Pallet gross height | 2.07 m |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Products per pallet | 12 pc(s) |
| Other features | |
|---|---|
| Interface | USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Wi-Fi Direct |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Security features | Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| F-number (relative aperture) | 1.6 |
| Option type | Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Box contents | Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty Documents |
| Control panel | 0.61 inch with C2 Fine |
