Epson
Epson EB-760Wi
Epson EB-760Wi
Couldn't load pickup availability
SKU:V11HA80080
Low stock: 6 left
- Interactive HD display for any room: 53-100" UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser: 4,100lm CLO with 3LCD technology for brighter colours at only 205W
- Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
- Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
- Document camera compatibility: Create and record a live, totally immersive lesson or presentation
Agile USTi laser display
Whatever the size of class or meeting room, unrestricted and interactive presentations are possible with this bright, compact and affordable touch-display solution.
The EB-760Wi's vibrant image, scalable up to 100", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.
The EB-760Wi is a step up from the EB-760W, with added interactive features.
Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.

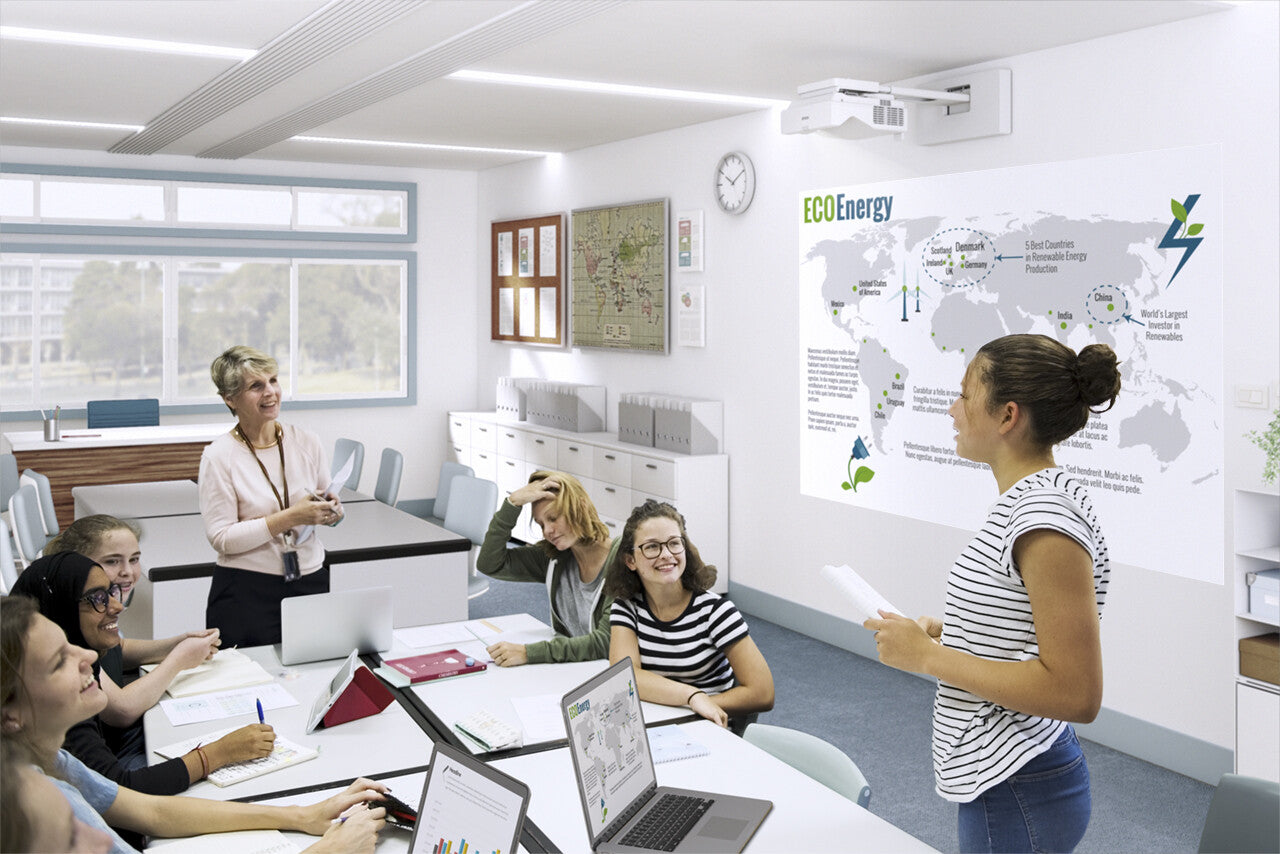

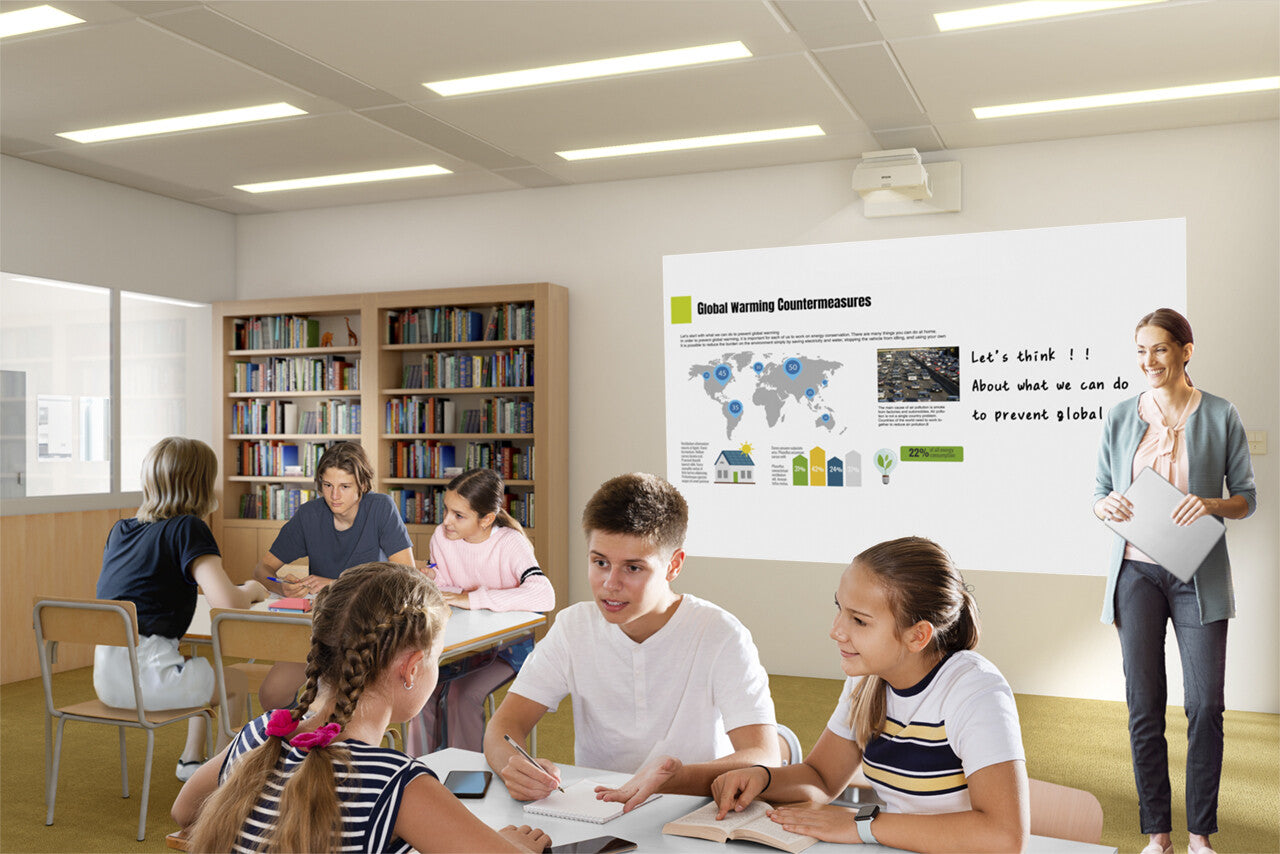

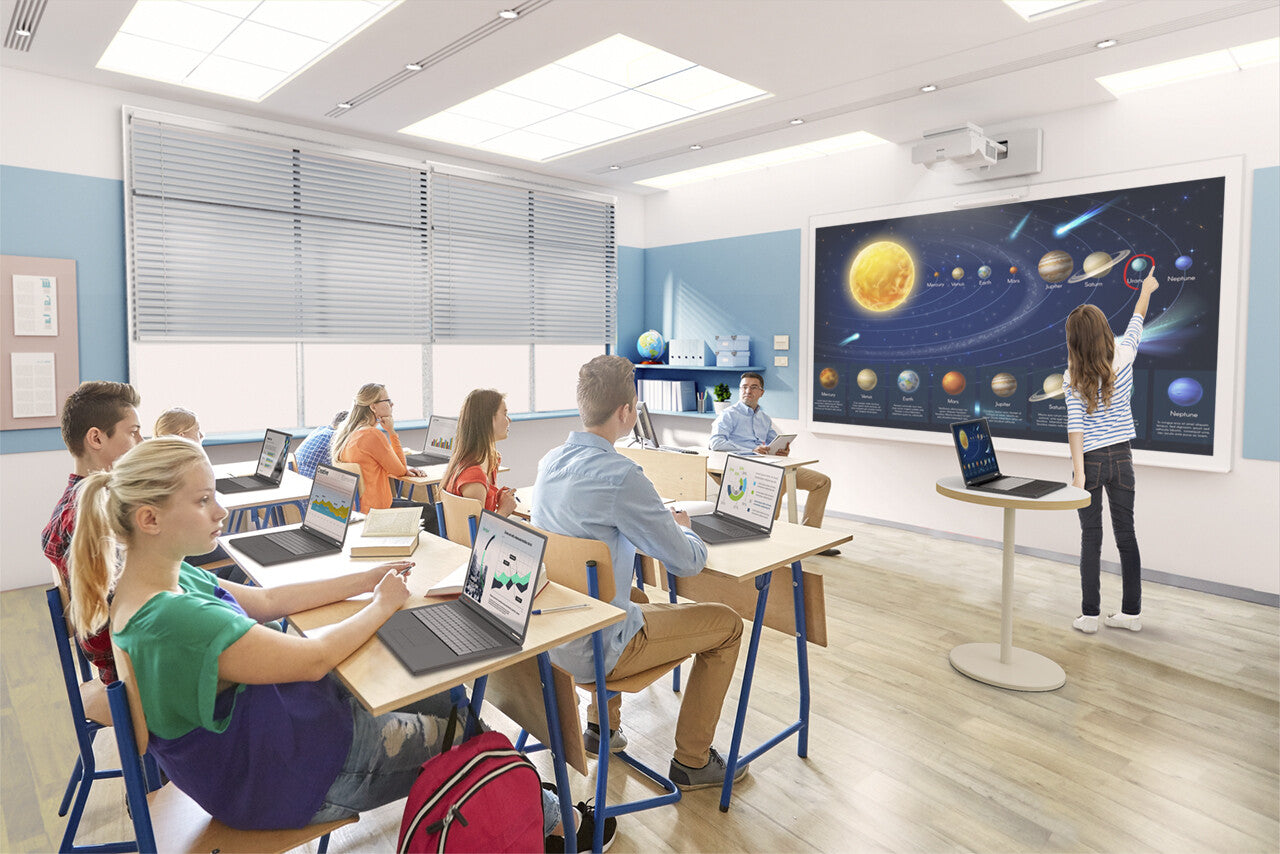

The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
| Projector | |
|---|---|
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Smart projector | No |
| Screen size compatibility | 1346.2 - 2540 mm (53 - 100") |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2800 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | ±3° |
| Matrix size | 1.5 cm (0.59") |
| Keystone correction, vertical | ±3° |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 3.7 mm |
| Fixed focal length | 3.7 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
| Video | |
|---|---|
| Analog signal format system | Not supported |
| Full HD | No |
| 3D | No |
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 3 |
| Composite video in | 1 |
| DVI port | No |
| Service port type | USB Type-B |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| Network | |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Interactive | Yes |
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| On Screen Display (OSD) | Yes |
| Air filter | Yes |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
|---|---|
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 197 W |
| Power consumption (economy mode) | 141 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 6 kg |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Package width | 450 mm |
| Package depth | 490 mm |
| Package height | 325 mm |
| Package weight | 9.17 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Interactive pen included | Yes |
| Cables included | AC, USB |
| Bundled software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management |
| Technical details | |
|---|---|
| Mobile app support | Yes |
| Other features | A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet height (UK) | 2.1 m |
| Pallet length (UK) | 120 cm |
| Products per pallet (UK) | 24 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Pallet gross height | 2.1 m |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Products per pallet | 12 pc(s) |
| Other features | |
|---|---|

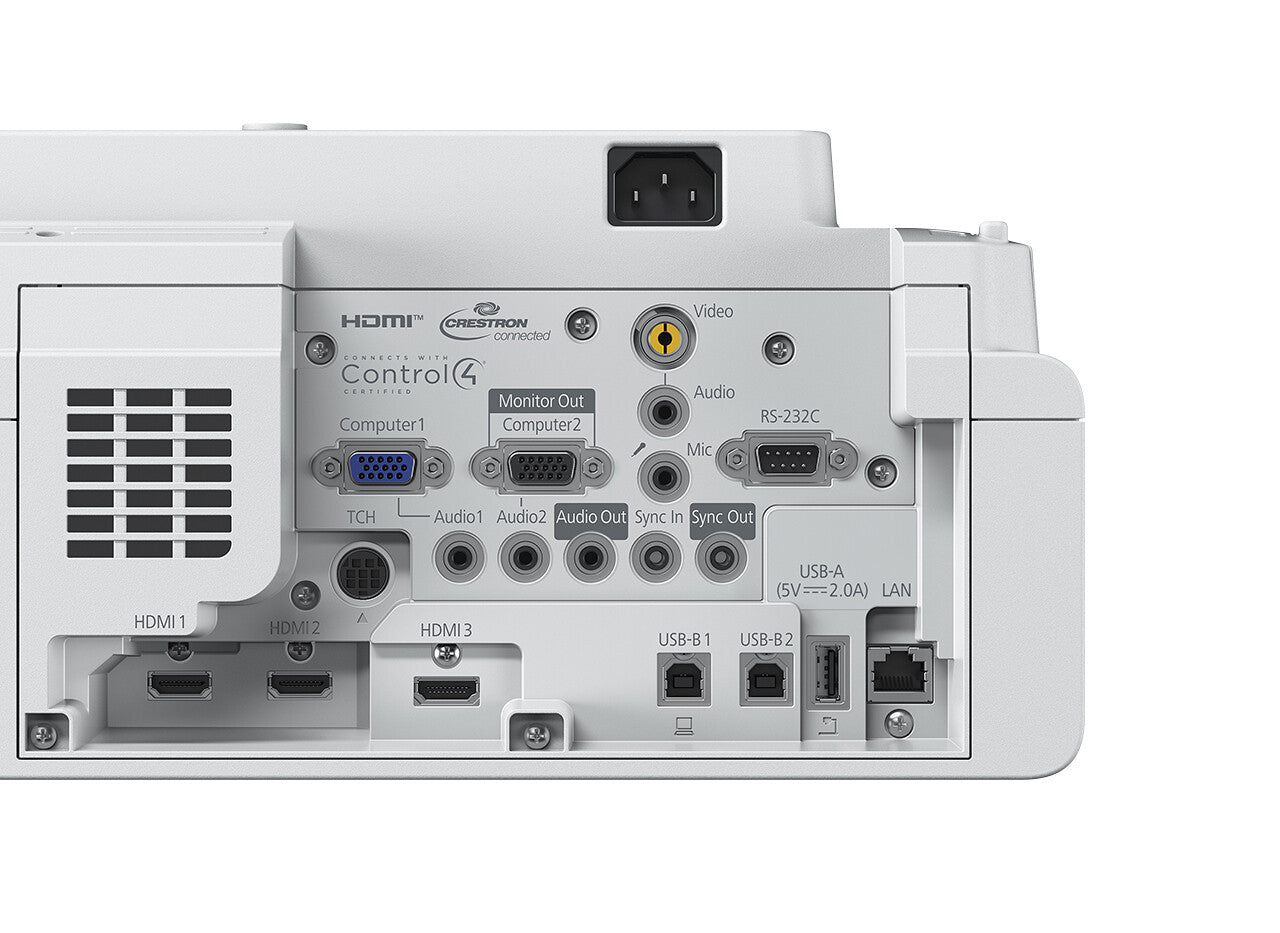

| Interface | USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input |
| Supported network protocols | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Security features | Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| F-number (relative aperture) | 1.6 |
| Option type | Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Box contents | 2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document |
| Control panel | 0.59 inch with C2 Fine |
