Epson

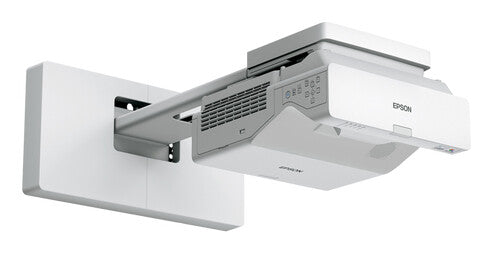

Epson EB-760W
Epson EB-760W
Couldn't load pickup availability
SKU:V11HA81080
58 in stock
- Scalable HD display for any room: 53-150" UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser: 4,100lm CLO with 3LCD technology for brighter colours at only 205W
- Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
- Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
- Document camera compatibility: Create and record a live, totally immersive lesson or presentation
Agile UST laser display
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.
The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.
| Projector | |
|---|---|
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 1524 - 3810 mm (60 - 150") |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2800 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | ±3° |
| Keystone correction, vertical | ±3° |
| Heat dissipation | 895 BTU/h |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 3.7 mm |
| Fixed focal length | 3.7 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
| Video | |
|---|---|
| Full HD | Yes |
| 3D | No |
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 3 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| Consumer Electronics Control (CEC) support | Yes |
| Audio Return Channel (ARC) | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| On Screen Display (OSD) | Yes |
| Screen mirroring | Yes |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 197 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 263 W |
| Power consumption (PowerSave) | 199 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Supplier features | |
|---|---|
| Recommended gender | Any gender |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 5.9 kg |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Package width | 450 mm |
| Package depth | 485 mm |
| Package height | 325 mm |
| Package weight | 8.74 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
| Cables included | AC |
| Bundled software | EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management |
| Technical details | |
|---|---|
| Mobile app support | Yes |
| Other features | A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Warranty period | 5 year(s) |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet height (UK) | 2.1 m |
| Pallet length (UK) | 120 cm |
| Products per pallet (UK) | 24 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Pallet gross height | 2.1 m |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Products per pallet | 12 pc(s) |
| Other features | |
|---|---|
| Interface | USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input |
| Supported network protocols | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Security features | Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| F-number (relative aperture) | 1.6 |
| Option type | Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Box contents | Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Warranty document |
| Control panel | 0.59 inch with C2 Fine |
