Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.

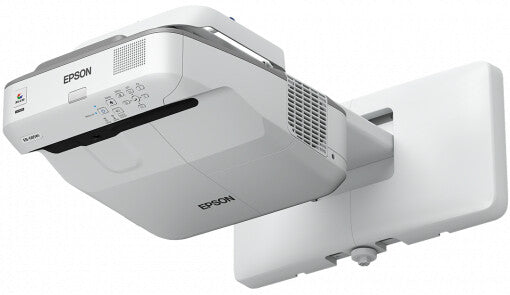

The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
-Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Projector
Keystone correction, vertical
±3°
Matrix size
1.5 cm (0.59")
Keystone correction, horizontal
±3°
Projector brightness (economic mode)
2900 ANSI lumens
Number of colours
1.073 billion colours
Contrast ratio (dynamic)
14000:1
Projection distance (tele)
0 - 0.6 m
Projection distance (wide)
0 - 0.4 m
Projection distance
0.4 - 0.6 m
Screen size compatibility
1524 - 2540 mm (60 - 100")
Supported aspect ratios
16:10
Native aspect ratio
16:10
Contrast ratio (typical)
300:1
Projector native resolution
WXGA (1280x800)
Projection technology
3LCD
Projector brightness
3500 ANSI lumens
Light source
Lamp power
250 W
Service life of light source (economic mode)
10000 h
Service life of light source
5000 h
Light source type
Lamp
Lens system
Digital zoom
1.35x
Zoom ratio
1.35:1
Zoom capability
Yes
Focal length range
0 - 3.76 mm
Focus
Manual
Video
Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB
Video processing
10 bit
Colour modes (2D)
Cinema, Dynamic
3D
No
HD-Ready
Yes
Full HD
No

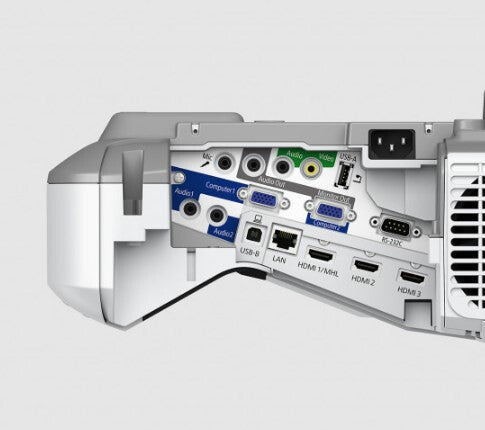

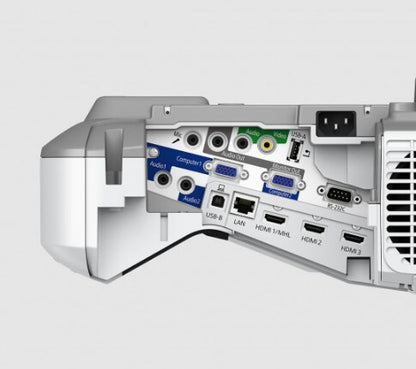

Ports & interfaces
AC (power) in
Yes
Mobile High-Definition Link (MHL)
Yes
USB connector type
USB Type-A, USB Type-B
Serial interface type
RS-232
Microphone in
Yes
Headphone outputs
1
Audio (L/R) in
1
USB 2.0 ports quantity
2
DVI port
No
Composite video in
1
HDMI ports quantity
3
VGA (D-Sub) ports quantity
3
Network
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Ethernet LAN
Yes
Storage
Card reader integrated
No
Features
Password protection
Yes
Country of origin
Philippines
Air filter
Yes
On Screen Display (OSD)
Yes
Noise level (economic mode)
28 dB
Noise level
35 dB
Multimedia
RMS rated power
16 W
Number of built-in speakers
1
Built-in speaker(s)
Yes
Design
Cable lock slot
Yes
Cable lock slot type
Kensington
Placement
Wall
Product colour
Grey, White
Product type
Ultra short throw projector
Display
Built-in display
No
Power
AC input frequency
50 - 60 Hz
AC input voltage
220 - 240 V
Power consumption (PowerSave)
310 W
Power consumption (standby)
0.39 W
Power consumption (typical)
354 W
Power source
AC
Software
Mac operating systems supported
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
