- Exceptional image quality: Equally high white and colour light output of 3,000 lumens
- Horizontal and Vertical Keystone correction: Slides and images can be aligned and distortion corrected
- Lightweight & ultra-slim form factor: Fits in the same bag as a laptop computer
- Free iProjection app: Present wirelessly from a smartphone or tablet
- Split screen capability: Display images from two different sources simultaneously
3LCD, RGB, 0.59", 3000 - 1900 Lumen, WXGA, 1280 x 800, 16:10, 10000 : 1, 206 W, 7000 h, 100 Hz - 120 Hz, 1.04 - 1.26:1, 30" - 300", 0.7 - 6.8 m, 1.58 - 1.7, USB 2.0, IEEE 802.11b/g/n, VGA, 277 W, AC 100 V - 240 V, 50 Hz - 60 Hz

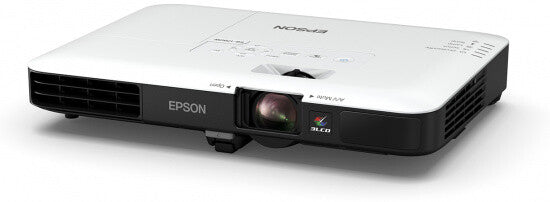

Ultra-mobile business projector
Staff that are constantly on the move and frequently make presentations at customer sites can benefit from this ultra-mobile projector, offering a winning combination of ultra-slim lightweight design, exceptional image quality and advanced functionality. With traditional wired and built-in wireless connectivity, time-saving set-up plus a range of advanced features, it's ideal for polished presentations.
Exceptional image quality
Enjoy superb image quality, impressive natural colours with an equally high white and colour light output of 3,000 lumens thanks to Epson's 3LCD technology. True Colours technology delivers a faithful reproduction of colours as they are meant to be and, with a 10,000:1 contrast ratio, projected images are crisp and clear.
Easy set-up
Automatic vertical and horizontal keystone correction makes it easy to set up the projector almost anywhere. The short throw ratio projects a large image from a shorter distance so that all meeting participants can be seated behind the projector as the front exhaust directs heat away from them. Thanks to its Auto Power On feature, the projector turns on when it detects signal input.
Smarter presentations
Users can view two data sources side by side with split screen, and MHL can show high-quality video and audio content from mobile devices while charging them at the same time.
True portability
The ultra-slim form factor and lightweight design makes this the ideal projector for anyone on the move. A carry case is included and the projector fits easily into a standard laptop bag.
| Projector |
|---|
| Projector brightness |
3000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WXGA (1280x800) |
| Contrast ratio (typical) |
10000:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Projection distance |
1.35 - 1.62 m |
| Projection distance (wide) |
0.7 - 6.8 m |
| Projection distance (tele) |
0.8 - 8.2 m |
| Contrast ratio (dynamic) |
10000:1 |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
1900 ANSI lumens |
| Vertical scan range |
100 - 120 Hz |
| Colour light output |
3000 ANSI lumens |
| White light output |
3000 ANSI lumens |
| Matrix type |
3-panel (p-Si TFT active) |
| Keystone correction, horizontal |
±30° |
| Matrix size |
1.5 cm (0.59") |
| Keystone correction, vertical |
±30° |
| Light source |
|---|
| Light source type |
Lamp |
| Service life of light source |
4000 h |
| Service life of light source (economic mode) |
7000 h |
| Lamp power |
206 W |
| Lamps quantity |
1 lamp(s) |
| Lens system |
|---|
| Focus |
Manual |
| Focal length range |
13.52 - 16.22 mm |
| Aperture range (F-F) |
1.58 - 1.7 |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Zoom ratio |
1.2:1 |
| Throw ratio |
1.04 - 1.26:1 |
| Video |
|---|
| Full HD |
No |
| HD-Ready |
Yes |
| 3D |
No |
| Video processing |
10 bit |
| Video colour modes |
Blackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB |
| Supported graphics resolutions |
1360 x 768 (WXGA) |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| Composite video in |
1 |
| DVI port |
No |
| USB 2.0 ports quantity |
2 |
| PC Audio in |
Yes |
| Mobile High-Definition Link (MHL) |
Yes |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Features |
|---|
| Noise level |
39 dB |
| Noise level (economic mode) |
30 dB |
| Country of origin |
Philippines |
| Password protection |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
1 W |
| Design |
|---|
| Product type |
Standard throw projector |
| Product colour |
Black, White |
| Placement |
Desktop, Ceiling |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
277 W |
| Power consumption (standby) |
0.34 W |
| Power consumption (economy mode) |
200 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
1.8 kg |
| Width |
292 mm |
| Depth |
213 mm |
| Height |
44 mm |
| Package width |
370 mm |
| Package depth |
425 mm |
| Package height |
140 mm |
| Package weight |
3.65 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
| Carrying case |
Yes |
| Cables included |
AC, VGA |
| Bundled software |
EasyMP Multi PC Projection |
| Technical details |
|---|
| Mobile app support |
Yes |
| Other features |
AV Mute Slide, Built-in speaker, Document Camera Compatible, Home Screen, Instant on/off, JPEG Viewer, Long lamp life, MHL audio/video interface, PC Free, Projection App for Chromebook, Quick Corner, Split-Screen-Function, Wireless LAN capable, iProjection App |
| USB display function |
3 in 1: Image / Mouse / Sound |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Pallet height (UK) |
2.18 m |
| Pallet width (UK) |
100 cm |
| Pallet length (UK) |
120 cm |
| Products per pallet (UK) |
84 pc(s) |
| Products per pallet layer (UK) |
6 pc(s) |
| Products per pallet layer |
5 pc(s) |
| Pallet gross height |
2.18 m |
| Pallet gross width |
80 cm |
| Pallet gross length |
120 cm |
| Products per pallet |
70 pc(s) |
| Harmonized System (HS) code |
85286200 |
| Other features |
|---|
| Interface |
USB 2.0-A, USB 2.0, VGA in, HDMI in, Composite in, Jack plug in, MHL, Wireless LAN IEEE 802.11b/g/n, Wireless LAN b/g/g 25GHz |
| Security features |
Kensington lock, Wireless LAN security, Password protection |
| Option type |
Air filter, Ceiling mount, Document camera, Setting plate, Spare lamp, WP System - ELPWP20, Wireless transmitter - ELPWT01 |
| Box contents |
Carrying bag, HDMI Cable, Power cable, Remote control incl. batteries, Safety and support guide, Software (CD), USB cable, User Manual (CD-ROM), Warranty document |
| Control panel |
0.59 inch with C2 Fine |
