Ultra-compact: Smallest footprint, even while in use
Versatile: Scan passports, receipts, invoices, cards and more

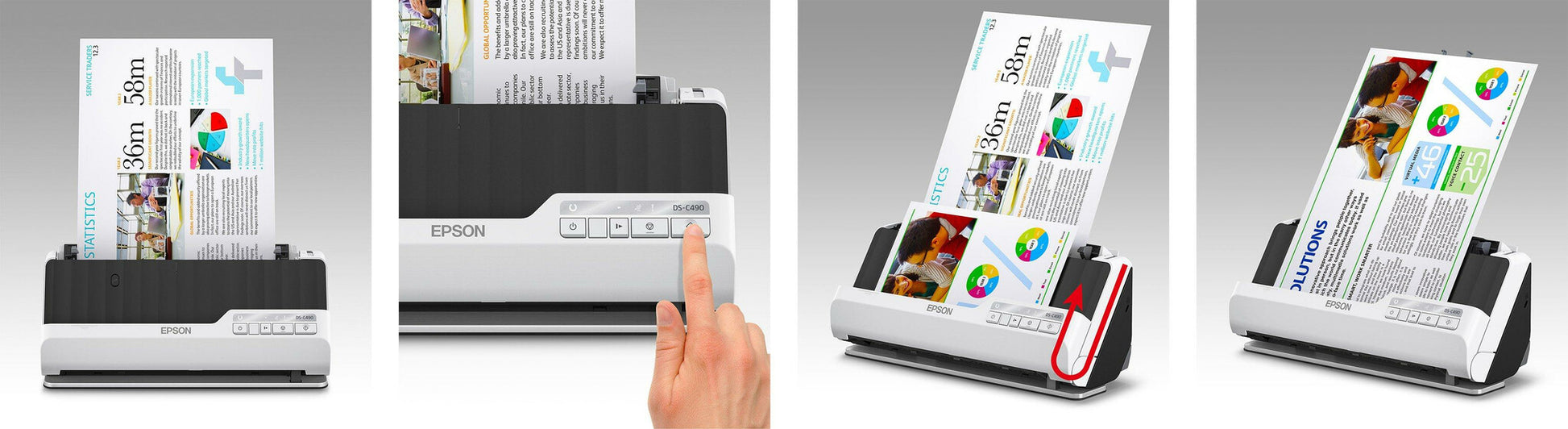

Two-in-one: U-turn pass and straight pass give you two scanners in one
Lower environmental impact: Power consumption of only 3.3W in ready mode and 1.0W in sleep mode
Document Capture Pro: Powerful document capture software included
600 x 600 DPI, ReadyScan LED technology, 40 ppm, 20 Sheets, Duplex Scan, 296 x 104 x 125 mm, 1.9 kg

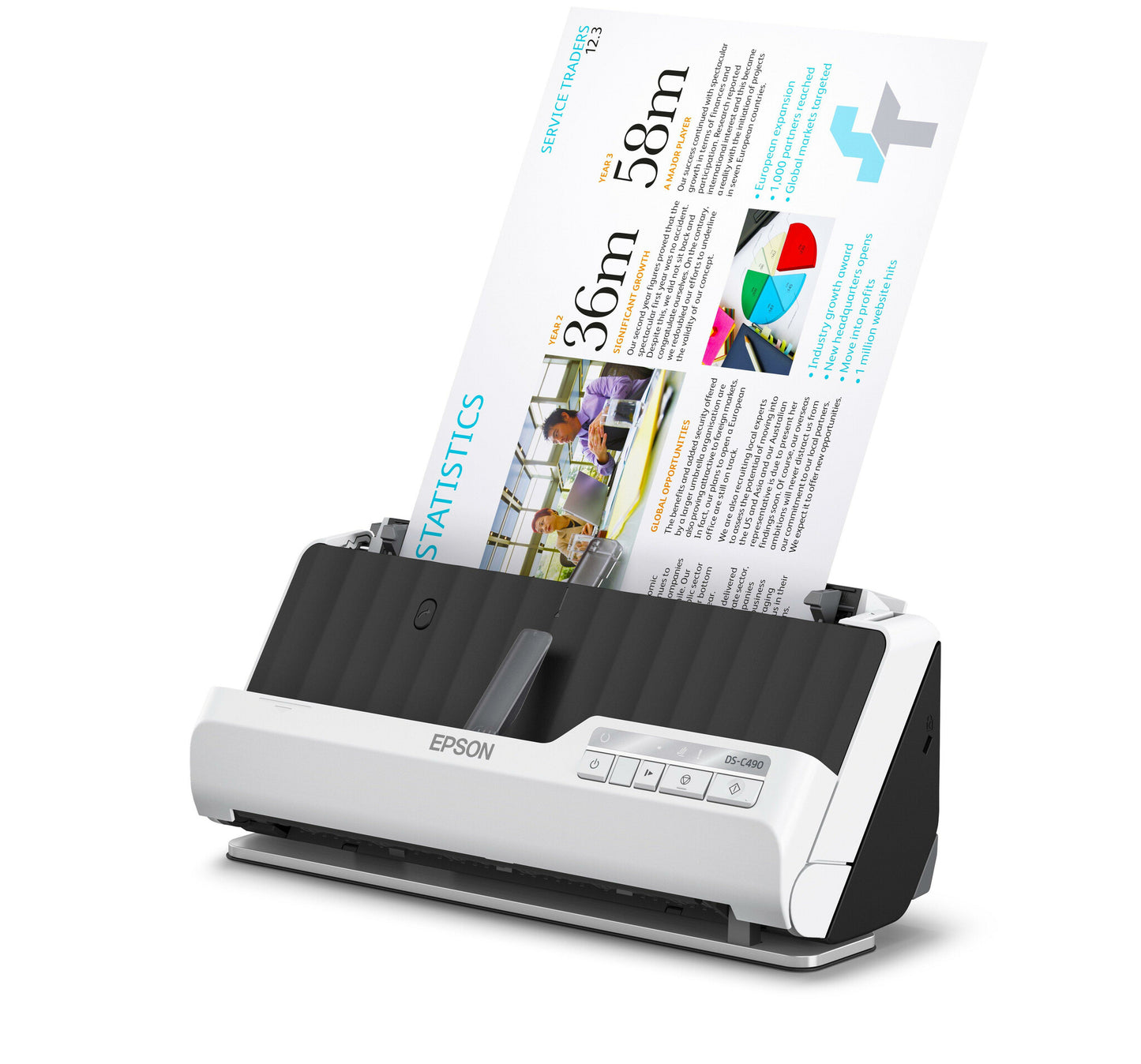

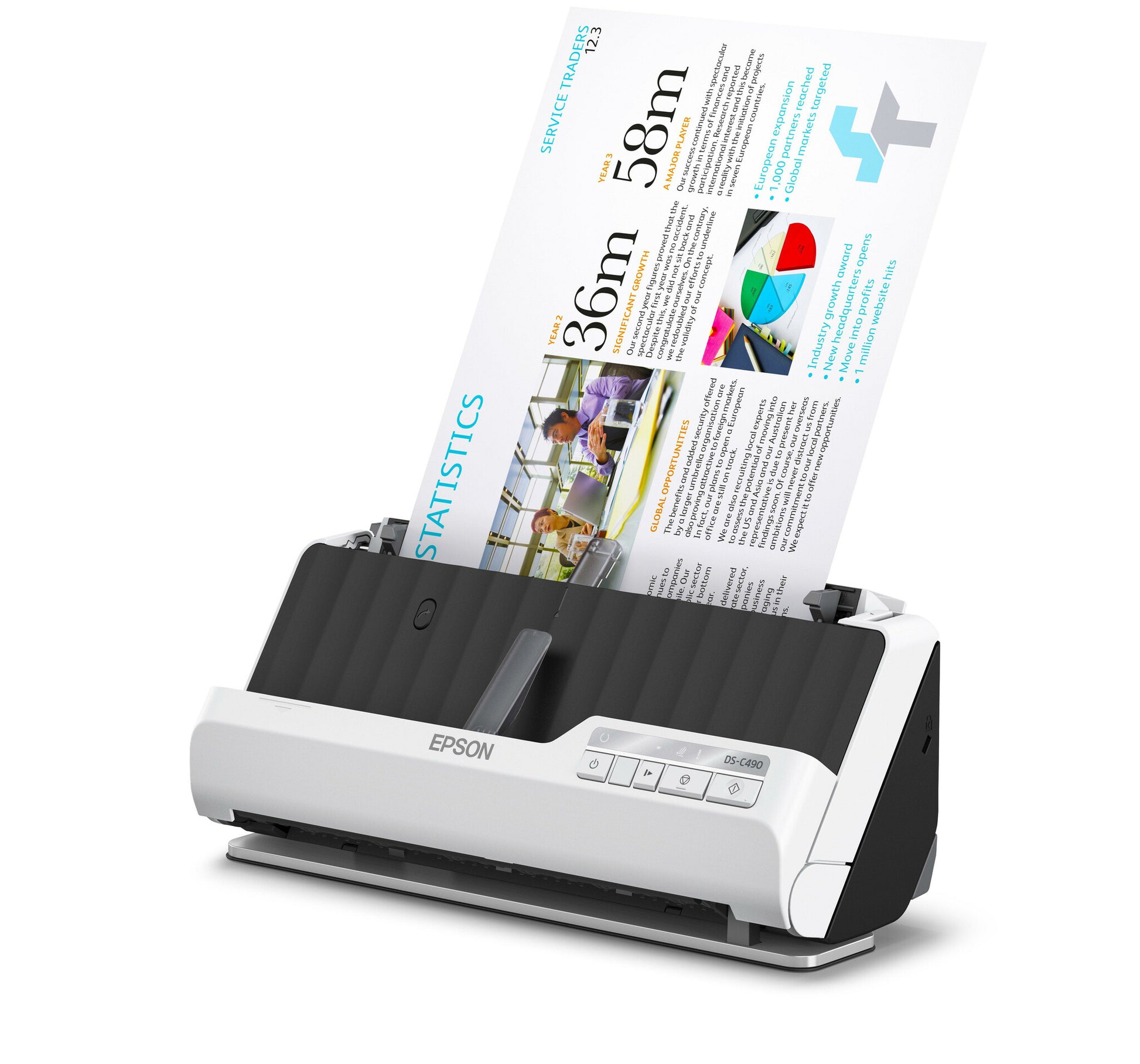

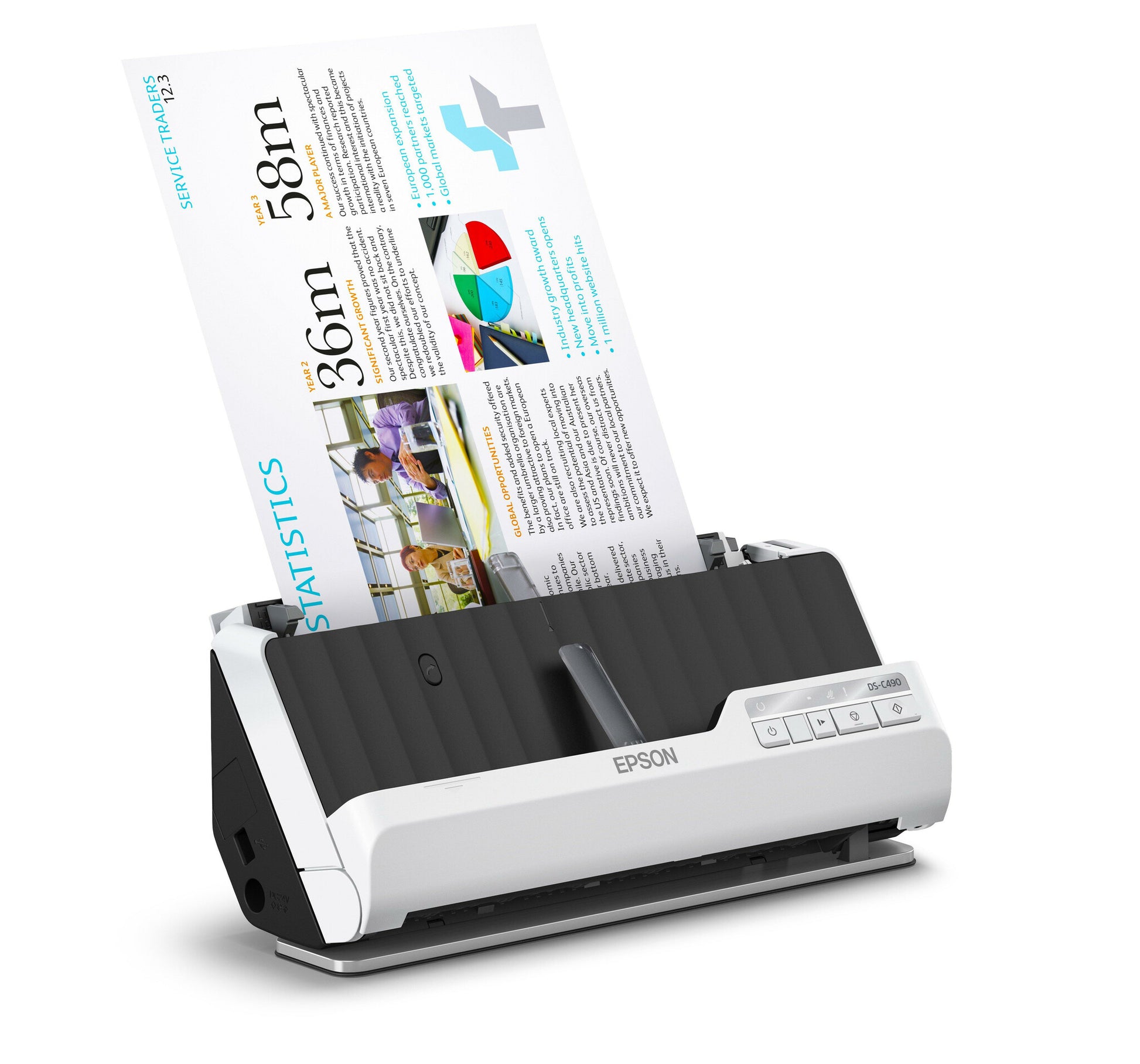

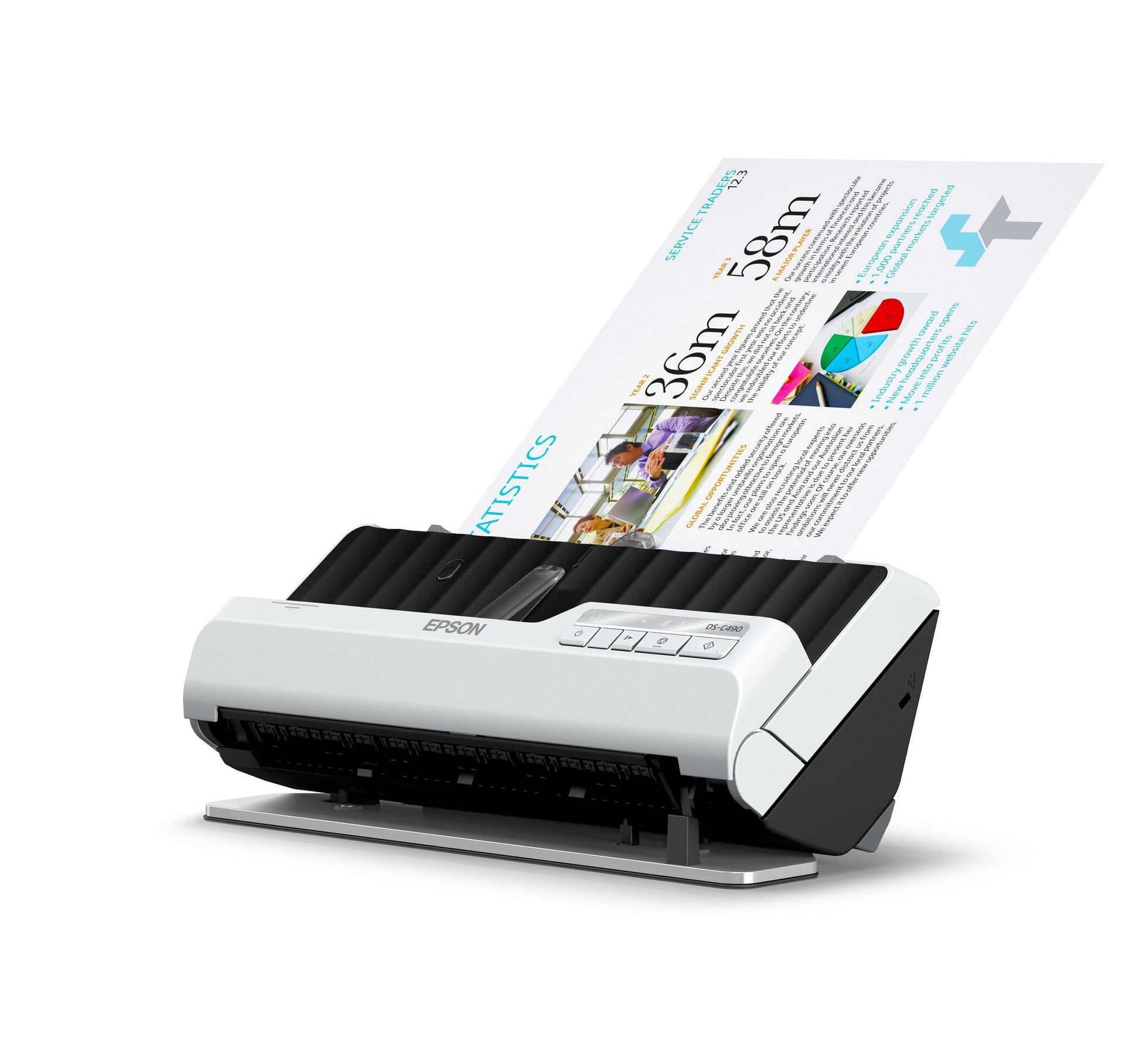

Premium compact scanner The scanner's U-turn position allows paper to be scanned without adding to the footprint of the device. Switch to straight pass mode to scan passports and booklets up to 5mm thick. Paper protection technology ensures that the original documents remain pristine. With a low power consumption, it also has a lower environmental impact.

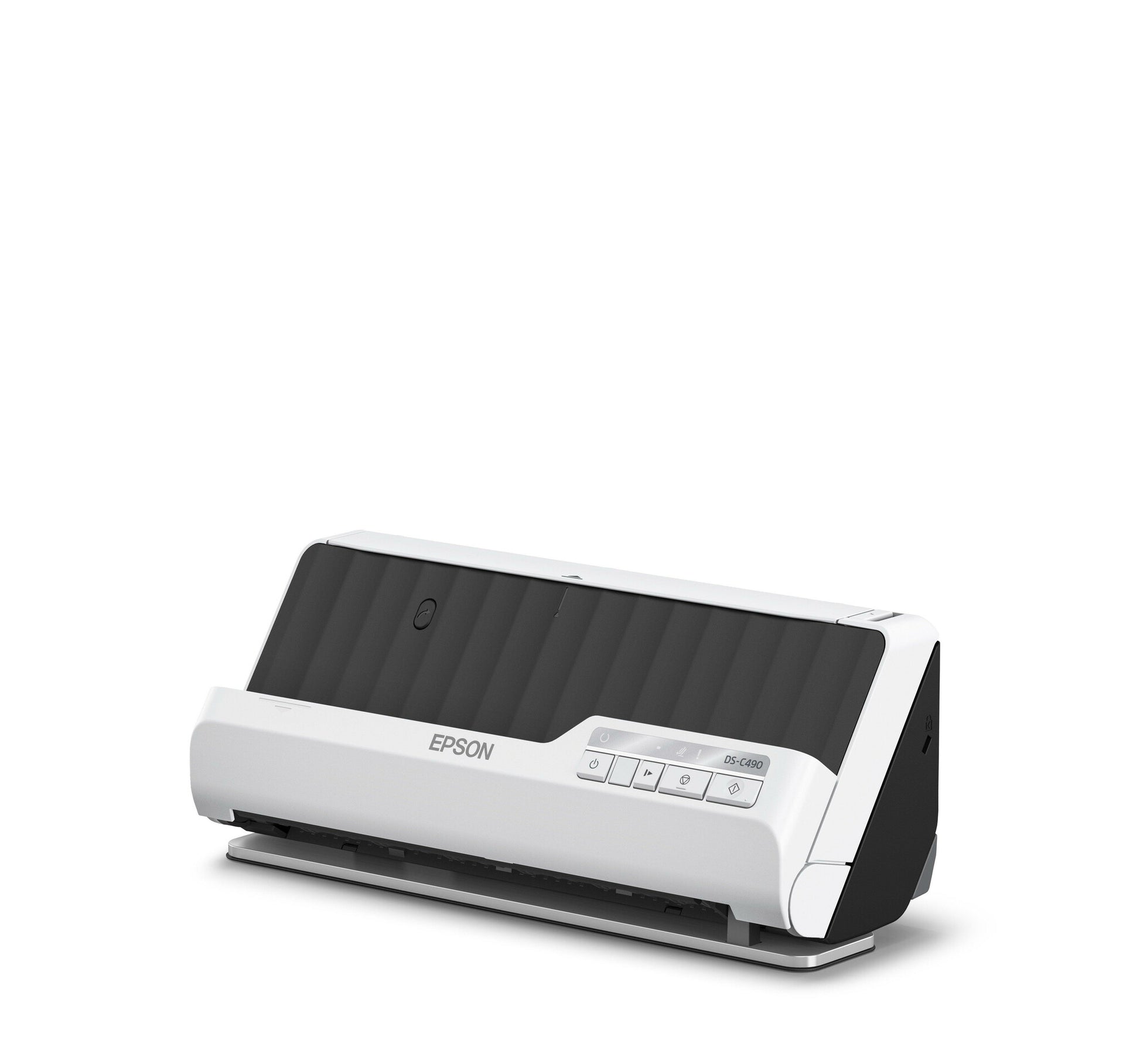

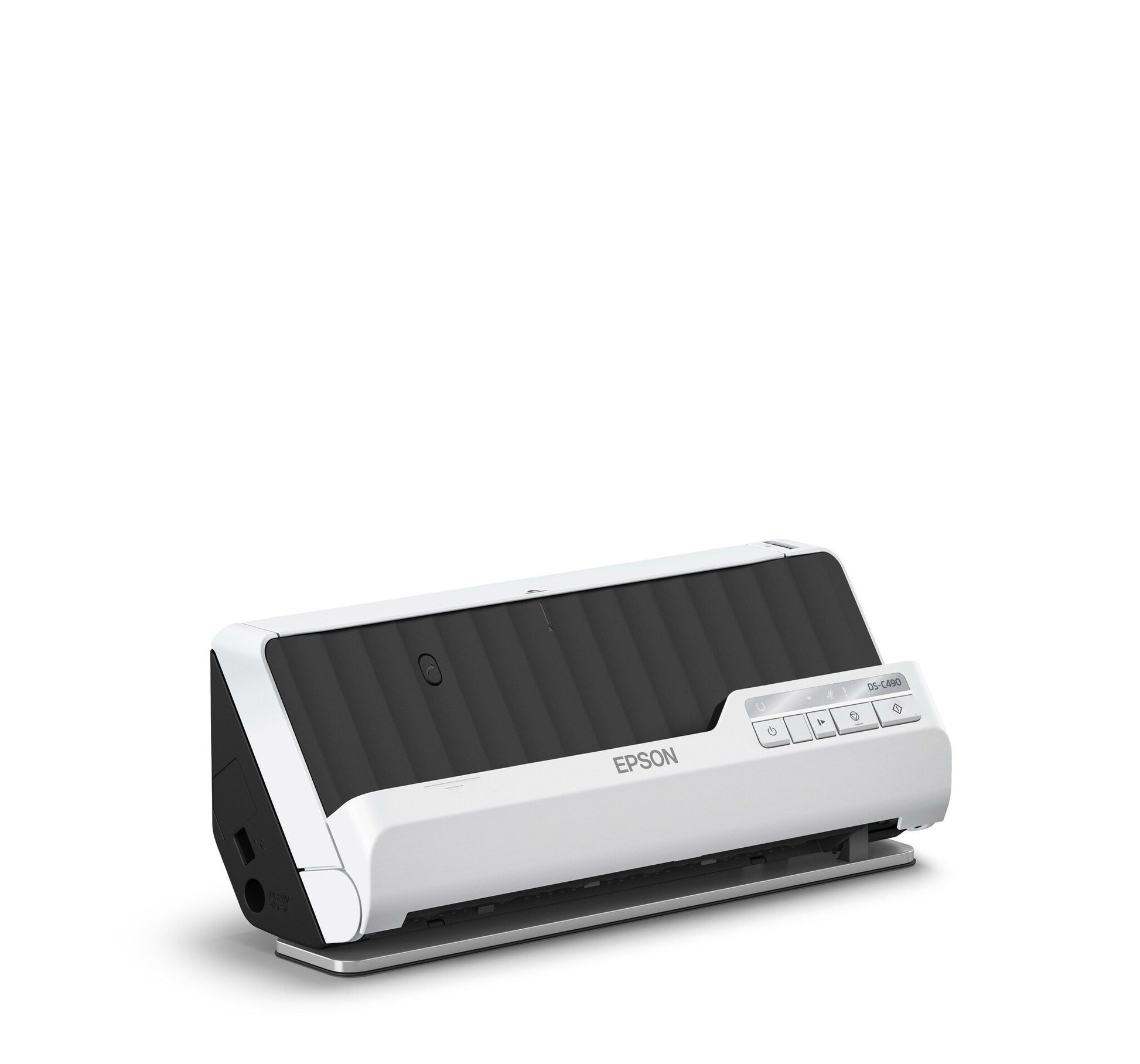

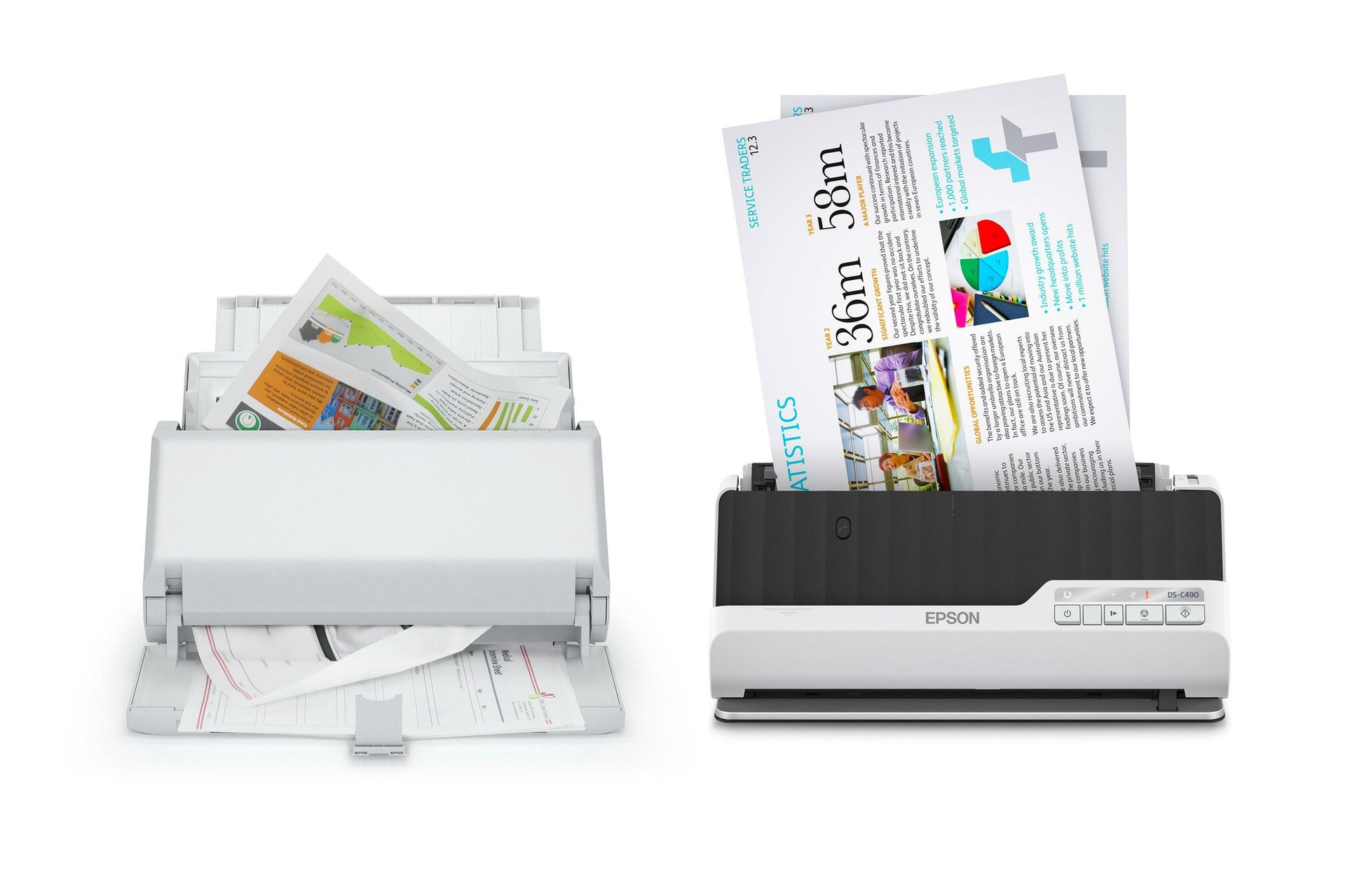

Ultra-compact When the scanner is in U-turn path position, paper can be scanned without adding to the device's footprint, making it the perfect choice when space is at a premium.

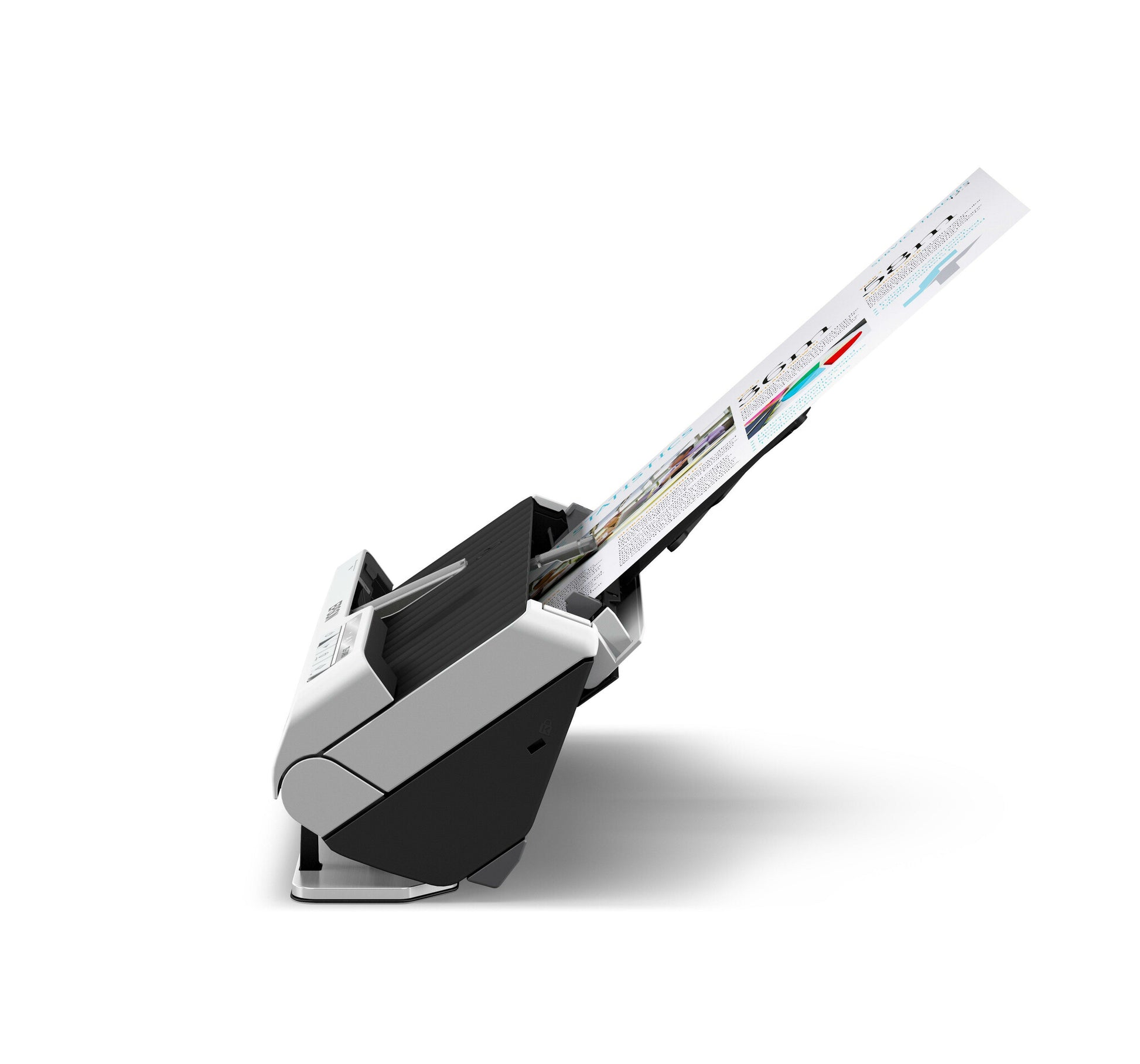

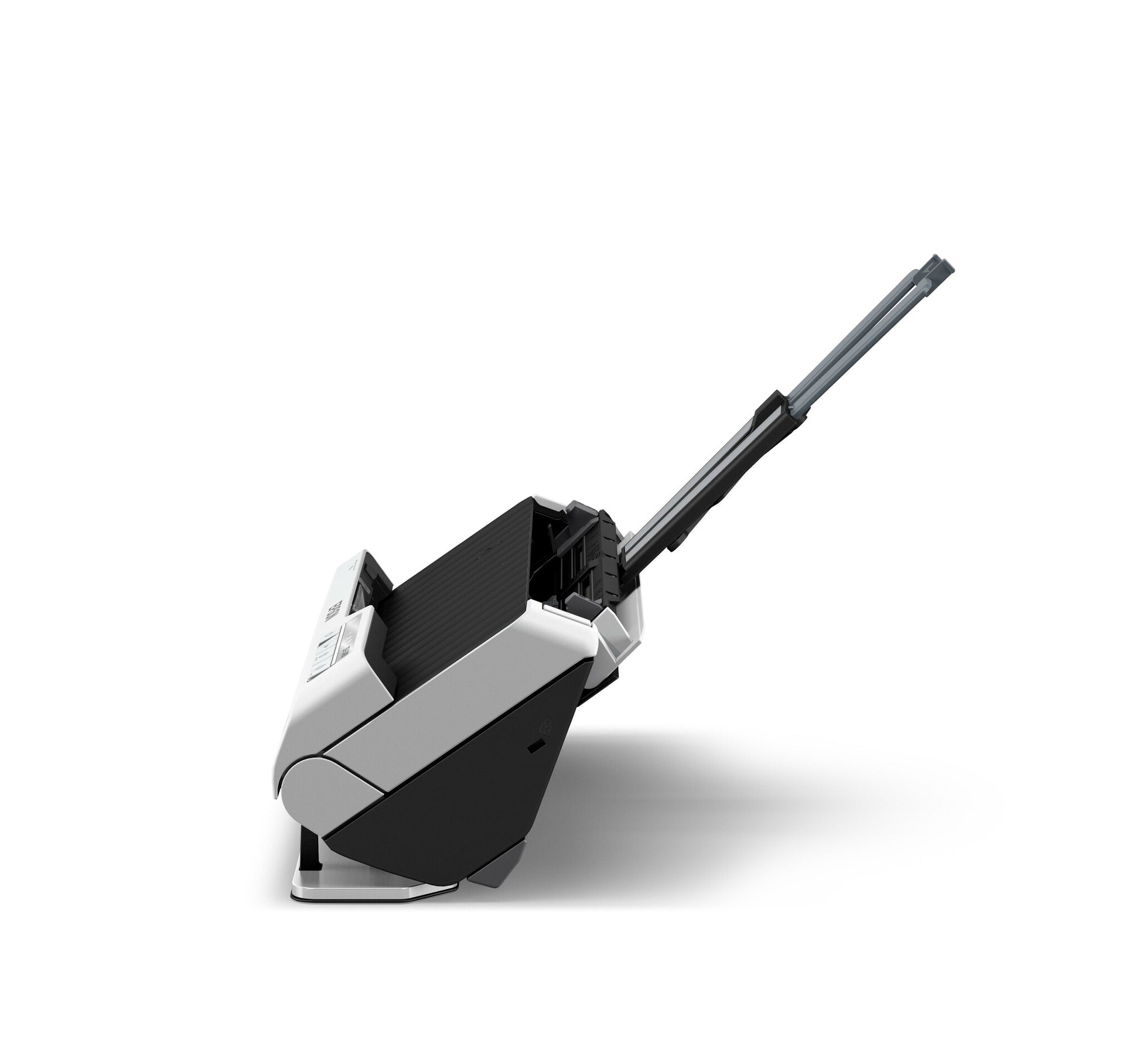

Versatile The DS-C490 is extremely versatile, handling from envelopes and PL cards to long paper and A3 (stitched). It can even scan passports and booklets up to 5mm thick, capturing the MRZ zone of the passport and saving in Excel compatible formats. The DS-C490 also comes with a host of enhancement features, enabling you to improve text sharpness, as well as correcting edge folds, tears, border shadows and punch hole removal. The inbuilt Ultra-sonic sensor eliminates double feeding ensuring peace of mind that all pages are captured. Plus scan to Microsoft applications Word, Excel, PowerPoint. Compatible with Windows, Mac, and Chromebook.

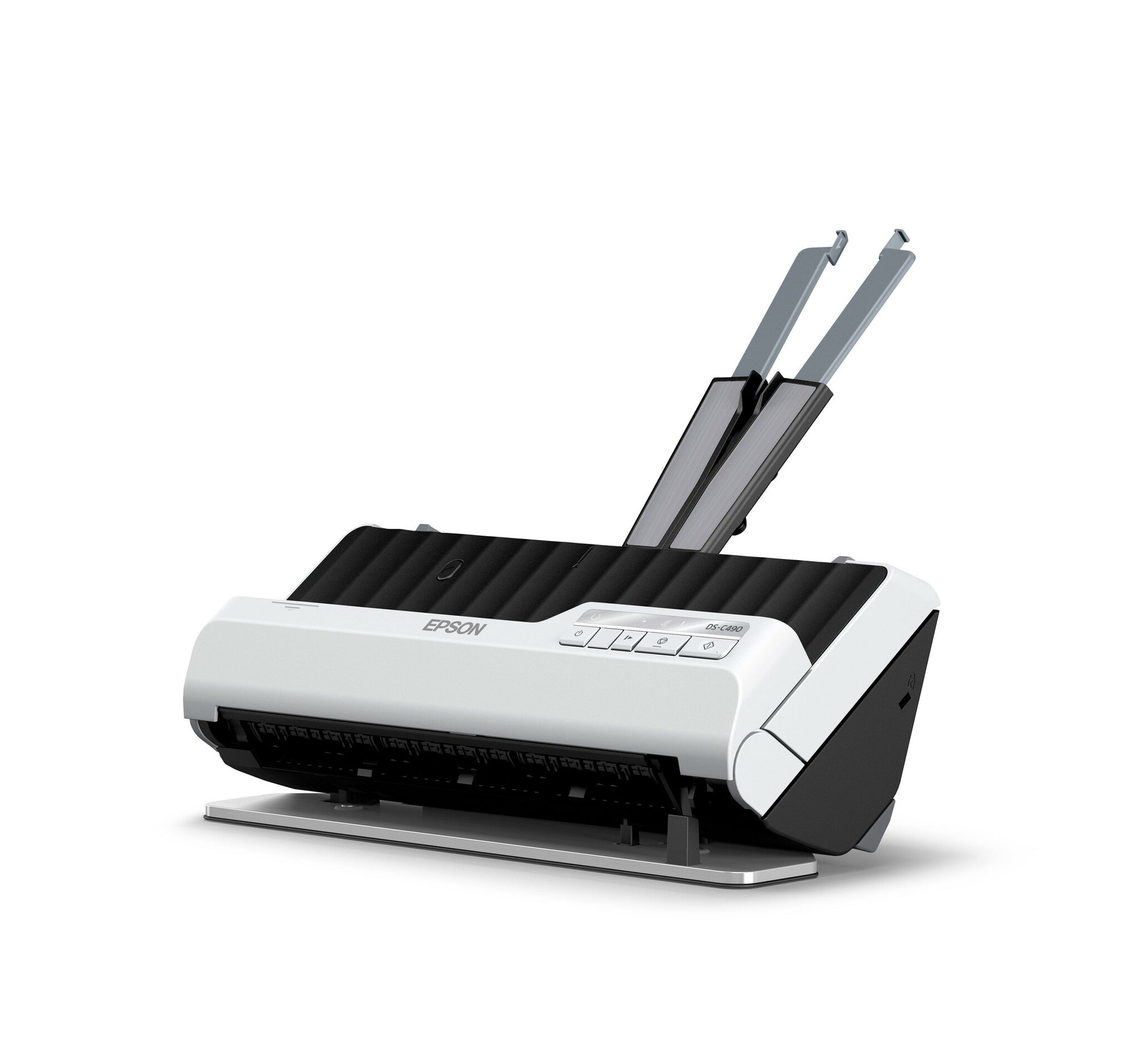

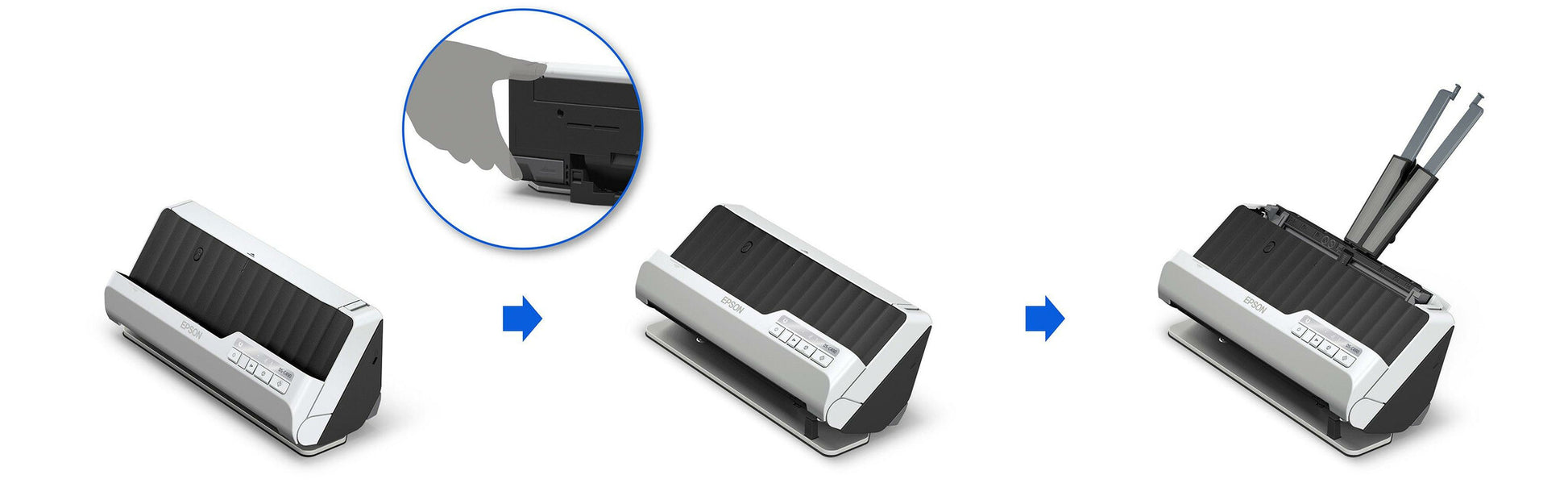

Two-in-one The selector allows you to easily switch between straight path mode and U-turn mode, even while in operation, enabling you to create a single PDF. When the scanner is in U-turn mode, paper can be scanned without adding to the device's footprint, making it the perfect choice when space is at a premium.
Lower environmental impact With a power consumption of only 3.3W in ready mode and 1.0W in sleep mode, it will also save you energy.
Scanning
Maximum scan size
215.9 x 5588 mm
Optical scanning resolution
600 x 600 DPI
Duplex scanning
Yes
Input colour depth
30 bit
Input greyscale depth
10 bit
Output colour depth
24 bit
Output greyscale depth
8 bit
ADF scan speed (b/w, A4)
40 ppm
ADF scan speed (colour, A4)
40 ppm
Duplex ADF scan speed (colour, A4)
80 ipm
Duplex ADF scan speed (b/w, A4)
80 ipm
Roller lifetime
50000 pages
Design
Scanner type
Sheet-fed scanner
Built-in display
No
Product colour
Black, Grey
Control type
Buttons
Performance
Light source
ReadyScan LED
Scan file formats
BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max)
6500 pages
Scan drivers
ICA, ISIS, SANE, TWAIN, WIA
Input capacity
Auto document feeder (ADF) input capacity
20 sheets
Paper handling
Maximum ISO A-series paper size
A4
ISO B-series sizes (B0...B9)
B5, B6
ISO A-series sizes (A0...A9)
A4, A5, A6
Paper tray media weight
40 - 413 g/m²
Ports & interfaces
USB port
Yes
USB version
2.0
Power
Power consumption (typical)
10 W
Power supply type
AC
Power consumption (standby)
1 W
Input voltage
100 - 240 V
Packaging data
Quantity per pack
1 pc(s)
System requirements
Server operating systems supported
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks, Yes
Windows operating systems supported
Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Yes
