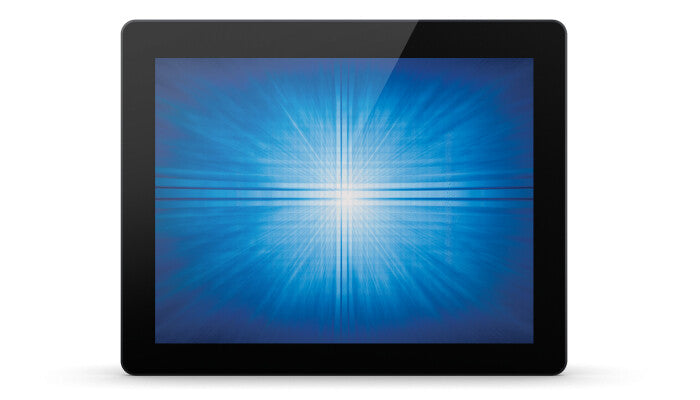

Elo Touch Solutions 1590L 38.1 cm (15") LCD 240 cd/m² Black Touchscreen
Elo Touch Solutions 1590L 38.1 cm (15") LCD 240 cd/m² Black Touchscreen
SKU:E326154
Low stock: 7 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Black
- 38.1 cm (15") 1024 x 768 pixels LCD 240 cd/m²
- Touchscreen 60 Hz 16 ms
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
| Display | |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display technology | LCD |
| LED backlight | Yes |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 240 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Response time | 16 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Display number of colours | 16.2 million colours |
| Native refresh rate | 60 Hz |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 60 kHz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Design | |
|---|---|
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Performance | |
|---|---|
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 12.5 W |
| Power consumption (off) | 0.5 W |
| Packaging data | |
|---|---|
| Package width | 434 mm |
| Package depth | 175 mm |
| Package height | 375 mm |
| Package weight | 4.7 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Features | |
|---|---|
| Wall mountable | Yes |
| Technical details | |
|---|---|
| Full HD | No |
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 60 kHz |
| Depth (without stand) | 35.6 mm |
| Height (without stand) | 284.9 mm |
| Weight (without stand) | 2.9 kg |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Backlight type | LED |
| Power supply type | DC |
| Aspect ratio | 4:3 |
| Built-in camera | No |
